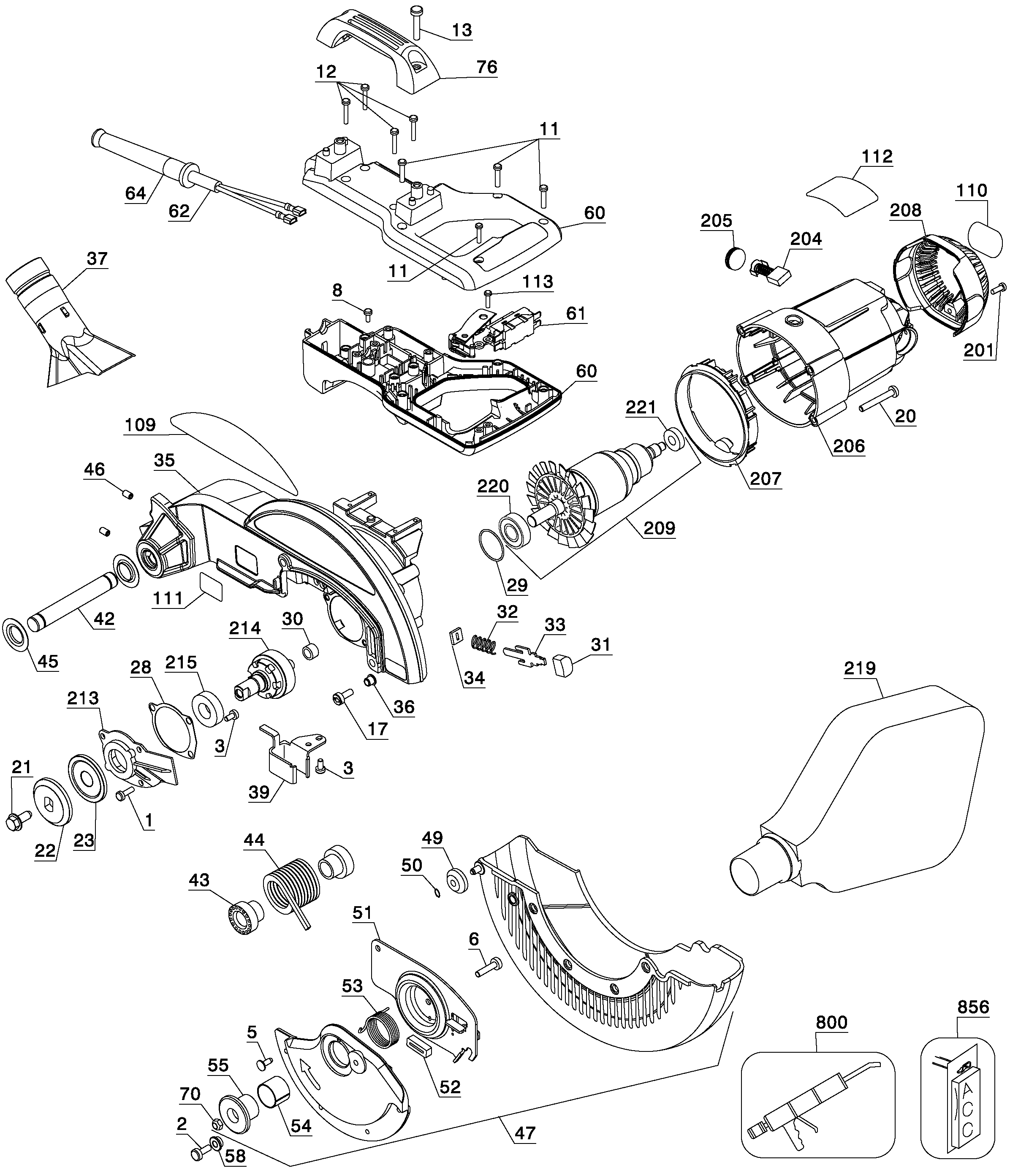

DW713 MITRE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 3 | SCREW | AR | |||
| 2 | 330045-23 | 3 | SCREW | AR | |||
| 3 | 330045-13 | 6 | SCREW | M5x0.8x10 MTL THDFMG | AR | ||
| 5 | N298367 | 4 | SCREW | AR | |||
| 6 | 330045-25 | 1 | SCREW.TEMP | M6x25 MTL THD FMG | AR | ||
| 7 | 330045-32 | 1 | SCREW | M8x1.25x20 MTLTHDFMG | AR | ||
| 8 | 330045-05 | 8 | SCREW | AR | |||
| 11 | 330019-32 | 4 | SCREW | AR | |||
| 12 | 330045-08 | 4 | SCREW | AR | |||
| 13 | 330019-22 | 2 | SCREW | M5.74x32 | AR | ||
| 14 | 098105-03 | 5 | SCREW | AR | |||
| 16 | 604410-00 | 3 | SCREW | AR | |||
| 17 | 394589-01 | 2 | SCREW | AR | |||
| 18 | 330045-33 | 1 | SCREW | AR | |||
| 19 | 153460-00 | 1 | SCREW | AR | |||
| 20 | 614375-00 | 4 | SCREW | AR | |||
| 21 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | AR | ||
| 22 | 650680-00 | 1 | WASHER OUTER CLAMP | AR | |||
| 23 | 141987-06 | 1 | WASHER INNER CLAMP | AR | |||
| 24 | 391358-01 | 1 | HOLDER | AR | |||
| 28 | 391632-00 | 1 | GASKET | AR | |||
| 29 | 701297-00 | 1 | SEAL | AR | |||
| 30 | 330004-06 | 1 | BEARING NEEDLE | AR | |||
| 31 | 145350-03 | 1 | BUTTON | AR | |||
| 32 | 398736-00 | 1 | SPRING | AR | |||
| 33 | 146714-00 | 1 | LOCK | AR | |||
| 34 | 146710-00 | 1 | WIPER | AR | |||
| 35 | N199293 | 1 | ARM | Inc. 30,36,109,111 | AR | ||
| 36 | 148608-00 | 2 | INSERT | AR | |||
| 37 | N126158 | 1 | CHUTE | AR | |||
| 39 | 393731-00 | 1 | GUARD | AR | |||
| 40 | 608563-02 | 1 | WRENCH SPECIAL | T30 x 13mm | AR | ||
| 42 | N126153 | 1 | PIVOT SHAFT | AR | |||
| 43 | 146732-00 | 2 | SPACER | AR | |||
| 44 | 391606-00 | 1 | SPRING | AR | |||
| 45 | 148296-00 | 2 | WASHER | AR | |||
| 46 | 150075-00 | 2 | SCREW | AR | |||
| 47 | N390970 | 1 | LOWER GUARD ASSY | Inc.5,6,49-55,70 | AR | ||
| 49 | 146774-00 | 1 | ROLLER | AR | |||
| 50 | 603232-00 | 1 | CIRCLIP | EXTERNAL | AR | ||
| 51 | 399139-00 | 1 | PIVOT | AR | |||
| 52 | 146768-00 | 1 | BUMPER | AR | |||
| 53 | 398735-00 | 1 | SPRING | AR | |||
| 54 | 148295-00 | 1 | SLEEVE | AR | |||
| 55 | N391680 | 1 | RETAINER | AR | |||
| 57 | 391630-00 | 1 | LINK | AR | |||
| 58 | 146740-01 | 1 | BUSH | AR | |||
| 59 | 399042-00 | 1 | BUSHING | AR | |||
| 60 | N126140 | 1 | HANDLE SA | AR | |||
| 61 | N169598 | 1 | SWITCH | AR | |||
| 62 | N152790 | 1 | CORD ASSY. | AR | |||
| 64 | 330005-02 | 1 | CORD PROTECTOR | AR | |||
| 70 | 385137-01 | 1 | NUT,STOP | AR | |||
| 76 | 396375-00 | 1 | HANDLE | AR | |||
| 80 | 391578-00 | 1 | TRUNNION | AR | |||
| 81 | 387130-00 | 1 | LOCKING PIN | AR | |||
| 82 | 034158-00 | 1 | O RING | AR | |||
| 83 | 149368-00 | 2 | SCREW | AR | |||
| 84 | 99368-04 | 2 | NUT | AR | |||
| 85 | 146760-02 | 1 | STUD | AR | |||
| 86 | 330016-04 | 1 | WASHER | AR | |||
| 87 | N126150 | 1 | HANDLE | AR | |||
| 88 | 642126-00 | 1 | FENCE | AR | |||
| 89 | 648857-01 | 1 | FENCE LH | INCL 217 | AR | ||
| 90 | N126145 | 1 | KNOB LOWER | AR | |||
| 91 | 640456-02 | 1 | ROTARY TABLE | COMPLETE W/MITER LOCK PARTS | AR | ||
| 92 | 649430-00 | 1 | LEVER LOCK | MITER | AR | ||
| 93 | 650051-00 | 1 | PLATE | MITER GUIDE | AR | ||
| 94 | N240659 | 1 | CLAMPING BAR | AR | |||
| 95 | 650130-00 | 1 | SPRING | AR | |||
| 97 | 391634-00 | 1 | POINTER | AR | |||
| 98 | 391631-00 | 1 | POINTER | AR | |||
| 99 | 146726-02 | 1 | PLATE | AR | |||
| 101 | 98025-25 | 1 | SCREW | AR | |||
| 102 | 153792-00 | 2 | WASHER | AR | |||
| 104 | 330021-02 | 1 | NUT | AR | |||
| 105 | N152784 | 1 | BASE | AR | |||
| 107 | N126155 | 1 | DETENT | AR | |||
| 108 | 391635-00 | 1 | RING | AR | |||
| 109 | 395021-00 | 1 | LABEL | AR | |||
| 110 | N200392 | 1 | BRAND LABEL | AR | |||
| 111 | 630403-00 | 1 | WARNING LABEL | AR | |||
| 112 | N399738 | 1 | NAME PLATE | AR | |||
| 113 | 330019-12 | 1 | SCREW | AR | |||
| 125 | 330045-22 | 2 | SCREW | M6X10, T30 | AR | ||
| 201 | 330019-11 | 2 | SCREW | M4.55x13 T20 | AR | ||
| 204 | 623919-00 | 2 | BRUSH & LEAD | SINGLE | AR | ||
| 205 | 614368-00 | 2 | BRUSH CAP | AR | |||
| 206 | 651765-00 | 1 | FIELDCASE SA | AR | |||
| 207 | 614366-00 | 1 | BAFFLE FAN | AR | |||
| 208 | N171521 | 1 | END CAP | AR | |||
| 209 | 623917-00 | 1 | ARMATURE 230V | AR | |||
| 213 | 391573-00 | 1 | GEARCASE COVER | AR | |||
| 214 | 392628-00 | 1 | SPINDLE & GEAR | AR | |||
| 215 | 330003-29 | 1 | BEARING,BALL | AR | |||
| 217 | 395301-00 | 1 | LABEL | AR | |||
| 218 | 394976-00 | 2 | LABEL | WARNING | AR | ||
| 219 | N126162 | 1 | DUST BAG SA | AR | |||
| 220 | 605040-27 | 1 | BEARING | AR | |||
| 221 | 330003-04 | 1 | BEARING | AR | |||
| 225 | 646819-00 | 1 | WARNING LABEL | AR | |||
| 226 | 650034-00 | 1 | CAM LEVER | AR | |||
| 227 | 626611-00 | 1 | PIN | AR | |||
| 228 | 626610-00 | 1 | ROD | AR | |||
| 229 | 621321-00 | 1 | NUT | MITER LOCK | AR | ||
| 230 | 621322-00 | 1 | NUT | MITER LOCK | AR | ||
| 231 | 058698-00 | 1 | SPRING | AR | |||
| 232 | 330016-03 | 1 | WASHER | AR | |||
| 233 | 650142-00 | 2 | SCREW | AR | |||
| 235 | 049787-00 | 1 | O RING | AR | |||
| 243 | N126163 | 1 | BAR | STABILIZER BAR | AR | ||
| 244 | 153460-05 | 1 | SCREW | AR | |||
| 800 | 93488-00 | 1 | GREASE | AR | |||
| 800 | 5140061-28 | 1 | GREASE | AR | |||
| 856 | DW7080 | 1 | EXTENSION SYSTEM | ACCESSORY | AR | ||
| 856 | DW7084 | 1 | STOP PLATE | AR | |||
| 856 | 153650-00 | 1 | CLAMP | AR | |||
| 856 | DW3114 | 1 | BLADE | 40T | AR | ||
| 856 | 5140050-83 | 1 | LENGTH STOP | WAS ACCY DW7051 | AR |
