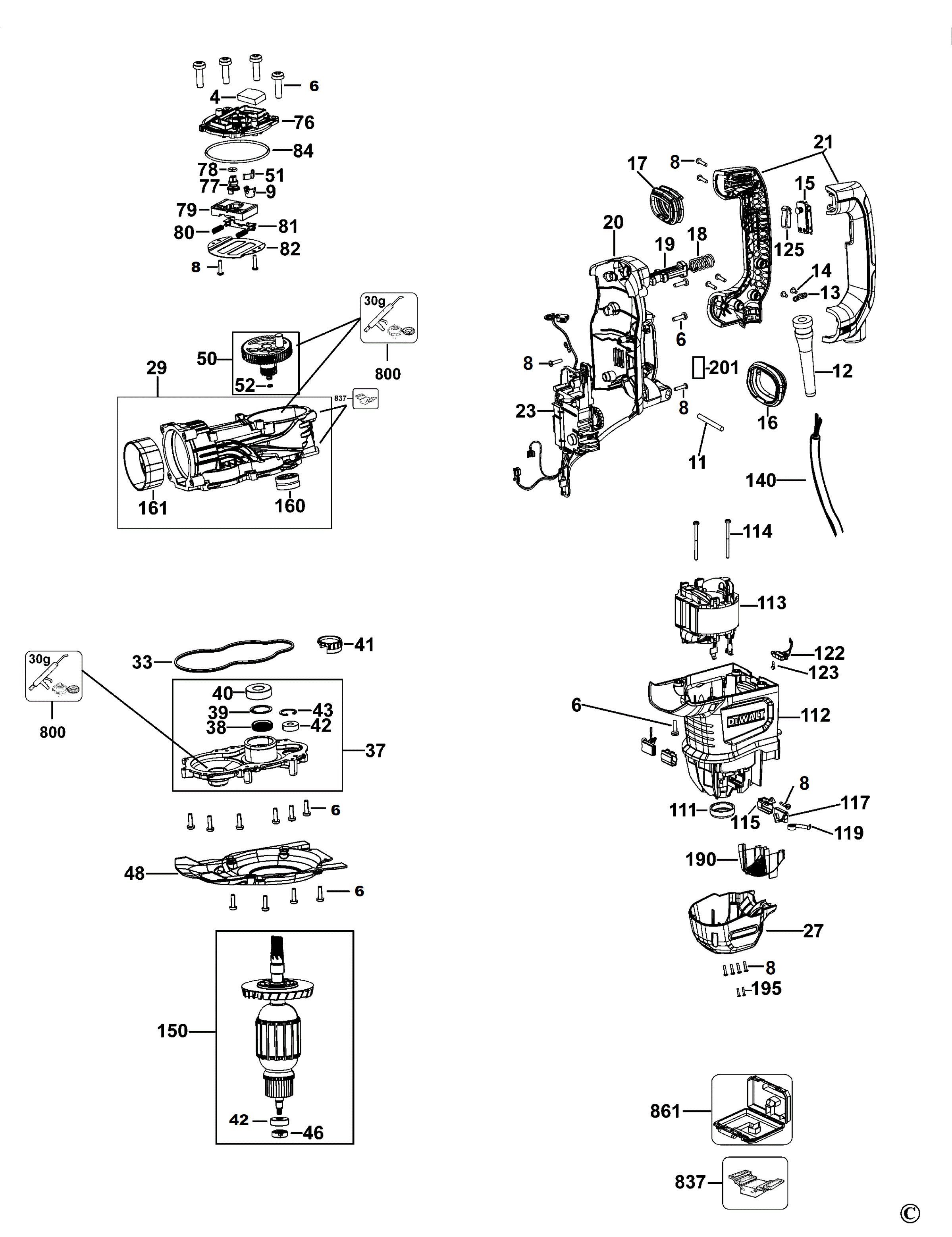

D25892K CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N402325 | 1 | SIDE LH | YELLOW | AR | ||
| 3 | N402326 | 1 | SIDE RH | YELLOW | AR | ||
| 4 | N481045 | 1 | FELT | AR | |||
| 5 | N513722 | 1 | COVER-TOP | CHIPPER BLACK | AR | ||
| 6 | N548557 | 26 | SCREW | M5 X 18 T25 | AR | ||
| 7 | N463694 | 1 | SELECTOR | MODE | AR | ||
| 8 | 330065-08 | 14 | SCREW | M4x18 T20 | AR | ||
| 9 | N607940 | 1 | CAP | AR | |||
| 11 | N453525 | 1 | PIN | 6 X 60 | AR | ||
| 12 | 323091-01 | 1 | CORD PROTECTOR | AR | |||
| 13 | 329301-00 | 1 | CORD CLAMP | AR | |||
| 14 | 330065-05 | 2 | SCREW | AR | |||
| 15 | N467531 | 1 | SWITCH | AR | |||
| 16 | N453629 | 1 | BELLOWS | LOWER | AR | ||
| 17 | N453630 | 1 | BELLOWS | UPPER | AR | ||
| 18 | N501559 | 1 | SPRING | 31.75 X 18.29 | AR | ||
| 19 | N152623 | 1 | STOP | AR | |||
| 20 | N528838 | 1 | PANEL.REAR | NO LED | AR | ||
| 21 | N520597 | 1 | HANDLE SET | AR | |||
| 23 | N592365 | 1 | CONTROL MODULE SA | B5 | AR | ||
| 27 | N389340 | 1 | END CAP | AR | |||
| 29 | N583769 | 1 | HOUSING SA | AR | |||
| 33 | N447147 | 1 | SEAL | 8-10KG | AR | ||
| 37 | N580507 | 1 | GEARCASE COVER SA | AR | |||
| 38 | N422626 | 1 | SEAL | AR | |||
| 39 | 488147-01 | 1 | CIRCLIP | AR | |||
| 40 | N110363 | 1 | BEARING | AR | |||
| 41 | N537281 | 1 | SPACER | AR | |||
| 42 | N110359 | 2 | BEARING | AR | |||
| 43 | N362699 | 1 | CIRCLIP | AR | |||
| 46 | N466979 | 1 | MAGNET | AR | |||
| 48 | N405298 | 1 | BAFFLE | AR | |||
| 50 | N580511 | 1 | CRANKSHAFT | AR | |||
| 51 | N520790 | 1 | DETENT | AR | |||
| 52 | N537973 | 1 | O RING | AR | |||
| 57 | 487296-00 | 2 | O RING | AR | |||
| 58 | N580516 | 1 | CYLINDER SA | 10kg | AR | ||
| 59 | N587667 | 3 | O RING | AR | |||
| 60 | N580521 | 1 | RAM SA | 10KG | AR | ||
| 62 | N400498 | 1 | BUSH | AR | |||
| 63 | N560441 | 1 | SWITCH | AR | |||
| 64 | N476023 | 1 | DAMPER | AR | |||
| 65 | N515559 | 1 | DAMPER | AR | |||
| 66 | N389693 | 1 | WASHER | AR | |||
| 67 | N580522 | 1 | SPINDLE | 10KG | AR | ||
| 68 | N580524 | 1 | SPINDLE | 10KG SDS MAX | AR | ||
| 69 | N548304 | 5 | PIN | 9 X 6.4 | AR | ||
| 70 | N475966 | 1 | RING | AR | |||
| 71 | N514255 | 1 | DAMPER | AR | |||
| 72 | N392234 | 2 | WASHER | AR | |||
| 73 | N580525 | 1 | BEAT PIECE | 10KG | AR | ||
| 74 | N594490 | 1 | SEAL | 25 X 33 X 4.3 | AR | ||
| 75 | N432561 | 1 | O RING | 25 X 4 | AR | ||
| 76 | N409943 | 1 | COVER | AR | |||
| 77 | N504016 | 1 | ECCENTRIC | AR | |||
| 78 | N515556 | 1 | O RING | 8 X 2.2 | AR | ||
| 79 | N410143 | 1 | SLIDER | AR | |||
| 80 | N520791 | 2 | SPRING | AR | |||
| 81 | N410898 | 1 | CONNECTOR | AR | |||
| 82 | N427022 | 1 | PLATE | AR | |||
| 84 | N455140 | 1 | O RING | 81 X 3 | AR | ||
| 86 | N481044 | 1 | SLIDER | 10KG | AR | ||
| 88 | N580533 | 1 | SLEEVE | AR | |||
| 89 | N497938 | 1 | SPRING | AR | |||
| 90 | N580535 | 1 | HOUSING FRONT | AR | |||
| 93 | N392582 | 1 | SEAL | AR | |||
| 94 | N181847 | 1 | LOCKING RING | AR | |||
| 95 | N416527 | 1 | COVER | AR | |||
| 96 | N431324 | 1 | GASKET | AR | |||
| 97 | N420195 | 1 | BUSH | AR | |||
| 98 | 949886-32 | 4 | SCREW | AR | |||
| 99 | N516486 | 1 | GUIDE | AR | |||
| 100 | N520784 | 1 | SPRING | AR | |||
| 101 | N520782 | 1 | SPRING | AR | |||
| 102 | N408040 | 1 | BUSH | AR | |||
| 103 | N511836 | 2 | LOCKING DEVICE | AR | |||
| 104 | N511805 | 1 | DAMPER | AR | |||
| 105 | N511834 | 1 | BUSH | AR | |||
| 106 | N468816 | 1 | SLEEVE | AR | |||
| 107 | 487244-00 | 1 | RUBBER | AR | |||
| 108 | N516487 | 1 | WASHER | AR | |||
| 109 | N522784 | 1 | RETAINER | 28 X 2.5 | AR | ||
| 110 | 487238-01 | 1 | SEAL | AR | |||
| 111 | N449094 | 1 | COVER BEARING | AR | |||
| 112 | N580536 | 1 | HOUSING MOTOR | AR | |||
| 113 | N580537 | 1 | FIELD 230V | AR | |||
| 114 | 330019-30 | 2 | SCREW | AR | |||
| 115 | N425665 | 2 | BRUSH HOLDER SA | AR | |||
| 117 | N581443 | 1 | BRUSH PAIR 230V | AR | |||
| 119 | N523745 | 2 | BRUSH SPRING | AR | |||
| 122 | N448156 | 1 | COIL | AR | |||
| 123 | N086775 | 1 | SCREW | AR | |||
| 125 | 488065-01 | 1 | TRIGGER | AR | |||
| 136 | N580512 | 1 | PISTON SA | AR | |||
| 140 | 1005760-00 | 1 | CORDSET | AR | |||
| 150 | N580509 | 1 | ARMATURE 230V | AR | |||
| 151 | N110359 | 1 | BEARING | AR | |||
| 160 | N408073 | 1 | BEARING,NEEDLE | AR | |||
| 161 | N408081 | 1 | BUSH | AR | |||
| 165 | N578605 | 1 | FELT | AR | |||
| 190 | N602345 | 1 | COVER | AR | |||
| 195 | 330019-04 | 2 | SCREW | AR | |||
| 201 | N551321 | 1 | RATING LABEL | D25892-AR TY1 | AR | ||
| 221 | 487291-00 | 1 | KNOB SA | AR | |||
| 222 | 479317-00 | 2 | WASHER LOCK | AR | |||
| 223 | 479319-00 | 2 | CLAMPING INSERT | AR | |||
| 224 | 479320-00 | 2 | WASHER CLAMP | AR | |||
| 226 | 487343-00 | 1 | BOLT | AR | |||
| 227 | N470872 | 1 | LOOP HANDLE | AR | |||
| 300 | N593932 | 1 | SERVICE KIT 230V | 10KG CHIPPER | AR | ||
| 800 | 578970-04 | 1 | GREASE | 80g | AR | ||
| 800 | 578970-06 | 1 | GREASE 150 GMS | AR | |||
| 837 | 1003973-99 | 1 | S.T.SEAL FITTING TOOL | 8-10KG | AR | ||
| 837 | 1003975-99 | 1 | S.T.INSERTION TOOL | FRONT HOUSING | AR | ||
| 837 | 1003974-99 | 1 | S.T.SUPPORT JIG | MAIN HOUSING | AR | ||
| 837 | 1003971-99 | 1 | S.T.SEAL FITTING TOOL | 8KG BEATPIECE | AR | ||
| 839 | 1003979-99 | 1 | S.T.BEARING INSERTOR | AR | |||
| 840 | 1003978-99 | 1 | S.T.INSERTION TOOL | AR | |||
| 841 | 1003977-99 | 1 | S.T.PULLER | AR | |||
| 861 | N508182 | 1 | KITBOX | AR |
