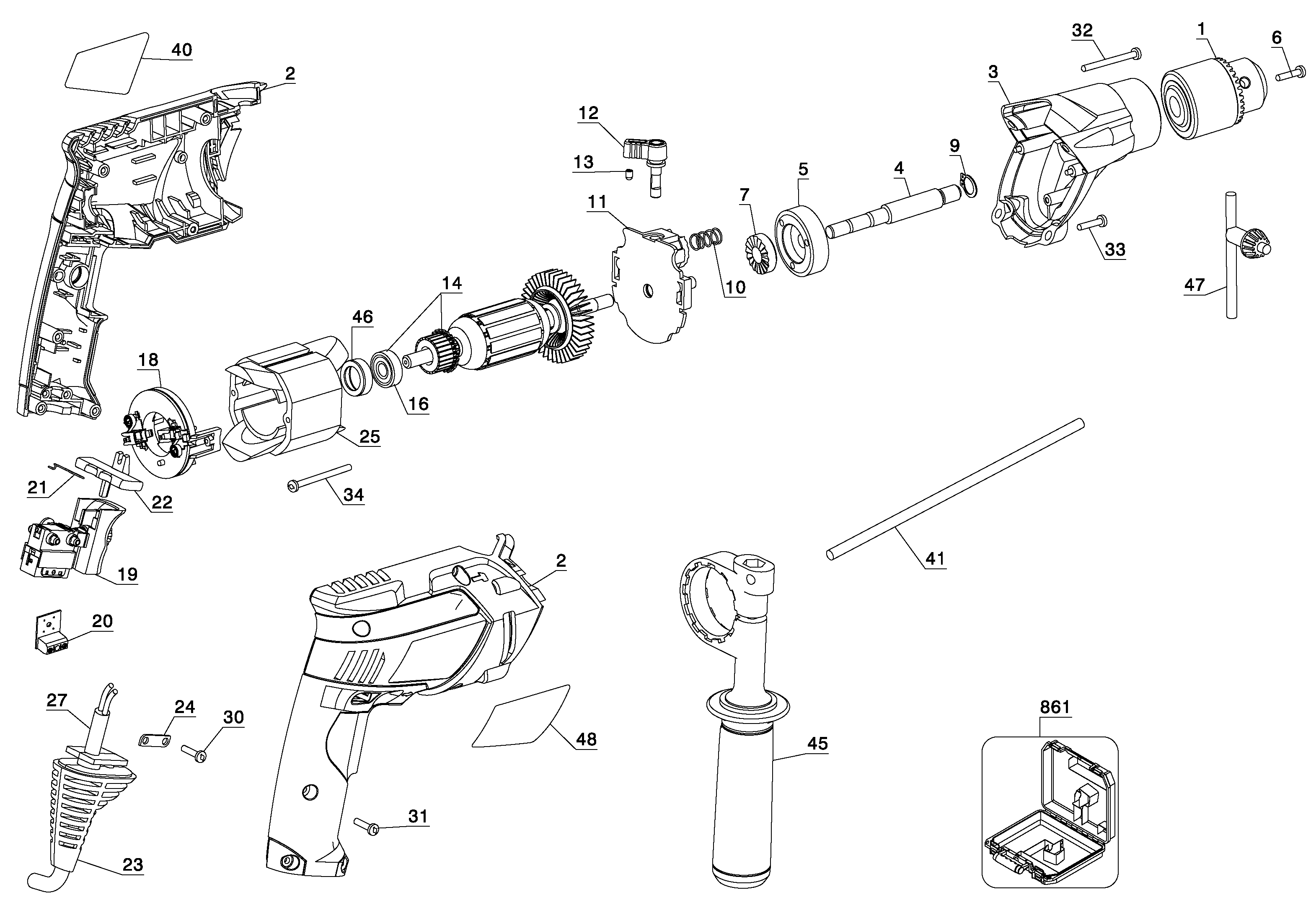

KR750 DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330033-23 | 1 | CHUCK 13MM | AR | |||
| 2 | 490560-00 | 1 | CLAMSHELL | AR | |||
| 3 | 90550891 | 1 | GEARCASE ASSY | AR | |||
| 4 | 90550546 | 1 | SPINDLE ASSEMBLY | INCL. 4,5,7,9 | AR | ||
| 5 | 90550546 | 1 | SPINDLE ASSEMBLY | INCL. 4,5,7,9 | AR | ||
| 6 | 90552945 | 1 | SCREW.SPECIAL | M5 x 18mm LH | AR | ||
| 7 | 622172-01 | 1 | RATCHET | AR | |||
| 9 | 144917-00 | 1 | RETAINING RING | AR | |||
| 10 | 491055-00 | 1 | SPRING | AR | |||
| 11 | 488624-00SV | 1 | BEARING HOUSING | AR | |||
| 12 | 490715-00SV | 1 | SHIFTER ASSY | AR | |||
| 13 | 326467-00 | 1 | DETENT | AR | |||
| 14 | 645700-01 | 1 | ARMATURE | 230V | AR | ||
| 16 | 606290-01 | 1 | BEARING | AR | |||
| 18 | 637916-03 | 2 | BRUSH | AR | |||
| 18 | 90525184 | 1 | BRUSH HOLDER SA | AR | |||
| 19 | 90541944 | 1 | SWITCH SA | AR | |||
| 20 | 90550895 | 1 | PCB ASSEMBLY | AR | |||
| 21 | 629167-00 | 1 | SPRING | AR | |||
| 22 | 629168-00 | 1 | LEVER | AR | |||
| 23 | 635395-00 | 1 | CORD PROTECTOR | AR | |||
| 24 | 329301-00 | 1 | CORD CLAMP | AR | |||
| 25 | 645699-01 | 1 | FIELD SA | 230V | AR | ||
| 27 | 573379-14 | 1 | CORDSET | AR | |||
| 30 | 330019-38 | 2 | SCREW | AR | |||
| 31 | 330019-04 | 6 | SCREW | AR | |||
| 32 | 90519646 | 2 | SCREW | M4.55X50 T20 | AR | ||
| 33 | 90519773 | 2 | SCREW | M4.55X22 T20 | AR | ||
| 34 | 330019-63 | 2 | SCREW | AR | |||
| 40 | 493395-00 | 1 | LABEL | AR | |||
| 41 | 580787-00 | 1 | DEPTH STOP | AR | |||
| 45 | 636309-02 | 1 | HANDLE SIDE SA | AR | |||
| 46 | 635176-00 | 1 | SLEEVE | AR | |||
| 47 | 90634055 | 1 | KEY | AR | |||
| 48 | 90550558 | 1 | NAME PLATE | KR750-AR TY.2 | AR | ||
| 861 | 615390-00N | 1 | KIT BOX | Optional | AR |
