SST1801 TABLE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 5140147-55 | 4 | SCREW | AR | |||
| 3 | 5140147-58 | 7 | SCREW | AR | |||
| 4 | 1004740-65 | 1 | OVERLOAD PROTECTOR | SWITCH | AR | ||
| 5 | 5140147-59 | 1 | SWITCH | AR | |||
| 6 | 1004740-66 | 1 | SWITCH | AR | |||
| 11 | 5140243-25 | 1 | FRONT PANEL | AR | |||
| 12 | 5140147-63 | 2 | LOCK NUT | AR | |||
| 13 | 5140147-64 | 1 | WHEEL | AR | |||
| 14 | 5140146-75 | 18 | WASHER | AR | |||
| 15 | 5140147-65 | 1 | HANDLE | AR | |||
| 16 | 5140147-66 | 3 | WASHER | AR | |||
| 17 | 5140147-67 | 1 | SCREW | AR | |||
| 18 | 5140147-69 | 2 | ANGLE | AR | |||
| 19 | 1004740-69 | 2 | SCREW | M5x14 | AR | ||
| 20 | 5140147-72 | 1 | RACK | AR | |||
| 21 | 5140147-73 | 3 | SCREW | AR | |||
| 22 | 5140147-36 | 15 | SCREW | AR | |||
| 23 | 5140147-74 | 1 | POINTER | AR | |||
| 24 | 5140146-14 | 1 | WASHER SPRING | AR | |||
| 25 | 5140147-75 | 5 | NUT M4 | AR | |||
| 26 | 5140147-71 | 5 | SCREW | AR | |||
| 27 | 5170038-07 | 1 | BODY | AR | |||
| 28 | 5140147-76 | 4 | WASHER | AR | |||
| 29 | 5140160-24 | 1 | BRAND LABEL | AR | |||
| 30 | 5140149-04 | 1 | CLAMP | AR | |||
| 31 | 5170014-35 | 4 | SCREW | M4X10 SCREW | AR | ||
| 32 | 1004741-75 | 2 | SCREW | M5x25 | AR | ||
| 33 | 5140147-68 | 2 | HOOK | AR | |||
| 34 | 5140149-09 | 3 | NUT M5 | AR | |||
| 35 | 1004740-72 | 4 | SCREW | M6x25 | AR | ||
| 36 | 1004740-73 | 1 | SCREW | M6x24 | AR | ||
| 37 | 5140147-81 | 1 | BLOCK | AR | |||
| 38 | 5140147-82 | 1 | WASHER | AR | |||
| 39 | 5140147-83 | 1 | NUT M6 | AR | |||
| 40 | 5140147-84 | 1 | SPRING TORSION | AR | |||
| 41 | 5170037-75 | 1 | GUARD | AR | |||
| 42 | 1004766-88 | 1 | SHAFT | AR | |||
| 43 | 1004766-89 | 1 | SCREW | AR | |||
| 44 | 5140151-46 | 1 | HANDLE | AR | |||
| 45 | 5140147-89 | 1 | RING | AR | |||
| 46 | 5140147-90 | 1 | WASHER | AR | |||
| 47 | 5140147-91 | 1 | SCREW | AR | |||
| 48 | 5140147-92 | 1 | SLEEVE | AR | |||
| 49 | 5140147-93 | 1 | BLOCK | AR | |||
| 50 | 5140147-94 | 1 | SLEEVE | AR | |||
| 51 | 5140147-95 | 1 | BAR | AR | |||
| 52 | 5140147-96 | 10 | SCREW | AR | |||
| 53 | 5140147-97 | 2 | GEAR | AR | |||
| 54 | 5140147-98 | 2 | SCREW | AR | |||
| 55 | 5140147-99 | 1 | Seat | AR | |||
| 56 | 5170014-36 | 9 | SCREW | M4X 6 SCREW | AR | ||
| 57 | 5140148-00 | 1 | SUPPORT | AR | |||
| 58 | 5170014-32 | 4 | SCREW | M5X10 screw | AR | ||
| 59 | 5140148-01 | 1 | BAR | AR | |||
| 60 | 5140148-02 | 2 | BLOCK | AR | |||
| 61 | 5140148-03 | 8 | WASHER | AR | |||
| 62 | 5140148-04 | 6 | SCREW | M6x16 | AR | ||
| 63 | 5140148-13 | 8 | WASHER SPRING | AR | |||
| 64 | 5170014-33 | 2 | SCREW | M5×12; M5X12 screw | AR | ||
| 65 | 5140148-05 | 1 | BAR | AR | |||
| 66 | 1004767-06 | 1 | GUARD | AR | |||
| 67 | 5140148-57 | 23 | SCREW | AR | |||
| 68 | 1004740-76 | 1 | GUARD | AR | |||
| 69 | 5140147-79 | 6 | SCREW | AR | |||
| 70 | 5140148-08 | 2 | BOARD | AR | |||
| 71 | 5140148-09 | 2 | WASHER | AR | |||
| 72 | 5140148-10 | 1 | SUPPORT | AR | |||
| 73 | 5140151-48 | 1 | BAR | AR | |||
| 74 | 5140148-12 | 1 | BLOCK | AR | |||
| 75 | 1004740-54 | 1 | SCREW | M6x8 | AR | ||
| 76 | 5140146-24 | 2 | LOCK NUT | AR | |||
| 77 | 5140148-15 | 3 | WASHER | AR | |||
| 78 | 5140148-16 | 1 | BLOCK | AR | |||
| 79 | 5170037-76 | 1 | WASHER | AR | |||
| 81 | 5140148-17 | 1 | COVER | AR | |||
| 82 | 5140151-49 | 1 | NUT | AR | |||
| 83 | 5140148-19 | 1 | OUTER FLANGE | AR | |||
| 85 | 5140149-03 | 1 | CLAMP | AR | |||
| 86 | 5140148-75 | 1 | PUSH BLOCK | AR | |||
| 87 | 5140153-01 | 1 | RING | AR | |||
| 88 | 5140151-51 | 1 | INNER FLANGE | AR | |||
| 89 | 5140151-47 | 3 | SCREW | AR | |||
| 90 | 5140148-21 | 1 | BEARING HOLDER | AR | |||
| 91 | 5140148-22 | 1 | BEARING | AR | |||
| 92 | 5140149-06 | 1 | PIECE | AR | |||
| 93 | 5140149-07 | 1 | BOARD | AR | |||
| 94 | 5140148-23 | 1 | SPRING | AR | |||
| 95 | 5140148-24 | 1 | OUTPUT SHAFT | AR | |||
| 96 | 5140148-25 | 1 | KEY | AR | |||
| 97 | 5140148-26 | 1 | GEAR | AR | |||
| 98 | 5140148-27 | 1 | CIRCLIP | AR | |||
| 99 | 5140148-28 | 1 | BEARING,NEEDLE | AR | |||
| 100 | 5140148-29 | 1 | COVER | AR | |||
| 101 | 5140146-31 | 1 | LOCK NUT | AR | |||
| 102 | 5140148-30 | 1 | WASHER | AR | |||
| 103 | 5140148-31 | 1 | BEARING 6202 | ID: 15MM OD: 35MM | AR | ||
| 104 | 5140148-32 | 1 | BAR | AR | |||
| 105 | 5140150-96 | 1 | ARMATURE | 220V | AR | ||
| 106 | 5140148-34 | 1 | BEARING | AR | |||
| 107 | 5140148-35 | 2 | SCREW | AR | |||
| 108 | 5140150-97 | 1 | FIELD | 220V | AR | ||
| 109 | 5140148-37 | 1 | SHROUD | AR | |||
| 110 | 5140148-38 | 1 | HOUSING MOTOR | AR | |||
| 111 | 5140148-39 | 2 | BRUSH HOLDER 230V | AR | |||
| 112 | 5140147-54 | 1 | BRUSH 230V | 220V | AR | ||
| 113 | 5140148-39 | 2 | BRUSH HOLDER 230V | AR | |||
| 114 | 5140149-08 | 1 | CORD PROTECTOR | AR | |||
| 115 | 5140243-22 | 1 | CORDSET | AR | |||
| 116 | 5140167-86 | 1 | CORD PROTECTOR | AR | |||
| 117 | 5140148-42 | 3 | SCREW | AR | |||
| 118 | 5140145-99 | 9 | WASHER SPRING | AR | |||
| 119 | 5140148-43 | 19 | WASHER | AR | |||
| 120 | 1004767-28 | 3 | SCREW | AR | |||
| 121 | 1004740-77 | 1 | LABEL - SCALE | AR | |||
| 122 | 1004740-78 | 1 | BOARD | ANGLE | AR | ||
| 123 | 5140148-45 | 1 | WASHER | AR | |||
| 124 | 1004740-79 | 1 | HANDLE | M6x18 | AR | ||
| 126 | 1004740-80 | 1 | POINTER | AR | |||
| 127 | 1004740-81 | 1 | PLATE | AR | |||
| 128 | 1004740-82 | 1 | WASHER | AR | |||
| 129 | 1004740-83 | 1 | SCREW | M6 | AR | ||
| 134 | 5170037-79 | 1 | RIVING KNIFE | AR | |||
| 135 | 5140148-76 | 1 | BOARD | AR | |||
| 136 | 5140148-77 | 1 | BOARD | AR | |||
| 137 | 5140148-78 | 1 | SCREW | AR | |||
| 138 | 5140146-38 | 1 | PIN | AR | |||
| 139 | 5140148-79 | 1 | KNOB SA | AR | |||
| 140 | 1004740-87 | 1 | END EXTRUSION | AR | |||
| 141 | 1004740-88 | 2 | PIN | 5x11 | AR | ||
| 142 | 1004740-89 | 1 | CONNECTING ROD | AR | |||
| 143 | 1004740-90 | 1 | PIN | AR | |||
| 144 | 1004740-91 | 1 | PIN | 5x11 | AR | ||
| 145 | 1004740-92 | 1 | LOCK | AR | |||
| 146 | 1004740-93 | 1 | PIN | 5x28 | AR | ||
| 147 | 1004740-94 | 1 | PIN | 5x30 | AR | ||
| 148 | 1004740-95 | 2 | FASTENER | FENCE | AR | ||
| 149 | 1004740-96 | 1 | FENCE | AR | |||
| 150 | 1004740-97 | 1 | POINTER | AR | |||
| 151 | 1004740-98 | 2 | SCREW | M3 | AR | ||
| 152 | 1004741-00 | 1 | BLOCK | AR | |||
| 154 | 1004741-02 | 2 | WASHER | AR | |||
| 157 | 5170037-80 | 1 | ROD | AR | |||
| 158 | 5170037-81 | 1 | FENCE | AR | |||
| 159 | 1004741-07 | 1 | PIN | 5x40 | AR | ||
| 160 | 1004741-08 | 1 | END CAP | AR | |||
| 161 | 1004741-09 | 1 | SPRING | AR | |||
| 162 | 1004741-10 | 1 | FASTENER | AR | |||
| 163 | 1004741-11 | 1 | SPRING | AR | |||
| 164 | 1004741-12 | 1 | CONTROL SCREW | AR | |||
| 165 | 1004741-13 | 1 | BLOCK | AR | |||
| 166 | 1004741-14 | 1 | INSERT | AR | |||
| 167 | 1004767-90 | 1 | SCREW | M5 | AR | ||
| 168 | 1004767-91 | 1 | SPRING | AR | |||
| 169 | 1004741-15 | 2 | COVER | AR | |||
| 172 | 5170037-82 | 2 | 1BLOCK | AR | |||
| 173 | 1004741-18 | 4 | NUT | M6 | AR | ||
| 175 | 5170037-83 | 1 | ROD | AR | |||
| 177 | 5170037-84 | 2 | LINK | AR | |||
| 178 | 5170037-85 | 2 | LINK | AR | |||
| 179 | 5170037-86 | 1 | POINTER | AR | |||
| 181 | 1004741-26 | 2 | COVER | AR | |||
| 182 | 5170037-87 | 4 | SCREW | M5*12 | AR | ||
| 183 | 5170037-88 | 1 | PANEL | AR | |||
| 185 | 5170037-89 | 1 | ROD | AR | |||
| 186 | 5170037-90 | 1 | SCALE | AR | |||
| 187 | 1004741-32 | 2 | COVER | AR | |||
| 188 | 5140148-84 | 1 | BOARD | AR | |||
| 189 | 1004741-33 | 4 | SCREW | M6x16 | AR | ||
| 190 | 1004741-34 | 2 | PAD | AR | |||
| 191 | 5170037-91 | 1 | COVER | AR | |||
| 192 | 5170037-92 | 1 | ROD | AR | |||
| 193 | 1004741-37 | 2 | FASTENER | AR | |||
| 194 | 1004741-38 | 2 | RING | AR | |||
| 195 | 1004741-39 | 2 | SPRING | AR | |||
| 196 | 1004741-40 | 1 | NUT | M8 | AR | ||
| 197 | 1004741-41 | 1 | NUT | CONTROL | AR | ||
| 198 | 1004741-42 | 1 | NUT | M8 | AR | ||
| 199 | 1004741-43 | 1 | BAR | AR | |||
| 200 | 1004767-73 | 1 | ADJUSTER | AR | |||
| 201 | 1004741-45 | 2 | RIVET | 3x12 | AR | ||
| 202 | 1004741-46 | 2 | BLOCK | AR | |||
| 203 | 1004741-47 | 2 | PIN | 4.5x1.9 | AR | ||
| 204 | 1004741-48 | 1 | FASTENER | AR | |||
| 205 | 1004741-49 | 1 | FASTENER | AR | |||
| 206 | 1004741-50 | 2 | CIRCLIP | AR | |||
| 207 | 1004741-51 | 1 | BAR | FASTEN | AR | ||
| 208 | 1004741-52 | 2 | WASHER | 20×15×0.5 | AR | ||
| 209 | 1004741-53 | 1 | FASTENER | AR | |||
| 210 | 5170014-34 | 1 | BOLT | M5x12; M5X12 BOLT | AR | ||
| 211 | 1004741-55 | 1 | PLATE | AR | |||
| 212 | 1004741-56 | 2 | PAD | AR | |||
| 213 | 1004741-57 | 2 | SPRING TORSION | AR | |||
| 214 | 1004741-58 | 1 | ROLLER | PIN | AR | ||
| 216 | 5140147-56 | 1 | BOARD | AR | |||
| 217 | 5140153-02 | 2 | WRENCH SPECIAL | AR | |||
| 218 | 5140153-03 | 1 | WRENCH SPECIAL | AR | |||
| 219 | 5140153-04 | 1 | WRENCH SPECIAL | AR | |||
| 220 | 1004740-55 | 4 | CIRCLIP | AR | |||
| 221 | 5140149-11 | 4 | SCREW | AR | |||
| 222 | 5140149-12 | 4 | BOARD | AR | |||
| 223 | 5140149-13 | 2 | SHAFT | AR | |||
| 224 | 5140149-14 | 2 | WHEEL | AR | |||
| 226 | 1004742-05 | 1 | BLOCK SA | AR | |||
| 227 | 5170037-93 | 1 | FANCASE KIT | AR | |||
| 228 | 5170037-94 | 1 | GUARD SA | AR | |||
| 229 | 1004742-03 | 1 | RIVING KNIFE | SA | AR | ||
| 230 | 1004742-08 | 1 | ARMATURE SA | AR | |||
| 231 | 1004742-34 | 1 | SHAFT SA | AR | |||
| 232 | 5170037-96 | 1 | SWITCH KIT | AR | |||
| 233 | 1004742-07 | 1 | HANDLE SA | AR | |||
| 236 | 1004741-59 | 1 | SCREW | M6x4 | AR | ||
| 237 | 1004741-60 | 2 | COVER | AR | |||
| 238 | 1004741-61 | 1 | FENCE | AR | |||
| 239 | 1004741-62 | 1 | NUT | AR | |||
| 240 | 1004741-63 | 2 | SCREW | M5x8 | AR | ||
| 241 | 1004741-64 | 1 | FLAP | AR | |||
| 242 | 1004741-65 | 1 | SPRING | AR | |||
| 243 | 1004741-66 | 1 | PIN | 3x331 | AR | ||
| 244 | 1004741-67 | 1 | FLAP | AR | |||
| 245 | 1004741-68 | 1 | WASHER | 5×15×3 | AR | ||
| 246 | 1004741-69 | 1 | SPRING | AR | |||
| 249 | 5170037-97 | 7 | SCREW | ST3.9×16 | AR | ||
| 250 | 5170037-98 | 1 | BRACKET LH | AR | |||
| 251 | 5170037-99 | 1 | BRACKET RH | AR | |||
| 252 | 5170038-01 | 1 | SCREW | AR | |||
| 253 | 5170038-02 | 1 | COVER LH | AR | |||
| 254 | 5170038-03 | 1 | COVER RH | AR | |||
| 255 | 5170038-04 | 1 | SCREW | M5 | AR | ||
| 256 | 5170038-05 | 2 | SPRING | AR | |||
| 257 | 5170038-06 | 1 | SPRING | AR | |||
| 258 | 5140147-80 | 4 | WASHER | AR | |||
| 301 | 5140151-52 | 2 | PIECE | AR | |||
| 302 | 5140149-17 | 32 | NUT M6 | AR | |||
| 303 | 5140149-18 | 32 | BOLT | AR | |||
| 304 | 5140151-53 | 2 | PIECE | AR | |||
| 305 | 5140151-54 | 2 | PIECE | AR | |||
| 306 | 5140151-55 | 2 | PIECE | AR | |||
| 307 | 5140151-56 | 4 | BAR | AR | |||

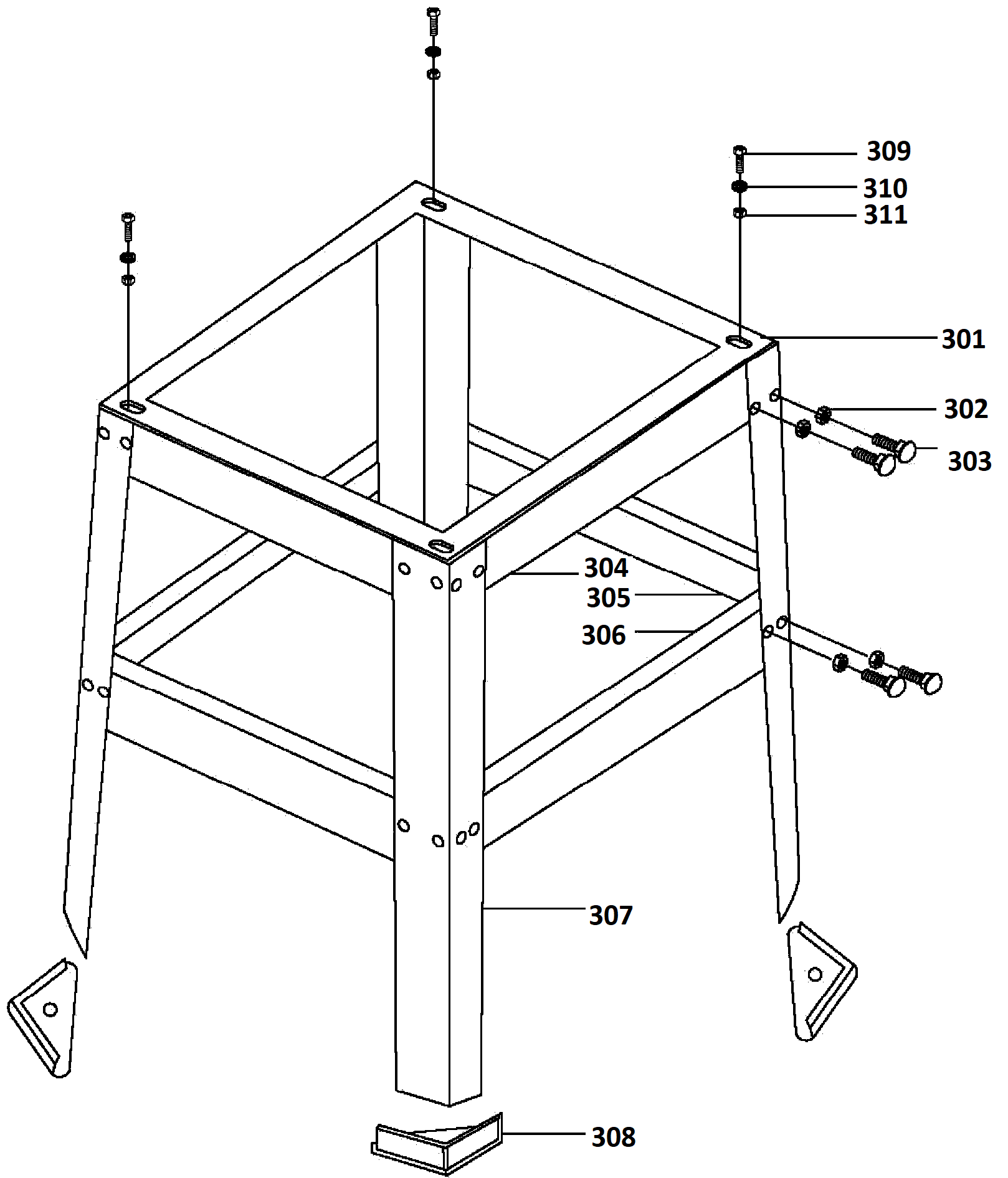

| 308 | 5140149-23 | 4 | FOOT | AR | |||
| 309 | 5140149-24 | 4 | BOLT | AR | |||
| 310 | 5140149-25 | 4 | WASHER | AR | |||
| 311 | 5140148-81 | 4 | NUT | AR |
