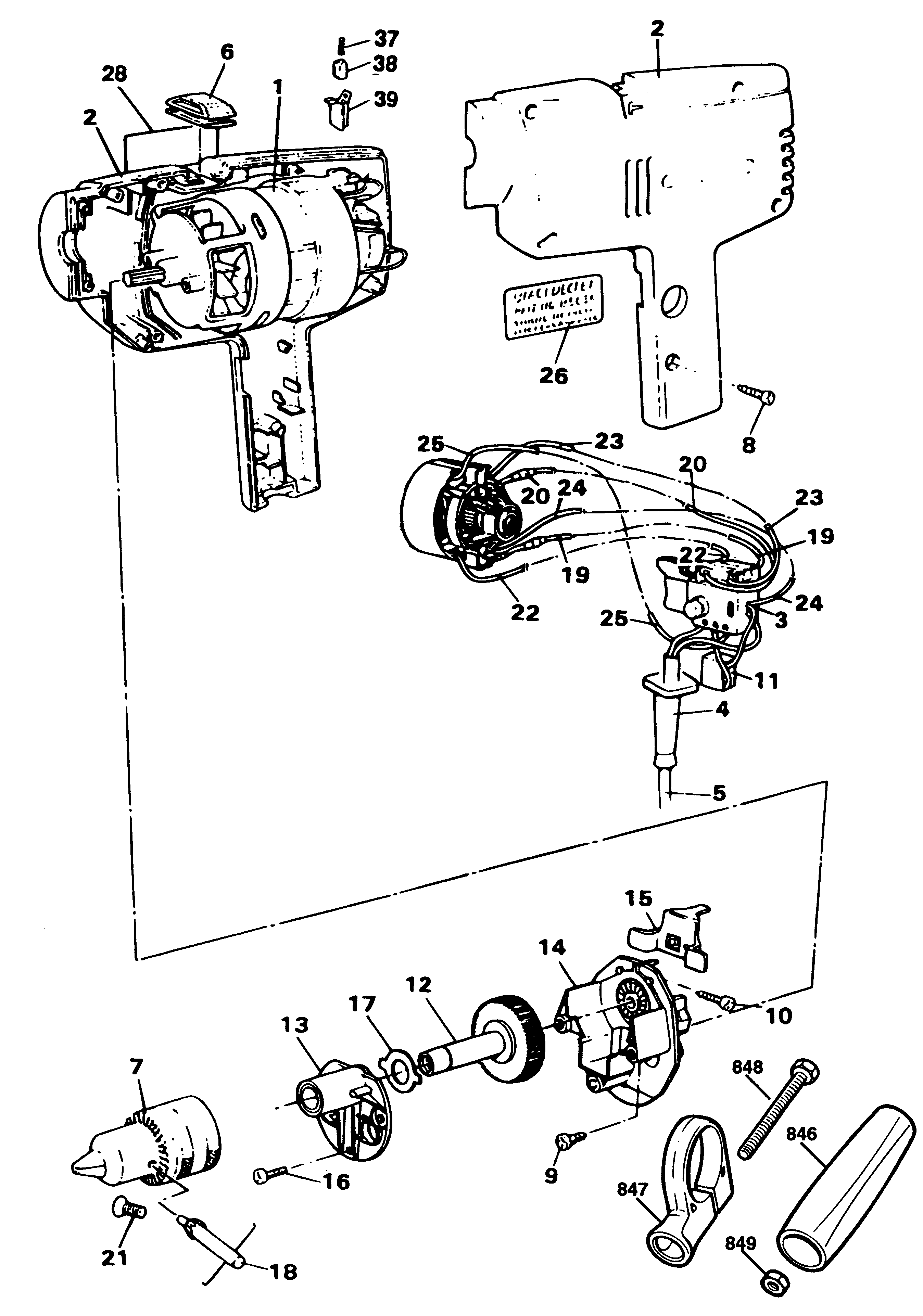

BD504 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | 890184 | 1 | CORD PROTECTOR | CH | |||
| 6 | 831244 | 1 | BUTTON | CH | |||
| 7 | 330033-15 | 1 | CHUCK 10MM | CHUCK S2A | CH | ||
| 7 | 847430 | 1 | CHUCK 10MM | CHUCK NON S2A | CH | ||
| 8 | 812170 | 5 | SCREW | CH | |||
| 9 | 812171 | 2 | SCREW | CH | |||
| 10 | 810269 | 2 | SCREW | CH | |||
| 11 | 807285-06 | 1 | CAPACITOR | CH | |||
| 12 | 747928 | 1 | SPINDLE & GEAR | BD504--H1D | CH | ||
| 13 | 825724 | 1 | GEARCASE COVER SA | CH | |||
| 14 | 827393 | 1 | GEARCASE SA | CH | |||
| 15 | 839008 | 1 | WASHER THRUST | CH | |||
| 16 | 812171 | 3 | SCREW | CH | |||
| 17 | 812991 | 1 | WASHER | CH | |||
| 18 | 330034-00 | 1 | CHUCK KEY 10MM | CHUCK NON S2A | CH | ||
| 18 | 330034-07 | 1 | CHUCK KEY | CHUCK S2A | CH | ||
| 19 | 810236 | 1 | CHOKE SA | CH | |||
| 21 | 849784 | 1 | SCREW | CH | |||
| 25 | 811524 | 1 | LEAD | CH | |||
| 27 | 827388-49 | 1 | GEARBOX SA | BD504--H1 TO H1C | CH | ||
| 27 | 747930-49 | 1 | GEARBOX SA | BD504--H1D | CH | ||
| 37 | 847709 | 2 | SPRING | CH | |||
| 38 | 372523 | 2 | BRUSH | CH | |||
| 39 | 846076 | 2 | BRUSHBOX | CH | |||
| 846 | 811377 | 1 | SIDE HANDLE | CH | |||
| 847 | 845278 | 1 | CLAMP | CH | |||
| 848 | 859180 | 1 | SCREW | CH | |||
| 849 | 993461 | 1 | NUT | CH |
