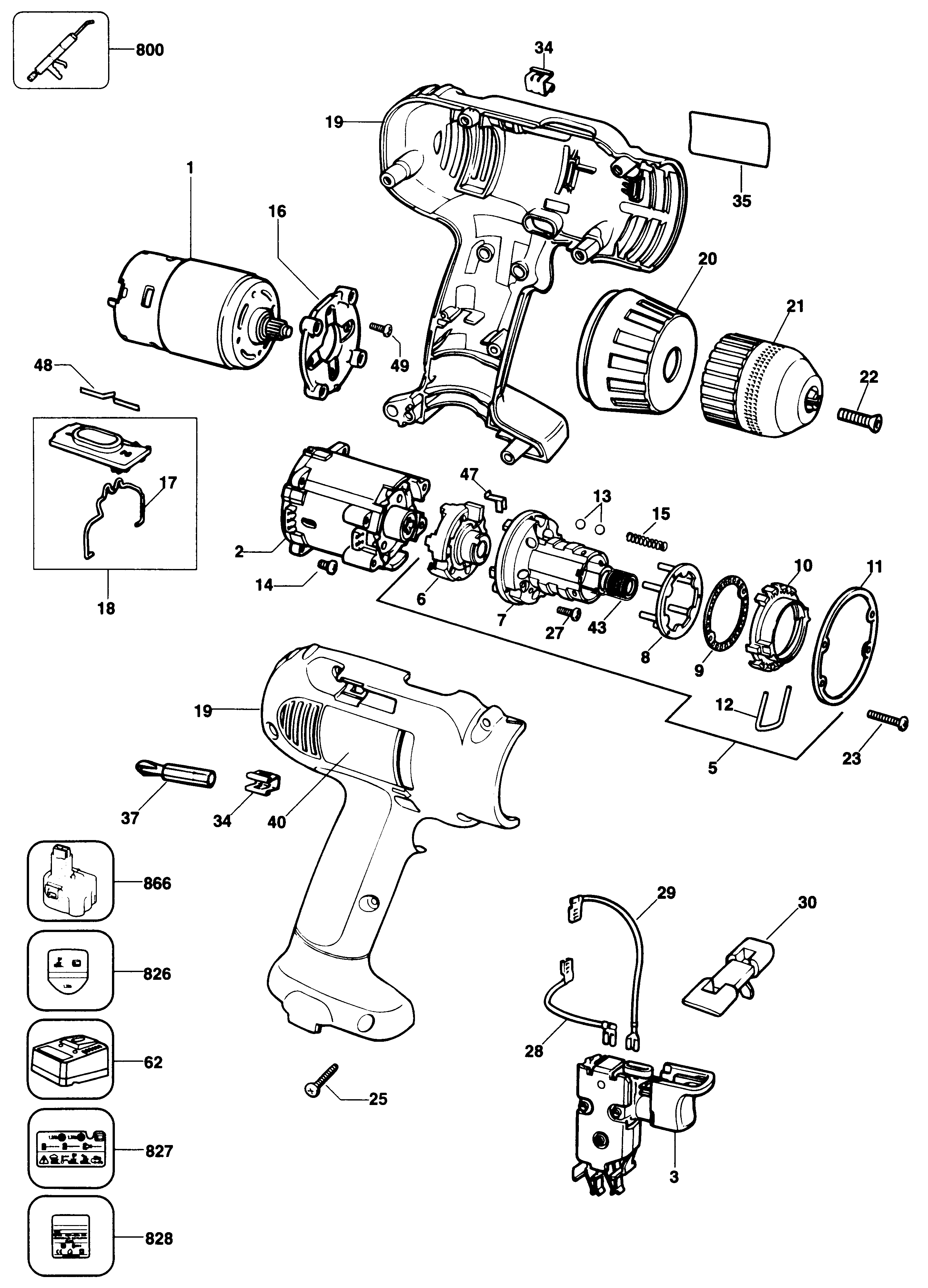

DW905K CORDLESS DRILL Type 1 | Kaaviot
Asiakirjat
Osalista
Avaa pudotusvalikko, sillä joissakin tuotteissa voi olla useampia kaavioita
Voidaan tulostaa
Näytä koko sivu
| Yksikkönumero | Tuotenumero | Määrä per | Tuotteen kuvaus | General Description | Muut tiedot | Markkinat | Tuotteen tila | Ohjehinta |
|---|---|---|---|---|---|---|---|---|
| 1 | 809130-00 | 1 | MOTOR SA | QW |  |
59.59 EUR | ||
| 2 | 805080-46 | 1 | GEARBOX SA | QW | |
41.34 EUR | ||
| 3 | 368832-06 | 1 | SWITCH SA | QW | |
63.75 EUR | ||
| 5 | 373702-02 | 1 | CLUTCH MODULE | QW | |
33.00 EUR | ||
| 6 | 373704-02 | 1 | END CAP SA | QW | |
14.46 EUR | ||
| 7 | 798966-00 | 1 | HOUSING SA | QW | |
2.97 EUR | ||
| 8 | 798963-01 | 1 | SUPPORT | QW | |
2.48 EUR | ||
| 9 | 798708 | 1 | PLATE | QW | |
2.48 EUR | ||
| 10 | 798709-00 | 1 | NUT | QW | |
2.48 EUR | ||
| 11 | 805004-00 | 1 | WASHER | QW | |
2.48 EUR | ||
| 12 | 798959-00 | 1 | CLIP | QW |  |
2.48 EUR | ||
| 13 | 386690-00 | 13 | BALL | STEEL, 5MM | QW | |
2.48 EUR | |
| 14 | 798486 | 4 | SCREW | QW | |
2.48 EUR | ||
| 15 | 798707 | 6 | SPRING | QW | |
2.48 EUR | ||
| 16 | 151336-00 | 1 | ADAPTOR | QW | |
2.48 EUR | ||
| 17 | 799024 | 1 | SPRING | QW | |
2.48 EUR | ||
| 18 | 153281-03 | 1 | SLIDER SA | QW | |
2.97 EUR | ||
| 19 | 392654-00 | 1 | CLAMSHELL SA | QW | |
76.15 EUR | ||
| 20 | 387068-00 | 1 | COLLAR | QW | |
2.59 EUR | ||
| 21 | 330075-46 | 1 | CHUCK KEYLESS | QW | |
41.34 EUR | ||
| 22 | 373793 | 1 | SCREW LEFT 5X21 | TYPE 1 | QW | 2.48 EUR | ||
| 22 | 805434 | 1 | SCREW.SPECIAL | TYPE 1A-2 | QW | |
2.48 EUR | |
| 23 | 733886 | 4 | SCREW | QW | |
2.48 EUR | ||
| 25 | 747329 | 7 | SCREW | QW | |
2.48 EUR | ||
| 27 | 808821 | 2 | SCREW | QW | |
2.48 EUR | ||
| 28 | 369554 | 1 | LEAD RED | QW | |
2.48 EUR | ||
| 29 | 369555 | 1 | LEAD BLACK | QW | |
2.48 EUR | ||
| 30 | 151296-00 | 1 | SLIDER | QW | |
2.48 EUR | ||
| 34 | 148354-03 | 2 | HOLDER | QW | |
2.48 EUR | ||
| 35 | 149490-00 | 1 | BRAND LABEL | QW | |
2.48 EUR | ||
| 37 | 297757-02 | 1 | BIT PHILLIPS | QW | |
2.48 EUR | ||
| 40 | 569037-00 | 1 | RATING PLATE | TYPE 2 | QW | |
2.48 EUR | |
| 40 | 569037-00 | 1 | RATING PLATE | TYPE 1 | QW | |
2.48 EUR | |
| 43 | 573147-00 | 1 | SPINDLE SA | QW | |
21.79 EUR | ||
| 47 | 807501 | 1 | CLIP | QW | |
2.48 EUR | ||
| 48 | 144658-00 | 1 | SPRING | QW | |
2.48 EUR | ||
| 49 | 369534 | 2 | SCREW | QW | |
2.48 EUR | ||
| 62 | N015878 | 1 | CHARGER 7.2V - 18V | QW | |
153.28 EUR | ||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | QW | 55.61 EUR | ||
| 826 | 578763-01 | 1 | IDENTITY LABEL | QW | |
2.48 EUR | ||
| 827 | 643500-00 | 1 | WARNING LABEL | QW | |
2.48 EUR | ||
| 828 | 583471-05 | 1 | NAMEPLATE | QW | |
2.48 EUR | ||
| 866 | 582803-00 | 1 | BATTERY 9.6V - 2.0AH | Ni-Cad - DE9061 | QW | |
80.30 EUR |
* Nämä ovat ohjehintoja, jotka voivat vaihdella, eivätkä sisällä arvonlisäveroa eikä rahtikustannuksia. Pidätämme oikeuden hinta- ja ehtomuutoksiin ilman ennakkoilmoitusta.
