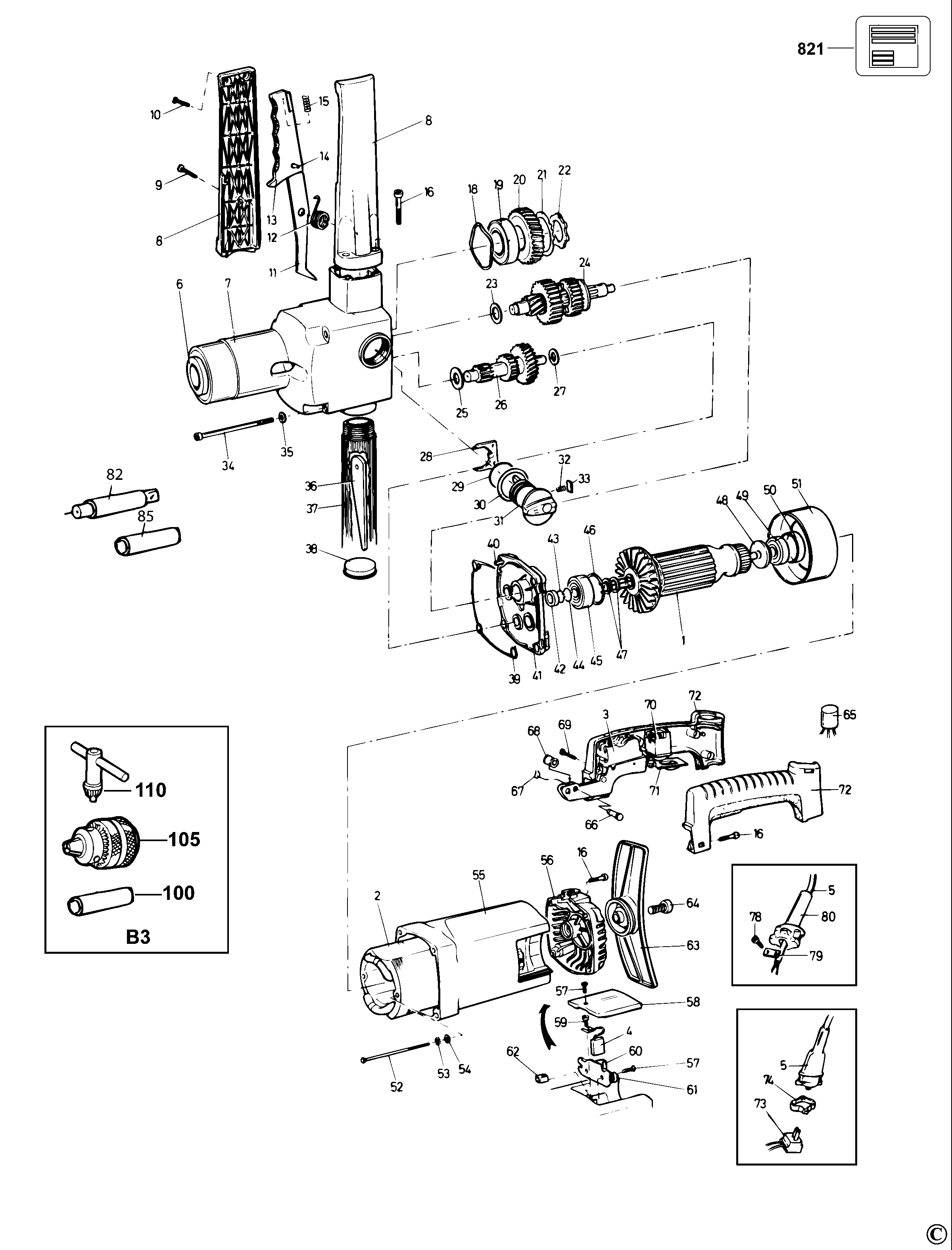

DW152 DRILL Type 1 | Kaaviot
Asiakirjat
Osalista
Avaa pudotusvalikko, sillä joissakin tuotteissa voi olla useampia kaavioita
Voidaan tulostaa
Näytä koko sivu
| Yksikkönumero | Tuotenumero | Määrä per | Tuotteen kuvaus | General Description | Muut tiedot | Markkinat | Tuotteen tila | Ohjehinta |
|---|---|---|---|---|---|---|---|---|
| 3 | 932401-00 | 1 | SWITCH | FI |  |
59.59 EUR | ||
| 6 | 932300-00 | 1 | HOLDER | FI | |
123.12 EUR | ||
| 7 | 932418-00 | 1 | GEARCASE SA | FI | |
306.42 EUR | ||
| 8 | 935833-02 | 1 | HANDLE SA | FI | |
43.26 EUR | ||
| 9 | 949896-14 | 1 | SCREW | FI | |
2.48 EUR | ||
| 10 | 949896-13 | 2 | SCREW | FI |  |
2.48 EUR | ||
| 11 | 932315-00 | 1 | LEVER | FI | |
3.70 EUR | ||
| 12 | 932313-00 | 1 | SPRING | FI | |
5.19 EUR | ||
| 13 | 932317-00 | 1 | COVER | Black | FI | |
8.96 EUR | |
| 14 | 932314-00 | 1 | PIN | FI | |
2.48 EUR | ||
| 15 | 931013-00 | 1 | SPRING | FI | |
2.48 EUR | ||
| 16 | 860093-11 | 6 | SCREW | FI | |
2.48 EUR | ||
| 18 | 930614 | 1 | SPACER | FI | |
2.48 EUR | ||
| 19 | 930025-00 | 1 | BEARING | FI | |
10.32 EUR | ||
| 20 | 932428-00 | 1 | GEAR | FI | |
37.15 EUR | ||
| 21 | 932297-00 | 1 | WASHER | FI | |
2.48 EUR | ||
| 22 | 932299-00 | 1 | RING | FI | |
8.04 EUR | ||
| 23 | 932287-00 | 1 | WASHER | FI | |
2.48 EUR | ||
| 24 | 869219-00 | 1 | SPINDLE & GEAR SA | FI | |
174.70 EUR | ||
| 25 | 932286-00 | 1 | WASHER | FI | |
3.70 EUR | ||
| 26 | 869219-02 | 1 | SPINDLE & GEAR SA | FI | |
84.44 EUR | ||
| 27 | 932285-00 | 2 | WASHER | FI | |
3.70 EUR | ||
| 28 | 932288-00 | 1 | PLATE | FI | |
2.48 EUR | ||
| 29 | 930039 | 1 | SEAL | FI | |
2.48 EUR | ||
| 30 | 932289-00 | 1 | WASHER | FI | |
2.48 EUR | ||
| 31 | 932265-00 | 1 | LEVER SA | FI | |
24.26 EUR | ||
| 32 | 932290-00 | 1 | SPRING | FI | ||||
| 33 | 932291-00 | 1 | SPRING | FI | |
5.19 EUR | ||
| 34 | 932408-00 | 4 | SCREW | FI | |
2.48 EUR | ||
| 35 | 931429-00 | 4 | WASHER | FI | |
2.48 EUR | ||
| 36 | 932304-00 | 1 | EJECTOR | FI | |
14.46 EUR | ||
| 37 | 948539-01 | 1 | HANDLE SIDE SA | FI | |
19.41 EUR | ||
| 38 | 932308-01 | 1 | CAP | FI | |
2.48 EUR | ||
| 39 | 932312-00 | 2 | GASKET | FI | |
2.48 EUR | ||
| 40 | 932301-00 | 2 | PIN | FI | |
2.48 EUR | ||
| 41 | 943963-00 | 1 | GEARCASE COVER SA | FI | |
80.30 EUR | ||
| 42 | 932311-00 | 1 | SEAL | FI | |
3.11 EUR | ||
| 43 | 931052-00 | 1 | RING | FI | |
2.48 EUR | ||
| 44 | 930940-00 | 1 | RING | FI | |
2.48 EUR | ||
| 45 | 868768-05 | 1 | BEARING | 6201-2RSH/C3LHT23 | FI | |
8.96 EUR | |
| 46 | 949729-02 | 1 | CIRCLIP | FI | |
2.48 EUR | ||
| 47 | 932309-00 | 2 | WASHER | FI | |
2.48 EUR | ||
| 48 | 930073-00 | 1 | SPACER | FI | |
2.48 EUR | ||
| 49 | 868768-00 | 1 | BEARING | 6000-2RSLTN9/C3LHT23 | FI | |
6.32 EUR | |
| 50 | 934409-00 | 1 | SLEEVE | FI | |
2.48 EUR | ||
| 51 | 930072-00 | 1 | BAFFLE | FI | |
3.11 EUR | ||
| 52 | 930246-00 | 2 | SCREW | FI | |
2.48 EUR | ||
| 53 | 761035-00 | 2 | WASHER | FI | |
2.48 EUR | ||
| 54 | 949876-08 | 2 | WASHER | FI | |
2.48 EUR | ||
| 55 | 932261-01 | 1 | FIELDCASE | FI | |
119.04 EUR | ||
| 56 | 932272-02 | 1 | END CAP SA | FI | |
19.41 EUR | ||
| 57 | 930251-01 | 6 | SCREW.TEMP | FI | |
2.48 EUR | ||
| 58 | 932306-02 | 2 | COVER BRUSH | FI | |
2.48 EUR | ||
| 59 | 930242-00 | 1 | SCREW | FI | |
2.48 EUR | ||
| 60 | 930269-00 | 2 | BASEPLATE SA | FI | |
3.70 EUR | ||
| 61 | 930099-00 | 2 | SPRING | FI | |
2.48 EUR | ||
| 62 | 932307-00 | 2 | BLOCK | FI | |
2.48 EUR | ||
| 63 | 932320-00 | 1 | PLATE | FI | |
6.32 EUR | ||
| 64 | 932319-00 | 6 | SCREW | FI | |
2.48 EUR | ||
| 65 | 932476-00 | 1 | CAPACITOR | FI | |
3.70 EUR | ||
| 66 | 932406-00 | 1 | PIN | FI | |
2.48 EUR | ||
| 67 | 932268-00 | 2 | RING | FI | |
2.48 EUR | ||
| 68 | 932405-00 | 1 | ROLLER | FI | |
2.48 EUR | ||
| 69 | 930079-01 | 1 | SCREW | FI | |
2.48 EUR | ||
| 70 | 932403-00 | 1 | SWITCH REVERSE | FI | |
29.88 EUR | ||
| 71 | 932402-00 | 1 | SLIDER | Black | FI | |
6.32 EUR | |
| 72 | 935896-02 | 1 | HANDLE SA | FI | |
26.12 EUR | ||
| 82 | 932573-01 | 1 | SPINDLE | FI | |
72.03 EUR | ||
| 85 | 861907-00 | 1 | ADAPTOR | FI | |
11.73 EUR |
* Nämä ovat ohjehintoja, jotka voivat vaihdella, eivätkä sisällä arvonlisäveroa eikä rahtikustannuksia. Pidätämme oikeuden hinta- ja ehtomuutoksiin ilman ennakkoilmoitusta.
