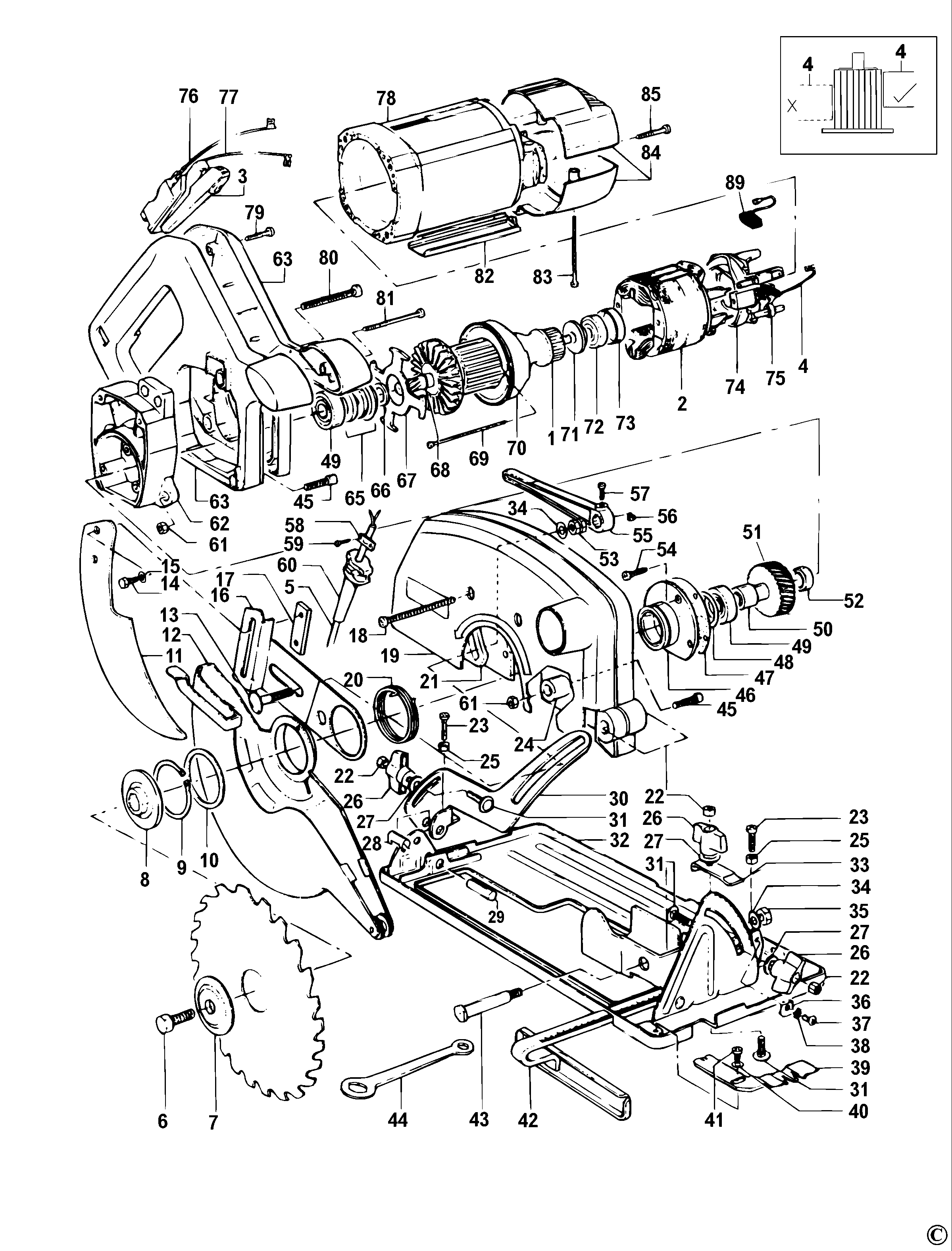

DW383 CIRCULAR SAW Type 1 | Kaaviot
Asiakirjat
Osalista
Avaa pudotusvalikko, sillä joissakin tuotteissa voi olla useampia kaavioita
Voidaan tulostaa
Näytä koko sivu
| Yksikkönumero | Tuotenumero | Määrä per | Tuotteen kuvaus | General Description | Muut tiedot | Markkinat | Tuotteen tila | Ohjehinta |
|---|---|---|---|---|---|---|---|---|
| 1 | 868388-02 | 1 | ARMATURE | QS |  |
188.65 EUR | ||
| 2 | N115681 | 1 | REPAIR KIT | QS |  |
396.29 EUR | ||
| 3 | 949411-00 | 1 | SWITCH | QS | |
33.00 EUR | ||
| 4 | 933371-00 | 1 | BRUSH | QS | |
4.58 EUR | ||
| 5 | 930968-00 | 1 | CABLE & PLUG | QS | |
19.41 EUR | ||
| 6 | 931022-00 | 1 | BOLT | QS | |
2.48 EUR | ||
| 7 | 931432-00 | 1 | FLANGE | QS | |
2.97 EUR | ||
| 8 | 931433-00 | 1 | FLANGE | QS | |
29.88 EUR | ||
| 9 | 931450-00 | 1 | CIRCLIP | QS | |
2.48 EUR | ||
| 10 | 933169-00 | 1 | WASHER | QS | |
2.48 EUR | ||
| 11 | 625428-00 | 1 | RIVING KNIFE | QS | |
10.32 EUR | ||
| 12 | 933411-00 | 1 | GUARD | QS | |
29.88 EUR | ||
| 13 | 931462-00 | 1 | SCREW | QS | |
2.59 EUR | ||
| 14 | 860085-15 | 2 | SCREW | QS | |
2.48 EUR | ||
| 15 | 933055-00 | 2 | WASHER | QS | |
2.48 EUR | ||
| 16 | 931443-00 | 1 | RIVING KNIFE | QS | |
5.19 EUR | ||
| 17 | 931445-00 | 1 | SUPPORT | QS | |
2.48 EUR | ||
| 18 | 931010-00 | 4 | SCREW | QS | |
2.48 EUR | ||
| 19 | 931452-00 | 1 | GUARD | QS | |
72.03 EUR | ||
| 20 | 931430-00 | 1 | SPRING | QS | |
4.58 EUR | ||
| 21 | 931461-00 | 1 | SUPPORT | QS | |
2.48 EUR | ||
| 22 | 860083-03 | 3 | NUT | QS | |
2.48 EUR | ||
| 23 | 869076-00 | 2 | SCREW | QS | |
2.48 EUR | ||
| 24 | 931451-00 | 1 | STOP RUBBER | QS | |
2.48 EUR | ||
| 25 | 860083-02 | 2 | NUT | QS | |
2.48 EUR | ||
| 26 | 931406-00 | 3 | NUT WING | QS | |
2.48 EUR | ||
| 27 | 931407-00 | 3 | WASHER | QS | |
2.48 EUR | ||
| 28 | 931419-00 | 1 | PIN | QS | |
2.48 EUR | ||
| 29 | 931420-00 | 1 | PIN | QS | |
2.48 EUR | ||
| 30 | 933415-00 | 1 | GUARD | QS | |
33.00 EUR | ||
| 31 | 931405-00 | 3 | SCREW | QS | |
2.48 EUR | ||
| 32 | 933470-00 | 1 | SHOE SA | QS | |
88.44 EUR | ||
| 33 | 931484-00 | 1 | LOCK | QS | |
8.96 EUR | ||
| 34 | 933168-00 | 2 | WASHER | QS | |
2.48 EUR | ||
| 35 | 931449-00 | 1 | NUT | QS | |
2.48 EUR | ||
| 36 | 933410-00 | 1 | INDICATOR | QS | |
4.58 EUR | ||
| 37 | 949894-06 | 1 | SCREW | QS | |
2.48 EUR | ||
| 38 | 933652-00 | 1 | WASHER | QS | |
2.48 EUR | ||
| 39 | 931408-00 | 1 | POINTER | QS | |
8.96 EUR | ||
| 40 | 930248-00 | 1 | WASHER | QS | |
2.48 EUR | ||
| 41 | 931011-00 | 1 | SCREW | QS | |
2.48 EUR | ||
| 42 | 931464-00 | 1 | FENCE | QS | |
8.04 EUR | ||
| 43 | 931447-00 | 1 | PIN | QS | |
4.58 EUR | ||
| 44 | 931467-00 | 1 | SPANNER | QS | |
3.70 EUR | ||
| 45 | 860093-05 | 2 | SCREW.TEMP | QS | |
2.48 EUR | ||
| 46 | 933409-00 | 1 | COVER | QS | |
19.41 EUR | ||
| 47 | 931065-00 | 1 | GASKET | QS | |
2.59 EUR | ||
| 48 | 931057-00 | 1 | WASHER SPECIAL | QS | |
2.48 EUR | ||
| 49 | 868768-07 | 2 | BEARING | QS | |
8.96 EUR | ||
| 50 | 931437-00 | 1 | SPACER | QS | |
6.32 EUR | ||
| 51 | 869219-03 | 1 | SPINDLE & GEAR SA | QS | |
80.30 EUR | ||
| 52 | N110358 | 1 | BEARING | QS | |
2.59 EUR | ||
| 53 | 931463-00 | 1 | NUT | QS | |
2.97 EUR | ||
| 54 | 933058-00 | 1 | SCREW | QS | |
2.48 EUR | ||
| 55 | 931460-00 | 1 | LEVER | QS | |
2.48 EUR | ||
| 56 | 860083-10 | 1 | NUT | QS | |
2.48 EUR | ||
| 57 | 930224-00 | 1 | SCREW | QS | |
2.48 EUR | ||
| 58 | 931477-00 | 1 | CORD CLAMP | QS | |
2.48 EUR | ||
| 59 | 931469-02 | 2 | SCREW | QS | |
2.48 EUR | ||
| 60 | 930981-00 | 1 | CORD PROTECTOR | QS | |
2.48 EUR | ||
| 61 | 860092-00 | 3 | NUT | QS | |
2.48 EUR | ||
| 62 | 931056-00 | 1 | GEARCASE | QS | |
41.34 EUR | ||
| 63 | 932710-01 | 1 | HANDLE SA | GREY | QS | |
26.12 EUR | |
| 65 | 931067-00 | 1 | SEAL SA | QS | |
2.48 EUR | ||
| 66 | 931062 | 1 | SPACER | QS | 2.48 EUR | |||
| 67 | 931066-00 | 1 | FLANGE | QS | |
3.21 EUR | ||
| 68 | 930028-00 | 1 | O RING | QS | |
2.48 EUR | ||
| 69 | N412453 | 2 | SCREW | QS | |
2.48 EUR | ||
| 70 | 931073-00 | 1 | BAFFLE | QS | |
2.97 EUR | ||
| 71 | N174055 | 1 | SPACER | QS | |
2.48 EUR | ||
| 72 | 868768-00 | 1 | BEARING | 6000-2RSLTN9/C3LHT23 | QS | |
6.32 EUR | |
| 73 | 938332-00 | 1 | SLEEVE | QS | |
2.48 EUR | ||
| 74 | D935745 | 1 | BRUSH PLATE SA | QS | |
8.04 EUR | ||
| 75 | 931076-00 | 2 | SPRING | QS | |
2.48 EUR | ||
| 76 | 931403-00 | 1 | WIRE | QS | |
2.59 EUR | ||
| 77 | 949801-03 | 1 | LEAD | QS | |
2.59 EUR | ||
| 78 | 948134-02 | 1 | FIELDCASE SA | QS | |
19.41 EUR | ||
| 79 | 933914-01 | 4 | SCREW | QS | |
2.48 EUR | ||
| 80 | 931036-00 | 2 | SCREW | QS | |
2.48 EUR | ||
| 81 | 930082-01 | 1 | SCREW | QS | |
2.48 EUR | ||
| 82 | 403207-00 | 1 | COVER | QS | |
2.48 EUR | ||
| 83 | 930752-00 | 2 | SCREW | QS | |
2.48 EUR | ||
| 84 | 932711-01 | 1 | END CAP SA | GREY | QS | |
8.04 EUR | |
| 85 | 931297-00 | 2 | SCREW | QS | |
2.48 EUR | ||
| 89 | 940160-01 | 1 | BRUSH CUT OFF | 230V | QS | |
6.32 EUR |
* Nämä ovat ohjehintoja, jotka voivat vaihdella, eivätkä sisällä arvonlisäveroa eikä rahtikustannuksia. Pidätämme oikeuden hinta- ja ehtomuutoksiin ilman ennakkoilmoitusta.
