D27105 COMBINATION SAW Type 2 | Kaaviot
Asiakirjat
Osalista
Avaa pudotusvalikko, sillä joissakin tuotteissa voi olla useampia kaavioita
Voidaan tulostaa
Näytä koko sivu
| Yksikkönumero | Tuotenumero | Määrä per | Tuotteen kuvaus | General Description | Muut tiedot | Markkinat | Tuotteen tila | Ohjehinta |
|---|---|---|---|---|---|---|---|---|
| 1 | 98094-35 | 4 | SCREW | M5 x 35 | XC |  |
2.48 EUR | |
| 2 | 147107-06 | 1 | KNOB | XC | |
2.48 EUR | ||
| 3 | 152852-00 | 1 | BOLT | XC | |
2.48 EUR | ||
| 4 | N453995 | 1 | BELT | XC | |
21.79 EUR | ||
| 5 | 153639-00 | 4 | SCREW | XC | |
2.48 EUR | ||
| 6 | 398472-00 | 2 | SPRING TORSION | XC | |
2.48 EUR | ||
| 7 | 605603-00 | 1 | LEVER | XC | |
2.48 EUR | ||
| 8 | 606278-00 | 1 | LINKAGE SA | UPLOCK | XC | |
2.48 EUR | |
| 9 | 606279-00 | 1 | PLATE | XC | |
2.48 EUR | ||
| 10 | 607221-00 | 1 | PLATE | XC | |
8.96 EUR | ||
| 11 | 330045-05 | 11 | SCREW | XC | |
2.48 EUR | ||
| 12 | 618480-00 | 1 | WASHER FELT | XC | |
2.48 EUR | ||
| 13 | 153561-00 | 1 | LOCKING PIN | XC | |
2.48 EUR | ||
| 14 | 385915-01 | 4 | SCREW | XC | |
2.48 EUR | ||
| 15 | 391315-00 | 1 | GASKET | XC | |
2.48 EUR | ||
| 16 | 393071-00 | 1 | PLATE | XC | |
2.48 EUR | ||
| 17 | 868082-00 | 2 | SPRING | XC | |
2.48 EUR | ||
| 26 | 605040-59 | 1 | BEARING | XC | |
3.70 EUR | ||
| 27 | 330003-66 | 1 | BEARING,BALL | XC | |
19.41 EUR | ||
| 28 | 627904-00 | 1 | BEARING PLATE | XC | |
3.70 EUR | ||
| 29 | 391616-00 | 1 | BEARING NEEDLE | XC | |
3.11 EUR | ||
| 30 | 621759-00 | 1 | GEARCASE COVER | Inc 29 | + 29 | XC | |
51.46 EUR |
| 31 | 869219-06 | 1 | SPINDLE & GEAR SA | XC | |
47.21 EUR | ||
| 32 | 330045-49 | 7 | SCREW | XC | |
2.48 EUR | ||
| 33 | 869219-07 | 1 | SPINDLE & GEAR SA | XC | |
47.21 EUR | ||
| 34 | N105443 | 1 | PULLEY SA | inc 33,35 | XC | |
67.89 EUR | |
| 35 | 612349-00 | 1 | ARM | + 36,37,38,39 | XC | |
174.70 EUR | |
| 36 | 148608-00 | 2 | INSERT | XC | |
2.48 EUR | ||
| 37 | 386780-00 | 2 | BEARING | XC | |
2.97 EUR | ||
| 38 | 621329-00 | 1 | IDENTITY LABEL | XC | |
3.70 EUR | ||
| 39 | 637691-00 | 1 | SWITCH | 230V | See SB 161 | XC | |
55.61 EUR |
| 40 | 616726-00 | 1 | RETAINER | XC | |
2.48 EUR | ||
| 41 | 612350-00 | 1 | CORD CLAMP | XC | |
2.48 EUR | ||
| 42 | 613781-00 | 1 | COVER | XC | |
2.48 EUR | ||
| 43 | 605786-01 | 1 | HOUSING SWITCH | XC | |
26.12 EUR | ||
| 44 | 638634-00 | 1 | BOOT | XC | |
3.21 EUR | ||
| 45 | 330019-13 | 5 | SCREW | M4X19 T20 | XC | |
2.48 EUR | |
| 47 | 610822-00 | 1 | MODULE | XC |  |
47.21 EUR | ||
| 48 | 326057-00 | 1 | TERMINAL BLOCK | XC | |
2.48 EUR | ||
| 49 | N380405 | 2 | INSERT | XC | |
3.11 EUR | ||
| 50 | 330013-22 | 5 | SCREW | XC | |
2.48 EUR | ||
| 51 | 330120-00 | 1 | CORDSET (EURO) | XC | |
14.46 EUR | ||
| 52 | 639901-00 | 1 | CABLE SA | XC | |
21.79 EUR | ||
| 57 | N377629 | 1 | SWITCH COVER | XC | |
3.21 EUR | ||
| 58 | 607854-00 | 1 | PIN | XC | |
2.48 EUR | ||
| 59 | 613782-01 | 1 | SPRING TORSION | XC | |
2.48 EUR | ||
| 60 | 607855-00 | 1 | HANDLE SA | XC | |
21.79 EUR | ||
| 61 | 399125-00 | 1 | COVER | XC | |
3.70 EUR | ||
| 63 | 384127-01 | 4 | SCREW | XC | |
2.48 EUR | ||

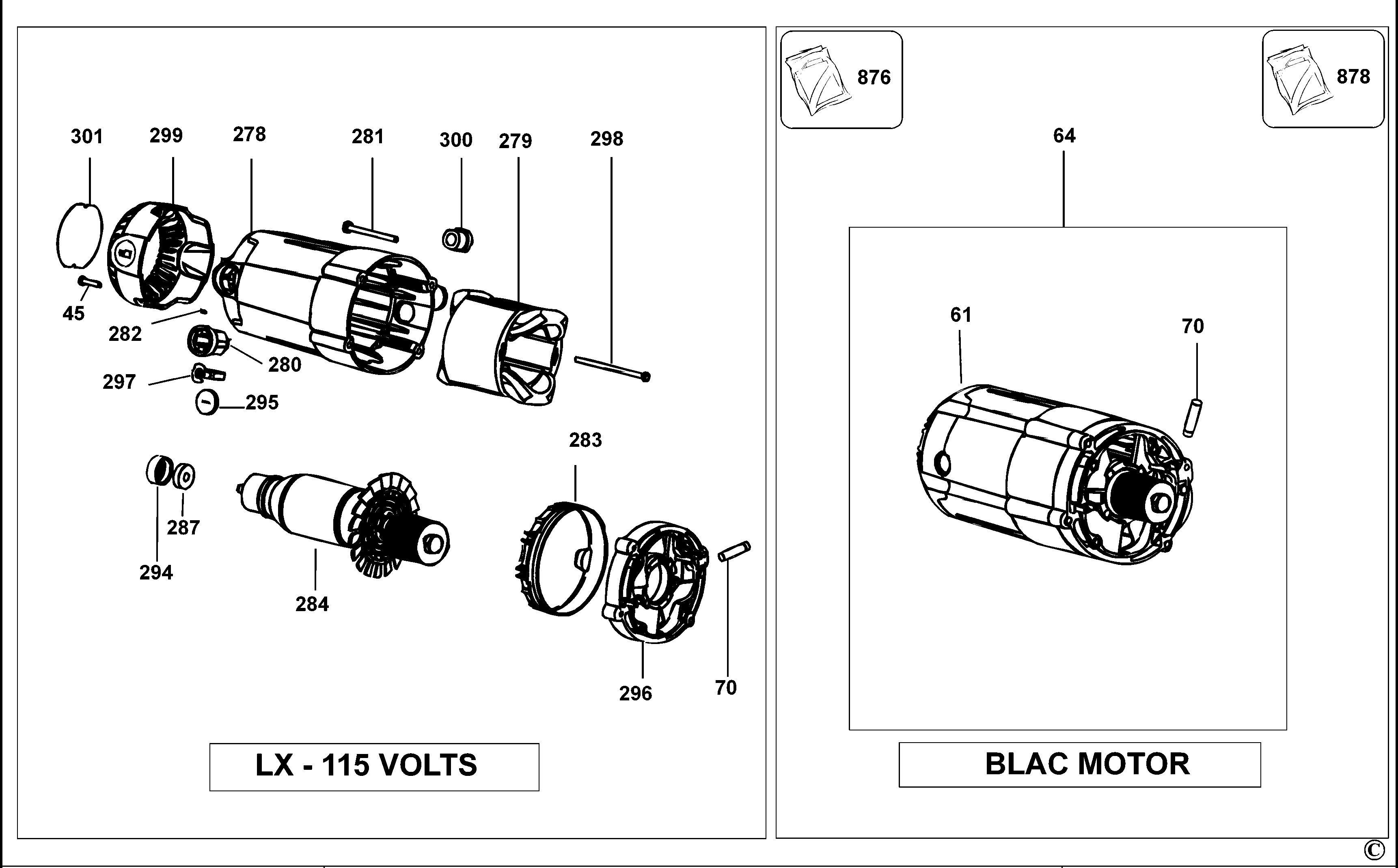

| 64 | N071750 | 1 | MOTOR & SWITCH SA | XC | |
487.67 EUR | ||
| 65 | 860091-04 | 4 | SCREW | XC | |
2.48 EUR | ||
| 66 | 860094-03 | 2 | SCREW | XC | |
2.48 EUR | ||
| 67 | 330045-15 | 7 | SCREW | XC | |
2.48 EUR | ||
| 68 | 330045-23 | 7 | SCREW | XC | |
2.48 EUR | ||
| 69 | 606014-00 | 1 | SPRING | XC | |
2.48 EUR | ||
| 70 | 394034-00 | 1 | SCREW | XC | |
2.48 EUR | ||
| 71 | 330045-32 | 5 | SCREW | M8x1.25x20 MTLTHDFMG | XC | |
2.48 EUR | |
| 72 | 621647-00 | 3 | PLATE | XC | |
2.97 EUR | ||
| 73 | N162216 | 1 | FENCE | XC | |
139.19 EUR | ||
| 74 | 869233-00 | 1 | TABLE | XC | |
289.03 EUR | ||
| 75 | 614822-00 | 1 | SCALE | XC | |
4.58 EUR | ||
| 76 | 398999-00 | 1 | DETENT | XC | |
33.00 EUR | ||
| 77 | 615876-00 | 4 | SCREW | Hex | XC | |
2.48 EUR | |
| 78 | 607103-00 | 2 | PLATE | XC | |
3.11 EUR | ||
| 79 | 98104-16 | 4 | SCREW | XC | |
2.48 EUR | ||
| 80 | N162168 | 1 | NOSE | XC | |
59.59 EUR | ||
| 81 | 605799-00 | 1 | ROD | XC | |
2.48 EUR | ||
| 82 | 399162-00 | 1 | ACTUATOR | XC | |
2.48 EUR | ||
| 84 | 399009-00 | 1 | PIN | XC | |
2.48 EUR | ||
| 85 | 860094-00 | 2 | SCREW.TEMP | XC | |
2.48 EUR | ||
| 86 | 606898-00 | 1 | DETENT | SPRING | XC | |
4.58 EUR | |
| 87 | 860092-02 | 3 | NUT | XC | |
2.48 EUR | ||
| 88 | 606900-00 | 1 | PLATE | XC | |
2.48 EUR | ||
| 89 | 606896-00 | 1 | PAD | XC | |
2.48 EUR | ||
| 90 | 617561-00 | 7 | SCREW | M8, | XC | |
2.48 EUR | |
| 91 | 606897-00 | 1 | COVER | XC | |
4.58 EUR | ||
| 93 | 860205-01 | 4 | SCREW | XC | |
2.48 EUR | ||
| 94 | 399004-00 | 1 | KNOB | XC | |
6.32 EUR | ||
| 95 | 605785-00 | 1 | BUTTON | XC | |
2.48 EUR | ||
| 96 | 611991-00 | 1 | POINTER | XC | |
2.48 EUR | ||
| 98 | 606198-00 | 1 | KNOB | XC | |
3.11 EUR | ||
| 99 | N409486 | 4 | SCREW | XC | |
2.48 EUR | ||
| 100 | 607129-00 | 3 | PAD | XC | |
3.70 EUR | ||
| 101 | N190890 | 1 | BACK FENCE | XC | |
67.89 EUR | ||
| 102 | 610251-00 | 1 | KNOB | XC | |
2.48 EUR | ||
| 103 | 610250-00 | 1 | SPRING | XC | |
3.11 EUR | ||
| 104 | N399933 | 5 | SCREW | M5x30 T30 Patch | XC | |
2.48 EUR | |
| 105 | 610710-00 | 1 | WARNING LABEL | XC | |
2.48 EUR | ||
| 106 | 941586-00 | 3 | SPRING | XC | |
2.48 EUR | ||
| 107 | 153451-00 | 1 | BEARING THRUST | XC | |
2.48 EUR | ||
| 109 | 153655-00 | 3 | WASHER | XC | |
2.48 EUR | ||
| 110 | 153781-00 | 3 | WASHER | XC | |
2.48 EUR | ||
| 111 | 153797-03 | 2 | SCREW | XC | |
2.48 EUR | ||
| 112 | 330021-10 | 1 | NUT | M10 | XC | |
2.48 EUR | |
| 113 | 391347-00 | 3 | PAWL | XC | |
2.48 EUR | ||
| 115 | 869233-02 | 1 | ROTARY TABLE | inc 122,124 | + 122, 124 | XC | |
320.84 EUR |
| 116 | 399004-01 | 1 | KNOB | XC | |
8.04 EUR | ||
| 117 | 605653-00 | 1 | TRUNNION | XC | |
92.58 EUR | ||
| 118 | 606152-00 | 1 | POINTER | XC | |
2.97 EUR | ||
| 119 | 618660-00 | 1 | BEVEL SCALE | XC | |
3.70 EUR | ||
| 120 | 606192-00 | 1 | POINTER | XC | |
3.21 EUR | ||
| 121 | 606193-00 | 1 | BEVEL SCALE | XC | |
4.58 EUR | ||
| 122 | 606359-00 | 1 | STUD | XC | |
3.70 EUR | ||
| 123 | 606362-00 | 1 | SPACER | XC | |
2.48 EUR | ||
| 124 | 610707-00 | 2 | WARNING LABEL | XC | |
2.48 EUR | ||
| 125 | 613709-00 | 1 | LATCH | XC | |
2.48 EUR | ||
| 126 | 860094-06 | 6 | SCREW | XC | |
2.48 EUR | ||
| 127 | 153576-03 | 1 | SCREW | XC | |
2.48 EUR | ||
| 129 | 615589-00 | 1 | ADJUSTER | XC | |
2.48 EUR | ||
| 131 | 615777-00 | 1 | PIVOT SHAFT | XC | |
6.32 EUR | ||
| 132 | 148296-00 | 1 | WASHER | XC | |
2.48 EUR | ||
| 133 | 146732-00 | 2 | SPACER | XC | |
2.48 EUR | ||
| 134 | 619571-00 | 1 | SPRING | XC | |
21.79 EUR | ||
| 135 | 146753-00 | 1 | BUSHING | XC | |
2.48 EUR | ||
| 137 | 609837-00 | 1 | ADJUSTER HEIGHT | XC | |
67.89 EUR | ||
| 138 | 606689-00 | 1 | CRANK | XC | |
8.96 EUR | ||
| 139 | 607754-00 | 1 | CARRIER | XC | |
4.58 EUR | ||
| 140 | 604107-00 | 14 | BALL STEEL | XC | |
2.48 EUR | ||
| 141 | 609840-00 | 1 | CLAMP | XC | |
2.48 EUR | ||
| 143 | 610254-00 | 1 | BOLT | XC | |
5.19 EUR | ||
| 144 | 614072-00 | 2 | PIN | XC | |
2.48 EUR | ||
| 145 | 606688-00 | 1 | SPRING | XC | |
2.97 EUR | ||
| 146 | N166053 | 1 | DUST PORT | XC | |
24.26 EUR | ||
| 148 | 615459-00 | 1 | PLATE | XC | |
24.26 EUR | ||
| 149 | N041976 | 1 | BACKPLATE | XC | |
10.32 EUR | ||
| 150 | 609514-00 | 1 | BUMPER | XC | |
2.48 EUR | ||
| 151 | 146750-03 | 1 | RETAINING PLATE | XC | |
3.21 EUR | ||
| 152 | 609314-00 | 1 | SLEEVE | XC | |
2.48 EUR | ||
| 153 | 609496-00 | 1 | SPRING TORSION | XC | |
2.48 EUR | ||
| 155 | N298999 | 1 | GUARD | XC | |
24.26 EUR | ||
| 156 | 146774-00 | 2 | ROLLER | XC | |
2.48 EUR | ||
| 157 | 604728-00 | 2 | LOCKING RING | XC | |
2.48 EUR | ||
| 159 | 394589-01 | 2 | SCREW | XC | |
2.48 EUR | ||
| 160 | N225776 | 1 | LEVER SA | XC | |
26.12 EUR | ||
| 161 | 146740-02 | 3 | SLEEVE | XC | |
2.48 EUR | ||
| 162 | 605590-00 | 1 | SCREW | XC | |
2.48 EUR | ||
| 163 | 610556-01 | 1 | BELT COVER | XC | |
19.41 EUR | ||
| 165 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | XC | |
2.48 EUR | |
| 166 | 616319-00 | 1 | WASHER INNER CLAMP | XC | |
11.73 EUR | ||
| 167 | 604765-00 | 1 | CLAMP OUTER | XC | |
8.04 EUR | ||
| 168 | 150075-00 | 2 | SCREW | XC | |
2.48 EUR | ||
| 169 | 605593-00 | 1 | GUARD | XC | |
16.66 EUR | ||
| 170 | 607536-00 | 1 | WASHER | XC | |
2.48 EUR | ||
| 171 | 656421-00 | 1 | FSO KIT | Inc 171, 196 | XC | |
206.52 EUR | |
| 171 | 655037-00 | 1 | FRAME RH | >392007 | XC | |
165.32 EUR | |
| 173 | 391358-01 | 1 | HOLDER | XC | |
2.48 EUR | ||
| 174 | 385567-03 | 1 | KEY | TX30 6.0mm | XC | |
2.59 EUR | |
| 175 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | XC | |
8.04 EUR | |
| 176 | 615993-00 | 2 | RETAINER | XC | |
2.48 EUR | ||
| 177 | 946866-00 | 2 | SPRING | XC | |
2.48 EUR | ||
| 179 | 609315-01 | 1 | RIVING KNIFE | XC | |
55.61 EUR | ||
| 180 | 609497-00 | 1 | SHIM | XC | |
2.48 EUR | ||
| 181 | 607181-00 | 4 | SCREW | M8 | XC | |
2.48 EUR | |
| 182 | 616634-00 | 4 | BUMPER | XC | |
2.59 EUR | ||
| 183 | 860083-15 | 4 | NUT | XC | |
2.48 EUR | ||
| 185 | 606233-00 | 1 | LOCK | XC | |
2.97 EUR | ||
| 186 | 606232-00 | 1 | LOCK | XC | |
2.97 EUR | ||
| 187 | 605601-01 | 1 | CORD CLAMP | XC | |
2.48 EUR | ||
| 188 | 607132-00 | 1 | PIN | XC | |
2.48 EUR | ||
| 189 | 330045-55 | 2 | SCREW | M5x55 MTL THD FMG | XC | |
2.48 EUR | |
| 190 | 153379-00 | 4 | BEARING BLOCK | XC | |
2.48 EUR | ||
| 191 | 610574-00 | 1 | SCREW | M5X25 | XC | |
2.48 EUR | |
| 192 | 611094-00 | 1 | ROD | XC | |
5.19 EUR | ||
| 193 | 861090-00 | 1 | SCREW | XC | |
2.48 EUR | ||
| 194 | 860073-14 | 3 | WASHER | XC | |
2.48 EUR | ||
| 195 | 613233-00 | 2 | FRONT LEG | XC | |
19.41 EUR | ||
| 196 | 655033-00 | 2 | REAR LEG | >392007 | XC | |
16.66 EUR | |
| 196 | 655033-00 | 2 | REAR LEG | XC | |
16.66 EUR | ||
| 197 | 861073-00 | 4 | FOOT | XC | |
11.73 EUR | ||
| 198 | N013623 | 4 | CLAMP | XC | |
8.04 EUR | ||
| 199 | 618362-00 | 4 | KNOB | XC | |
3.70 EUR | ||
| 200 | 98131-90 | 4 | CARRIAGE BOLT | M10*1.5 | XC | |
2.48 EUR | |
| 201 | 861091-00 | 3 | CABLE CLAMP | XC | |
2.48 EUR | ||
| 202 | 860112-11 | 1 | SPRING | XC | |
2.97 EUR | ||
| 204 | 656421-01 | 1 | FSO KIT | Inc 204, 196 | XC | |
188.65 EUR | |
| 204 | 655032-00 | 1 | FRAME LH | >392007 | XC | |
153.28 EUR | |
| 205 | 615994-00 | 1 | CLIP | XC | |
2.48 EUR | ||
| 206 | 860610-01 | 1 | PUSHROD | XC | |
3.70 EUR | ||
| 207 | 616592-00 | 2 | BOLT | M8 x 16 | XC | |
2.48 EUR | |
| 208 | 604537-00 | 2 | TUBE | XC | |
21.79 EUR | ||
| 209 | 942447-00 | 2 | SCREW | XC | |
2.48 EUR | ||
| 210 | 611623-00 | 2 | AXLE STUB | M12 | XC | |
8.96 EUR | |
| 211 | 98197-08 | 4 | WASHER | XC | |
2.48 EUR | ||
| 212 | 330045-50 | 3 | SCREW | XC | |
2.48 EUR | ||
| 213 | 605789-00 | 1 | FENCE | XC | |
16.66 EUR | ||
| 214 | 386616-00 | 1 | FENCE | XC | |
37.15 EUR | ||
| 215 | 147107-00 | 2 | KNOB | XC | |
2.48 EUR | ||
| 216 | 611712-00 | 1 | PLATE | XC | |
3.70 EUR | ||
| 217 | 611921-00 | 1 | BRACKET | XC | |
24.26 EUR | ||
| 218 | 605794-00 | 1 | LEVER LOCK | XC | |
24.26 EUR | ||
| 219 | 605796-00 | 1 | BRACKET | XC | |
2.48 EUR | ||
| 220 | 605795-00 | 1 | CLEVIS PIN | XC | |
2.48 EUR | ||
| 221 | 392948-00 | 1 | WASHER CLAMP | XC | |
2.48 EUR | ||
| 222 | 605798-00 | 1 | POINTER | XC | |
2.48 EUR | ||
| 223 | 330045-05 | 1 | SCREW | XC | |
2.48 EUR | ||
| 224 | 612284-00 | 2 | NUT | M8 | XC | |
2.59 EUR | |
| 225 | 605790-00 | 2 | WASHER | XC | |
2.48 EUR | ||
| 227 | N060425 | 1 | GUARD | inc 3x271 | XC | |
19.41 EUR | |
| 228 | 612441-00 | 2 | WHEEL | 150MM | XC | |
24.26 EUR | |
| 229 | 941602-00 | 2 | WASHER | XC | |
2.48 EUR | ||
| 230 | N219072 | 4 | FOOT | XC | |
3.21 EUR | ||
| 231 | 860083-14 | 4 | NUT | XC | |
2.48 EUR | ||
| 232 | 860073-03 | 4 | WASHER M8 | XC | |
2.48 EUR | ||
| 233 | 860085-20 | 4 | SCREW | XC | |
2.48 EUR | ||
| 234 | 621653-00 | 1 | SHOE | XC | |
2.48 EUR | ||
| 235 | 610252-00 | 1 | CLAMP | XC | |
3.11 EUR | ||
| 236 | 330045-14 | 4 | SCREW | XC | |
2.48 EUR | ||
| 237 | 623499-00 | 1 | WASHER | XC | |
3.11 EUR | ||
| 238 | 860075-00 | 1 | WASHER | XC | |
2.48 EUR | ||
| 239 | 617108-00 | 1 | IDENTITY LABEL | XC | |
10.32 EUR | ||
| 240 | 607182-00 | 2 | BUSHING | XC | |
2.48 EUR | ||
| 241 | 860078-02 | 4 | WASHER | XC | |
2.48 EUR | ||
| 243 | 620327-00 | 1 | SPRING CLIP | XC | |
2.48 EUR | ||
| 244 | 624373-00 | 1 | IDENTITY LABEL | XC | |
2.48 EUR | ||
| 245 | 931997-00 | 1 | SCREW | XC | |
2.48 EUR | ||
| 246 | 720959-00 | 1 | WASHER | XC | |
2.48 EUR | ||
| 248 | 720929-00 | 1 | WING NUT | XC | |
2.48 EUR | ||
| 248 | 720929-00 | 1 | WING NUT | XC | |
2.48 EUR | ||
| 249 | 860092-05 | 3 | NUT | XC | |
2.48 EUR | ||
| 250 | 394375-02P | 1 | SWITCH | XC | |
19.41 EUR | ||
| 251 | 330021-08 | 1 | NUT | XC | |
2.48 EUR | ||
| 252 | 944752-00 | 1 | GUARD | XC | |
47.21 EUR | ||
| 253 | 944753-00 | 2 | ARM LINK | XC | |
8.04 EUR | ||
| 254 | 944754-00 | 1 | CLAMP | XC | |
4.58 EUR | ||
| 255 | 944755-00 | 1 | SPRING | XC | |
3.70 EUR | ||
| 256 | 944757-00 | 4 | PIN | XC | |
2.48 EUR | ||
| 257 | 944758-00 | 4 | COVER | XC | |
2.48 EUR | ||
| 258 | 860301-13 | 2 | SCREW | XC | |
2.48 EUR | ||
| 259 | 720959-00 | 2 | WASHER | XC | |
2.48 EUR | ||
| 260 | 860092-00 | 2 | NUT | XC | |
2.48 EUR | ||
| 261 | 860085-19 | 1 | SCREW | XC | |
2.48 EUR | ||
| 262 | 860074-03 | 1 | WASHER | XC | |
2.48 EUR | ||
| 263 | 941756-00 | 1 | KNOB | XC | |
2.48 EUR | ||
| 264 | 656422-00 | 1 | CLAMP KIT SA | XC | |
16.66 EUR | ||
| 265 | 656422-00 | 1 | CLAMP KIT SA | XC | |
16.66 EUR | ||
| 266 | 861840-01 | 1 | LEVER SA | XC | |
5.19 EUR | ||
| 267 | 623413-00 | 1 | ARM | <392007 | XC | |
59.59 EUR | |
| 267 | 655035-00 | 1 | ARM | >392007 | XC | |
51.46 EUR | |
| 268 | 330036-08 | 1 | PIN | XC | |
2.48 EUR | ||
| 269 | 941534-00 | 2 | PIN | XC | |
2.48 EUR | ||
| 270 | 626334-00 | 1 | SPACER | XC | |
2.48 EUR | ||
| 271 | 868303-00 | 3 | FASTENER | XC | |
2.48 EUR | ||
| 272 | 626191-00 | 1 | LABEL | XC | |
2.59 EUR | ||
| 273 | 330019-13 | 4 | SCREW | M4X19 T20 | XC | |
2.48 EUR | |
| 275 | 611713-01 | 1 | FENCE | XC | |
84.44 EUR | ||
| 276 | 949701-05 | 4 | SCREW | M8 x 20 | XC | |
2.48 EUR | |
| 277 | 860083-15 | 4 | NUT | XC | |
2.48 EUR | ||
| 290 | 656422-00 | 1 | CLAMP KIT SA | XC | |
16.66 EUR | ||
| 302 | 635797-00 | 1 | LASER HEAD SA | D27105V | XC | |
130.97 EUR | |
| 303 | 627631-00 | 1 | SA POWER SUPPLY | D27105V | XC | |
67.89 EUR | |
| 304 | 615498-00 | 1 | WINDOW | D27105V | XC | |
14.46 EUR | |
| 305 | 635797-00 | 1 | LASER HEAD SA | D27105V | XC | |
130.97 EUR | |
| 306 | 860094-03 | 4 | SCREW | D27105V | XC | |
2.48 EUR | |
| 800 | 5140061-28 | 1 | GREASE | XC | |
72.03 EUR | ||
| 821 | 647903-02 | 1 | RATING PLATE | XC | |
3.21 EUR | ||
| 876 | N071750 | 1 | MOTOR & SWITCH SA | Ref to SB164 | XC | |
487.67 EUR | |
| 878 | N071752 | 1 | MOTOR SA | Ref to SB164 | XC | |
646.24 EUR |
* Nämä ovat ohjehintoja, jotka voivat vaihdella, eivätkä sisällä arvonlisäveroa eikä rahtikustannuksia. Pidätämme oikeuden hinta- ja ehtomuutoksiin ilman ennakkoilmoitusta.
