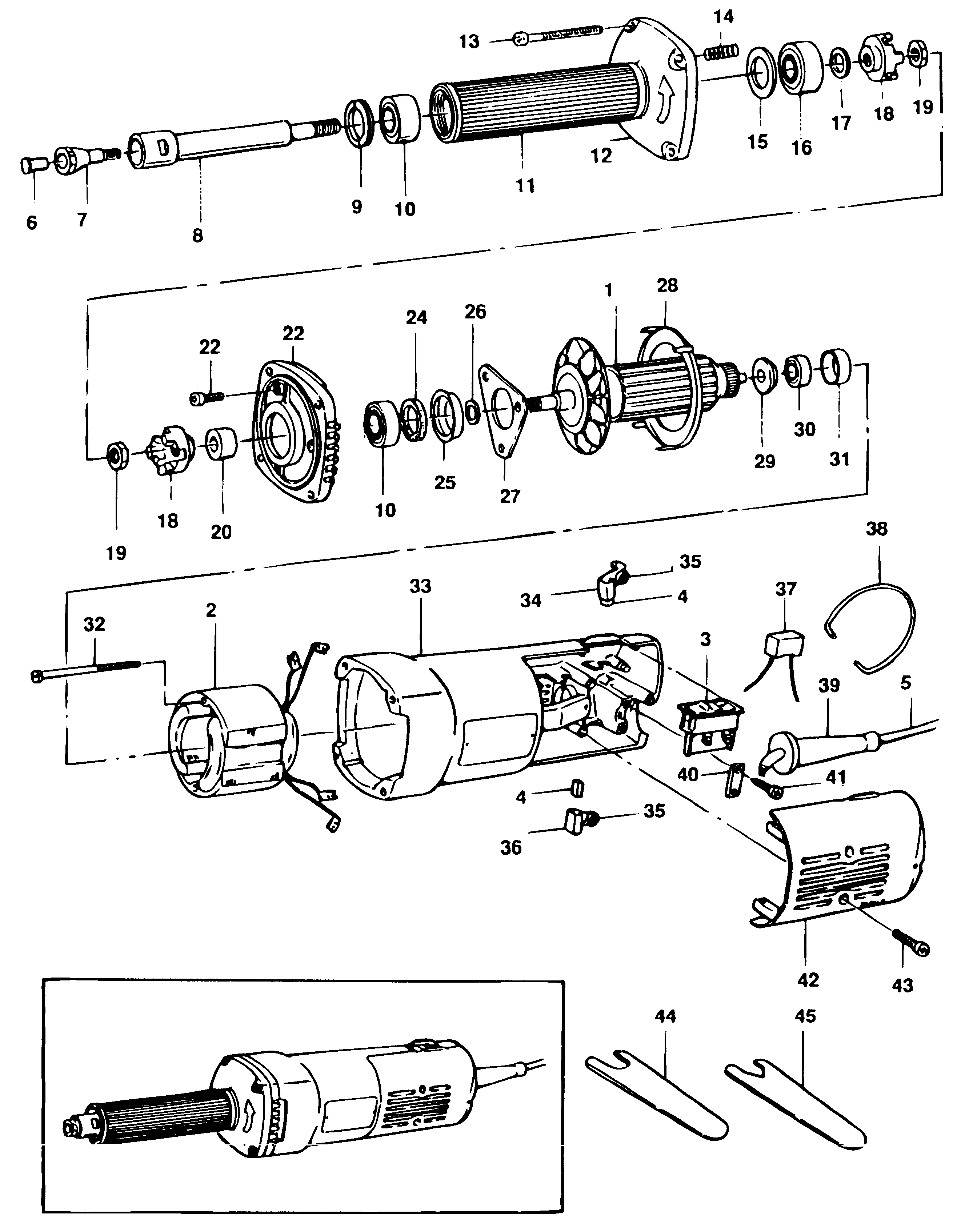

P7801 DIE GRINDER Type 1 | Kaaviot
Asiakirjat
Osalista
Avaa pudotusvalikko, sillä joissakin tuotteissa voi olla useampia kaavioita
Voidaan tulostaa
Näytä koko sivu
| Yksikkönumero | Tuotenumero | Määrä per | Tuotteen kuvaus | General Description | Muut tiedot | Markkinat | Tuotteen tila | Ohjehinta |
|---|---|---|---|---|---|---|---|---|
| 1 | 868600-00 | 1 | ARMATURE | GB 240V | FI |  |
174.70 EUR | |
| 1 | 868600-00 | 1 | ARMATURE | FI | |
174.70 EUR | ||
| 1 | 938624 | 1 | ARMATURE | BR 115V | FI | |
126.91 EUR | |
| 1 | 938624 | 1 | ARMATURE | SG 115V | FI | |
126.91 EUR | |
| 1 | 938624 | 1 | ARMATURE | GB 115V | FI | |
126.91 EUR | |
| 1 | 938624 | 1 | ARMATURE | AE 115V | FI | |
126.91 EUR | |
| 1 | 938624 | 1 | ARMATURE | CO-MX-PA-VE 120V | FI | |
126.91 EUR | |
| 2 | 938654 | 1 | FIELD | FI | ||||
| 2 | 938655-00 | 1 | FIELD | BR 115V | FI | |
123.12 EUR | |
| 2 | 938655-00 | 1 | FIELD | SG 115V | FI | |
123.12 EUR | |
| 2 | 938655-00 | 1 | FIELD | AE 115V | FI | |
123.12 EUR | |
| 2 | 938655-00 | 1 | FIELD | CO-MX-PA-VE 120V | FI | |
123.12 EUR | |
| 2 | 938658 | 1 | FIELD | GB 240V | FI | |
139.19 EUR | |
| 3 | 937689 | 1 | SWITCH | FI | |
8.96 EUR | ||
| 4 | 937690-00 | 2 | BRUSH | GB 240V | FI | |
2.48 EUR | |
| 4 | 937690-00 | 2 | BRUSH | FI | |
2.48 EUR | ||
| 4 | 938572 | 2 | BRUSH | BR 115V | FI | |
3.70 EUR | |
| 4 | 938572 | 2 | BRUSH | SG 115V | FI | |
3.70 EUR | |
| 4 | 938572 | 2 | BRUSH | GB 115V | FI | |
3.70 EUR | |
| 4 | 938572 | 2 | BRUSH | AE 115V | FI | |
3.70 EUR | |
| 4 | 938572 | 2 | BRUSH | CO-MX-PA-VE 120V | FI | |
3.70 EUR | |
| 5 | 949770-06 | 1 | CABLE & PLUG | GB 240V | FI | |
37.15 EUR | |
| 5 | 949843-03 | 1 | CABLE | SG 115V | FI | |
16.66 EUR | |
| 5 | 949843-03 | 1 | CABLE | AE 115V | FI | |
16.66 EUR | |
| 5 | 949843-03 | 1 | CABLE | CO-MX-PA-VE 120V | FI | |
16.66 EUR | |
| 5 | 949843-03 | 1 | CABLE | FI | |
16.66 EUR | ||
| 5 | 937139 | 1 | CABLE | BR 115V | FI | |
19.41 EUR | |
| 5 | 330061-07 | 1 | CABLE SA | GB 115V | FI | |||
| 6 | 938614 | 1 | NUT | GB 240V | FI | |
2.48 EUR | |
| 6 | 938614 | 1 | NUT | SG 115V | FI | |
2.48 EUR | |
| 6 | 938614 | 1 | NUT | GB 115V | FI | |
2.48 EUR | |
| 6 | 938614 | 1 | NUT | AE 115V | FI | |
2.48 EUR | |
| 6 | 938614 | 1 | NUT | FI | |
2.48 EUR | ||
| 7 | 938615 | 1 | COLLET 6MM | GB 240V | FI | |
37.15 EUR | |
| 7 | 938615 | 1 | COLLET 6MM | SG 115V | FI | |
37.15 EUR | |
| 7 | 938615 | 1 | COLLET 6MM | GB 115V | FI | |
37.15 EUR | |
| 7 | 938615 | 1 | COLLET 6MM | AE 115V | FI | |
37.15 EUR | |
| 7 | 938615 | 1 | COLLET 6MM | FI | |
37.15 EUR | ||
| 8 | 935804-01 | 1 | SPINDLE | FI | |
119.04 EUR | ||
| 9 | 935811-01 | 1 | NUT | FI | |
8.04 EUR | ||
| 10 | 949719-16 | 2 | BEARING | FI | |
8.04 EUR | ||
| 11 | 935812-00 | 1 | CONNECTOR | FI | |
6.32 EUR | ||
| 12 | 935808-01 | 1 | GEARCASE | FI | |
92.58 EUR | ||
| 13 | 934512 | 4 | SCREW | FI | |
2.48 EUR | ||
| 14 | 935805 | 3 | SPRING | FI | |
2.48 EUR | ||
| 15 | 935813 | 1 | WASHER | FI | |
2.48 EUR | ||
| 16 | 577745-00 | 2 | BEARING | FI |  |
8.04 EUR | ||
| 17 | 940246 | 1 | WASHER | FI | |
2.48 EUR | ||
| 18 | 935807 | 2 | COUPLING | FI | |
2.48 EUR | ||
| 19 | 935815 | 2 | WASHER | FI | |
2.48 EUR | ||
| 20 | 938616 | 1 | SPACER | FI | |
3.11 EUR | ||
| 21 | 930224-00 | 3 | SCREW | FI | |
2.48 EUR | ||
| 22 | 935809-00 | 1 | GEARCASE COVER | FI | |
26.12 EUR | ||
| 24 | 938618 | 1 | FELT | FI | |
2.48 EUR | ||
| 25 | 938620 | 1 | COVER | FI | ||||
| 26 | 938617 | 1 | SPACER | FI | |
2.48 EUR | ||
| 27 | 938621 | 1 | FLANGE | FI | ||||
| 28 | 933516 | 1 | BAFFLE | FI | |
2.48 EUR | ||
| 29 | 934412 | 1 | SPACER | FI | |
2.48 EUR | ||
| 30 | 330003-02 | 1 | BEARING | FI | |
5.19 EUR | ||
| 31 | 930029-00 | 1 | HOLDER BEARING | FI | |
2.48 EUR | ||
| 32 | 934429 | 2 | SCREW | FI | |
6.32 EUR | ||
| 33 | 937687-00 | 1 | FIELDCASE | FI | ||||
| 34 | 937693 | 1 | PLATE | FI | |
2.48 EUR | ||
| 35 | 934859 | 2 | SPRING | FI | |
2.48 EUR | ||
| 36 | 937694 | 1 | BRUSH HOLDER | FI | |
2.48 EUR | ||
| 37 | 930030 | 1 | CAPACITOR | FI | |
2.48 EUR | ||
| 37 | 949877-01 | 1 | CAPACITOR | GB 240V | FI | |
3.11 EUR | |
| 37 | 949877-01 | 1 | CAPACITOR | BR 115V | FI | |
3.11 EUR | |
| 37 | 949877-01 | 1 | CAPACITOR | GB 115V | FI | |
3.11 EUR | |
| 38 | 938629 | 1 | RING | BR 115V | FI | |||
| 38 | 938629 | 1 | RING | CO-MX-PA-VE 120V | FI | |||
| 39 | 949835-01 | 1 | PROTECTOR | SG 115V | FI | |
2.48 EUR | |
| 39 | 949835-01 | 1 | PROTECTOR | AE 115V | FI | |
2.48 EUR | |
| 39 | 949835-01 | 1 | PROTECTOR | CO-MX-PA-VE 120V | FI | |
2.48 EUR | |
| 39 | 933551-00 | 1 | PROTECTOR | FI | |
2.48 EUR | ||
| 39 | 933551-00 | 1 | PROTECTOR | GB 240V | FI | |
2.48 EUR | |
| 39 | 933551-00 | 1 | PROTECTOR | BR 115V | FI | |
2.48 EUR | |
| 39 | 933551-00 | 1 | PROTECTOR | GB 115V | FI | |
2.48 EUR | |
| 40 | 930103-00 | 1 | CORD CLAMP | FI | |
2.48 EUR | ||
| 41 | 930076-00 | 2 | SCREW | FI | |
2.48 EUR | ||
| 42 | 937691 | 1 | COVER | FI | |
6.32 EUR | ||
| 43 | 932409 | 3 | SCREW | FI | |
2.48 EUR | ||
| 44 | 938631 | 1 | SPANNER | FI | |
2.97 EUR | ||
| 45 | 938630 | 1 | WRENCH | FI | ||||
| 46 | 935810-00 | 1 | COLLET 6.35MM | PARTS NOT DRAWN | FI | |
37.15 EUR | |
| 47 | 935803 | 1 | NUT | PARTS NOT DRAWN | FI | |
2.48 EUR |
* Nämä ovat ohjehintoja, jotka voivat vaihdella, eivätkä sisällä arvonlisäveroa eikä rahtikustannuksia. Pidätämme oikeuden hinta- ja ehtomuutoksiin ilman ennakkoilmoitusta.
