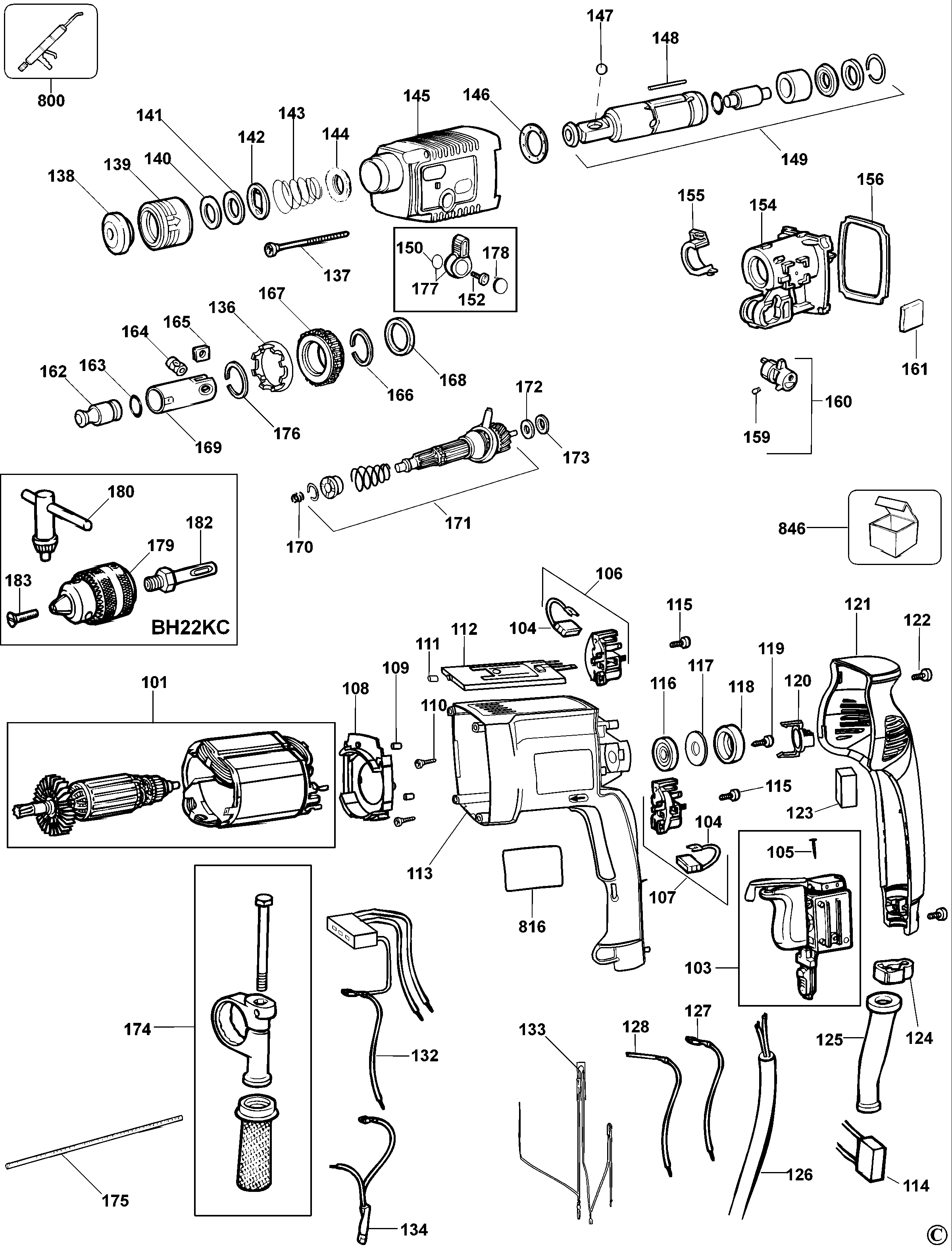

BH22 ROTARY HAMMER Type 1 | Kaaviot
Asiakirjat
Osalista
Avaa pudotusvalikko, sillä joissakin tuotteissa voi olla useampia kaavioita
Voidaan tulostaa
Näytä koko sivu
| Yksikkönumero | Tuotenumero | Määrä per | Tuotteen kuvaus | General Description | Muut tiedot | Markkinat | Tuotteen tila | Ohjehinta |
|---|---|---|---|---|---|---|---|---|
| 101 | 1005202-00 | 1 | MOTOR SA | FI |  |
80.30 EUR | ||
| 103 | 329854-49 | 1 | SWITCH KIT | Tyco | FI | 37.15 EUR | ||
| 104 | 401853-01 | 2 | BRUSH 230V | FI | |
3.21 EUR | ||
| 105 | 402760-01 | 1 | PIN | FROM DC 40-97 | FI |  |
2.48 EUR | |
| 105 | 402760-00 | 1 | PIN | UPTO DC 39-97 | FI | |
2.48 EUR | |
| 106 | 401845-06 | 1 | BRUSH HOLDER SA | FI | |
8.96 EUR | ||
| 107 | 401845-00 | 1 | BRUSH HOLDER SA | FI | |
8.96 EUR | ||
| 108 | 327293-00 | 1 | BAFFLE FAN | FI | |
2.48 EUR | ||
| 109 | 949638-01 | 2 | BUFFER | FI | |
2.48 EUR | ||
| 110 | 390198-00 | 2 | SCREW | FI | |
2.48 EUR | ||
| 111 | 949638-02 | 1 | DAMPER | FI | |
2.48 EUR | ||
| 112 | 577857-02 | 1 | SWITCH KIT 230V | FI | |
41.34 EUR | ||
| 113 | 327290-04 | 1 | HOUSING SA | Grey | FI | |
10.32 EUR | |
| 114 | 949877-01 | 1 | CAPACITOR | FI | |
3.11 EUR | ||
| 115 | 330065-06 | 2 | SCREW | FI | |
2.48 EUR | ||
| 116 | 330003-19 | 1 | BEARING | FI | |
6.32 EUR | ||
| 117 | 949876-25 | 1 | WASHER | FI | |
2.48 EUR | ||
| 118 | 870052 | 1 | SLEEVE | FI | |
2.48 EUR | ||
| 119 | 329794-00 | 1 | SCREW | FI | |
2.48 EUR | ||
| 120 | 327296-00 | 1 | CAP | FI | |
2.48 EUR | ||
| 121 | 327298-00 | 1 | COVER | Grey | FI | |
16.66 EUR | |
| 122 | 330065-07 | 3 | SCREW | FI | |
2.48 EUR | ||
| 123 | 930026-01 | 1 | BUMPER | FI | |
2.48 EUR | ||
| 124 | 402649-00 | 1 | CORD CLAMP | FI | |
2.48 EUR | ||
| 125 | 403395-00 | 1 | CORD PROTECTOR | FI | |
2.59 EUR | ||
| 126 | 324438-89 | 1 | CORDSET | FI | |
33.00 EUR | ||
| 127 | 949801-86 | 1 | LEAD BLACK 90MM | FI | |
2.48 EUR | ||
| 128 | 949801-85 | 1 | LEAD BLACK 90MM | FI | |
2.48 EUR | ||
| 132 | 328101-00 | 1 | LEAD & SOCKET SA | FI | |
4.58 EUR | ||
| 133 | 578985-00 | 1 | CHOKE SA | FI | |
8.04 EUR | ||
| 134 | 945402-19 | 1 | CHOKE SA | FI | |
3.70 EUR | ||
| 136 | 327110-00 | 1 | SPACER | FI | |
2.48 EUR | ||
| 137 | 324044-02 | 4 | SCREW | FI | |
2.48 EUR | ||
| 138 | 323489-00 | 1 | CAP | FI | |
2.48 EUR | ||
| 139 | 576756-00 | 1 | COLLAR | FI | |
4.58 EUR | ||
| 140 | 323480-00 | 1 | SPACER | FI | |
2.59 EUR | ||
| 141 | 323492-00 | 1 | WASHER | FI | |
2.48 EUR | ||
| 142 | 578387-00 | 1 | WASHER | FI | |
2.48 EUR | ||
| 143 | 871690 | 1 | SPRING | FI | |
2.48 EUR | ||
| 144 | 324432-00 | 1 | SEAL SA | FI | |
2.48 EUR | ||
| 145 | 329968-00 | 1 | GEARCASE SA | FI | |
37.15 EUR | ||
| 146 | 329907-00 | 1 | WASHER | FI | |
6.32 EUR | ||
| 147 | 583890-00 | 1 | BALL | FI | |
2.48 EUR | ||
| 148 | 325880-03 | 1 | PIN | FI | |
2.48 EUR | ||
| 149 | 577080-01 | 1 | SPINDLE SA | FI | |
59.59 EUR | ||
| 150 | 916323 | 1 | O RING | FI | |
2.48 EUR | ||
| 152 | 323924-08 | 1 | SCREW | FI | |
2.48 EUR | ||
| 154 | 327100-00 | 1 | CASTING SA | FI | |
37.15 EUR | ||
| 155 | 328507-00 | 1 | SHIELD | FI | |
2.48 EUR | ||
| 156 | 323572-00 | 1 | SEAL | FI | |
2.48 EUR | ||
| 159 | 326467-00 | 1 | DETENT | FI | |
2.48 EUR | ||
| 160 | 487047-49 | 1 | REPAIR KIT | FI | |
19.41 EUR | ||
| 161 | 327093-00 | 1 | FILTER | FI | |
2.48 EUR | ||
| 162 | 327070-00 | 1 | RAM | FI | |
29.88 EUR | ||
| 163 | 323711-25 | 1 | O RING | FI | |
2.48 EUR | ||
| 164 | 487143-00 | 1 | AXLE | FI | |
8.04 EUR | ||
| 165 | 327072-00 | 1 | SHIM | FI | |
2.48 EUR | ||
| 166 | 323762-02 | 1 | CIRCLIP | FI | |
2.48 EUR | ||
| 167 | 487401-00 | 1 | CLUTCH SA | FI | |
26.12 EUR | ||
| 168 | 327074-00 | 1 | RING | FI | |
2.48 EUR | ||
| 169 | 327071-00 | 1 | PISTON | FI | |
14.46 EUR | ||
| 170 | 323395-33 | 1 | SPRING | FI | |
2.48 EUR | ||
| 171 | 327101-01 | 1 | INTERSHAFT SA | FI | |
67.89 EUR | ||
| 172 | 324430-03 | 1 | BEARING AXIAL | FI | |
19.41 EUR | ||
| 173 | 324431-03 | 1 | WASHER 7 | FI | |
2.48 EUR | ||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | FI | |
6.32 EUR | ||
| 175 | 580787-00 | 1 | DEPTH STOP | FI | |
2.48 EUR | ||
| 176 | 323762-08 | 1 | CIRCLIP | FI | |
2.48 EUR | ||
| 177 | 327119-00 | 1 | LEVER | FI | |
2.48 EUR | ||
| 178 | 328809-00 | 1 | COVER | FI | |
2.48 EUR | ||
| 179 | 5140071-68 | 1 | CHUCK 13MM | BH22KC | FI | |
16.66 EUR | |
| 180 | 330034-07 | 1 | CHUCK KEY | BH22KC | FI | |
2.48 EUR | |
| 182 | 352065 | 1 | ADAPTOR | BH22KC | FI | |
2.59 EUR | |
| 183 | 945013-00 | 1 | SCREW | BH22KC | FI | |
2.48 EUR | |
| 800 | 870889-02 | 1 | GREASE | FI | |
11.73 EUR | ||
| 816 | 152529-00 | 1 | LABEL | FI | |
2.48 EUR | ||
| 846 | 487045-49 | 1 | REPAIR KIT | UP TO DC 97-52 | FI | |
159.36 EUR |
* Nämä ovat ohjehintoja, jotka voivat vaihdella, eivätkä sisällä arvonlisäveroa eikä rahtikustannuksia. Pidätämme oikeuden hinta- ja ehtomuutoksiin ilman ennakkoilmoitusta.
