DIAMANT-3 CORE DRILL Type 1 | Kaaviot
Asiakirjat
Osalista
Avaa pudotusvalikko, sillä joissakin tuotteissa voi olla useampia kaavioita
Voidaan tulostaa
Näytä koko sivu
| Yksikkönumero | Tuotenumero | Määrä per | Tuotteen kuvaus | General Description | Muut tiedot | Markkinat | Tuotteen tila | Ohjehinta |
|---|---|---|---|---|---|---|---|---|
| 1 | 832348 | 1 | RING | XJ |  |
2.48 EUR | ||
| 2 | 278655-00 | 1 | SPINDLE | XJ | |
417.62 EUR | ||
| 3 | 278683-00 | 2 | SCREW | XJ | |
51.46 EUR | ||
| 4 | 832352 | 2 | WASHER | XJ | |
2.48 EUR | ||
| 5 | 278684-00 | 1 | GEARCASE | XJ | |
875.57 EUR | ||
| 6 | 832327 | 2 | PIN | XJ | |
2.48 EUR | ||
| 7 | 832328 | 1 | PIN | XJ | |
2.48 EUR | ||
| 9 | 832330 | 1 | GEAR | P1805T + N.V.R.S. | XJ | |
165.32 EUR | |
| 9 | 832330 | 1 | GEAR | P1805 WITH T.O.C. | XJ | |
165.32 EUR | |
| 9 | 832330 | 1 | GEAR | P1805 WITHOUT T.O.C. | XJ | |
165.32 EUR | |
| 9 | 278679-00 | 1 | GEAR | P1807T + N.V.R.S. | XJ | |
165.32 EUR | |
| 9 | 278679-00 | 1 | GEAR | P1807 WITH T.O.C. | XJ | |
165.32 EUR | |
| 9 | 278679-00 | 1 | GEAR | P1807 WITHOUT T.O.C. | XJ | |
165.32 EUR | |
| 9 | 278651-00 | 1 | GEAR | P1806T + N.V.R.S. | XJ | |
188.65 EUR | |
| 9 | 278651-00 | 1 | GEAR | P1806 WITH T.O.C. | XJ | |
188.65 EUR | |
| 9 | 278651-00 | 1 | GEAR | P1806 WITHOUT T.O.C. | XJ | |
188.65 EUR | |
| 11 | 832332 | 3 | SPRING | XJ | |
2.97 EUR | ||
| 12 | 832333 | 2 | NUT | XJ | |
16.66 EUR | ||
| 13 | 278653-00 | 1 | SPINDLE | P1807T + N.V.R.S. | XJ | |
206.52 EUR | |
| 13 | 278653-00 | 1 | SPINDLE | P1807 WITH T.O.C. | XJ | |
206.52 EUR | |
| 13 | 278653-00 | 1 | SPINDLE | P1807 WITHOUT T.O.C. | XJ | |
206.52 EUR | |
| 13 | 278652-00 | 1 | SPINDLE | P1806T + N.V.R.S. | XJ | |
229.22 EUR | |
| 13 | 278652-00 | 1 | SPINDLE | P1806 WITH T.O.C. | XJ | |
229.22 EUR | |
| 13 | 278652-00 | 1 | SPINDLE | P1806 WITHOUT T.O.C. | XJ | |
229.22 EUR | |
| 13 | 278678-00 | 1 | SPINDLE | P1805T + N.V.R.S. | XJ | |
250.42 EUR | |
| 13 | 278678-00 | 1 | SPINDLE | P1805 WITH T.O.C. | XJ | |
250.42 EUR | |
| 13 | 278678-00 | 1 | SPINDLE | P1805 WITHOUT T.O.C. | XJ | |
250.42 EUR | |
| 14 | 278650-00 | 1 | GEAR | XJ | |
188.65 EUR | ||
| 15 | 832334 | 1 | WASHER | XJ | |
2.48 EUR | ||
| 16 | 278672-00 | 1 | SEAL | XJ | |
3.70 EUR | ||
| 17 | 278701-00 | 1 | SPINDLE | XJ | |
2.48 EUR | ||
| 18 | 832321 | 2 | BEARING THRUST | XJ | |
51.46 EUR | ||
| 19 | 930930 | 4 | SCREW | XJ | |
2.48 EUR | ||
| 20 | 278681-00 | 4 | WASHER | XJ | |
2.48 EUR | ||
| 21 | 278682-00 | 1 | GEARCASE SA | TO DATECODE 223 INCL | XJ | |
2.48 EUR | |
| 21 | 279438-00 | 1 | GEARCASE SA | AFTER DATE CODE 223 | XJ | |
2.48 EUR | |
| 22 | 278676-00 | 1 | COVER | XJ | |
72.03 EUR | ||
| 23 | 278700-00 | 1 | TUBE | XJ | |
16.66 EUR | ||
| 24 | 832365 | 4 | SCREW | XJ | |
2.48 EUR | ||
| 25 | 832364 | 4 | WASHER | XJ | |
2.48 EUR | ||
| 26 | 832650 | 4 | SEAL | XJ | |
2.48 EUR | ||
| 27 | 832378 | 2 | SCREW | XJ | |
2.48 EUR | ||
| 28 | 278670-00 | 1 | WASHER | XJ | |
2.48 EUR | ||
| 29 | 832351 | 1 | CIRCLIP | XJ | |
2.48 EUR | ||
| 30 | 278626-00 | 1 | SCREW | XJ | |
2.48 EUR | ||
| 31 | 832353 | 1 | WASHER | XJ | |
2.48 EUR | ||
| 32 | 832344 | 1 | SPRING | XJ | |
2.48 EUR | ||
| 33 | 832343 | 1 | BALL | XJ | |
2.48 EUR | ||
| 34 | 832354 | 1 | LEVER | XJ | |
67.89 EUR | ||
| 35 | 832355 | 1 | RING | XJ | |
2.48 EUR | ||
| 36 | 832356 | 1 | WASHER THRUST | XJ | |
21.79 EUR | ||
| 37 | 832319 | 1 | WASHER THRUST | XJ | |
2.48 EUR | ||
| 38 | 832318 | 2 | BEARING THRUST | XJ | |
19.41 EUR | ||
| 39 | 278685-00 | 1 | PIN | XJ | |
14.46 EUR | ||
| 40 | 278677-00 | 1 | COVER | XJ | |
67.89 EUR | ||
| 42 | 931073-00 | 1 | BAFFLE | XJ | |
2.97 EUR | ||
| 43 | 931072 | 2 | SCREW | XJ | |
2.48 EUR | ||
| 44 | 940480-49 | 1 | FIELD | XJ | |
119.04 EUR | ||
| 45 | 933373-00 | 2 | BRUSH | XJ |  |
5.19 EUR | ||
| 45 | 933373-00 | 2 | BRUSH | XJ | |
5.19 EUR | ||
| 46 | 935747 | 1 | BRUSH PLATE SA | XJ | |
16.66 EUR | ||
| 47 | 938332-00 | 1 | SLEEVE | XJ | |
2.48 EUR | ||
| 48 | 948162-09 | 1 | FIELDCASE SA | XJ | |
29.88 EUR | ||
| 49 | 832377 | 1 | WASHER | XJ | |
2.48 EUR | ||
| 50 | 278618-00 | 1 | HOLDER SA | P1806 WITHOUT T.O.C. | XJ | |
153.28 EUR | |
| 50 | 278618-00 | 1 | HOLDER SA | P1807 WITHOUT T.O.C. | XJ | |
153.28 EUR | |
| 50 | 278618-00 | 1 | HOLDER SA | P1805 WITHOUT T.O.C. | XJ | |
153.28 EUR | |
| 51 | 278602-00 | 1 | SWITCH | P1806 WITHOUT T.O.C. | XJ | |
67.89 EUR | |
| 51 | 278602-00 | 1 | SWITCH | P1807 WITHOUT T.O.C. | XJ | |
67.89 EUR | |
| 51 | 278602-00 | 1 | SWITCH | P1805 WITHOUT T.O.C. | XJ | |
67.89 EUR | |
| 52 | 832372 | 1 | CAP | P1806 WITHOUT T.O.C. | XJ | |
8.04 EUR | |
| 52 | 832372 | 1 | CAP | P1807 WITHOUT T.O.C. | XJ | |
8.04 EUR | |
| 52 | 832372 | 1 | CAP | P1805 WITHOUT T.O.C. | XJ | |
8.04 EUR | |
| 53 | 832373 | 1 | PLATE | P1806 WITHOUT T.O.C. | XJ | |
2.48 EUR | |
| 53 | 832373 | 1 | PLATE | P1807 WITHOUT T.O.C. | XJ | |
2.48 EUR | |
| 53 | 832373 | 1 | PLATE | P1805 WITHOUT T.O.C. | XJ | |
2.48 EUR | |
| 54 | 832374 | 2 | SCREW | P1806 WITHOUT T.O.C. | XJ | |
2.48 EUR | |
| 54 | 832374 | 2 | SCREW | P1807 WITHOUT T.O.C. | XJ | |
2.48 EUR | |
| 54 | 832374 | 2 | SCREW | P1805 WITHOUT T.O.C. | XJ | |
2.48 EUR | |
| 55 | 278675-00 | 1 | RING | TO DATECODE 223 INCL | XJ | |
2.48 EUR | |
| 55 | 279439-00 | 1 | RING | AFTER DATE CODE 223 | XJ | |
41.34 EUR | |
| 56 | 832376 | 1 | BEARING | XJ | |
47.21 EUR | ||
| 57 | 931062-00 | 1 | SPACER | XJ | 2.48 EUR | |||
| 58 | 931066-00 | 1 | FLANGE | XJ | |
3.21 EUR | ||
| 59 | 931067-00 | 1 | SEAL SA | XJ | |
2.48 EUR | ||
| 60 | 868415-00 | 1 | ARMATURE | XJ | |
174.70 EUR | ||
| 61 | 938331-00 | 1 | SPACER | XJ | 2.48 EUR | |||
| 62 | 577745-00 | 1 | BEARING | XJ | |
8.04 EUR | ||
| 63 | 278702-00 | 1 | ARMATURE SA | TO DATECODE 223 INCL | XJ | |
2.48 EUR | |
| 63 | 279441-00 | 1 | ARMATURE SA | AFTER DATE CODE 223 | XJ | |
2.48 EUR | |
| 64 | 832379 | 2 | SCREW | XJ | |
2.48 EUR | ||
| 65 | 832633 | 1 | CORD CLAMP | XJ | |
2.48 EUR | ||
| 66 | 832380 | 1 | COVER | XJ | |
8.96 EUR | ||
| 67 | 278605-00 | 1 | CABLE | XJ | |
55.61 EUR | ||
| 68 | 278603-00 | 1 | END CAP SA | XJ | |
43.26 EUR | ||
| 69 | 930752-00 | 2 | SCREW | XJ | |
2.48 EUR | ||
| 70 | 931297-00 | 2 | SCREW | XJ | |
2.48 EUR | ||
| 71 | 278719-00 | 1 | LEAD | XJ | |
11.73 EUR | ||
| 72 | 278751-00 | 2 | PLUG | XJ | |
2.48 EUR | ||
| 73 | 832635 | 1 | SEAL | XJ | |
2.48 EUR | ||
| 74 | 832316 | 1 | SEAL | XJ | |
14.46 EUR | ||
| 75 | 832320 | 1 | BEARING | XJ | |
96.71 EUR | ||
| 76 | 278673-00 | 1 | GEARCASE | XJ | |
542.15 EUR | ||
| 77 | 832322 | 1 | WASHER THRUST | XJ | |
11.73 EUR | ||
| 78 | 832323 | 1 | BEARING | XJ | |
55.61 EUR | ||
| 79 | 832324 | 1 | BEARING | XJ | |
29.88 EUR | ||
| 80 | 832325 | 2 | SLEEVE | XJ | |
19.41 EUR | ||
| 81 | 832338 | 1 | COVER SA | XJ | |
43.26 EUR | ||
| 82 | 832642 | 2 | SEAL | XJ | |
11.73 EUR | ||
| 83 | 278600-00 | 1 | BEARING | XJ | |
19.41 EUR | ||
| 84 | 278674-00 | 1 | GEARCASE | TO DATECODE 223 INCL | XJ | |
2.48 EUR | |
| 84 | 279437-00 | 1 | GEARCASE | AFTER DATE CODE 223 | XJ | |
396.29 EUR | |
| 85 | 278635-00 | 1 | SEAL | XJ | |
2.48 EUR | ||
| 87 | 278604-00 | 1 | PLUG | XJ | |
43.26 EUR | ||

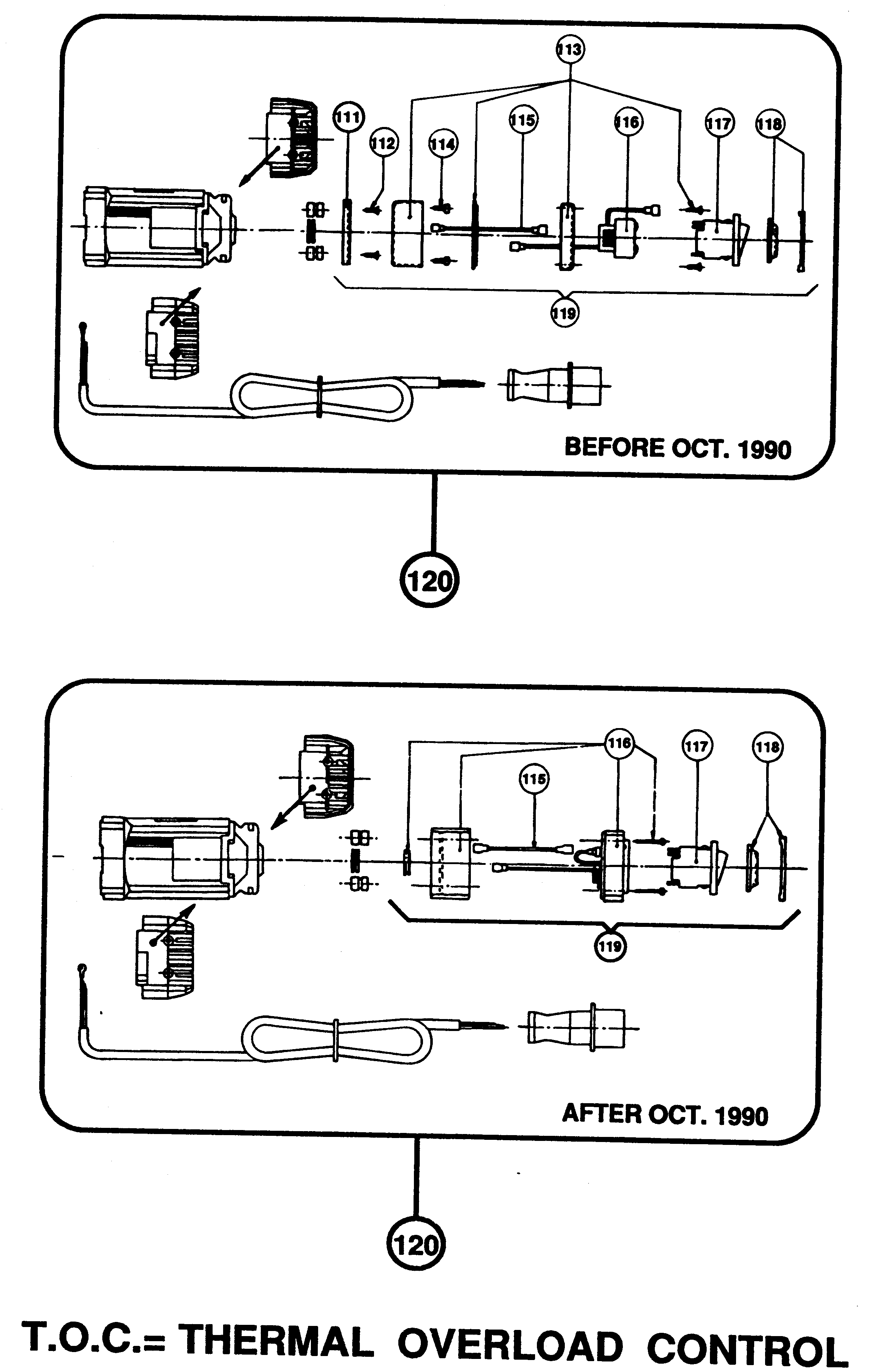

| 115 | 278735-00 | 1 | LEAD | P1806T + N.V.R.S. | XJ | |
6.32 EUR | |
| 115 | 278735-00 | 1 | LEAD | P1806 WITH T.O.C. | XJ | |
6.32 EUR | |
| 115 | 278735-00 | 1 | LEAD | P1807T + N.V.R.S. | XJ | |
6.32 EUR | |
| 115 | 278735-00 | 1 | LEAD | P1807 WITH T.O.C. | XJ | |
6.32 EUR | |
| 115 | 278735-00 | 1 | LEAD | P1805T + N.V.R.S. | XJ | |
6.32 EUR | |
| 115 | 278735-00 | 1 | LEAD | P1805 WITH T.O.C. | XJ | |
6.32 EUR | |
| 116 | 278782-00 | 1 | PCB | P1806T + N.V.R.S. | XJ | |
139.19 EUR | |
| 116 | 278782-00 | 1 | PCB | P1806 WITH T.O.C. | XJ | |
139.19 EUR | |
| 116 | 278782-00 | 1 | PCB | P1807T + N.V.R.S. | XJ | |
139.19 EUR | |
| 116 | 278782-00 | 1 | PCB | P1807 WITH T.O.C. | XJ | |
139.19 EUR | |
| 116 | 278782-00 | 1 | PCB | P1805T + N.V.R.S. | XJ | |
139.19 EUR | |
| 116 | 278782-00 | 1 | PCB | P1805 WITH T.O.C. | XJ | |
139.19 EUR | |
| 117 | 279029-00 | 1 | SWITCH | P1806T + N.V.R.S. | XJ | |
206.52 EUR | |
| 117 | 279029-00 | 1 | SWITCH | P1807T + N.V.R.S. | XJ | |
206.52 EUR | |
| 117 | 279029-00 | 1 | SWITCH | P1805T + N.V.R.S. | XJ | |
206.52 EUR | |
| 117 | 279030-00 | 1 | SWITCH & BREAKER | P1806 WITH T.O.C. | XJ | |
2.48 EUR | |
| 117 | 279030-00 | 1 | SWITCH & BREAKER | P1807 WITH T.O.C. | XJ | |
2.48 EUR | |
| 117 | 279030-00 | 1 | SWITCH & BREAKER | P1805 WITH T.O.C. | XJ | |
2.48 EUR | |
| 118 | 278741-00 | 1 | COVER | P1806T + N.V.R.S. | XJ | |
10.32 EUR | |
| 118 | 278741-00 | 1 | COVER | P1806 WITH T.O.C. | XJ | |
10.32 EUR | |
| 118 | 278741-00 | 1 | COVER | P1807T + N.V.R.S. | XJ | |
10.32 EUR | |
| 118 | 278741-00 | 1 | COVER | P1807 WITH T.O.C. | XJ | |
10.32 EUR | |
| 118 | 278741-00 | 1 | COVER | P1805T + N.V.R.S. | XJ | |
10.32 EUR | |
| 118 | 278741-00 | 1 | COVER | P1805 WITH T.O.C. | XJ | |
10.32 EUR | |
| 119 | 279032-00 | 1 | SWITCHBOX | P1806T + N.V.R.S. | XJ | |
461.19 EUR | |
| 119 | 279032-00 | 1 | SWITCHBOX | P1807T + N.V.R.S. | XJ | |
461.19 EUR | |
| 119 | 279032-00 | 1 | SWITCHBOX | P1805T + N.V.R.S. | XJ | |
461.19 EUR | |
| 119 | 279031-00 | 1 | CUT OUT THERMAL | P1806 WITH T.O.C. | XJ | |
352.60 EUR | |
| 119 | 279031-00 | 1 | CUT OUT THERMAL | P1807 WITH T.O.C. | XJ | |
352.60 EUR | |
| 119 | 279031-00 | 1 | CUT OUT THERMAL | P1805 WITH T.O.C. | XJ | |
352.60 EUR | |
| 120 | 279034-00 | 1 | MOTOR 220V | P1806T + N.V.R.S. | XJ | |
1437.37 EUR | |
| 120 | 279034-00 | 1 | MOTOR 220V | P1807T + N.V.R.S. | XJ | |
1437.37 EUR | |
| 120 | 279034-00 | 1 | MOTOR 220V | P1805T + N.V.R.S. | XJ | |
1437.37 EUR | |
| 120 | 279033-00 | 1 | MOTOR 220V | P1806 WITH T.O.C. | XJ | |
1437.37 EUR | |
| 120 | 279033-00 | 1 | MOTOR 220V | P1807 WITH T.O.C. | XJ | |
1437.37 EUR | |
| 120 | 279033-00 | 1 | MOTOR 220V | P1805 WITH T.O.C. | XJ | |
1437.37 EUR | |
| 121 | 278753-00 | 1 | BUSH | XJ | |
33.00 EUR | ||
| 123 | 278754-00 | 2 | WASHER CLAMP | XJ | |
43.26 EUR | ||
| 124 | 278760-00 | 2 | WASHER SHIM | XJ | |
19.41 EUR | ||
| 125 | 279440-00 | 1 | SEAL | XJ | |
21.79 EUR |
* Nämä ovat ohjehintoja, jotka voivat vaihdella, eivätkä sisällä arvonlisäveroa eikä rahtikustannuksia. Pidätämme oikeuden hinta- ja ehtomuutoksiin ilman ennakkoilmoitusta.
