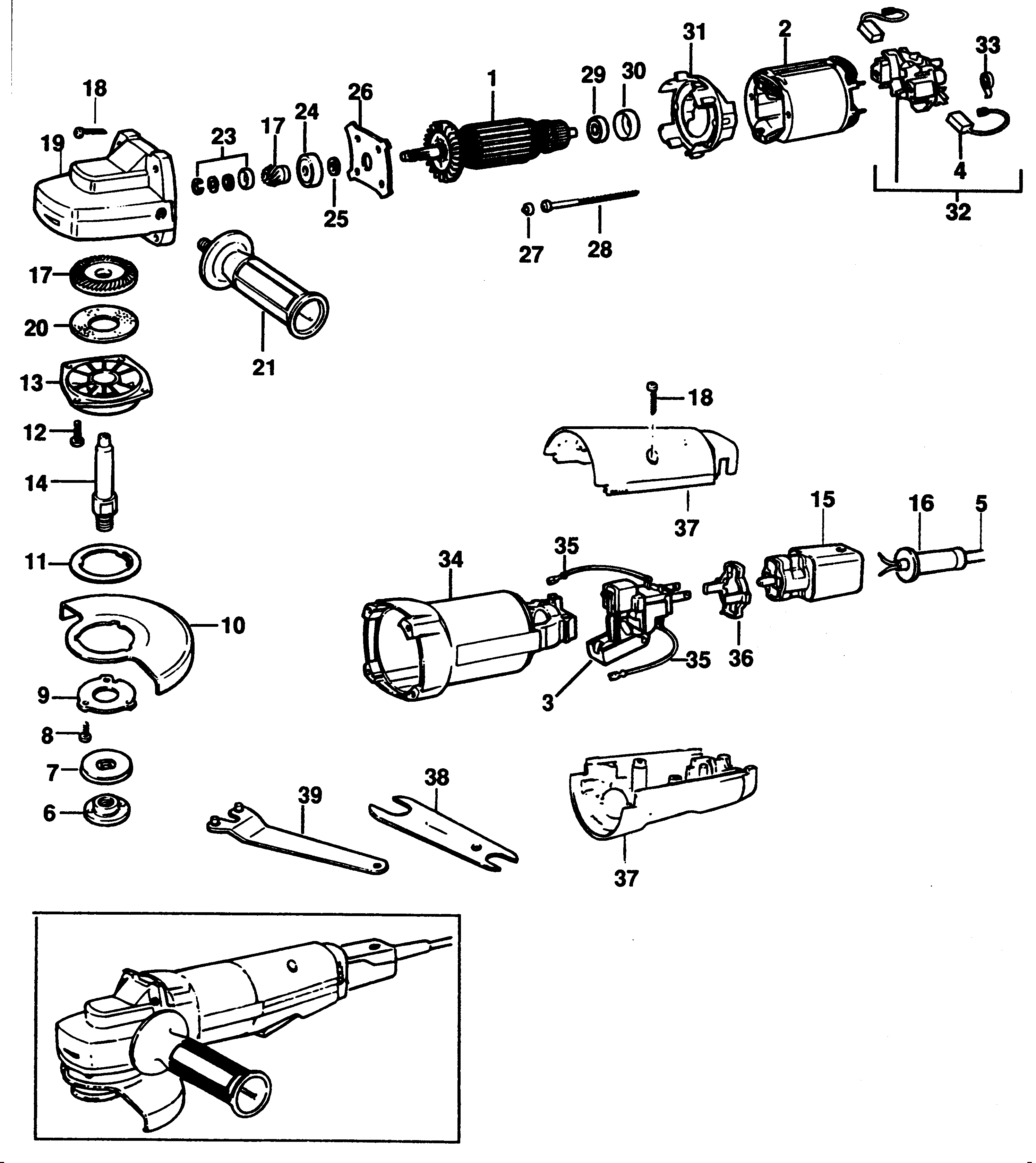

P5426 ANGLE GRINDER Type 1 | Kaaviot
Asiakirjat
Osalista
Avaa pudotusvalikko, sillä joissakin tuotteissa voi olla useampia kaavioita
Voidaan tulostaa
Näytä koko sivu
| Yksikkönumero | Tuotenumero | Määrä per | Tuotteen kuvaus | General Description | Muut tiedot | Markkinat | Tuotteen tila | Ohjehinta |
|---|---|---|---|---|---|---|---|---|
| 1 | 949846-03 | 1 | ARMATURE 115V | XJ |  |
96.71 EUR | ||
| 1 | 949846-02 | 1 | ARMATURE | XJ | |
76.15 EUR | ||
| 2 | 868629-02 | 1 | FIELD | XJ | |
47.21 EUR | ||
| 2 | 949847-09 | 1 | FIELD 115V | XJ | |
37.15 EUR | ||
| 3 | 949822-03 | 1 | SWITCH | XJ | |
43.26 EUR | ||
| 4 | 939539-01 | 2 | BRUSH CUT OFF | XJ |  |
3.70 EUR | ||
| 4 | 939539-00 | 2 | BRUSH CUT OFF | XJ | |
3.21 EUR | ||
| 5 | 330061-14 | 1 | CORDSET | XJ | |
104.87 EUR | ||
| 5 | 949770-06 | 1 | CABLE & PLUG | XJ | |
37.15 EUR | ||
| 6 | 403430-00 | 1 | OUTER FLANGE | XJ | |
8.96 EUR | ||
| 7 | 930771-00 | 1 | INNER FLANGE | XJ | |
2.97 EUR | ||
| 8 | 930251-00 | 3 | SCREW | XJ | |
2.48 EUR | ||
| 10 | 937411-00 | 1 | GUARD | XJ | |
8.96 EUR | ||
| 11 | 938272 | 1 | RING | XJ | |
2.48 EUR | ||
| 12 | 930770-00 | 4 | SCREW | XJ | |
2.48 EUR | ||
| 13 | 944055 | 1 | GEARCASE COVER SA | XJ | |
19.41 EUR | ||
| 14 | 946414-00 | 1 | SPINDLE | XJ | |
11.73 EUR | ||
| 15 | 945899-01 | 1 | PLUG | XJ | 8.04 EUR | |||
| 15 | 945899-00 | 1 | PLUG | XJ | |
14.46 EUR | ||
| 16 | N542553 | 1 | CORD PROTECTOR | XJ | 3.70 EUR | |||
| 16 | N542553 | 1 | CORD PROTECTOR | GB 240 | XJ | 3.70 EUR | ||
| 16 | N542553 | 1 | CORD PROTECTOR | GB 240 | XJ | 3.70 EUR | ||
| 16 | N542553 | 1 | CORD PROTECTOR | GB 115 | XJ | 3.70 EUR | ||
| 17 | 932592 | 1 | GEAR & PINION | XJ | |
26.12 EUR | ||
| 18 | 930079-01 | 6 | SCREW | XJ | |
2.48 EUR | ||
| 19 | 946570-00 | 1 | GEARBOX SA | XJ | |
37.15 EUR | ||
| 20 | 946418-00 | 1 | FELT | XJ | |
2.48 EUR | ||
| 23 | 937668 | 1 | CIRCLIP SA | XJ | |
3.11 EUR | ||
| 24 | 577745-00 | 1 | BEARING | XJ | |
8.04 EUR | ||
| 25 | 930753-00 | 1 | WASHER | XJ | |
2.48 EUR | ||
| 27 | 933657-00 | 2 | CAP | XJ | |
2.48 EUR | ||
| 28 | 930077-00 | 2 | SCREW | XJ | |
2.48 EUR | ||
| 29 | 330003-34 | 1 | BEARING | XJ | |
6.32 EUR | ||
| 30 | 930029-00 | 1 | HOLDER BEARING | XJ | |
2.48 EUR | ||
| 31 | 946134-00 | 1 | BAFFLE | XJ | |
2.48 EUR | ||
| 32 | 938856-00 | 1 | BRUSH PLATE SA | XJ | |
37.15 EUR | ||
| 32 | 930167-00 | 1 | BRUSH PLATE SA | XJ | |
80.30 EUR | ||
| 33 | 930090-00 | 2 | BRUSH SPRING | XJ | |
2.48 EUR | ||
| 35 | 930728-00 | 2 | LEAD | XJ | |
2.48 EUR | ||
| 36 | 930761 | 1 | RING | XJ | |
2.48 EUR | ||
| 38 | 931637 | 1 | SPANNER | XJ | |
3.21 EUR | ||
| 39 | 947830-06 | 1 | WRENCH SPECIAL | XJ | |
19.41 EUR |
* Nämä ovat ohjehintoja, jotka voivat vaihdella, eivätkä sisällä arvonlisäveroa eikä rahtikustannuksia. Pidätämme oikeuden hinta- ja ehtomuutoksiin ilman ennakkoilmoitusta.
