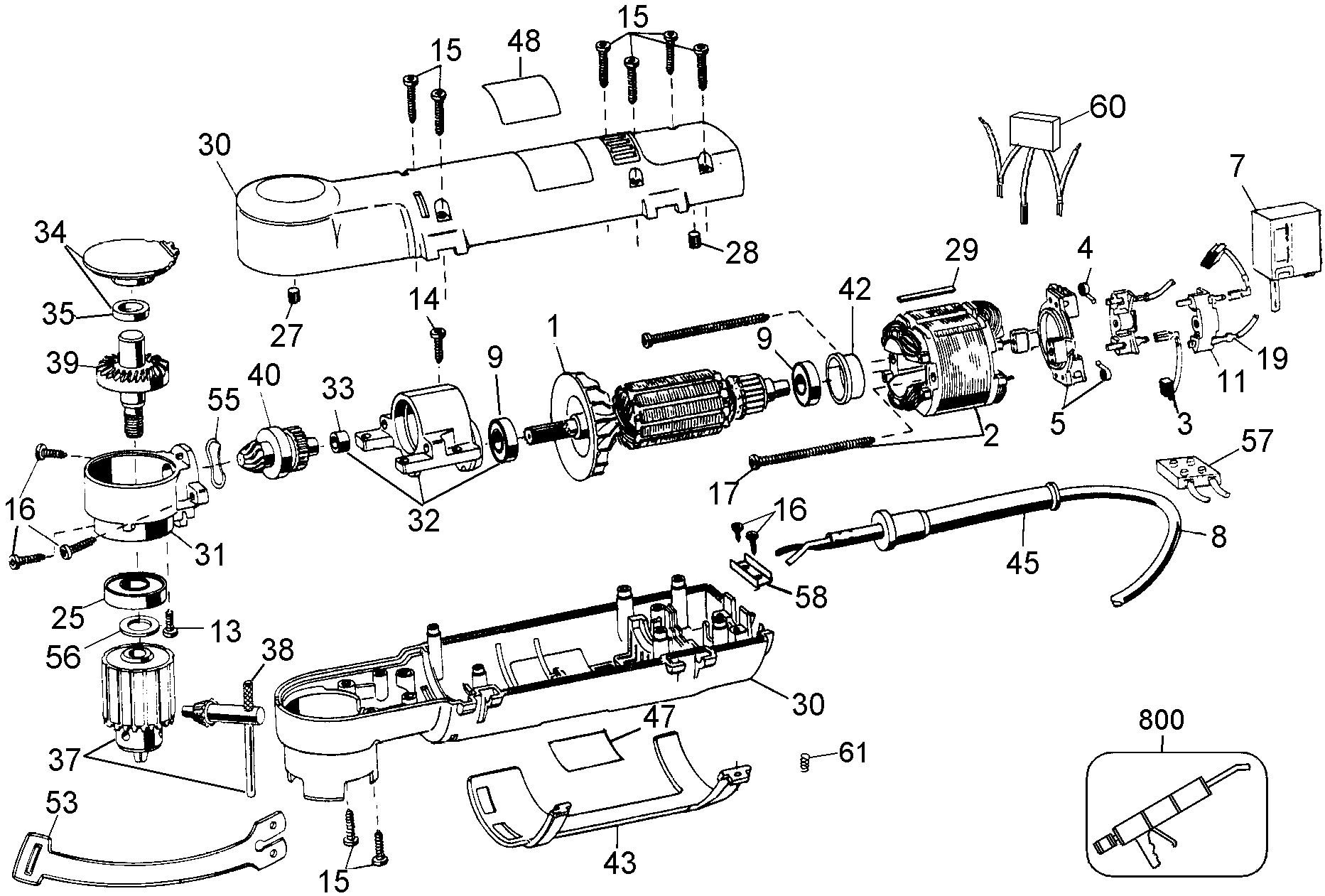

DW160 RIGHT ANGLE DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448583-35 | 1 | ARMATURE & FAN | GB |  |
||
| 2 | 447864-21 | 1 | FIELD 230V | GB | |
||
| 3 | 445861-19 | 2 | BRUSH | GB | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | GB |  |
||
| 5 | 449899-05 | 1 | RING | GB | |
||
| 7 | 380786-01 | 1 | SWITCH | GB | |
||
| 8 | 330060-67 | 1 | CORDSET | GB | |
||
| 9 | 330003-04 | 2 | BEARING | GB | |||
| 11 | 449829-00 | 2 | NUT | GB | |
||
| 13 | 055206-00 | 1 | SCREW | GB | |||
| 14 | 133042-00 | 2 | SCREW | GB | |
||
| 15 | 330019-05 | 8 | SCREW | GB | |
||
| 16 | 330019-03 | 5 | SCREW | GB | |
||
| 17 | 389820-00 | 2 | SCREW | GB | |
||
| 19 | 449192-00 | 2 | TERMINAL | GB | |
||
| 25 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 27 | 030611-00 | 1 | PLUG | GB | |
||
| 28 | 095114-00 | 1 | RUBBER PLUG | GB | |||
| 29 | 445402-00 | 1 | RUBBER PAD | GB | |
||
| 30 | 448596-06 | 1 | HOUSING PAIR | GB | |||
| 31 | 449857-00 | 1 | GEARCASE | GB | |||
| 32 | 449033-01 | 1 | GEARCASE | GB | |
||
| 33 | 131557-00 | 1 | SLEEVE | GB | |
||
| 34 | 448591-00 | 1 | GEARCASE COVER | GB | |
||
| 35 | 445175-00 | 1 | SLEEVE | GB | |
||
| 37 | 429663-00 | 1 | CHUCK & KEY | GB | |
||
| 38 | 330034-02 | 1 | CHUCK KEY | GB | |||
| 39 | 445414-01SV | 1 | SPINDLE & GEAR SA | GB | |
||
| 40 | 445397-03SV | 1 | GEAR & PINION | GB | |
||
| 42 | 445217-02 | 1 | SLEEVE | GB | |
||
| 43 | 448595-04 | 1 | PADDLE | GB | |
||
| 45 | 330005-01 | 1 | CORD PROTECTOR | GB | |
||
| 47 | 390174-01 | 1 | NP:DW160-GB T2 | GB | |||
| 48 | 395047-00 | 1 | BRAND LABEL | GB | |
||
| 53 | 065288-02 | 1 | HOLDER | GB | |
||
| 55 | 448373-00 | 1 | WASHER SPRING | GB | |
||
| 56 | 447765-00 | 1 | WASHER | GB | |
||
| 57 | 320078-00 | 1 | TERMINAL BLOCK | GB | |
||
| 58 | 142519-00 | 1 | CABLE CLAMP | GB | |||
| 60 | 389726-00 | 1 | CAPACITOR | GB | |
||
| 61 | 385257-00 | 1 | SPRING | GB | |
||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | GB | ||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | GB | |
