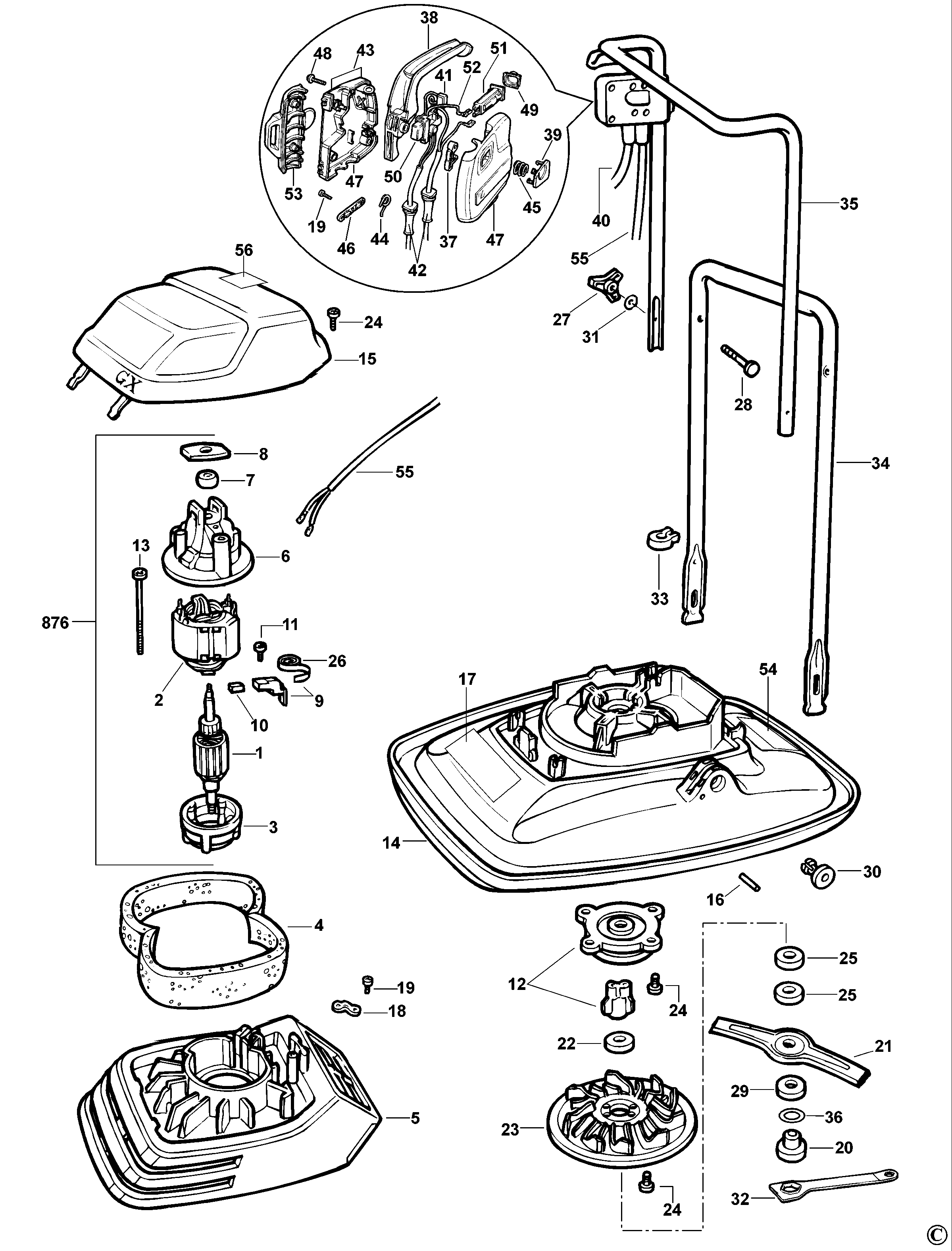

GX302 HOVER MOWER Type 8 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 806302-01 | 1 | ARMATURE | B1 |  |
||
| 2 | 806164-03 | 1 | FIELD | B1 | |
||
| 3 | 805950 | 1 | HOUSING SA | B1 | |
||
| 4 | 830666 | 1 | FILTER | B1 | |
||
| 5 | 375015 | 1 | SHROUD | B1 | |
||
| 6 | 807849-49 | 1 | HOUSING SA | B1 | |
||
| 7 | 890075 | 1 | BEARING | B1 | |
||
| 8 | 854155 | 1 | RETAINER | B1 | |
||
| 9 | 797573-01 | 2 | BRUSHBOX SA | B1 | |
||
| 10 | 797059-01 | 2 | BRUSH | B1 | |
||
| 11 | 894748 | 2 | O RING | B1 | |
||
| 12 | 807987-49 | 1 | BRAKE SA | B1 | |
||
| 13 | 844217-02 | 2 | SCREW.SPECIAL | B1 | |
||
| 14 | 577399-00 | 1 | CUTTER COVER | B1 | |
||
| 15 | 577398-00 | 1 | MOTOR COVER | B1 | |
||
| 16 | 830768 | 2 | SPIROL PIN | B1 | |
||
| 17 | 805965-04 | 1 | BRAND LABEL | B1 | |
||
| 18 | 821070 | 1 | CORD CLAMP | B1 |  |
||
| 19 | 810269 | 5 | SCREW | B1 | |
||
| 20 | 748760 | 1 | NUT | B1 | |
||
| 21 | 368901 | 1 | BLADE 12" | B1 | |
||
| 22 | 798068 | 1 | SPACER | B1 | |
||
| 23 | 368698-01 | 1 | IMPELLOR | B1 | |
||
| 24 | 849256 | 9 | SCREW | B1 | |
||
| 25 | 792248 | 2 | SPACER | B1 | |
||
| 26 | 792996 | 2 | SPRING | B1 | |
||
| 27 | 830657 | 2 | NUT WING | B1 | |
||
| 28 | 830664 | 2 | BOLT | B1 | |
||
| 29 | 808318 | 1 | SPACER | B1 | |
||
| 30 | 373155-01 | 2 | PIN | B1 | |
||
| 31 | 830832 | 2 | WASHER M6 | B1 | |
||
| 32 | 844249 | 1 | SPANNER | B1 | |
||
| 33 | 915859 | 1 | CLIP CABLE | B1 | |||
| 34 | 808707 | 1 | HANDLE | B1 | |
||
| 35 | 795622 | 1 | HANDLE UPPER | B1 | |
||
| 36 | 368028 | 1 | WASHER PLASTIC | B1 | |
||
| 37 | 797929 | 1 | ACTUATOR | B1 | |
||
| 38 | 373094 | 1 | LEVER | B1 | |
||
| 39 | 373092 | 1 | BUTTON LOCK-OFF | B1 | |
||
| 40 | 808240-13 | 1 | CABLE SA | B1 | |
||
| 41 | 807285-06 | 1 | CAPACITOR | B1 | |
||
| 42 | 770235 | 2 | PROTECTOR | B1 | |
||
| 44 | 827135 | 1 | SPRING | B1 | |
||
| 45 | 827137 | 1 | SPRING | B1 | |
||
| 46 | 827140 | 1 | CABLE CLAMP | B1 | |
||
| 47 | 799361-04 | 1 | SWITCHBOX | B1 | |
||
| 48 | 809961 | 6 | SCREW | B1 | |||
| 49 | 799174 | 1 | SEAL | B1 | |
||
| 50 | 794164 | 1 | SWITCH | B1 | |
||
| 51 | 805262-05 | 1 | CUT OUT SA | B1 | |
||
| 52 | 799289 | 1 | LEAD | B1 | |
||
| 53 | 799364-01 | 1 | COVERPLATE | B1 | |
||
| 54 | 830789 | 1 | WARNING LABEL | B1 | |
||
| 55 | 805032-12 | 1 | CABLE | B1 | |
||
| 56 | 373111-01 | 1 | LABEL | B1 | |
||
| 876 | 806166-10 | 1 | MOTOR SA | B1 | |
