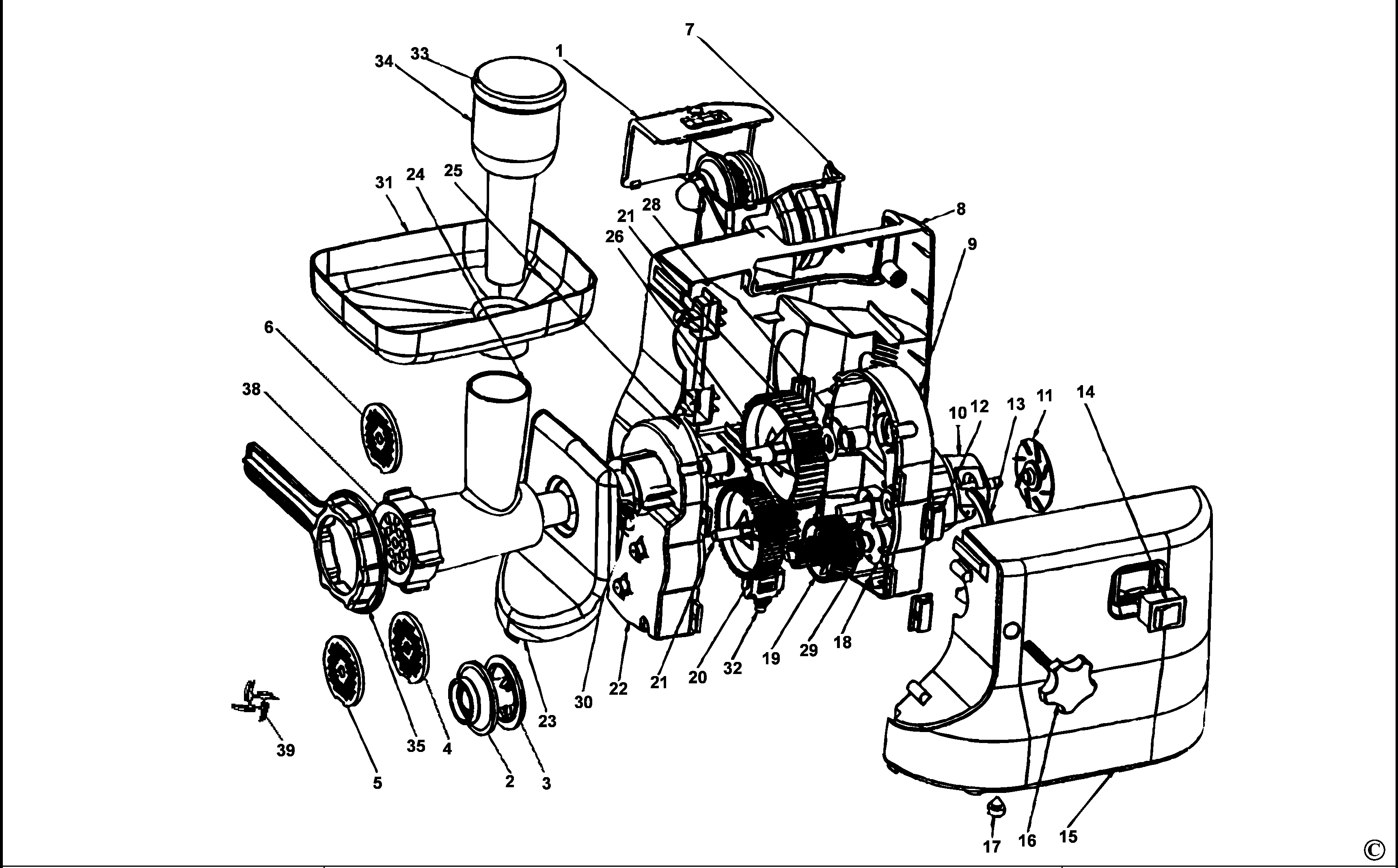

FM1300 MINCERS Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010024-01 | 1 | COVER | COMPARTMENT COVER | B1 |  |
|
| 2 | 6010024-02 | 1 | ATTACHMENT | KUBBE ATTACHMENT, FR | B1 | |
|
| 3 | 6010024-03 | 1 | ATTACHMENT | KUBBE ATTACHMENT, RE | B1 | |
|
| 4 | 6010024-04 | 1 | BLADE | B1 | |
||
| 5 | 6010024-05 | 1 | BLADE | B1 | |
||
| 6 | 6010024-06 | 1 | BLADE | B1 | |
||
| 7 | 6010024-07 | 1 | COVER | COMPARTMENT | B1 | |
|
| 8 | 6010024-08 | 1 | HOUSING LH | LEFT HOUSING | B1 | |
|
| 9 | 6010024-09 | 1 | GEARBOX | B1 | |
||
| 10 | 6010024-10 | 1 | MOTOR SA | B1 | |
||
| 11 | 6010024-11 | 1 | FAN | B1 | |
||
| 12 | 6010024-12 | 1 | PAD | B1 | |
||
| 13 | 6010024-13 | 1 | PAD | VIBRATION PAD, MOTOR | B1 | |
|
| 14 | 6010024-14 | 1 | SWITCH | B1 | |
||
| 15 | 6010024-15 | 1 | HOUSING RH | RIGHT HOUSING | B1 | |
|
| 16 | 6010024-16 | 1 | KNOB SA | B1 | |
||
| 17 | 6010024-17 | 1 | FOOT | B1 | |
||
| 18 | 6010024-18 | 1 | WASHER | WASHER, HELIX GEAR | B1 | |
|
| 19 | 6010024-19 | 1 | GEAR | B1 | |
||
| 20 | 6010024-20 | 1 | GEAR | INTERMEDIATE GEAR | B1 | |
|
| 21 | 6010024-21 | 1 | SHAFT | B1 | |
||
| 22 | 6010024-22 | 1 | GEARBOX | B1 | |
||
| 23 | 6010024-23 | 1 | NUT | B1 | |
||
| 24 | 6010024-24 | 1 | BODY | B1 | |
||
| 25 | 6010024-25 | 1 | BUSHING | B1 | |
||
| 26 | 6010024-26 | 1 | GEAR | B1 | |
||
| 28 | 6010024-28 | 1 | BUSHING | B1 | |
||
| 29 | 6010024-29 | 1 | BUSHING | B1 | |
||
| 30 | 6010024-30 | 1 | COVER | FRONT COVER (PLASTIC | B1 | |
|
| 31 | 6010024-31 | 1 | BOWL | B1 | |
||
| 32 | 6010024-32 | 1 | CIRCUIT BREAKER | B1 | |
||
| 33 | 6010024-33 | 1 | COVER | PLUG COVER | B1 | |
|
| 34 | 6010024-34 | 1 | FOOD PUSHER | B1 | |
||
| 35 | 6010024-35 | 1 | SPANNER | B1 | |
||
| 38 | 6010024-38 | 1 | NUT | B1 | |
||
| 39 | 6010024-39 | 1 | BLADE | B1 | |
||
| 846 | 6010129-42 | 1 | GIFT BOX | FM1300BCT | B1 | |
|
| 846 | 1004704-40 | 1 | BAFFLE | B1 |  |
