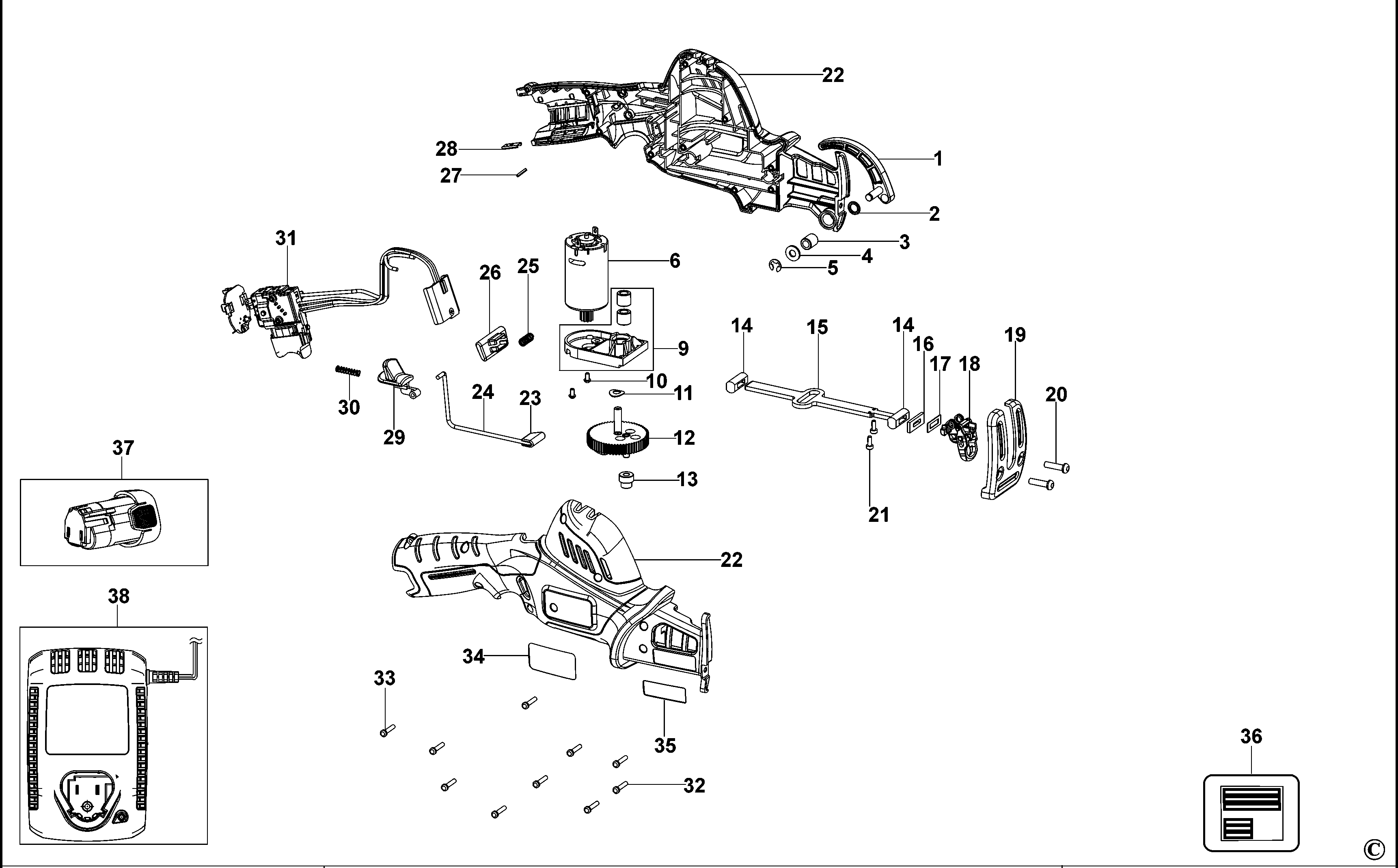

LXP10-2 PRUNER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90562357 | 1 | LEVER | JP | |||
| 2 | 90562840 | 1 | THRUST BEARING | JP | |||
| 3 | 90562839 | 1 | BEARING NEEDLE | JP | |||
| 4 | 90562825 | 1 | SEAL | JP | |||
| 5 | 571181-00 | 1 | CLIP | JP | |||
| 6 | 90576706 | 1 | MOTOR & PINION | JP | |||
| 9 | 90576705 | 1 | BEARING PLATE | JP | |||
| 10 | 90562829 | 2 | SCREW | M3X6 | JP | ||
| 11 | 90562851 | 1 | WASHER | JP | |||
| 12 | 90562835 | 1 | GEAR SA | JP | |||
| 13 | 90562346 | 1 | BEARING CHANNEL | JP | |||
| 14 | 810893 | 1 | BEARING | JP | |||
| 15 | 90562344 | 1 | SHAFT | JP | |||
| 16 | 90532150 | 1 | FELT SEAL | JP | |||
| 17 | 582948-00 | 1 | PLATE | JP | |||
| 18 | 582593-00 | 1 | BLADE CLAMP | JP | |||
| 19 | 90562361 | 1 | SHOE | JP | |||
| 20 | 90562831 | 2 | SCREW | JP | |||
| 21 | 583173-00 | 2 | SCREW | JP | |||
| 22 | 90573959 | 1 | HOUSING SA | JP | |||
| 23 | 90562354 | 1 | BUMPER | JP | |||
| 24 | 90562362 | 1 | LINK | JP | |||
| 25 | 90562849 | 1 | SPRING COMPRESSION | JP | |||
| 26 | 90562348 | 1 | LOCK BUTTON | JP | |||
| 27 | 90562359 | 1 | SPRING | JP | |||
| 28 | 90562363 | 1 | CLIP | JP | |||
| 29 | 90562347 | 1 | SLIDER | JP | |||
| 30 | 90562848 | 1 | SPRING COMPRESSION | JP | |||
| 31 | 90588370 | 1 | SWITCH SA | EMI | JP | ||
| 32 | 682211-00 | 9 | SCREW | JP | |||
| 33 | 90562830 | 1 | SCREW | JP | |||
| 34 | 90561695 | 2 | LABEL | JP | |||
| 35 | 90573242 | 1 | LABEL | JP | |||
| 36 | 90573241 | 1 | RATING PLATE | JP | |||
| 37 | 90606951 | 1 | BATTERY 10.8V - 1.3AH | JP | |||
| 38 | 90568312 | 1 | CHARGER SA | JP |
