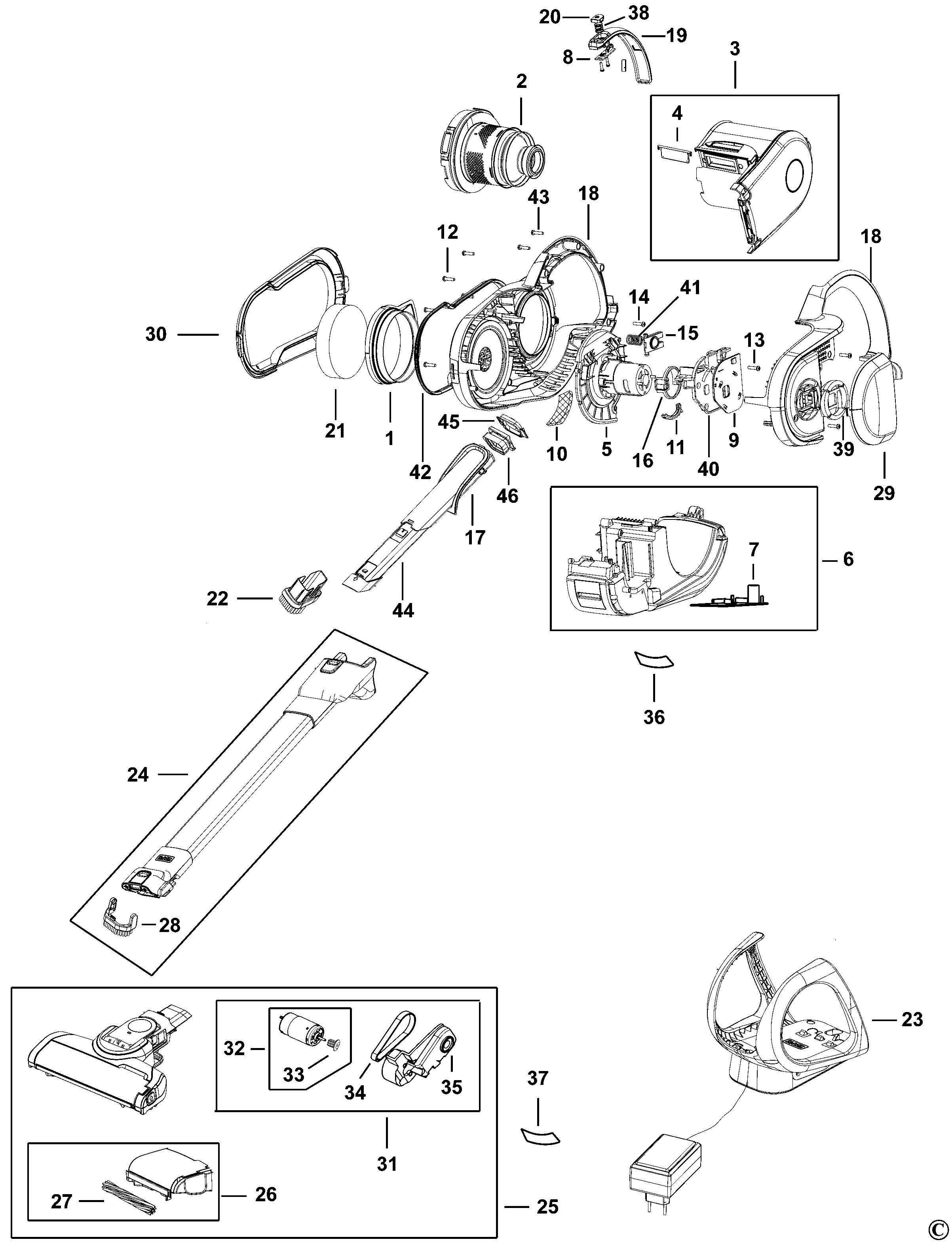

HVFE2150L DUSTBUSTER Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90596689 | 1 | FRAME | A9 | |||
| 2 | N925197 | 1 | FILTER SA | A9 | |||
| 3 | N924715 | 1 | BOWL | A9 | |||
| 4 | 90599426 | 1 | FLAP | A9 | |||
| 5 | N925373 | 1 | MOTOR & FAN | A9 | |||
| 6 | 90605620 | 1 | BATTERY CASE SA | Li-Ion 21.6V - 43WH | HVFE2150L | A9 | |
| 7 | 90593774-04 | 1 | PCB | A9 | |||
| 8 | 90595818 | 1 | PCB SA | A9 | |||
| 9 | 90599455-01 | 1 | PCB SA | A9 | |||
| 10 | 90611150 | 1 | EXHAUST | A9 | |||
| 11 | 90616027 | 1 | INSULATOR | A9 | |||
| 12 | 143062-02 | 1 | SCREW | A9 | |||
| 13 | 90609722 | 1 | SCREW | A9 | |||
| 14 | 499903-00 | 5 | SCREW | A9 | |||
| 15 | 90605510 | 1 | BIT | A9 | |||
| 16 | 90603382 | 1 | CAP | A9 | |||
| 17 | 90610943-07 | 1 | TUBE | A9 | |||
| 18 | 90609113 | 1 | HOUSING SA | A9 | |||
| 19 | 90594171-01 | 1 | COVER | A9 | |||
| 20 | 90593719 | 1 | BUTTON | A9 | |||
| 21 | 90607901 | 1 | FOAM | A9 | |||
| 22 | 90613402 | 1 | BRUSH | A9 | |||
| 23 | 90591808-05 | 1 | CHARGER & BASE | A9 | |||
| 24 | 90595836 | 1 | TUBE | A9 | |||
| 25 | 90591871 | 1 | HEAD SA | HVFE2150L | A9 | ||
| 26 | N925224 | 1 | HEAD SA | A9 | |||
| 27 | N924396 | 1 | ROLLER SA | A9 | |||
| 28 | 90608984 | 1 | BRUSH | A9 | |||
| 29 | 90594170 | 1 | MOTOR COVER | A9 | |||
| 30 | 90610940-01 | 1 | COVER | A9 | |||
| 31 | N925414 | 1 | MOTOR SA & MOUNT | A9 | |||
| 32 | 90613453-07 | 1 | MOTOR SA 12V | A9 | |||
| 33 | 90592211-01 | 1 | GEAR | A9 | |||
| 34 | 90592224 | 1 | BELT DRIVE | A9 | |||
| 35 | 90591875 | 1 | MOUNT | A9 | |||
| 36 | 90633774 | 1 | RATING LABEL | A9 | |||
| 37 | 90633775 | 1 | RATING LABEL | A9 | |||
| 38 | 90597744 | 1 | SPRING | A9 | |||
| 39 | 90601773 | 1 | LENS | A9 | |||
| 40 | 90601612 | 1 | CARRIER | A9 | |||
| 41 | 90604593 | 1 | SPRING | A9 | |||
| 42 | 90606003 | 1 | SEAL | A9 | |||
| 43 | 419799-05 | 2 | SCREW | A9 | |||
| 44 | 90596778 | 1 | DUCT | A9 | |||
| 45 | 90597316 | 1 | LATCH | A9 | |||
| 46 | 90604968 | 1 | SEAL | A9 |
