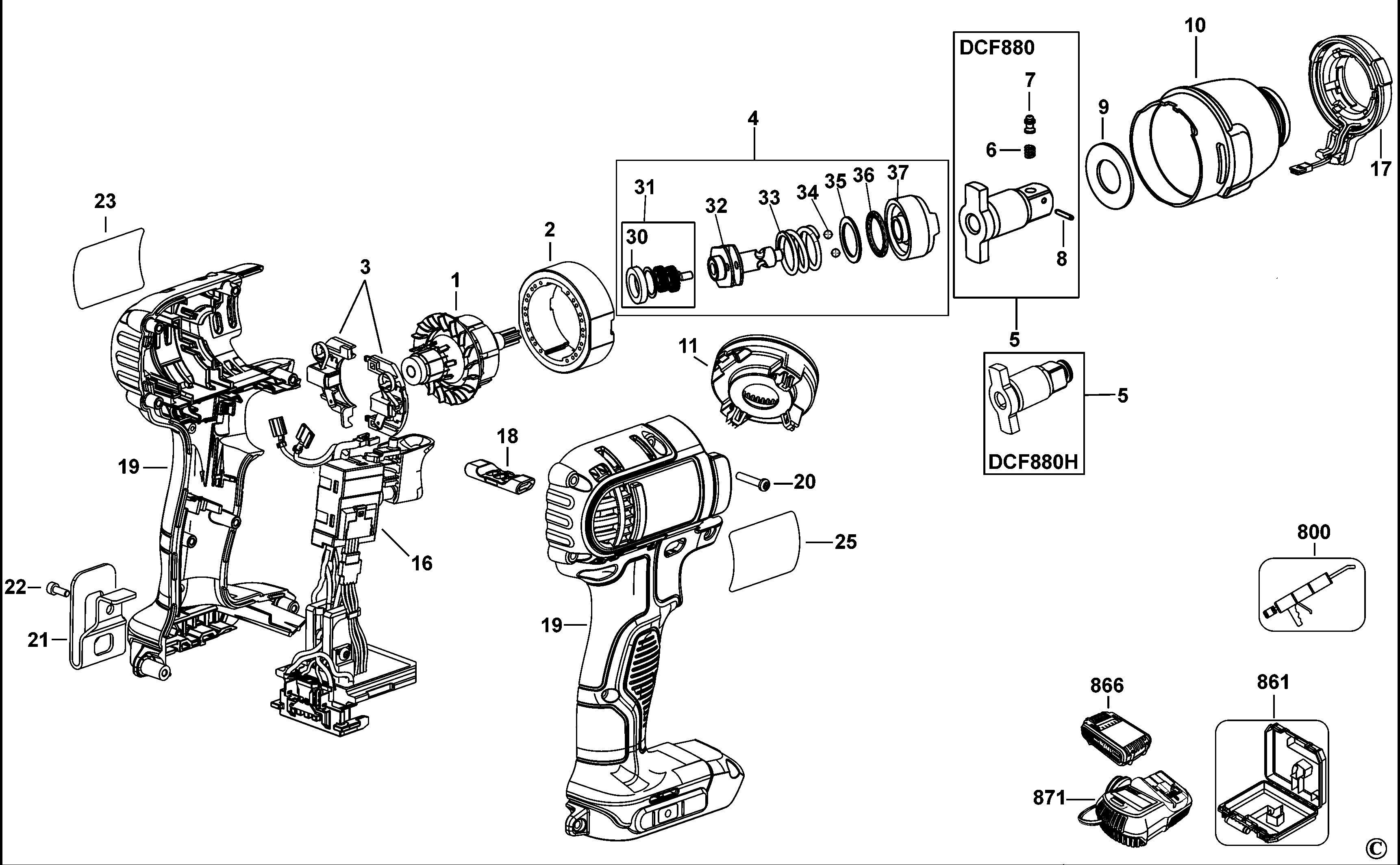

DCF880 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N149721 | 1 | ARMATURE SA | 18V | A9 | ||
| 2 | N109432 | 1 | MAGNET | A9 | |||
| 3 | N187232 | 1 | BRUSH HOLDER SA | A9 | |||
| 4 | N450087 | 1 | IMPACTOR | SA Impactor | INCL.30 ~37 | A9 | |
| 5 | N182624 | 1 | ANVIL ASSEMBLY | DCF880 | A9 | ||
| 5 | N391354 | 1 | ANVIL ASSEMBLY | 1/2 w/HOG RING | DCF880HM2 | A9 | |
| 6 | 038769-00 | 1 | SPRING | DCF880 | A9 | ||
| 7 | 143891-00 | 1 | DETENT | DCF880 | A9 | ||
| 8 | 099205-07 | 1 | ROLL PIN | DCF880 | A9 | ||
| 9 | 642883-01 | 1 | WASHER | A9 | |||
| 10 | N164338 | 1 | NOSE SA | A9 | |||
| 11 | N309482 | 1 | MOUNT SA | PKG'D N125142 | A9 | ||
| 16 | N928059 | 1 | SWITCH SA | A9 | |||
| 17 | N139775 | 1 | LED LIGHT | A9 | |||
| 18 | N073265 | 1 | LEVER | A9 | |||
| 19 | N075736 | 1 | CLAMSHELL SET | 18V | A9 | ||
| 20 | 682211-00 | 8 | SCREW | A9 | |||
| 21 | N086039 | 1 | HOOK | A9 | |||
| 22 | N042665 | 1 | SCREW | A9 | |||
| 23 | N089231 | 1 | BRAND LABEL | A9 | |||
| 23 | N092310 | 1 | BRAND LABEL | DCF880NT | A9 | ||
| 25 | N849570 | 1 | RATING LABEL | A9 | |||
| 25 | N486924 | 1 | RATING LABEL | DCF880H | A9 | ||
| 25 | N511778 | 1 | RATING LABEL | DCF880M2 | A9 | ||
| 30 | 605040-76 | 1 | BEARING,BALL | A9 | |||
| 31 | N451015 | 1 | GEAR SA | Bearing and Gear | A9 | ||
| 32 | N451016 | 1 | CARRIER SA | A9 | |||
| 33 | 605850-00 | 1 | SPRING | A9 | |||
| 34 | 000903-00 | 2 | BALL | A9 | |||
| 35 | 635597-00 | 1 | WASHER THRUST | A9 | |||
| 36 | 605852-00 | 1 | THRUST BEARING | A9 | |||
| 37 | N381735 | 1 | IMPACTOR | A9 | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | A9 | ||
| 861 | N068611 | 1 | KITBOX | A9 | |||
| 866 | DCB182-XJ | 2 | BATTERY 18V - 4.0AH - 72WH | XR Li-Ion | A9 | ||
| 866 | DCB184-A9 | 1 | BATTERY 18V - 5.0AH - 90WH | DCF880P/DCF880HP2 | A9 | ||
| 866 | DCB180-XJ | 2 | BATTERY 18V - 3.0AH - 54WH | DCF880L2 | A9 | ||
| 871 | N431954 | 1 | CHARGER 10.8V - 18V | DCB115-A9 | A9 |
