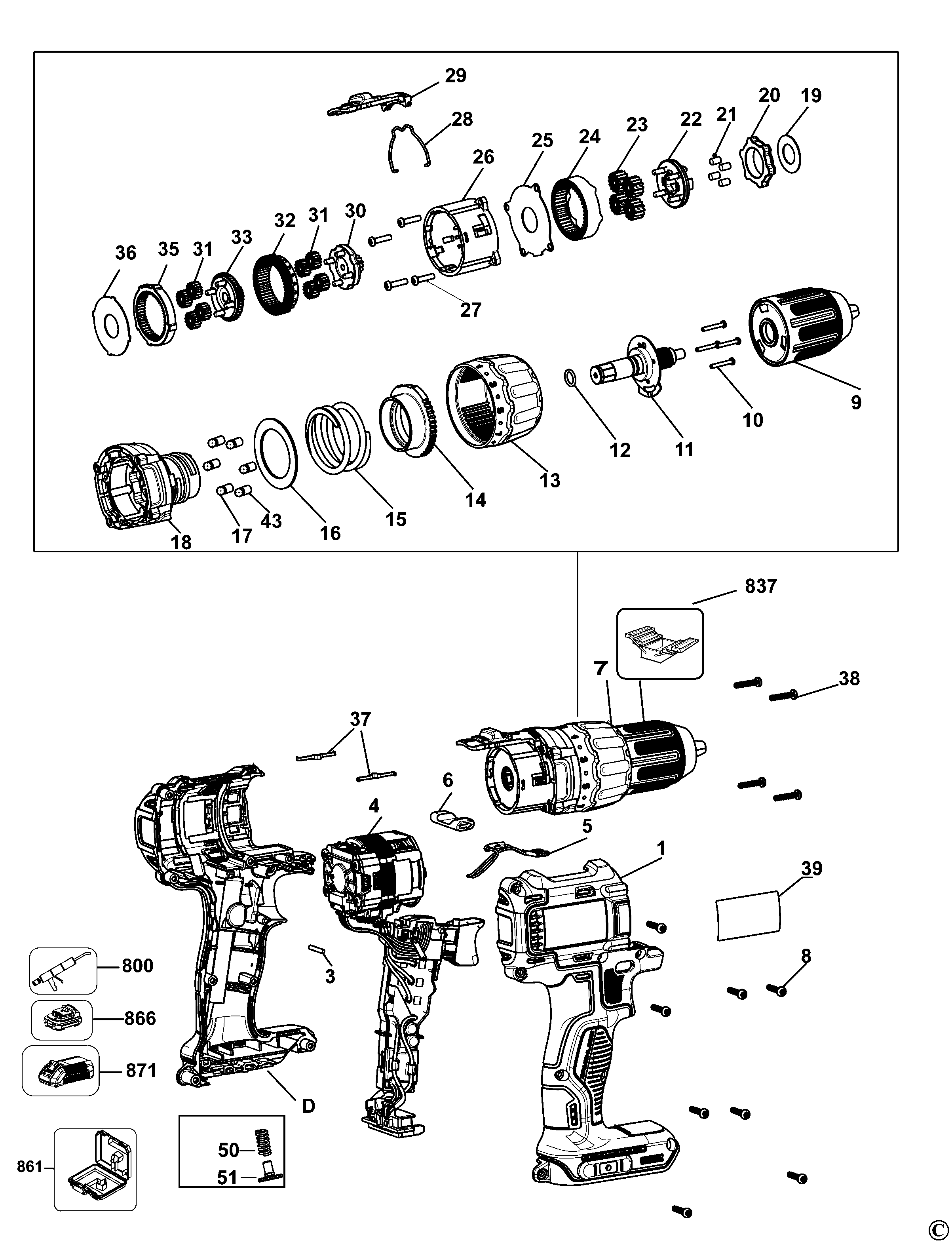

DCD777 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N459083 | 1 | CLAMSHELL SET | TW | |||
| 3 | N071836 | 1 | ROLL PIN | TW | |||
| 4 | N806546 | 1 | MOTOR & SWITCH SA | TW | |||
| 5 | N459095 | 1 | LED | TW | |||
| 6 | N399342 | 1 | ACTUATOR FWD/REV | TW | |||
| 7 | N472976 | 1 | GEARBOX SA | TW | |||
| 8 | N463678 | 12 | SCREW | TW | |||
| 9 | N472497 | 1 | CHUCK | TW | |||
| 10 | N039795 | 4 | SCREW | TW | |||
| 11 | N495304 | 1 | SPINDLE SA | TW | |||
| 12 | N475306 | 1 | O RING | TW | |||
| 13 | N459098 | 1 | COLLAR | TW | |||
| 14 | N459099 | 1 | NUT | TW | |||
| 15 | N459442 | 1 | SPRING | TW | |||
| 16 | N459455 | 1 | WASHER | TW | |||
| 17 | N510716 | 6 | BALL | STEEL, 5MM | TW | ||
| 18 | N463692 | 1 | CLUTCH HOUSING KIT | TW | |||
| 19 | N459467 | 1 | WASHER | TW | |||
| 20 | N455056 | 1 | RING | TW | |||
| 21 | N456078 | 4 | PIN | TW | |||
| 22 | N495305 | 1 | CARRIER SA | TW | |||
| 23 | N459597 | 4 | GEAR | TW | |||
| 24 | N459268 | 1 | RING | TW | |||
| 25 | N459449 | 1 | PLATE | TW | |||
| 26 | N459094 | 1 | GEARCASE | TW | |||
| 27 | N075506 | 4 | SCREW | TW | |||
| 28 | N459273 | 1 | WIRE STEEL | TW | |||
| 29 | N459102 | 1 | SELECTOR | TW | |||
| 30 | N495306 | 1 | CARRIER SA | TW | |||
| 31 | N215916 | 8 | GEAR | TW | |||
| 32 | N462062 | 1 | RING | TW | |||
| 33 | N495307 | 1 | CARRIER SA | TW | |||
| 35 | N463849 | 1 | RING | TW | |||
| 36 | N225458 | 1 | PLATE | TW | |||
| 37 | N014681 | 2 | LEAF SPRING | TW | |||
| 38 | N474504 | 4 | SCREW | TW | |||
| 39 | N511752 | 1 | RATING LABEL | TW | |||
| 43 | N482398 | 6 | PIN | TW | |||
| 50 | N461735 | 1 | SPRING | TW | |||
| 51 | N091479 | 1 | MOUNT | TW | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | TW | ||
| 837 | N503944 | 1 | S.T.CHUCK REMOVAL JIG | TW | |||
| 861 | N442424 | 1 | KITBOX | TW | |||
| 866 | DCB203-TWZZ | 2 | BATTERY PACK 18V | TW | |||
| 871 | DCB115-TW | 1 | CHARGER | TW |
