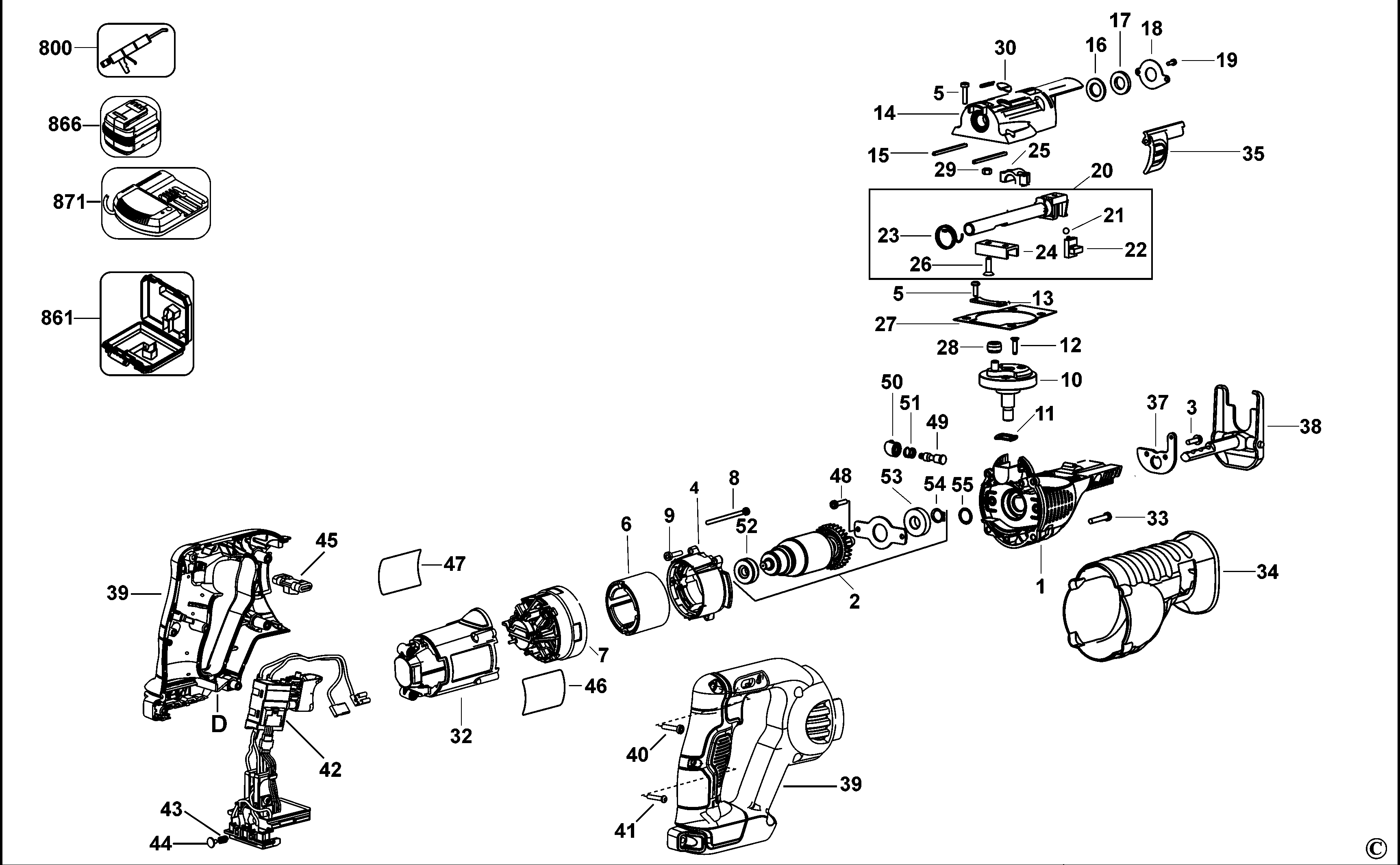

DCS380 CORDLESS RECIPROCATING SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613138-00SV | 1 | GEARCASE SA | INCL.49,50,51 | JP | ||
| 2 | N415904 | 1 | ARMATURE SA | 4-Pole Motor | JP | ||
| 3 | 142940-00 | 2 | SCREW | JP | |||
| 4 | N340319 | 1 | BAFFLE FAN | 4-Pole Motor | JP | ||
| 5 | 613619-00 | 6 | SCREW | JP | |||
| 6 | N436044 | 1 | MAGNET | JP | |||
| 7 | N412223 | 1 | BRUSH HOLDER SA | JP | |||
| 8 | N389143 | 2 | SCREW | JP | |||
| 9 | 330045-06 | 3 | SCREW | JP | |||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | JP | |||
| 11 | 619618-00 | 1 | WASHER SPECIAL | JP | |||
| 12 | 622484-00 | 3 | SCREW | M4x16 THD FMG | JP | ||
| 13 | 621173-00 | 1 | SUPPORT PLATE | JP | |||
| 14 | N027851SV | 1 | GEARCASE COVER | JP | |||
| 15 | 621979-00 | 2 | STRIP | JP | |||
| 16 | 618733-00 | 1 | SEAL | JP | |||
| 17 | 618477-00 | 1 | FELT SEAL | JP | |||
| 18 | N020720 | 1 | COVERPLATE | JP | |||
| 19 | 330045-43 | 1 | SCREW | JP | |||
| 20 | N026647 | 1 | SHAFT SA | JP | |||
| 21 | 903-00 | 1 | BALL | JP | |||
| 22 | 622647-00 | 1 | SLIDER | <=2016 WK09 | JP | ||
| 22 | N252639 | 1 | SLIDER | >2016 WK09 | JP | ||
| 23 | 622659-00 | 1 | SPRING TORSION | <=2016 WK09 | JP | ||
| 23 | N426742 | 1 | SPRING | >2016 WK09 | JP | ||
| 24 | 658115-00 | 1 | YOKE | JP | |||
| 25 | 617000-00 | 1 | SADDLE | JP | |||
| 26 | 622486-00 | 2 | SCREW | M5x 17 mm T20 HD | JP | ||
| 27 | N063272 | 1 | GASKET | JP | |||
| 28 | N021857 | 1 | BEARING | JP | |||
| 29 | 622485-00 | 2 | LOCK NUT | JP | |||
| 30 | 621927-00 | 2 | COVER | JP | |||
| 32 | N264499 | 1 | HOUSING MOTOR | JP | |||
| 33 | 330019-45 | 4 | SCREW | JP | |||
| 34 | N084697 | 1 | BOOT | JP | |||
| 35 | N093438SV | 1 | LEVER LOCK | JP | |||
| 37 | 617008-00 | 1 | BRACKET | JP | |||
| 38 | 623511-00SV | 1 | SHOE SA | JP | |||
| 39 | N347382 | 1 | HANDLE SA | JP | |||
| 40 | 330019-04 | 6 | SCREW | JP | |||
| 41 | 682211-00 | 1 | SCREW | JP | |||
| 42 | N413819 | 1 | SWITCH SA | DCS380 4P58 EMI | JP | ||
| 43 | N102647 | 1 | SPRING | JP | |||
| 44 | N091479 | 1 | MOUNT | JP | |||
| 45 | N060864 | 1 | BUTTON LOCK-OFF | JP | |||
| 46 | N408652 | 1 | RATING LABEL | JP | |||
| 47 | N093227 | 1 | BRAND LABEL | JP | |||
| 48 | 613619-02 | 2 | SCREW | JP | |||
| 49 | 615983-00 | 1 | LOCK PIN | JP | |||
| 50 | 617733-00 | 1 | CAP | JP | |||
| 51 | 618427-00 | 1 | SPRING | JP | |||
| 52 | N330639 | 1 | BEARING,BALL | JP | |||
| 53 | 330003-64 | 1 | BEARING | JP | |||
| 54 | 696060-00 | 1 | RETAINER | JP | |||
| 55 | N275679 | 1 | FELT SEAL | ID15.5 x OD24 x 0.6 | JP | ||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | JP | ||
| 861 | N152704 | 1 | KITBOX | JP | |||
| 866 | DCB182-JP | 2 | BATTERY 18V - 4.0AH - 72WH | JP | |||
| 871 | DCB115-JP | 1 | CHARGER 18V | JP |
