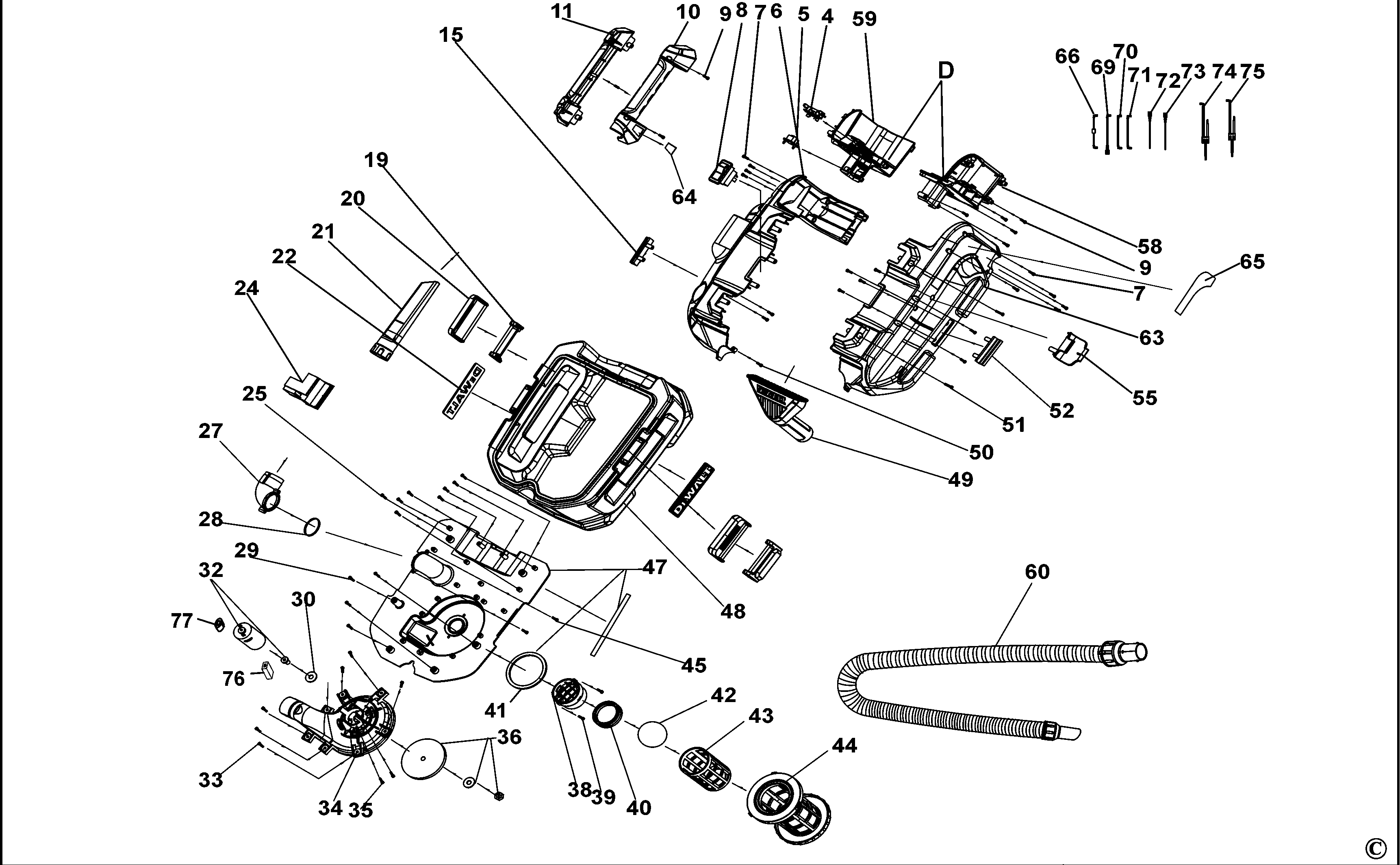

DCV580 WET DRY VACUUM Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | 5140128-32 | 1 | TERMINAL BLOCK | KR | |||
| 5 | 5140128-33 | 1 | TERMINAL BLOCK | Tower Pack | KR | ||
| 6 | 5140128-34 | 1 | CLAMSHELL RH | KR | |||
| 7 | 5140128-35 | 4 | SCREW | KR | |||
| 8 | 5140058-09 | 1 | SWITCH | KR | |||
| 9 | 5140128-36 | 2 | SCREW | KR | |||
| 10 | 5140128-37 | 1 | HANDLE LH | KR | |||
| 11 | 5140128-38 | 1 | HANDLE RH | KR | |||
| 15 | 5140128-39 | 1 | INSERT | Right Housing | KR | ||
| 19 | 5140128-40 | 2 | LATCH | KR | |||
| 20 | 5140128-41 | 2 | LATCH | KR | |||
| 21 | N195974 | 1 | TOOL CREVICE | KR | |||
| 22 | 5140128-43 | 2 | BRAND LABEL | KR | |||
| 24 | 5140128-44 | 1 | PCB SA | KR | |||
| 25 | 5140017-30 | 3 | SCREW | KR | |||
| 27 | 5140128-45 | 1 | DEFLECTOR | KR | |||
| 28 | 5140128-46 | 1 | O RING | KR | |||
| 29 | 5140046-74 | 6 | SCREW | KR | |||
| 30 | 5140128-47 | 1 | WASHER | KR | |||
| 32 | N628102 | 1 | MOTOR SA | KR | |||
| 33 | 5140128-49 | 7 | SCREW | KR | |||
| 34 | 5140128-50 | 1 | MOUNT | KR | |||
| 35 | 5140128-51 | 2 | SCREW | KR | |||
| 36 | 5140017-20 | 1 | FAN SA | KR | |||
| 38 | 5140128-52 | 1 | FILTER SA | KR | |||
| 39 | 5140128-53 | 2 | SCREW | KR | |||
| 40 | 5140162-00 | 1 | PRE-FILTER | KR | |||
| 41 | N356221 | 1 | SEAL | KR | |||
| 42 | 5140128-55 | 1 | FLOAT | KR | |||
| 43 | 5140128-56 | 1 | CAGE | KR | |||
| 44 | 5140128-57 | 1 | FILTER SA | KR | |||
| 45 | 5140128-58 | 2 | SCREW | KR | |||
| 47 | 5140128-59 | 1 | BASE SA | KR | |||
| 48 | 5140128-60 | 1 | TANK | KR | |||
| 49 | N195953 | 1 | NOZZLE | KR | |||
| 50 | 5140128-62 | 5 | SCREW | KR | |||
| 51 | 5140017-38 | 2 | SCREW | KR | |||
| 52 | 5140128-63 | 1 | INSERT | Left Housing | KR | ||
| 55 | 5140128-64 | 1 | CLIP | KR | |||
| 58 | 5140128-66 | 1 | BATTERY CASE SA | Right Half | KR | ||
| 59 | 5140128-67 | 1 | BATTERY CASE SA | Left Half | KR | ||
| 60 | 5140128-68 | 1 | HOSE SA | KR | |||
| 63 | 5140128-77 | 1 | CLAMSHELL LH | KR | |||
| 64 | N244354 | 1 | LABEL | KR | |||
| 65 | N496740 | 1 | RATING LABEL | KR | |||
| 66 | 5140128-76 | 1 | LEAD SA | KR | |||
| 69 | 5140128-69 | 1 | LEADWIRE | KR | |||
| 70 | 5140128-70 | 1 | LEADWIRE | KR | |||
| 71 | 5140128-71 | 1 | LEADWIRE | KR | |||
| 72 | 5140128-72 | 1 | LEADWIRE | KR | |||
| 73 | 5140128-73 | 1 | LEADWIRE | KR | |||
| 74 | 5140128-74 | 1 | LEADWIRE | KR | |||
| 75 | 5140128-75 | 1 | LEADWIRE | KR | |||
| 76 | N633392 | 1 | BLOCK | KR | |||
| 77 | N633394 | 1 | BLOCK | KR |
