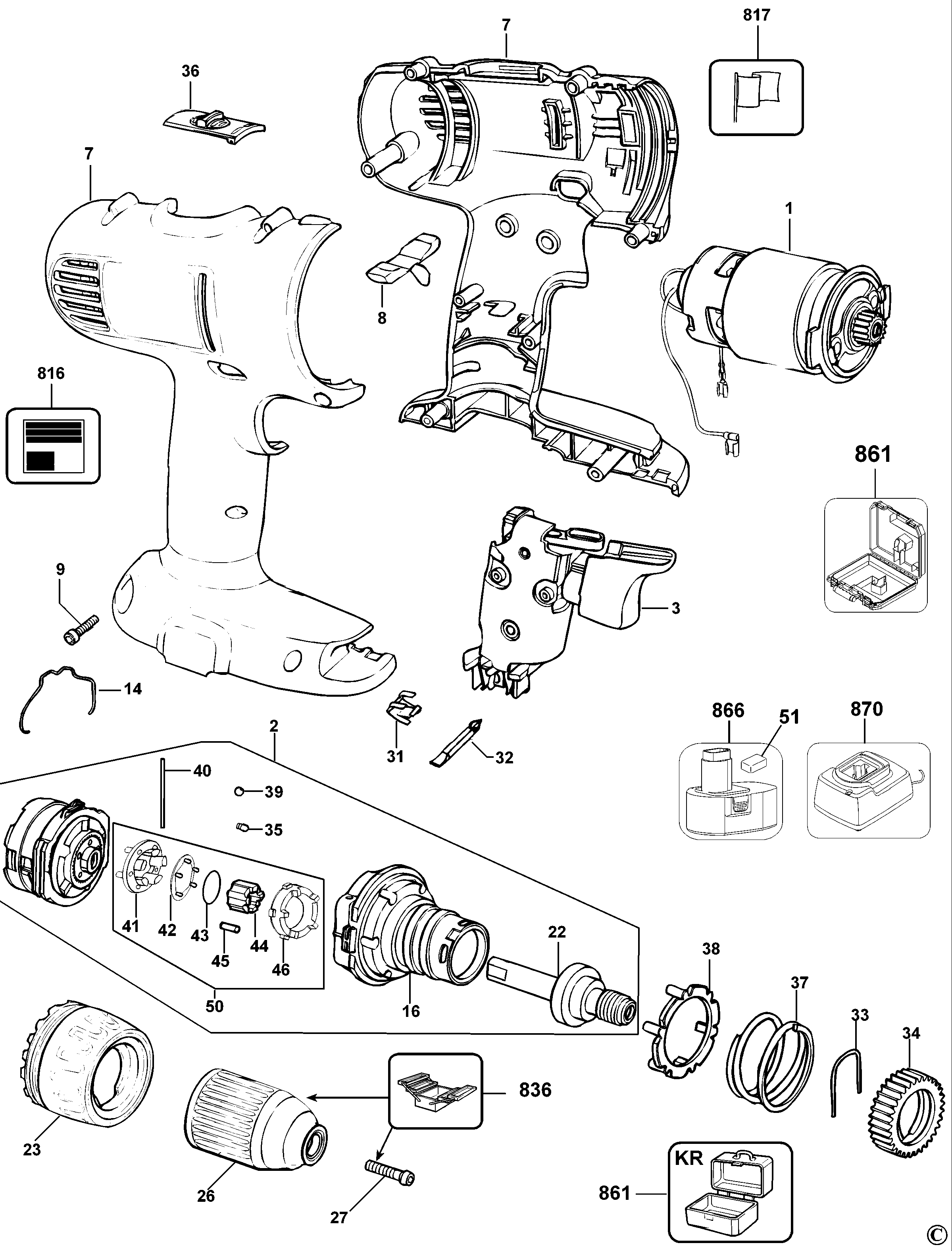

DC757 CORDLESS DRILL Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579731-01 | 1 | MOTOR & PINION | 14.4 volt | KR | ||
| 2 | 579730-01 | 1 | GEARBOX SA | KR | |||
| 3 | N034934 | 1 | SWITCH SA | KR | |||
| 7 | 590261-01 | 1 | HOUSING PAIR | 14.4 volt | KR | ||
| 8 | 623997-00 | 1 | SLIDER | KR | |||
| 9 | 682211-00 | 8 | SCREW | KR | |||
| 14 | 391896-00 | 1 | SPRING CLIP | KR | |||
| 16 | 621215-00 | 1 | HOUSING | KR | |||
| 22 | 590262-00 | 1 | SPINDLE SA | KR | |||
| 23 | 618335-00 | 1 | COLLAR | KR | |||
| 26 | 330075-61 | 1 | CHUCK 13MM | KR | |||
| 27 | 605256-02 | 1 | SCREW | KR | |||
| 31 | 148354-03 | 1 | HOLDER | KR | |||
| 32 | 297757-02 | 1 | BIT PHILLIPS | KR | |||
| 33 | 798959-00 | 1 | CLIP | KR | |||
| 34 | 391911-00 | 1 | ADJUSTER | KR | |||
| 35 | 326467-00 | 1 | DETENT | KR | |||
| 36 | 392086-01SV | 1 | SLIDER SA | KR | |||
| 37 | 391912-00 | 1 | SPRING | KR | |||
| 38 | 397303-00 | 1 | PLATE | KR | |||
| 39 | 386690-00 | 6 | BALL | STEEL, 5MM | KR | ||
| 40 | 392094-00 | 2 | PIN | KR | |||
| 41 | 394347-03 | 1 | CARRIER SA | KR | |||
| 42 | 624164-00 | 1 | CAGE | KR | |||
| 43 | 061145-00 | 1 | SEAL | KR | |||
| 44 | 622041-00 | 1 | ANVIL | KR | |||
| 45 | 330041-36 | 5 | PIN | KR | |||
| 46 | 621211-00 | 1 | LOCK | KR | |||
| 50 | 590263-00 | 1 | SPINDLE LOCK | KR | |||
| 51 | 608522-00 | 1 | SAFETY CAP | KR | |||
| 816 | 000000-00 | 1 | NO LONGER AVAILABLE | KR | |||
| 817 | 395657-00 | 1 | BRAND LABEL | KR | |||
| 836 | 559655-99 | 1 | S.T.CHUCK REMOVAL JIG | KR | |||
| 861 | 392088-01 | 1 | KIT BOX | KR | |||
| 866 | DE9091 | 1 | BATTERY 14.4V - 2.0AH | Ni-Cad | DC757KA | KR | |
| 870 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | DC757KA | KR |
