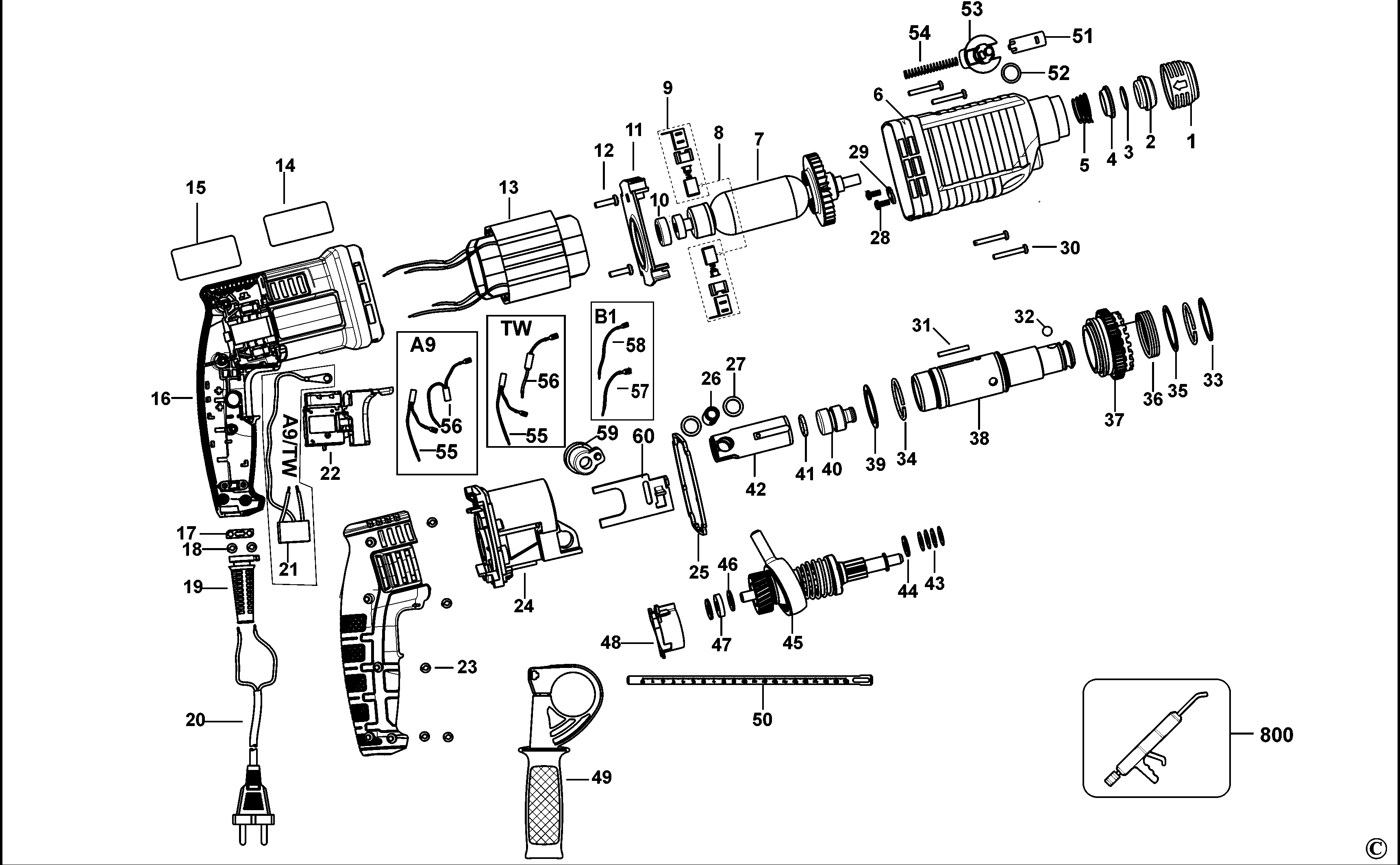

STEL503 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90524565 | 1 | COLLAR | TW | |||
| 2 | 90524563 | 1 | TIP | TW | |||
| 3 | 90558298 | 1 | CIRCLIP | TW | |||
| 4 | 90594643 | 1 | HOLDER | TW | |||
| 5 | 90549908 | 1 | SPRING | TW | |||
| 6 | 90592418 | 1 | GEARCASE SA | TW | |||
| 7 | 90599899 | 1 | ARMATURE SA | TW | |||
| 8 | 90599902 | 1 | BRUSH SA | TW | |||
| 9 | 90599684 | 1 | BRUSH & HOLDER SA | TW | |||
| 10 | 90549817 | 1 | SLEEVE BEARING | TW | |||
| 11 | 90584579 | 1 | BOARD | TW | |||
| 12 | 330065-05 | 2 | SCREW | TW | |||
| 13 | 90599900 | 1 | FIELD SA | TW | |||
| 14 | 90595000 | 1 | RATING LABEL | TW | |||
| 15 | 90588277 | 1 | LABEL | ID | TW | ||
| 16 | 90592861 | 1 | HOUSING SA | TW | |||
| 17 | 821070 | 1 | CORD CLAMP | TW | |||
| 18 | 330065-05 | 2 | SCREW | TW | |||
| 19 | 90593287 | 1 | CORD PROTECTOR | TW | |||
| 20 | 90579003-15 | 1 | CORDSET | TW | |||
| 21 | 90586987 | 1 | CAPACITOR | TW | |||
| 22 | 90597459 | 1 | SWITCH | TW | |||
| 23 | 330065-07 | 5 | SCREW | TW | |||
| 24 | 90567050 | 1 | SUPPORT PLATE | TW | |||
| 25 | 90550379 | 1 | GASKET | TW | |||
| 26 | 90549488 | 1 | PIN | TW | |||
| 27 | 90549884 | 2 | WASHER | TW | |||
| 28 | 90550523 | 2 | SCREW | TW | |||
| 29 | 90549588 | 1 | Brake | TW | |||
| 30 | 330065-14 | 4 | SCREW | M4X30 T20 | TW | ||
| 31 | 90550377 | 1 | PIN | TW | |||
| 32 | 90550363 | 1 | BALL STEEL | TW | |||
| 33 | 90558481 | 1 | GASKET | TW | |||
| 34 | 90558296 | 2 | CIRCLIP | TW | |||
| 35 | 90549885 | 1 | WASHER | TW | |||
| 36 | 90550375 | 1 | SPRING | TW | |||
| 37 | 90567045 | 1 | CLUTCH SA | TW | |||
| 38 | 90592404 | 1 | SHAFT | TW | |||
| 39 | 90549888 | 1 | WASHER | TW | |||
| 40 | 90549635 | 1 | RAM | TW | |||
| 41 | 90558558 | 1 | O RING | TW | |||
| 42 | 90549489 | 1 | CYLINDER | TW | |||
| 43 | 90549946 | 4 | WASHER SPRING | TW | |||
| 44 | 90558300 | 1 | GASKET | TW | |||
| 45 | 90595118 | 1 | INTERSHAFT SA | TW | |||
| 46 | 90558664 | 2 | GASKET | TW | |||
| 47 | 90550384 | 1 | BEARING AXIAL | TW | |||
| 48 | 90585594 | 1 | BAFFLE | TW | |||
| 49 | 376556-11 | 1 | HANDLE SA | TW | |||
| 50 | 372814-00 | 1 | DEPTH STOP | TW | |||
| 51 | 90584578 | 1 | LOCK BUTTON | TW | |||
| 52 | 90558562 | 1 | RUBBER SEAL | TW | |||
| 53 | 90584577 | 1 | KNOB | TW | |||
| 54 | 90550392 | 1 | SPRING | TW | |||
| 55 | 90600993 | 1 | CHOKE LEAD SA | LEAD 1 | TW | ||
| 56 | 90600994 | 1 | CHOKE LEAD SA | LEAD 2 | TW | ||
| 59 | 90549812 | 1 | KNOB | TW | |||
| 60 | 90549820 | 1 | SELECTOR | TW | |||
| 800 | 870889-02 | 1 | GREASE | TW |
