DCF889HM1 | 18V XR Li-lON IMPACT WREN Type 3
General Details
| Type Identifier | 3 |
| Status | Discontinued |
| Repair Instruction Status | Repair |
| Last Date of Manufacture |
Change your location Georgia, Europe
Filter your results
Quick spare parts search
Enter part number or name.
Step by step
Search for your tool step by step.
Catalogue search
Browse our catalogue

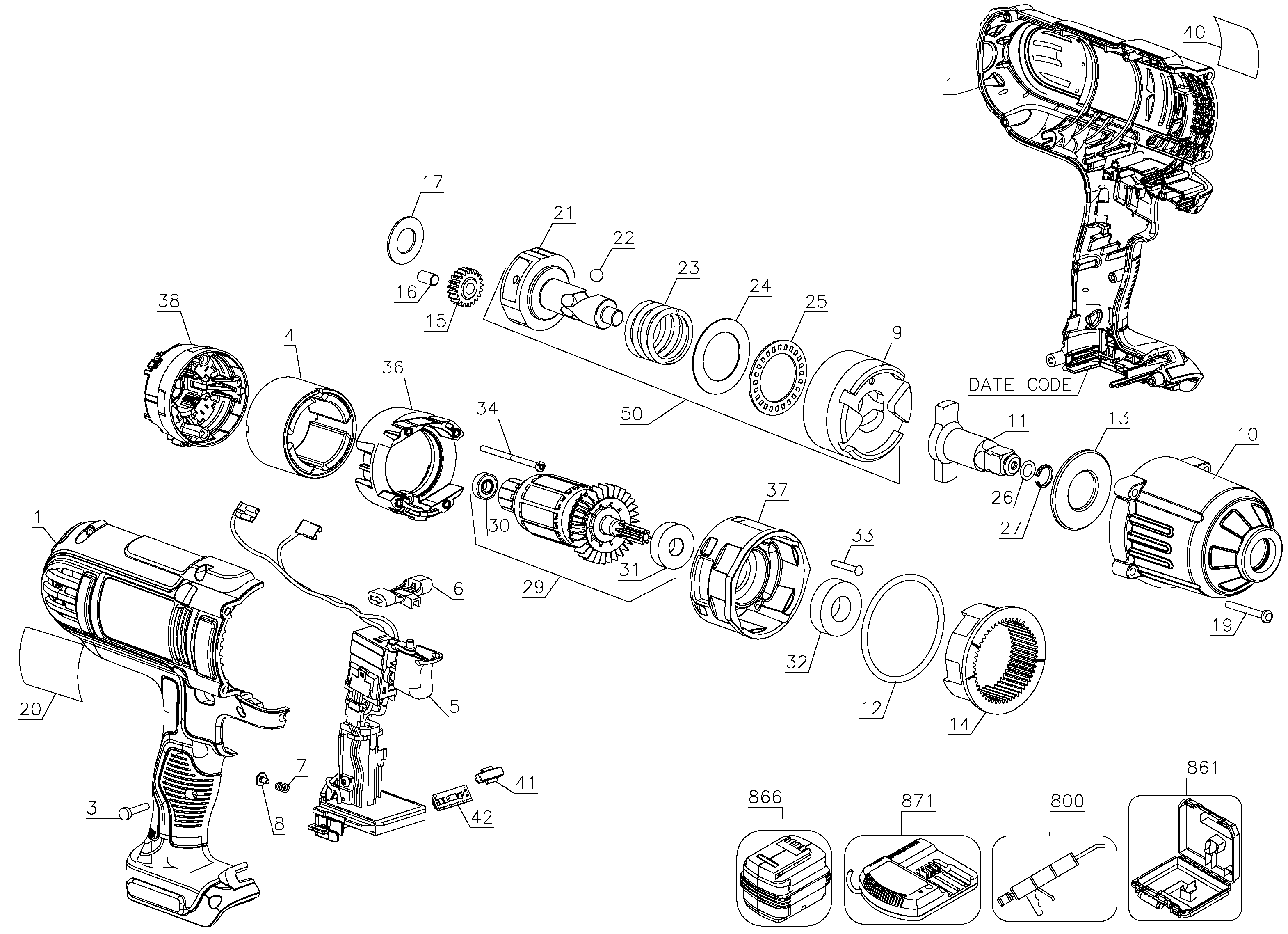

Parts List
Technical specifications
| TECH Attribute | Value | Unit | Code |
|---|---|---|---|
| Blows | BPM | ||
| Brushless | Y/N | ||
| CHARGER INPUT VOLTAGE | Vac | ||
| CHARGER OUTPUT VOLTAGE | Vdc | ||
| Chuck Capacity | mm | ||
| Drilling Diameter in aluminium | mm | ||
| Drilling Diameter in steel | mm | ||
| Drilling Diameter in Wood | mm | ||
| Field Resistance | Ω | ||
| Frequency | Hz | ||
| Impact Energy | J | ||
| Armature Resistance | Ω | ||
| Initial Brush Length | mm | ||
| Kpa Sound Pressure Uncertainty | dB | ||
| Kwa Acoustic Power Uncertainty | dB | ||
| Lpa Sound Pressure | dB | ||
| Lwa Acoustic Power | dB | ||
| Max torque | nm | ||
| No load Amps | A | ||
| No load speed | RPM | ||
| Power Output | W | ||
| Rated speed | RPM | ||
| Rated Torque | nm | ||
| RPM | RPM | ||
| Static Sensitive | Y/N | ||
| Voltage | V | ||
| Input Watts | W | ||
| Weight | Kg | ||
| Ahw Vibration | m/s2 | ||
| Nameplate Voltage | 20V Max. | Vdc | |
| Nameplate Speed | 0-1500 | RPM | |
| Nameplate BPM | 0-2300 | BPM | |
| No Load Current (Min) | 3.0 | A | |
| No Load Current (Max) | 7.5 | A | |
| No Load Speed (Min) | 1500 | RPM | |
| No Load Speed (Max) | 1800 | RPM |
