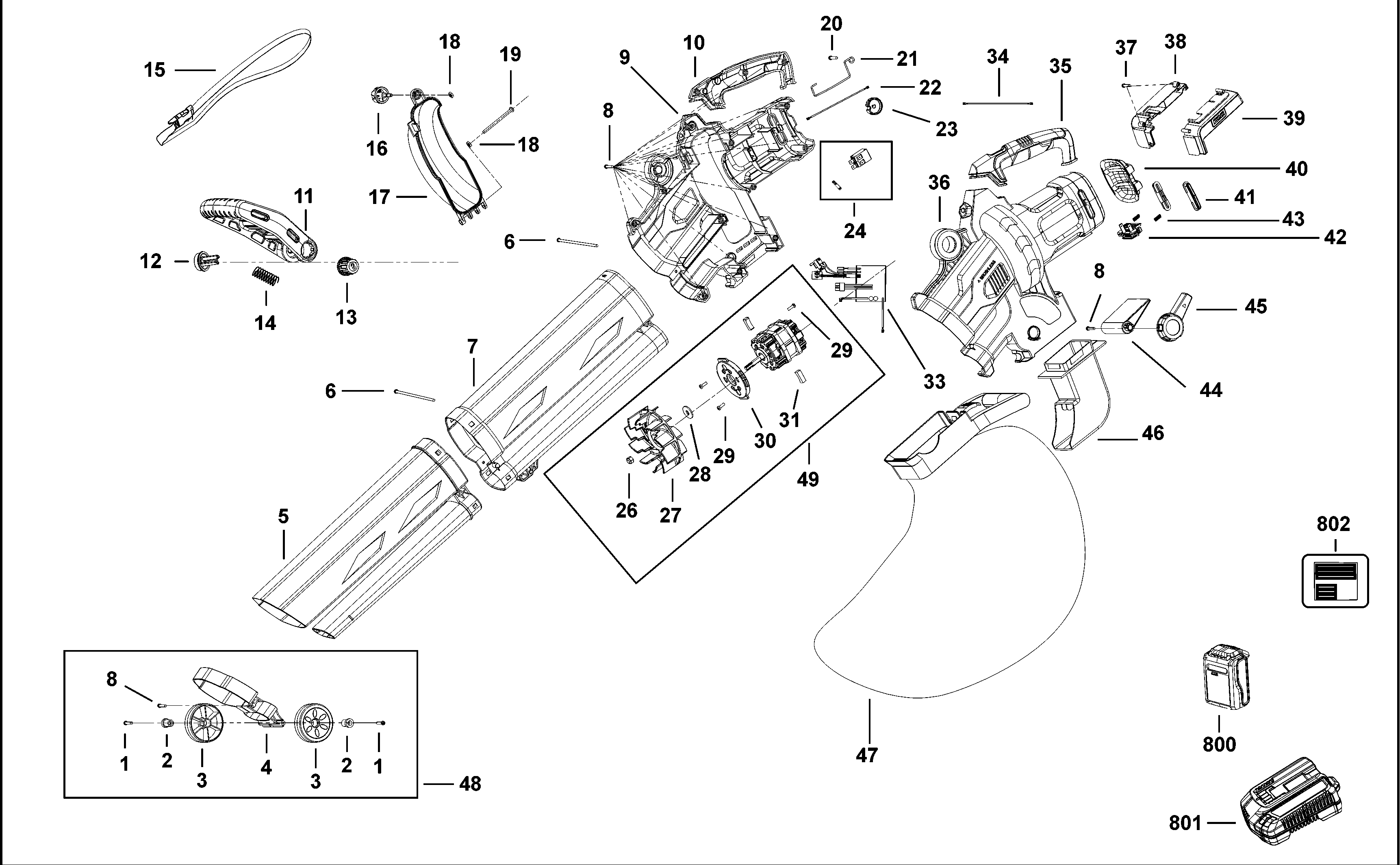

BCBLV36 BLOWER VAC Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004773-52 | 2 | SCREW | GB |  |
||
| 1 | 90597328 | 1 | BOWL | GB | |
||
| 2 | 1004773-53 | 2 | SHAFT | GB | |
||
| 2 | 1003925-99 | 1 | S.T.CIRCLIP INSERTER | GB | |
||
| 3 | 1004773-54 | 2 | WHEEL | GB | |
||
| 3 | 90605735 | 1 | PLATE LOCK | GB | |
||
| 4 | 1004773-55 | 1 | FRAME | GB | |
||
| 4 | 569035-38 | 1 | HOUSING SA | GB | |
||
| 5 | 1004773-56 | 1 | TUBE LOWER | GB | |
||
| 5 | 569035-39 | 1 | HEAD SA | GB | |
||
| 6 | 1004773-57 | 2 | SCREW | GB | |
||
| 6 | 588841-00 | 1 | LABEL | GB | |||
| 7 | 1004773-58 | 1 | TUBE UPPER | GB | |
||
| 7 | 90618579-01 | 1 | CHUCK 10MM | GB |  |
||
| 8 | 1004758-91 | 17 | SCREW | GB | |||
| 8 | ADPC380-44 | 1 | INLET | GB | |
||
| 9 | 1004773-59 | 1 | HOUSING RH | GB | |
||
| 9 | 31D200052 | 7 | YOKE | GB | |
||
| 10 | 1004773-60 | 1 | HANDLE RH | GB | |
||
| 10 | ET111X-1 | 1 | CORD | GB | |
||
| 11 | 1004773-61 | 1 | ADJUSTER HANDLE | HOLDER | GB | |
|
| 11 | 649217-00 | 4 | RATING PLATE | GB | |||
| 12 | 1004773-62 | 1 | ADJUSTER | GB | |
||
| 12 | MB180TL-112 | 2 | LOCK | GB | |
||
| 13 | 1004773-63 | 1 | BUTTON | ADJUSTER | GB | |
|
| 13 | 040339-00 | 1 | GAS SHOCKS | PAIR | GB | ||
| 14 | 1004773-64 | 1 | SPRING | GB | |
||
| 14 | AW434M-A40 | 1 | HOUSING SA | GB | |
||
| 15 | 1004773-65 | 1 | STRAP | GB | |
||
| 15 | 569035-40 | 1 | CONTROL MODULE SA | GB | |
||
| 16 | 1004773-66 | 1 | KNOB | GB | |
||
| 17 | 1004773-67 | 1 | FAN COVER | GB | |
||
| 18 | 6010399-32 | 2 | NUT | GB | |
||
| 18 | 5147158-00 | 1 | BATTERY 12V - 1.5AH - 18WH | NiCd - A12-H1 | GB | |
|
| 19 | 1004773-68 | 1 | SCREW | GB | |
||
| 19 | N651542 | 1 | TUBE | GB | |||
| 20 | 1004773-69 | 1 | SCREW | GB | |
||
| 20 | 943022-01 | 2 | SCREW | GB | |
||
| 21 | 1004773-70 | 1 | LEAD EARTH | WIRE | GB | |
|
| 21 | 90605882 | 1 | RATING LABEL | GB | |
||
| 22 | 1004773-71 | 1 | LEAD | GROUND | GB | |
|
| 23 | 1004773-72 | 1 | KNOB | GB | |
||
| 23 | N680032 | 1 | RATING PLATE | EURO | GB | ||
| 24 | 1004773-73 | 1 | MICRO SWITCH | GB | |
||
| 25 | 90599845-03 | 1 | CHARGER 14.4V - 18V | 1A | GB | |
|
| 26 | 1004773-75 | 1 | NUT | GB | |
||
| 26 | 90592416 | 1 | BATTERY 14.4V - 1.5AH - 21.6WH | Li-Ion - FMC585L | FMC520LB | GB | |
| 27 | 1004773-76 | 1 | FAN | GB | |
||
| 27 | 590276-00 | 1 | FIELD 230V | GB | |
||
| 28 | 1004773-77 | 1 | WASHER | GB | |
||
| 28 | N106174 | 1 | CIRCLIP | GB | |
||
| 29 | 1004773-78 | 3 | SCREW | GB | |
||
| 30 | 1004773-79 | 1 | SUPPORT | MOTOR | GB | |
|
| 31 | 1004707-75 | 1 | RUBBER PAD | GB | |
||
| 33 | 1004773-81 | 1 | PCB SA | GB | |
||
| 34 | 1004773-82 | 1 | WIRE | GB | |
||
| 35 | 1004773-83 | 1 | HANDLE LH | GB | |
||
| 36 | 1004773-84 | 1 | HOUSING LH | GB | |
||
| 37 | 1004773-85 | 2 | SCREW | GB | |
||
| 38 | 1004773-86 | 1 | RAIL LH | GB | |
||
| 39 | 1004773-87 | 1 | RAIL RH | GB | |
||
| 40 | 1004773-88 | 1 | COVER REAR | GB | |
||
| 41 | 1004773-89 | 2 | COVER | GB | |
||
| 42 | 1004773-90 | 1 | BATTERY CONNECTOR | GB | |
||
| 43 | 1004773-91 | 2 | SPRING | GB | |
||
| 44 | 1004773-92 | 1 | DEFLECTOR | GB | |
||
| 45 | 1004773-93 | 1 | KNOB | DEFLECTOR | GB | |
|
| 46 | 1004773-94 | 1 | TUBE OUTLET | GB | |
||
| 47 | 1004773-95 | 1 | BAG SA | GB | |
||
| 48 | 1004773-96 | 1 | WHEEL SA | GB | |
||
| 49 | 1004773-74 | 1 | MOTOR SA | GB | |
||
| 800 | N879836 | 1 | BATTERY 36V - 2.2AH | BCBLV3625L1 | GB | |
|
| 800 | N694215 | 1 | BATTERY 36V - 2.0AH - 72WH | Li-Ion - BL20362 | BCBLV3620L1 | GB | |
| 801 | 90616337-02 | 1 | CHARGER 36V | UA CHARGER 36V | BCBLV3625L1 | GB | |
| 801 | 90616337-02 | 1 | CHARGER 36V | UA CHARGER 36V | BCBLV3620L1 | GB | |
| 802 | N718814 | 1 | RATING PLATE | GB | |
