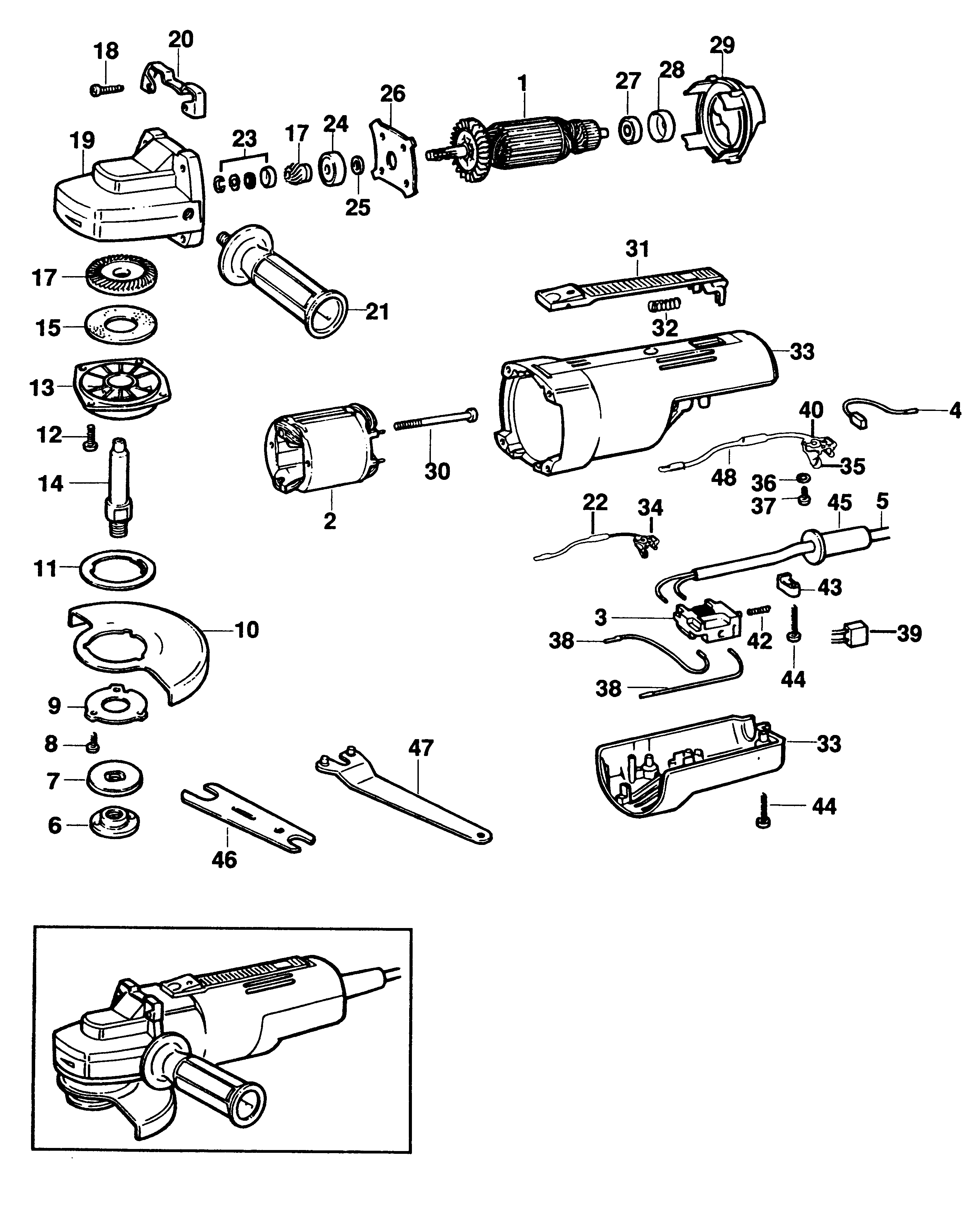

BD10 SANDER/GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 931167 | 1 | ARMATURE | GB |  |
||
| 3 | 933523 | 1 | SWITCH | GB | |
||
| 4 | 933552 | 2 | BRUSH | GB | |
||
| 5 | 949843-24 | 1 | CABLE | GB | |||
| 6 | 947213-00 | 1 | FLANGE | GB | |
||
| 7 | 933661 | 1 | FLANGE | GB | |
||
| 8 | 930251-00 | 3 | SCREW | GB | |
||
| 10 | 937411-00 | 1 | GUARD | GB | |
||
| 11 | 938272 | 1 | RING | GB | |
||
| 12 | 930770-00 | 4 | SCREW | GB | |
||
| 13 | 944055 | 1 | GEARCASE COVER SA | GB | |
||
| 14 | 946412-00 | 1 | SPINDLE | TYPE A2 | GB | |
|
| 14 | 932165 | 1 | SPINDLE | TYPE A1 | GB | |
|
| 15 | 946418-00 | 1 | FELT | GB | |
||
| 17 | 932592 | 1 | GEAR & PINION | GB | |
||
| 18 | 930079-01 | 4 | SCREW | GB | |
||
| 19 | 946571-00 | 1 | GEARCASE SA | TYPE A1 | GB | |
|
| 19 | 946571-00 | 1 | GEARCASE SA | TYPE A2 | GB | |
|
| 19 | 946571-00 | 1 | GEARCASE SA | TYPE A1 | GB | |
|
| 19 | 946571-00 | 1 | GEARCASE SA | TYPE A2 | GB | |
|
| 20 | 940066 | 1 | SUPPORT BRACKET | GB | |
||
| 22 | 937019 | 1 | LEAD | GB | |
||
| 23 | 937668 | 1 | CIRCLIP SA | GB | |
||
| 24 | 577745-00 | 1 | BEARING | GB | |
||
| 25 | 930753-00 | 1 | WASHER | GB |  |
||
| 27 | 330003-34 | 1 | BEARING | GB | |
||
| 28 | 930275-00 | 1 | SLEEVE | GB | |
||
| 29 | 936816 | 1 | BAFFLE | GB | |
||
| 30 | 933541 | 2 | SCREW | GB | |
||
| 31 | 932902 | 1 | LEVER SA | GB | |
||
| 32 | 932841 | 1 | SPRING | GB | |
||
| 33 | 937080-01 | 1 | FIELDCASE | GB | |
||
| 34 | 933533 | 1 | BRUSH PLATE SA | GB | |
||
| 35 | 933545 | 2 | SPRING | GB | |
||
| 36 | 933546 | 2 | WASHER | GB | |
||
| 37 | 930076-00 | 2 | SCREW | GB | |
||
| 38 | 933554 | 2 | LEAD | GB | |
||
| 39 | 930030 | 1 | CAPACITOR | GB | |
||
| 40 | 933542 | 1 | BRUSH PLATE SA | GB | |
||
| 41 | 933520 | 1 | SHOCK ABSORBER | GB | |
||
| 42 | 933524-00 | 1 | SPRING | GB | |
||
| 43 | 933547 | 1 | CORD CLAMP | GB | |
||
| 44 | 932409 | 4 | SCREW | GB | |
||
| 45 | 949835-01 | 1 | PROTECTOR | GB | |
||
| 46 | 931637 | 1 | SPANNER | GB | |
||
| 47 | 947830-02 | 1 | WRENCH SPECIAL | GB | |
||
| 48 | 937319 | 1 | LEAD | GB | |
