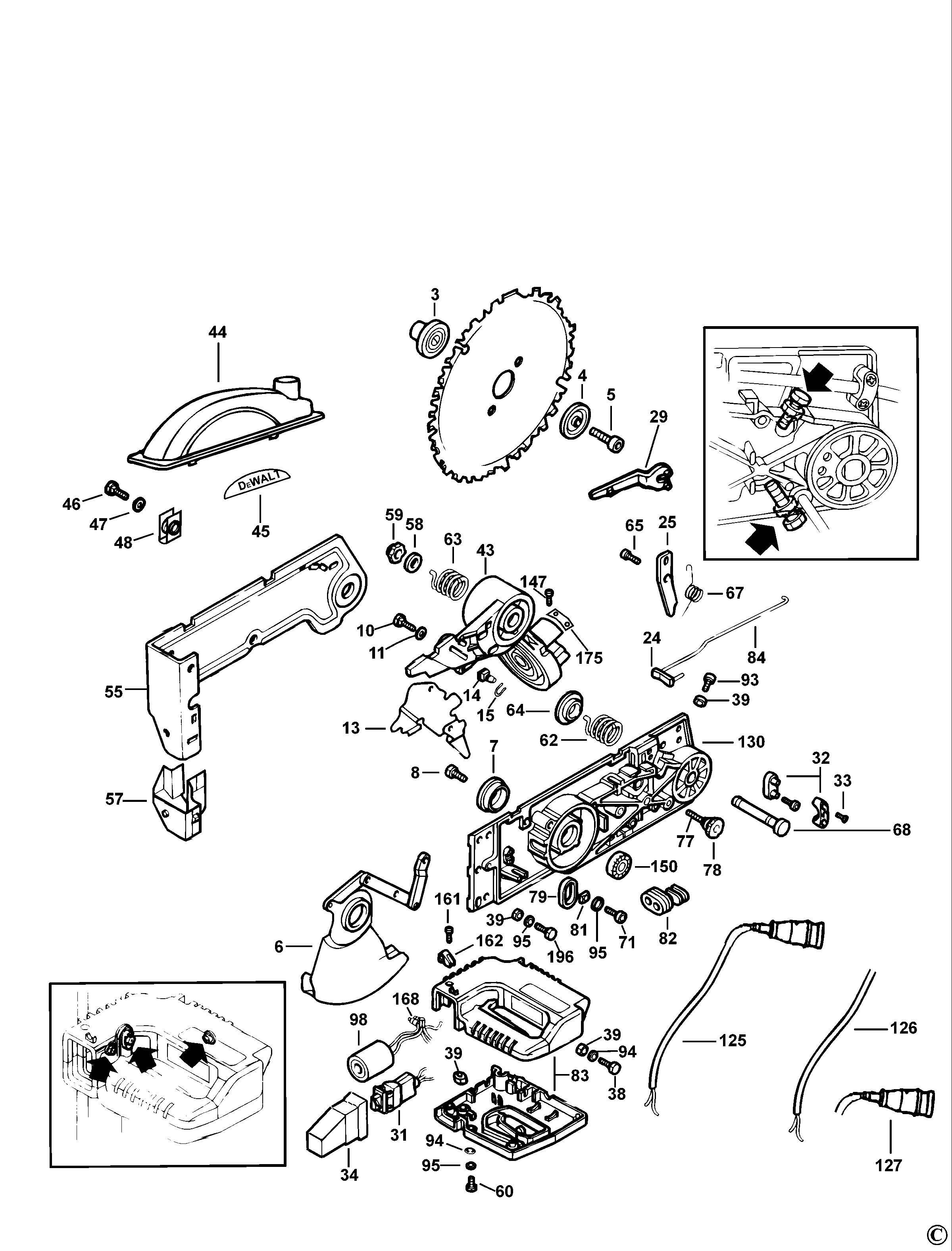

DW709 MITRE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N283746 | 1 | TABLE SA | CH |  |
||
| 2 | 869234-00 | 1 | ROTARY TABLE | CH | |
||
| 3 | 861057-01 | 1 | INNER FLANGE | CH |  |
||
| 4 | 861056-00 | 1 | OUTER FLANGE | CH | |
||
| 5 | 949886-21 | 1 | BOLT | CH | |
||
| 6 | 864693-04 | 1 | GUARD SA | CH | |
||
| 7 | 863039-02 | 1 | HUB | CH | |
||
| 8 | 860205-01 | 2 | SCREW | CH | |
||
| 10 | 860093-14 | 1 | SCREW | CH | |
||
| 11 | 860073-03 | 1 | WASHER M8 | CH | |
||
| 12 | 949761-01 | 2 | WASHER | CH | |
||
| 13 | 861918-04 | 1 | GUARD | CH | |
||
| 14 | 861929-00 | 1 | NUT | CH | |
||
| 15 | 860079-03 | 1 | CIRCLIP | CH | |
||
| 24 | 861953-00 | 1 | CAP | CH | |
||
| 25 | 863610-00 | 1 | PLATE | CH | |
||
| 29 | 939072-00 | 1 | SPANNER | CH | |
||
| 31 | N060327 | 1 | SWITCH | CH | |
||
| 32 | 861692-00 | 1 | CLAMP | CH | |
||
| 33 | 949889-02 | 2 | SCREW | CH | |
||
| 34 | 868320-00 | 1 | COVER | CH | |
||
| 36 | 868688-01 | 1 | INSERT | CH | |
||
| 37 | 949705-01 | 4 | WASHER | CH | |
||
| 38 | 860085-09 | 1 | SCREW.TEMP | CH | |
||
| 39 | 860083-12 | 2 | NUT M6 | CH | |
||
| 40 | 861840-03 | 1 | LEVER | CH | |
||
| 41 | 860092-07 | 1 | NUT | CH | |
||
| 42 | 868680-00 | 1 | INSERT | CH | |
||
| 43 | 861913-01 | 1 | SEGMENT SA | CH | |
||
| 44 | 868308-00 | 1 | COVER | CH | |
||
| 45 | 868309-00 | 2 | LABEL | CH | |
||
| 46 | 860084-21 | 3 | SCREW | CH | |
||
| 47 | 860073-01 | 3 | WASHER | CH | |
||
| 48 | 865410-00 | 3 | FASTENER | CH | |
||
| 49 | 868943-02 | 1 | LOCKING DEVICE | CH | |
||
| 55 | 861890-00 | 1 | FRAME | CH | |
||
| 57 | 861920-00 | 1 | SPACER | CH | |
||
| 58 | 949761-02 | 1 | SHIM | CH | |
||
| 59 | 949759-01 | 1 | LOCK NUT | CH | |
||
| 60 | 860085-07 | 1 | SCREW | CH | |
||
| 61 | 930076-00 | 2 | SCREW | CH | |
||
| 62 | 863606-00 | 1 | SPRING LH | CH | |
||
| 63 | 863590-00 | 1 | SPRING RH | CH | |
||
| 64 | 863611-00 | 1 | SHIM | CH | |
||
| 65 | 863602-00 | 1 | SCREW | CH | |
||
| 67 | 863604-00 | 1 | SPRING | CH | |
||
| 68 | 863607-00 | 1 | PIN | CH | |
||
| 71 | 860094-02 | 1 | SCREW | CH | |
||
| 77 | 863605-00 | 1 | PIN | CH | |
||
| 78 | 946469-00 | 1 | KNOB | CH | |
||
| 79 | 863026-00 | 1 | GASKET | CH | |
||
| 81 | 944650-00 | 1 | WASHER SPRING | CH | |
||
| 82 | 863573-00 | 1 | INLET | CH | |
||
| 83 | 862429-05 | 1 | HANDLE & COVER | CH | |
||
| 84 | 863613-02 | 1 | ROD | CH | |
||
| 87 | 860074-00 | 2 | WASHER SPRING | CH | |
||
| 89 | 330045-26 | 1 | SCREW | CH | |
||
| 91 | 868687-00 | 1 | FENCE | CH | |
||
| 93 | 860084-09 | 1 | SCREW | CH | |
||
| 94 | 863025-00 | 1 | SHEATH | CH | |
||
| 95 | 860075-00 | 1 | WASHER | CH | |
||
| 98 | 949772-23 | 1 | CAPACITOR | CH | |
||
| 102 | 868677-00 | 1 | SCALE | CH | |
||
| 109 | 868707-01 | 1 | BUSH | CH | |
||
| 112 | 868777-00 | 4 | FOOT | CH | |
||
| 117 | 860205-08 | 2 | SCREW | CH | |
||
| 119 | 868943-02 | 1 | LOCKING DEVICE | CH | |
||
| 122 | 868778-00 | 1 | SPRING | CH | |
||
| 124 | 868737-00 | 1 | PLATE | CH | |
||
| 125 | 868313-04 | 1 | CORDSET | CH | |
||
| 130 | 862180-08 | 1 | SUPPORT BRACKET | CH | |
||
| 135 | 863112-00 | 1 | CAP | CH | |
||
| 136 | 860445-00 | 1 | COVER | CH | |
||
| 137 | 945841-00 | 1 | FAN | CH | |
||
| 138 | 861345-00 | 1 | HOUSING SA | CH | |
||
| 139 | 861336-02 | 1 | BRAKE | CH | |
||
| 140 | 863015-00 | 1 | TIE ROD | CH | |
||
| 142 | 868412-04 | 1 | STATOR SA 230V | CH | |
||
| 143 | 860080-02 | 1 | RING | CH | |
||
| 145 | 861349-00 | 1 | CIRCLIP | CH | |
||
| 146 | 861338-00 | 1 | SPRING | CH | |
||
| 147 | 949894-12 | 2 | SCREW | CH | |
||
| 149 | 868768-07 | 1 | BEARING | CH | |
||
| 150 | 861721-12 | 1 | BEARING | CH | |
||
| 152 | 947614-00 | 1 | PLATE | CH | |
||
| 156 | 760298-01 | 5 | INSERT | CH | |
||
| 161 | 860084-03 | 1 | SCREW | CH | |
||
| 162 | 123106-00 | 1 | STRAP | CH | |
||
| 168 | 861257-00 | 1 | CONNECTOR | CH | |
||
| 170 | 330045-05 | 7 | SCREW | CH | |
||
| 171 | 868943-02 | 1 | LOCKING DEVICE | CH | |
||
| 175 | 946862-01 | 1 | SCALE | CH | |
||
| 191 | 868708-00 | 1 | BALL | CH | |
||
| 196 | 949743-02 | 2 | SCREW | M8 x 14mm | CH | |
|
| 836 | 279663-99 | 1 | SPANNER TOOL | CH | |
||
| 837 | 559506-99 | 1 | SOCKET | CH | |
||
| 838 | 559570-99 | 1 | SOCKET | CH | |
||
| 839 | 559572-99 | 1 | BOLT | CH | |
||
| 847 | 868411-01 | 1 | ROTOR SA | CH | |
