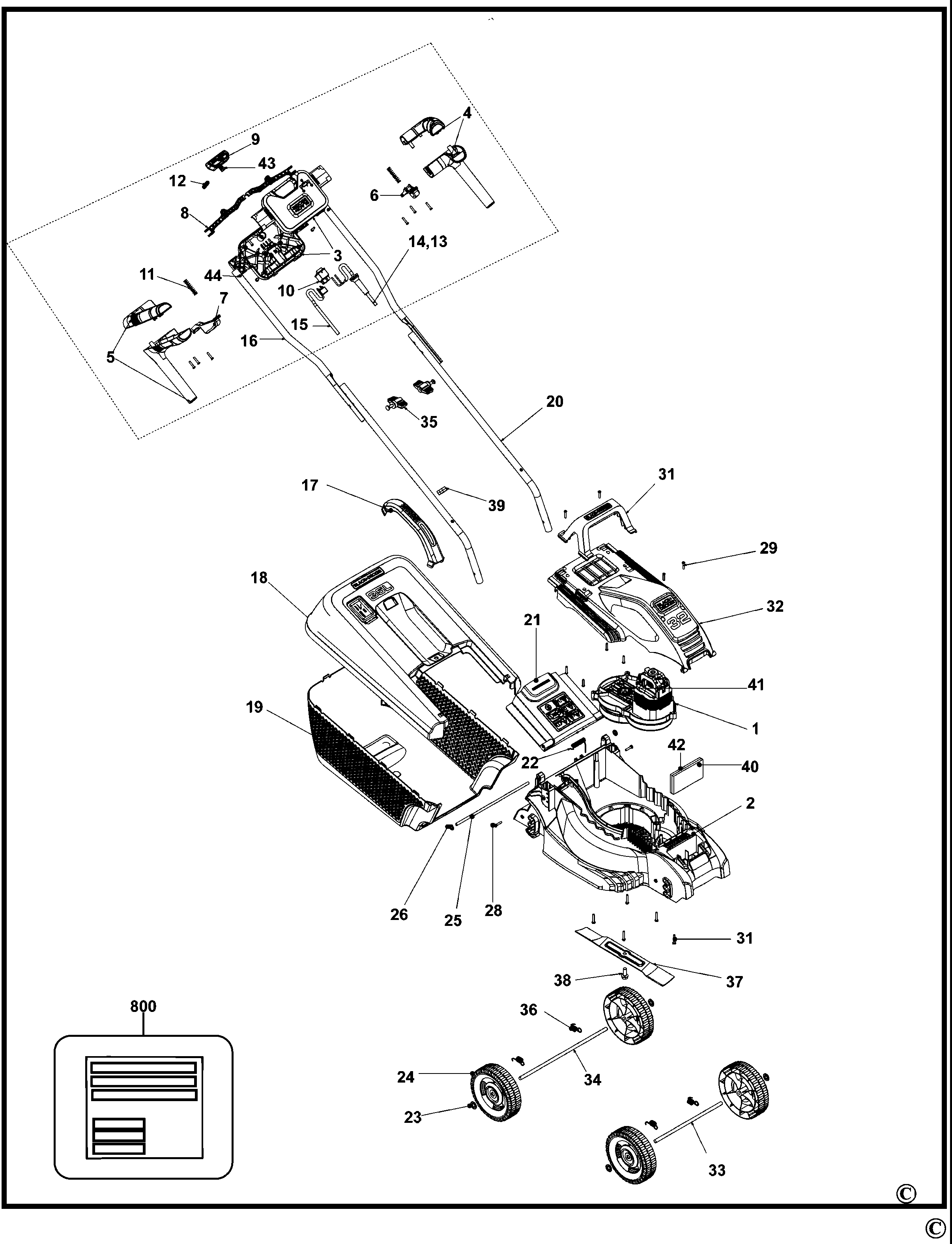

BDMOW1200 MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N854475 | 1 | TRANSMISSION SA | GB |  |
||
| 2 | N597945 | 1 | BOX | GB | |
||
| 3 | N549270 | 1 | HOUSING SWITCH | GB | |
||
| 4 | N549273 | 1 | HANDLE LH | GB | |
||
| 5 | N549275 | 1 | HANDLE RH | GB | |
||
| 6 | N528681 | 1 | TRIGGER | LEFT | GB | |
|
| 7 | N528682 | 1 | TRIGGER | RIGHT | GB | |
|
| 8 | N529479 | 2 | LINK | GB | |
||
| 9 | N529480 | 1 | BUTTON LOCK-OFF | GB | |
||
| 10 | 90562582 | 1 | SWITCH | GB | |
||
| 11 | N549280 | 1 | SPRING | GB | |
||
| 12 | N568719 | 1 | SPRING | GB | |
||
| 14 | 90580223 | 1 | CORDSET | GB | |
||
| 15 | N549260 | 1 | CABLE | GB | |
||
| 16 | N527766 | 2 | TUBE UPPER | GB | |
||
| 17 | 90567333 | 1 | HANDLE | GB | |
||
| 18 | 90592448-01 | 1 | COVER | GB | |
||
| 19 | 90561607 | 1 | GRASSBOX | GB | |
||
| 20 | N546450 | 2 | TUBE LOWER | GB | |
||
| 21 | 90561602-02 | 1 | GRASSFLAP | GB | |
||
| 22 | N564204 | 1 | SPRING TORSION | GB | |
||
| 23 | 90574276-01 | 1 | WASHER LOCK | GB | |
||
| 24 | 598955-01 | 4 | WHEEL | GB | |
||
| 25 | 90561603 | 1 | SPINDLE | GB | |
||
| 26 | 90574275-01 | 2 | WASHER LOCK | GB | |
||
| 27 | 90570075 | 1 | SPRING | GB | |
||
| 28 | 90589823 | 2 | SCREW | GB | |
||
| 29 | 747329 | 18 | SCREW | GB | |
||
| 30 | 330019-14 | 5 | SCREW | GB | |
||
| 31 | N525935 | 1 | HANDLE | GB | |
||
| 32 | N546826 | 1 | COVER SA | GB | |
||
| 33 | 90561687-01 | 1 | AXLE FRONT | GB | |
||
| 34 | 90561688-01 | 1 | SPINDLE | GB | |
||
| 35 | N548691 | 1 | NUT PACK | GB | |
||
| 36 | 90570075 | 2 | SPRING | GB | |
||
| 37 | N520725 | 1 | BLADE | GB | |
||
| 38 | 90516533 | 1 | BOLT | GB | |
||
| 39 | 90571653 | 2 | CLAMP | GB | |
||
| 40 | 90626318 | 2 | WEIGHT | GB | |
||
| 41 | 90606208 | 2 | TUBE | TUBE, SHRINKABLE | GB | |
|
| 42 | N546176 | 2 | BLOCK | weight block | GB | |
|
| 44 | 330045-05 | 2 | SCREW | GB | |
||
| 800 | N785909 | 1 | RATING LABEL | GB | |
