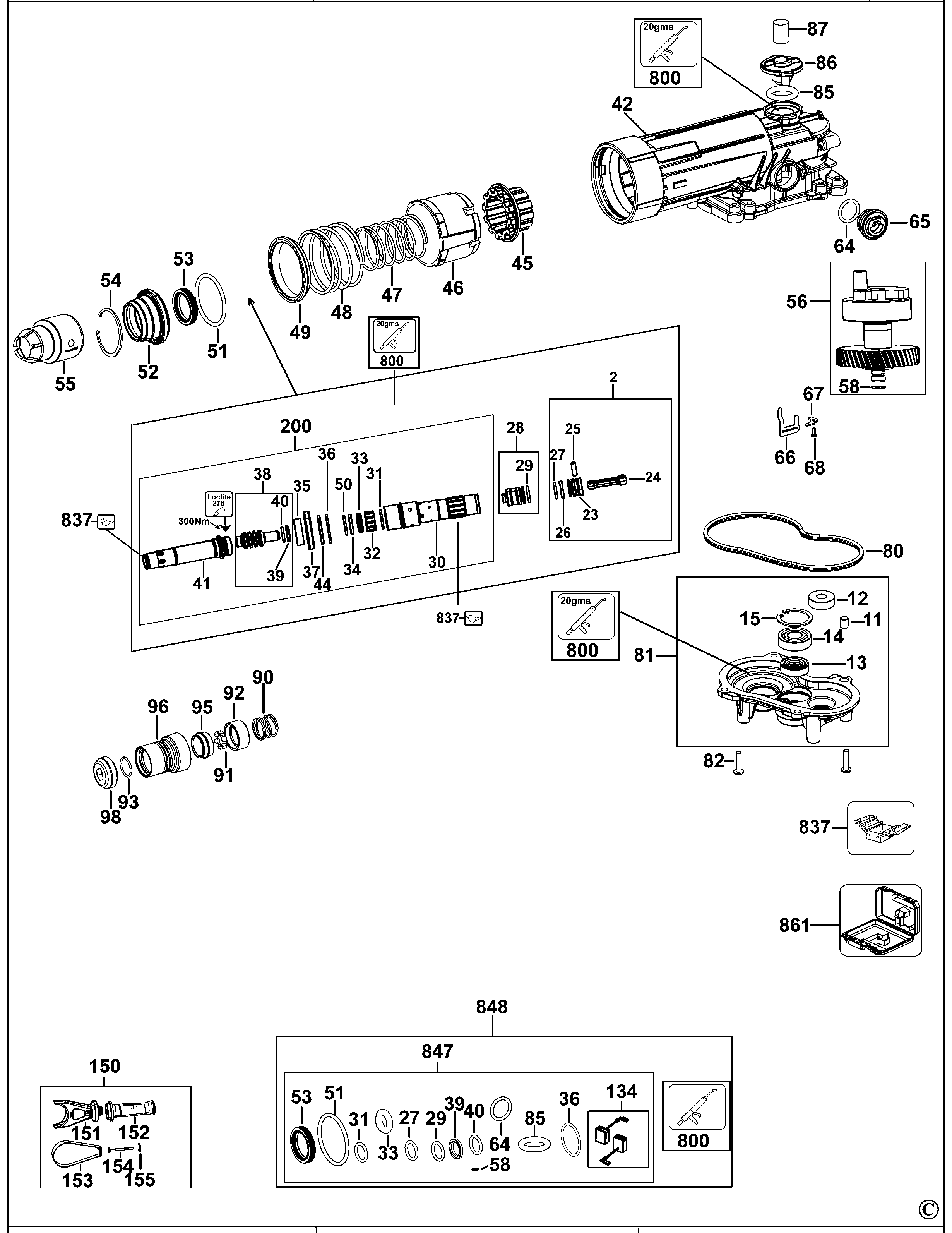

D25811 CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | N491963 | 1 | ARMATURE 230V | B1 |  |
|||
| 2 | N492871 | 1 | PISTON SA | B1 | |
|||
| 8 | 330003-60 | 1 | BEARING | B1 |  |
277.16 INR | ||
| 9 | N466979 | 1 | MAGNET | B1 | |
|||
| 11 | 327575-00 | 1 | SLEEVE | B1 | |
26.45 INR | ||
| 12 | N110358 | 2 | BEARING | B1 | |
|||
| 13 | N495599 | 1 | SEAL | B1 | |
|||
| 14 | 577745-01 | 1 | BEARING,BALL | B1 | |
297.35 INR | ||
| 15 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | B1 | |
||
| 23 | N444288 | 1 | PISTON | B1 | |
|||
| 24 | N406775 | 1 | CON ROD | 5KG | B1 | |
||
| 25 | N446699 | 1 | PIN | B1 | |
|||
| 26 | N446701 | 1 | PISTON RING | B1 | |
|||
| 27 | N446544 | 1 | O RING | 21 X 3.5 FKM75 | B1 | |
||
| 28 | N492863 | 1 | RAM SA | 5KG D28 | B1 | |
||
| 29 | N446544 | 1 | O RING | 21 X 3.5 FKM75 | B1 | |
||
| 30 | N567974 | 1 | SPINDLE SA | 17MM HEX | B1 | |||
| 31 | N474624 | 1 | O RING | 27 X 2.6 | B1 | |
||
| 32 | N445510 | 1 | BUSH | B1 | |
|||
| 33 | N460601 | 1 | DAMPER | B1 | |
|||
| 34 | N462095 | 1 | WASHER | B1 | |
|||
| 35 | N539518 | 1 | SPACER | B1 | ||||
| 36 | N559339 | 1 | WASHER | B1 | ||||
| 37 | N526259 | 1 | BEARING | B1 | ||||
| 38 | N508025 | 1 | BEAT PIECE | 5KG HEX CHIPPER | B1 | |||
| 39 | N244259 | 1 | SEAL | B1 | |
|||
| 40 | N487314 | 1 | O RING | B1 | |
|||
| 41 | N567974 | 1 | SPINDLE SA | 17MM HEX | B1 | |||
| 42 | N506091 | 1 | HOUSING SA | CHIPPER | B1 | |
||
| 44 | N532520 | 1 | O RING | B1 | ||||
| 45 | N445599 | 1 | SLEEVE | B1 | |
|||
| 46 | N433094 | 1 | SLEEVE | LOCKING | B1 | |
||
| 47 | N437808 | 1 | SPRING | SHIFTING SLEEVE | B1 | |
||
| 48 | N437814 | 1 | SPRING | B1 | |
|||
| 49 | N460603 | 1 | SUPPORT | B1 | |
|||
| 50 | N539527 | 1 | RETAINER | B1 | ||||
| 51 | N432556 | 1 | O RING | 54x4 | B1 | |
||
| 52 | N526257 | 1 | SLEEVE | B1 | ||||
| 53 | N446361 | 2 | O RING | 35 X 4 | B1 | |
||
| 54 | N532870 | 1 | CIRCLIP | B1 | ||||
| 55 | N452069 | 1 | CAP | B1 | ||||
| 56 | N492873 | 1 | CRANKSHAFT | 5KG CHIPPER | B1 | |
||
| 58 | 323711-26 | 1 | O RING | B1 | |
2.11 INR | ||
| 64 | N553858 | 1 | O RING | 16 X 2.65 | B1 | |||
| 65 | N435997 | 1 | ECCENTRIC | B1 | |
|||
| 66 | N422798 | 1 | PLATE | DRILL MODE | B1 | |
||
| 67 | N422797 | 1 | PLATE | GUIDING | B1 | |
||
| 68 | N445171 | 1 | SCREW | B1 | |
7.20 INR | ||
| 71 | N435623 | 1 | BAFFLE FAN | B1 | |
|||
| 76 | N433780 | 1 | HOUSING MOTOR | B1 | |
|||
| 77 | N449094 | 1 | COVER BEARING | B1 | |
|||
| 78 | N492847 | 1 | FIELD 230V | B1 | |
|||
| 80 | N422796 | 1 | GASKET | MAIN HOUSING | B1 | |
||
| 81 | N492875 | 1 | GEARCASE SA | 5KG CHIPPER | B1 | |
||
| 82 | 324007-11 | 8 | SCREW | M5 X 18 | B1 | |
10.53 INR | |
| 83 | N444425 | 2 | BRUSH SPRING | B1 | |
|||
| 84 | N448156 | 1 | COIL | B1 | |
|||
| 85 | N504436 | 1 | O RING | 18x4.5 | B1 | |
||
| 86 | N452721 | 1 | CAP | B1 | |
|||
| 87 | N395554 | 1 | FELT | B1 | |
|||
| 89 | 325878-00 | 2 | ROLLER | B1 | |
69.24 INR | ||
| 90 | N048229 | 1 | SPRING | B1 | |
50.42 INR | ||
| 91 | N048234 | 6 | BALL STEEL | B1 | |
5.02 INR | ||
| 92 | N048230 | 1 | COLLAR | B1 | |
334.59 INR | ||
| 93 | N547839 | 1 | RING | 26 X 2.5 | B1 | |||
| 95 | N149446 | 1 | STOP | B1 | |
316.13 INR | ||
| 96 | N149448 | 1 | SLEEVE | B1 | |
117.43 INR | ||
| 98 | N446860 | 1 | LIP SEAL | 17MM HEX | B1 | |||
| 99 | N429783 | 1 | COVER | B1 | |
|||
| 104 | N463364 | 1 | SIDE RH | B1 | |
|||
| 105 | N452497 | 1 | SIDE LH | B1 | |
|||
| 106 | N445171 | 3 | SCREW | B1 | |
7.20 INR | ||
| 107 | N464282 | 1 | SELECTOR SA | MODE CHANGE | B1 | |
||
| 108 | 330065-08 | 14 | SCREW | M4x18 T20 | B1 | |
5.85 INR | |
| 109 | N452043 | 1 | BELLOWS | LOWER | B1 | |
||
| 110 | N452385 | 1 | SET OF LEAD WIRES | B1 | |
|||
| 111 | N452042 | 1 | BELLOWS | B1 | |
|||
| 112 | N152623 | 1 | STOP | B1 | |
92.70 INR | ||
| 113 | N492860 | 1 | CLAMSHELL SET | B1 | |
|||
| 114 | 1005752-00 | 1 | CORDSET (EURO) | QS | B1 | |
353.15 INR | |
| 115 | N467530 | 1 | SWITCH | B1 | ||||
| 116 | 329301-00 | 1 | CORD CLAMP | B1 | |
7.61 INR | ||
| 118 | 488065-01 | 1 | TRIGGER | B1 | |
50.31 INR | ||
| 119 | N159443 | 1 | AXIS | B1 | |
20.03 INR | ||
| 120 | N106188 | 1 | SPRING COMPRESSION | B1 | |
23.16 INR | ||
| 121 | 323091-01 | 1 | CORD PROTECTOR | B1 | |
94.56 INR | ||
| 123 | 324007-11 | 2 | SCREW | M5 X 18 | B1 | |
10.53 INR | |
| 125 | N438602 | 1 | END CAP | B1 | |
|||
| 126 | N438601 | 1 | CLAMSHELL | B1 | |
|||
| 127 | N492877 | 1 | CONTROL MODULE SA | 230V | B1 | |
||
| 128 | N449848 | 1 | BRACKET | B1 | |
|||
| 129 | N371839 | 2 | SCREW | M4x22 PLSTC THDFMG | B1 | |
2.21 INR | |
| 130 | N450546 | 1 | LEAD SA | B1 | |
|||
| 132 | 324007-11 | 4 | SCREW | M5 X 18 | B1 | |
10.53 INR | |
| 133 | 330065-10 | 2 | SCREW | B1 | 5.14 INR | |||
| 134 | N492850 | 1 | BRUSH PAIR 120V | B1 | ||||
| 134 | N492849 | 1 | BRUSH PAIR 230V | B1 | |
|||
| 135 | N450097 | 2 | BRUSHBOX SA | B1 | |
|||
| 136 | N086775 | 5 | SCREW | B1 | |
0.79 INR | ||
| 150 | N535058 | 1 | HANDLE SA | B1 | ||||
| 151 | N466673 | 1 | CLAMP | B1 | |
|||
| 152 | N505367 | 1 | HANDLE SA | B1 | |
|||
| 153 | N466679 | 1 | CLAMP | B1 | |
|||
| 154 | N466678 | 1 | BOLT | B1 | |
|||
| 155 | N466677 | 1 | WASHER CLAMP | B1 | |
|||
| 200 | N687565 | 1 | SPINDLE SA | 17MM HEX | B1 | |||
| 800 | 578970-06 | 1 | GREASE 150 GMS | B1 | |
1148.89 INR | ||
| 821 | N495336 | 1 | RATING LABEL | B1 | ||||
| 847 | N513646 | 1 | SERVICE KIT 230V | HV | B1 | |
||
| 861 | N469730 | 1 | KITBOX | B1 |
