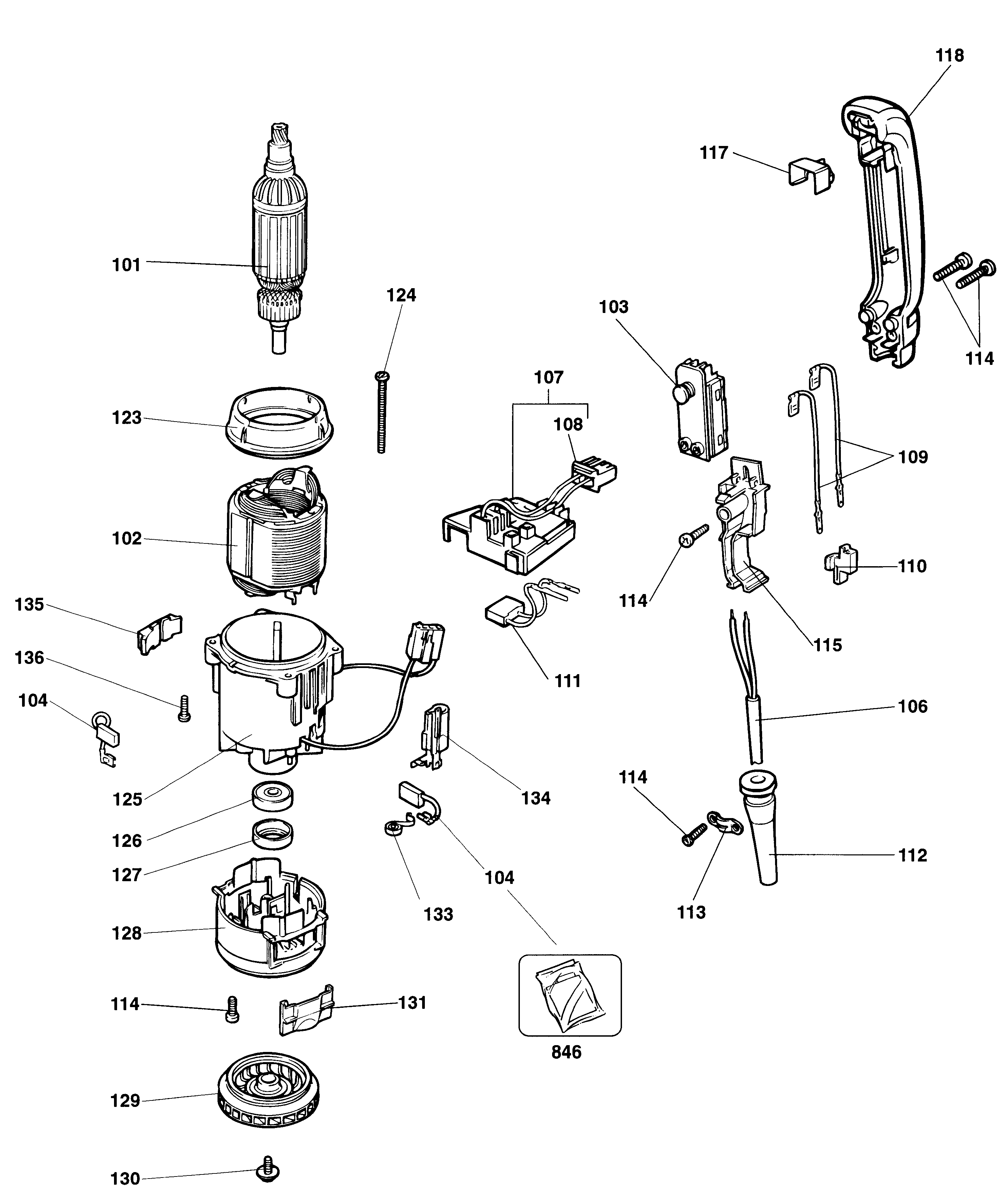

DW540 ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 101 | 577163-04 | 1 | ARMATURE 230V | IN | ||||
| 102 | 327429-11 | 1 | FIELD 120V | TW (115) | IN | |||
| 102 | 328548-05 | 1 | FIELD 230V | GB 240 | IN | |||
| 102 | 328548-05 | 1 | FIELD 230V | IN (230) | IN | |||
| 103 | 326087-00 | 1 | SWITCH | IN | ||||
| 104 | 326961-00 | 2 | SERVICE BRUSH | Cut-off | GB 240 | IN |  |
|
| 104 | 326961-00 | 2 | SERVICE BRUSH | Cut-off | IN (230) | IN | |
|
| 104 | 326961-01 | 2 | BRUSH 120V | GB 115 | IN | |||
| 104 | 326961-01 | 2 | BRUSH 120V | TW (115) | IN | |||
| 106 | 324438-73 | 1 | CORDSET | GB 240 | IN | |||
| 106 | 325090-08 | 1 | CORDSET POLARISED | TW (115) | IN | |||
| 106 | 330061-20 | 1 | CORDSET | GB 115 | IN | |||
| 106 | 330061-20 | 1 | CORDSET | IN (230) | IN | |||
| 107 | 326455-01 | 1 | PLUG | IN | ||||
| 108 | 326191-00 | 1 | TERMINAL BLOCK | IN | ||||
| 109 | 325089-00 | 2 | LEAD BLACK | IN | ||||
| 110 | 326189-00 | 1 | TERMINAL BLOCK | IN | ||||
| 111 | 320842-11 | 1 | CAPACITOR | IN |  |
|||
| 112 | 323091-01 | 1 | CORD PROTECTOR | IN | |
94.56 INR | ||
| 113 | 821070 | 1 | CORD CLAMP | IN | |
4.60 INR | ||
| 114 | 330065-08 | 17 | SCREW | M4x18 T20 | IN | |
5.85 INR | |
| 115 | 326190-00 | 1 | CABLE GUIDE | IN | ||||
| 116 | 330065-05 | 2 | SCREW | IN | |
4.24 INR | ||
| 117 | 326581-00 | 1 | INSULATOR | IN | ||||
| 118 | 325382-00 | 1 | HANDLE | IN | ||||
| 119 | 326438-00 | 1 | SPRING | IN | |
20.94 INR | ||
| 120 | 325919-00 | 1 | TRIGGER | IN | |
42.02 INR | ||
| 121 | 326519-00 | 1 | SCREW | IN | ||||
| 123 | 492073-00 | 1 | BAFFLE | IN | |
35.00 INR | ||
| 124 | 330065-10 | 2 | SCREW | IN | 5.14 INR | |||
| 125 | 326411-14 | 1 | FIELDCASE | IN | ||||
| 126 | 577745-00 | 1 | BEARING | IN | |
253.42 INR | ||
| 127 | 325279-00 | 1 | SLEEVE | IN | |
52.63 INR | ||
| 128 | 325411-02 | 1 | COVER | IN | ||||
| 129 | 577736-00 | 1 | FAN | IN | |
506.84 INR | ||
| 130 | 324119-02 | 1 | SCREW | IN | |
31.38 INR | ||
| 131 | 326579-00 | 2 | SHUTTER | IN | |
24.33 INR | ||
| 133 | 326667-00 | 2 | BRUSH SPRING | IN | |
48.84 INR | ||
| 134 | 326933-00 | 2 | CHOKE SA | IN | ||||
| 135 | 325917-00 | 2 | DAMPER | IN | ||||
| 136 | 324007-11 | 8 | SCREW | M5 X 18 | IN | |
10.53 INR | |
| 150 | 329469-49 | 1 | HOUSING REPAIR KIT | IN | ||||
| 151 | 330004-32 | 1 | BEARING | FROM DATE CODE 97-16 | IN | |||
| 151 | 918877-05 | 1 | BEARING NEEDLE | UPTO DATE CODE 97-15 | IN | |||
| 151 | 328996-49 | 1 | REPAIR KIT | UPTO DATE CODE 96-12 | IN | |||
| 152 | 330004-33 | 1 | BEARING | FROM DATE CODE 97-16 | IN | |
252.82 INR | |
| 152 | 918877-06 | 1 | BEARING NEEDLE | UPTO DATE CODE 97-15 | IN | |||
| 153 | 329039-01 | 1 | GEARCASE COVER SA | IN | ||||
| 154 | 325936-00 | 1 | SEAL | IN | |
30.95 INR | ||
| 163 | 496440-00 | 1 | REPAIR KIT | IN | |
4841.19 INR | ||
| 164 | 492618-00 | 1 | GEAR | IN | |
303.31 INR | ||
| 165 | 327141-02 | 1 | SEAL | IN | ||||
| 166 | 325616-00 | 1 | BUSH | IN | |
93.69 INR | ||
| 167 | 918825-02 | 6 | SCREW | IN | |
13.81 INR | ||
| 168 | 918825-04 | 3 | SCREW | IN | ||||
| 169 | 581014-01 | 1 | CRANKSHAFT | IN | ||||
| 170 | 323711-26 | 1 | O RING | IN | |
2.11 INR | ||
| 171 | 325002-00 | 1 | CON ROD | IN | |
195.18 INR | ||
| 172 | 324858-00 | 1 | PISTON | IN | ||||
| 173 | 330041-22 | 1 | PIN | IN | |
55.19 INR | ||
| 174 | 325905-00 | 1 | RETAINER | IN | |
27.74 INR | ||
| 175 | 323711-11 | 2 | O RING | IN | ||||
| 176 | 326098-02 | 1 | CYLINDER | IN | ||||
| 177 | 323711-21 | 1 | O RING | IN | ||||
| 180 | 329318-00 | 1 | RAM | IN | ||||
| 181 | 496440-00 | 1 | REPAIR KIT | IN | |
4841.19 INR | ||
| 182 | 326085-00 | 1 | WASHER LARGE | IN | |
81.40 INR | ||
| 183 | 323763-03 | 1 | CIRCLIP | IN | |
40.16 INR | ||
| 184 | 1005697-00 | 1 | SPINDLE LOCK | IN | |
172.40 INR | ||
| 185 | 325880-02 | 1 | SHAFT | IN | |
64.00 INR | ||
| 186 | 325160-00 | 1 | SELECTOR FORK | IN | |
109.51 INR | ||
| 187 | 323395-08 | 1 | SPRING | IN | |
8.37 INR | ||
| 188 | 323395-09 | 1 | SPRING | IN | |
3.99 INR | ||
| 189 | 326093-00 | 2 | SPACER | IN | |
20.00 INR | ||
| 190 | 325212-00 | 1 | LINK | IN | ||||
| 191 | 326720-00 | 1 | ECCENTRIC SA | IN | ||||
| 192 | 323711-07 | 1 | O RING | IN | |
3.61 INR | ||
| 193 | 328605-00 | 1 | KNOB SA | IN | ||||
| 194 | 328591-00 | 1 | COVER | IN | ||||
| 195 | 326122-00 | 1 | SCREW.SPECIAL | IN | ||||
| 196 | 329961-49 | 1 | CLAMSHELL SA | IN | ||||
| 198 | 325916-01 | 4 | BUFFER | IN | ||||
| 199 | 328589-00 | 1 | LOCK BUTTON | IN | ||||
| 201 | 326194-00 | 1 | BRIDGE | IN | ||||
| 205 | 325371-04 | 1 | COVER | IN | ||||
| 206 | 323711-22 | 1 | O RING | IN | ||||
| 207 | 326824-00 | 1 | FILTER | IN | ||||
| 208 | 323711-17 | 1 | O RING | IN | ||||
| 210 | 326241-00 | 1 | BAFFLE FAN | IN | ||||
| 211 | 325383-00 | 1 | END CAP | IN | ||||
| 251 | 326555-00 | 1 | COLLAR | IN | |
173.23 INR | ||
| 252 | 326552-00 | 1 | BUSH | IN | |
405.92 INR | ||
| 253 | N079374 | 1 | PIN | IN | |
12.42 INR | ||
| 254 | N021108 | 1 | CLAMP | IN | |
339.37 INR | ||
| 255 | 326553-00 | 1 | LOCKING RING | IN | |
335.21 INR | ||
| 256 | N021120 | 1 | HANDLE | IN | |
752.58 INR | ||
| 257 | 326573-00 | 1 | SCREW WING | IN | |
62.79 INR | ||
| 258 | 326556-00 | 1 | NUT | IN | |
44.01 INR | ||
| 259 | 330021-01 | 1 | NUT | IN | |
39.90 INR | ||
| 260 | 326205-00 | 1 | DEPTH ROD | IN | |
59.74 INR | ||
| 261 | 323753-11 | 2 | WASHER | IN | |
50.56 INR | ||
| 262 | 323711-14 | 1 | O RING | IN | ||||
| 263 | 323753-14 | 1 | WASHER | IN | |
46.04 INR | ||
| 264 | 323395-07 | 1 | SPRING | IN | |
24.00 INR | ||
| 265 | 579581-00 | 1 | REPAIR KIT | IN | ||||
| 266 | 323711-10 | 2 | O RING | IN | |
34.36 INR | ||
| 267 | 582381-00 | 1 | WASHER | IN | |
184.37 INR | ||
| 268 | 577744-02 | 1 | O RING | IN | |
57.11 INR | ||
| 269 | 326688-00 | 1 | WASHER | IN | ||||
| 270 | N210233 | 1 | O RING | IN | |
49.37 INR | ||
| 271 | 326044-00 | 1 | CAP | IN | ||||
| 272 | 493133-00 | 1 | SPINDLE | IN | |
8754.25 INR | ||
| 273 | 325878-00 | 2 | ROLLER | IN | |
69.24 INR | ||
| 274 | 329816-00 | 1 | LIP SEAL | IN | |
154.16 INR | ||
| 275 | 326575-02 | 1 | COLLAR | Black | IN | |
65.48 INR | |
| 276 | 479247-00 | 1 | SLEEVE SA | IN | |
143.16 INR | ||
| 277 | 000000-03 | 1 | PART NLS ORDER SLEEVE SA 479247-00 | IN | ||||
| 278 | 000000-03 | 1 | PART NLS ORDER SLEEVE SA 479247-00 | IN | ||||
| 279 | 323395-06 | 1 | SPRING | IN | |
17.58 INR | ||
| 280 | 325929-00 | 2 | HALF WASHER | IN | |
25.05 INR | ||
| 281 | 487118-00 | 1 | SPRING | IN | |
39.28 INR | ||
| 282 | 325930-00 | 1 | SPRING GUIDE | IN | |
57.29 INR | ||
| 283 | 327141-00 | 1 | SEAL | IN | |
80.83 INR | ||
| 284 | 326125-00 | 1 | CASTING SA | Silver | IN | |||
| 285 | 325935-00 | 1 | GASKET | IN | ||||
| 286 | 588560-00 | 1 | SPINDLE LOCK | IN | |
156.43 INR | ||
| 287 | 323763-04 | 1 | RING | IN | |
30.00 INR | ||
| 288 | 327208-00 | 1 | GUIDE | IN | |
11.54 INR | ||
| 290 | 326784-00 | 1 | END CAP SA | IN | ||||
| 291 | 324007-10 | 1 | SCREW | IN | ||||
| 800 | 328771-02 | 1 | GREASE 100 GMS | IN | |
364.31 INR | ||
| 816 | 578793-00 | 1 | BRAND LABEL | LARGE 70MM X 53MM | IN | |||
| 816 | 326200-04 | 1 | BRAND LABEL | SMALL 44MM X 49MM | IN | |||
| 836 | 559508-99 | 1 | S.T.PULLER | UPTO DATE CODE 97-15 | IN | |||
| 836 | 559508-98 | 1 | SERVICE TOOL | FROM DATE CODE 97-16 | IN | |||
| 837 | 559603-99 | 1 | S.T.BEARING EXTRACTOR | FROM DATE CODE 97-16 | IN | |||
| 837 | 559509-98 | 1 | SERVICE TOOL | UPTO DATE CODE 97-15 | IN | |||
| 838 | 559510-99 | 1 | S.T.PULLER | IN | |
|||
| 839 | 559656-99 | 1 | S.T.SUPPORT JIG | IN | |
|||
| 840 | 559597-99 | 1 | S.T.ASSEMBLY JIG | Support Jig | IN | |
||
| 841 | 559598-99 | 1 | S.T.BLOCK | Block | IN | |
||
| 842 | 559602-99 | 1 | S.T.MANDREL | FROM DATE CODE 97-16 | IN | |||
| 846 | 327148-02 | 1 | BRUSH PAIR 115V | GB 115 | IN | |||
| 846 | 327148-02 | 1 | BRUSH PAIR 115V | TW (115) | IN | |||
| 846 | 582621-00 | 1 | BRUSH KIT | 230V | GB 240 | IN | |
1038.71 INR |
| 846 | 582621-00 | 1 | BRUSH KIT | 230V | IN (230) | IN | |
1038.71 INR |
| 847 | 327467-02 | 1 | SERVICE KIT 120V | GB 115 | IN | |||
| 847 | 327467-02 | 1 | SERVICE KIT 120V | TW (115) | IN | |||
| 847 | 327467-00 | 1 | SERVICE KIT 230V | GB 240 | IN | |
||
| 847 | 327467-00 | 1 | SERVICE KIT 230V | IN (230) | IN | |
