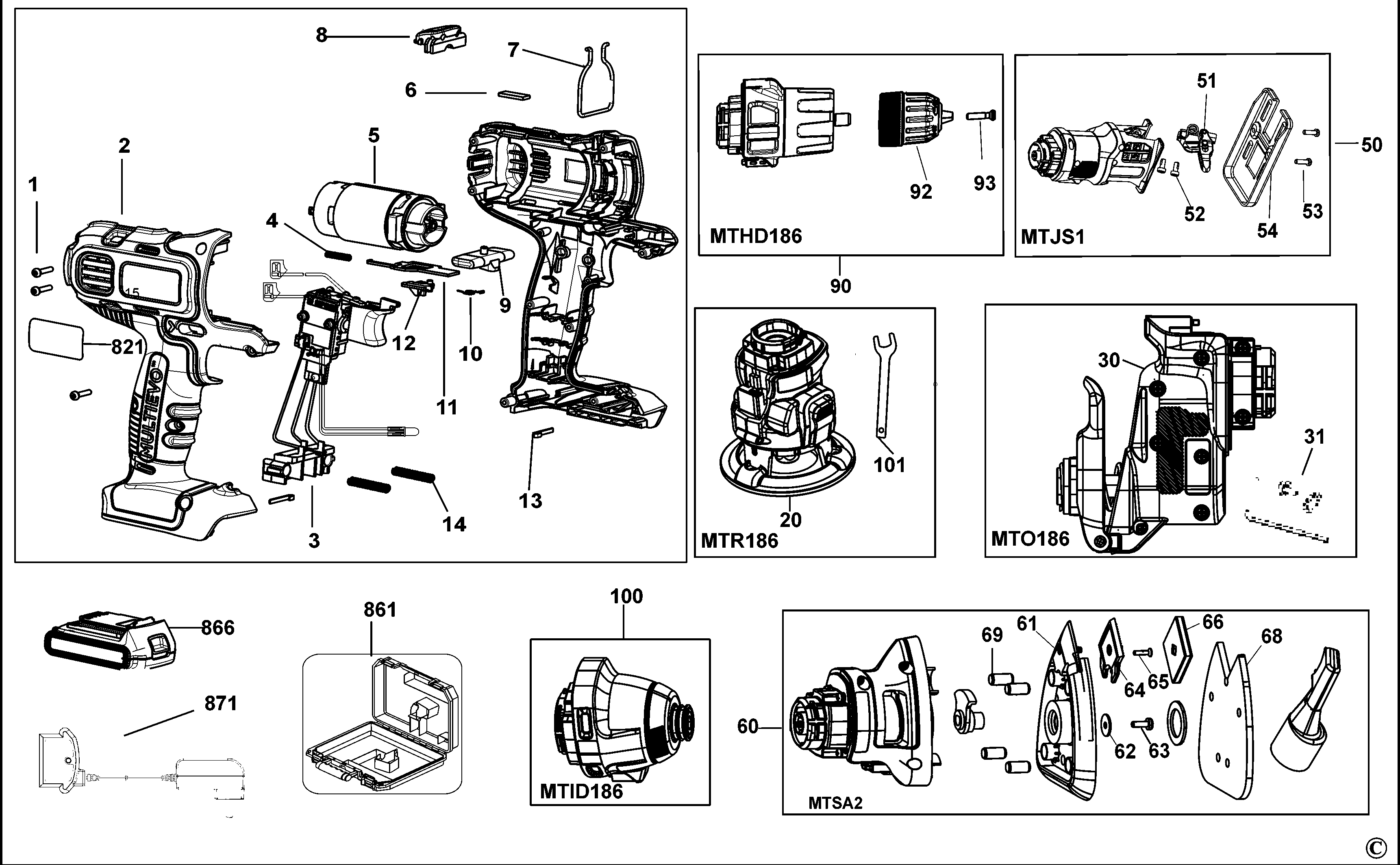

EVO186 MULTITOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | 5101046-00 | 8 | SCREW | B1 |  |
2.64 INR | ||
| 2 | 90603501-01 | 1 | HOUSING SA | B1 |  |
|||
| 3 | 90611524-02 | 1 | SWITCH SA | B1 | |
|||
| 4 | 90603536 | 1 | SPRING | B1 | |
|||
| 5 | 90603537-01 | 1 | MOTOR SA | B1 | |
|||
| 6 | 90556563-01 | 1 | MAGNET | B1 | |
48.27 INR | ||
| 7 | 90566084 | 1 | SPRING CLIP | B1 | |
|||
| 8 | 90603497 | 1 | BUTTON | B1 | |
|||
| 9 | 90603498 | 1 | ACTUATOR FWD/REV | B1 | |
|||
| 10 | 90570087 | 1 | SPRING TORSION | B1 | |
|||
| 11 | 90605735 | 1 | PLATE LOCK | B1 | |
|||
| 12 | 90570144-01 | 1 | LOCKING DEVICE | B1 | |
|||
| 13 | 90584991 | 2 | INSERT | B1 | |
|||
| 14 | 5100035-03 | 1 | SPRING | B1 | |
|||
| 20 | 90585140-03N | 1 | HEAD SA | B1 | ||||
| 30 | 90585485N | 1 | HEAD SA | B1 | ||||
| 31 | 90587461 | 1 | ACCESSORY KIT | B1 | ||||
| 50 | 90614308 | 1 | HEAD SA | B1 | ||||
| 51 | 90580203 | 1 | CLAMP SA | B1 | |
|||
| 52 | 90580204 | 1 | SCREW | B1 | |
|||
| 53 | 90571363 | 2 | SCREW | B1 | |
|||
| 54 | 90584688N | 1 | SHOE SA | B1 | ||||
| 60 | 90567986-01 | 1 | HEAD SA | B1 | ||||
| 61 | 90569378 | 1 | PLATEN | SA | B1 | |
||
| 62 | 90572187 | 1 | WASHER | B1 | |
|||
| 63 | 90607798 | 1 | SCREW | B1 | ||||
| 64 | 90569331 | 1 | TIP | B1 | |
|||
| 65 | 90572188 | 1 | SCREW | B1 | |
|||
| 66 | 90569329-01 | 1 | TIP | B1 | |
|||
| 68 | 90569330-01 | 1 | BASE | B1 | |
|||
| 69 | 90569286 | 1 | LEG | B1 | |
|||
| 90 | 90583853-08 | 1 | HEAD SA | B1 | ||||
| 92 | 90585659 | 1 | CHUCK KEYLESS | B1 | |
|||
| 93 | 149518-01 | 1 | SCREW | B1 | |
17.15 INR | ||
| 100 | 90583852-06N | 1 | HEAD SA | B1 | ||||
| 101 | 90585133 | 1 | SPANNER | B1 | |
|||
| 821 | N770180 | 1 | RATING LABEL | B1 | ||||
| 861 | 90606786 | 1 | KITBOX | B1 | ||||
| 866 | NA012172 | 1 | BATTERY | B1 | ||||
| 866 | N575531 | 1 | BATTERY PACK | B1 | ||||
| 871 | N588726 | 1 | CHARGER SA | B1 |
