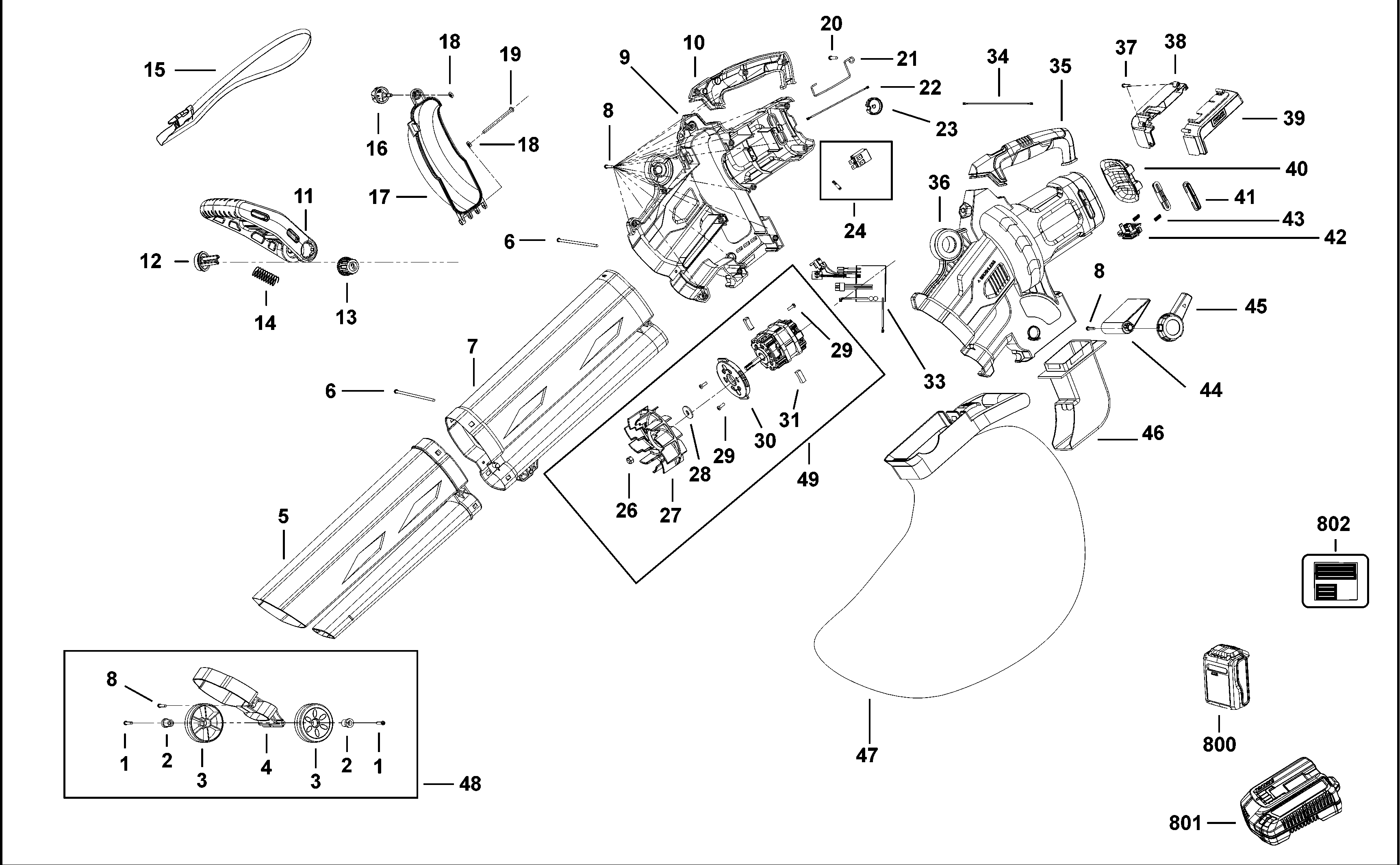

BCBLV36 BLOWER VAC Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004773-52 | 2 | SCREW | QW |  |
||
| 2 | 1004773-53 | 2 | SHAFT | QW | |
||
| 3 | 1004773-54 | 2 | WHEEL | QW | |
||
| 4 | 1004773-55 | 1 | FRAME | QW | |
||
| 5 | 1004773-56 | 1 | TUBE LOWER | QW | |
||
| 6 | 1004773-57 | 2 | SCREW | QW | |
||
| 7 | 1004773-58 | 1 | TUBE UPPER | QW | |
||
| 8 | 1004758-91 | 17 | SCREW | QW | |
||
| 9 | 1004773-59 | 1 | HOUSING RH | QW | |
||
| 10 | 1004773-60 | 1 | HANDLE RH | QW | |
||
| 11 | 1004773-61 | 1 | ADJUSTER HANDLE | HOLDER | QW | |
|
| 12 | 1004773-62 | 1 | ADJUSTER | QW | |
||
| 13 | 1004773-63 | 1 | BUTTON | ADJUSTER | QW | |
|
| 14 | 1004773-64 | 1 | SPRING | QW | |
||
| 15 | 1004773-65 | 1 | STRAP | QW | |
||
| 16 | 1004773-66 | 1 | KNOB | QW | |
||
| 17 | 1004773-67 | 1 | FAN COVER | QW | |
||
| 18 | 6010399-32 | 2 | NUT | QW | |
||
| 19 | 1004773-68 | 1 | SCREW | QW | |
||
| 20 | 1004773-69 | 1 | SCREW | QW | |
||
| 21 | 1004773-70 | 1 | LEAD EARTH | WIRE | QW | |
|
| 22 | 1004773-71 | 1 | LEAD | GROUND | QW | |
|
| 23 | 1004773-72 | 1 | KNOB | QW | |
||
| 24 | 1004773-73 | 1 | MICRO SWITCH | QW | |
||
| 26 | 1004773-75 | 1 | NUT | QW | |
||
| 27 | 1004773-76 | 1 | FAN | QW | |
||
| 28 | 1004773-77 | 1 | WASHER | QW | |
||
| 29 | 1004773-78 | 3 | SCREW | QW | |
||
| 30 | 1004773-79 | 1 | SUPPORT | MOTOR | QW | |
|
| 31 | 1004707-75 | 1 | RUBBER PAD | QW | |
||
| 33 | 1004773-81 | 1 | PCB SA | QW | |
||
| 34 | 1004773-82 | 1 | WIRE | QW | |
||
| 35 | 1004773-83 | 1 | HANDLE LH | QW | |
||
| 36 | 1004773-84 | 1 | HOUSING LH | QW | |
||
| 37 | 1004773-85 | 2 | SCREW | QW | |
||
| 38 | 1004773-86 | 1 | RAIL LH | QW | |
||
| 39 | 1004773-87 | 1 | RAIL RH | QW | |
||
| 40 | 1004773-88 | 1 | COVER REAR | QW | |
||
| 41 | 1004773-89 | 2 | COVER | QW | |
||
| 42 | 1004773-90 | 1 | BATTERY CONNECTOR | QW | |
||
| 43 | 1004773-91 | 2 | SPRING | QW | |
||
| 44 | 1004773-92 | 1 | DEFLECTOR | QW | |
||
| 45 | 1004773-93 | 1 | KNOB | DEFLECTOR | QW | |
|
| 46 | 1004773-94 | 1 | TUBE OUTLET | QW | |
||
| 47 | 1004773-95 | 1 | BAG SA | QW | |
||
| 48 | 1004773-96 | 1 | WHEEL SA | QW | |
||
| 49 | 1004773-74 | 1 | MOTOR SA | QW | |
||
| 800 | N879836 | 1 | BATTERY 36V - 2.2AH | BCBLV3625L1 | QW | |
|
| 801 | 90616337-01 | 1 | CHARGER 36V | QW-1300ma | BCBLV3625L1 | QW | |
| 802 | N718814 | 1 | RATING PLATE | QW | |
