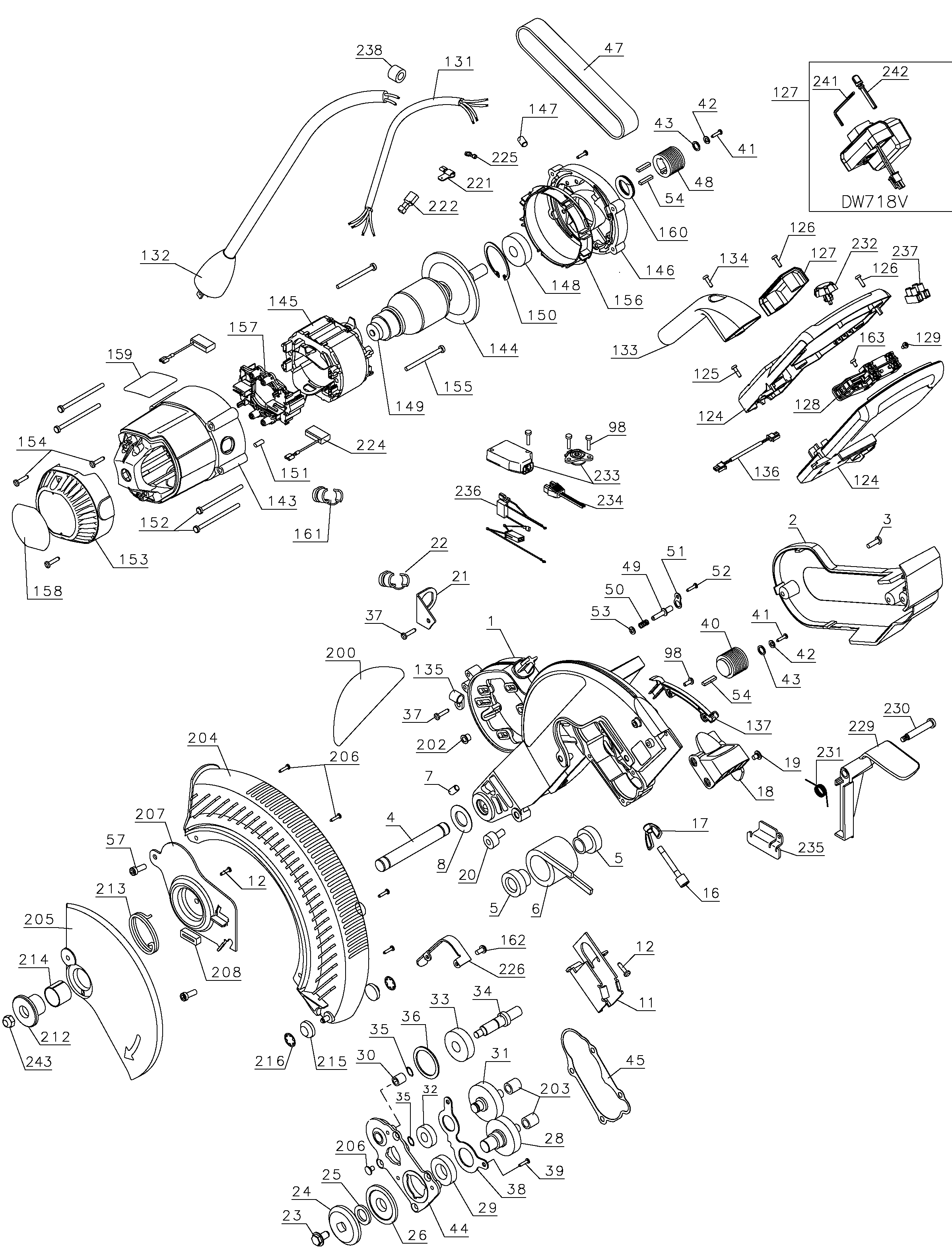

DW718 MITRE SAW Type 2 | Drawings
Documents
| Item No. |
Product Number |
Qty Per |
Product Description |
General Description |
Other Info |
Markets |
Product Status |
| 1 |
618175-01SV
|
1 |
ARM |
|
|
B1 |
![]() |
| 2 |
618193-00
|
1 |
BELT COVER |
|
|
B1 |
![]() |
| 3 |
330045-14
|
5 |
SCREW |
|
|
B1 |
![]() |
| 4 |
146751-00
|
1 |
SHAFT
|
|
|
B1 |
![]() |
| 5 |
146732-00
|
2 |
SPACER |
|
|
B1 |
![]() |
| 6 |
N039404
|
1 |
SPRING |
|
|
B1 |
![]() |
| 7 |
150075-00
|
2 |
SCREW
|
|
|
B1 |
![]() |
| 8 |
148296-00
|
2 |
WASHER |
|
|
B1 |
![]() |
| 9 |
387130-00
|
1 |
LOCKING PIN |
|
|
B1 |
![]() |
| 10 |
034158-00
|
1 |
O RING |
|
|
B1 |
![]() |
| 11 |
618190-00
|
1 |
GUARD REAR |
|
|
B1 |
![]() |
| 12 |
330045-23
|
8 |
SCREW
|
|
|
B1 |
![]() |
| 13 |
153603-01
|
1 |
PAWL |
|
|
B1 |
![]() |
| 14 |
153639-00
|
1 |
SCREW |
|
|
B1 |
![]() |
| 15 |
153655-00
|
1 |
WASHER |
|
|
B1 |
![]() |
| 16 |
N185664
|
1 |
SCREW |
|
|
B1 |
![]() |
| 17 |
150718-00
|
1 |
NUT WING
|
|
|
B1 |
![]() |
| 18 |
N026930
|
1 |
COVER |
LASER CAVITY |
|
B1 |
![]() |
| 19 |
385915-02
|
4 |
SCREW |
|
|
B1 |
![]() |
| 20 |
618198-00
|
1 |
SCREW
|
|
|
B1 |
![]() |
| 21 |
624195-01
|
1 |
BRACKET |
|
|
B1 |
![]() |
| 22 |
615851-00
|
1 |
BUSHING |
|
|
B1 |
![]() |
| 23 |
145344-01
|
1 |
BLADE BOLT
|
M8 X 20 LH |
|
B1 |
![]() |
| 24 |
151962-01
|
1 |
CLAMP OUTER |
|
|
B1 |
![]() |
| 25 |
152636-00
|
1 |
BLADE HOLDER |
|
|
B1 |
![]() |
| 26 |
644999-00
|
1 |
WASHER INNER CLAMP |
|
|
B1 |
![]() |
| 26 |
644999-00
|
1 |
WASHER INNER CLAMP |
|
|
B1 |
![]() |
| 28 |
393702-00SV
|
1 |
SPINDLE & GEAR |
|
|
B1 |
![]() |
| 29 |
330003-66
|
1 |
BEARING,BALL |
|
|
B1 |
![]() |
| 30 |
391616-00
|
1 |
BEARING NEEDLE |
|
|
B1 |
![]() |
| 31 |
393703-00SV
|
1 |
GEAR SA |
|
|
B1 |
![]() |
| 32 |
605040-20
|
1 |
BEARING |
12 x 28 x 8mm |
|
B1 |
![]() |
| 33 |
605040-33
|
1 |
BEARING
|
|
|
B1 |
![]() |
| 34 |
N105443
|
1 |
PULLEY SA |
inc 33,35 |
|
B1 |
![]() |
| 35 |
153752-00
|
2 |
RETAINER |
|
|
B1 |
![]() |
| 36 |
618244-00
|
1 |
RETAINING PLATE |
|
|
B1 |
![]() |
| 37 |
330045-49
|
6 |
SCREW |
|
|
B1 |
![]() |
| 38 |
391310-00
|
1 |
BEARING PLATE |
|
|
B1 |
![]() |
| 39 |
098094-13
|
3 |
SCREW |
M5 x 13mm, Pan Hd |
|
B1 |
![]() |
| 40 |
153796-00
|
1 |
PULLEY |
|
|
B1 |
![]() |
| 41 |
153778-00
|
2 |
SCREW
|
M6x20, NYLON PATCH |
|
B1 |
![]() |
| 42 |
098198-05
|
2 |
WASHER |
LOCK, M6 |
|
B1 |
![]() |
| 43 |
153782-00
|
2 |
WASHER |
|
|
B1 |
![]() |
| 44 |
393935-01SV
|
1 |
GR CASE CVR ASY |
|
Incl. 30 |
B1 |
![]() |
| 45 |
391315-00
|
1 |
GASKET |
|
|
B1 |
![]() |
| 47 |
153555-00
|
1 |
BELT
|
|
|
B1 |
![]() |
| 48 |
153554-00
|
1 |
DRIVE PULLEY |
|
|
B1 |
![]() |
| 49 |
153561-00
|
1 |
LOCKING PIN |
|
|
B1 |
![]() |
| 50 |
448176-00
|
1 |
SPRING |
|
|
B1 |
![]() |
| 51 |
393071-00
|
1 |
PLATE |
|
|
B1 |
![]() |
| 52 |
330045-45
|
8 |
SCREW |
|
|
B1 |
![]() |
| 53 |
153559-00
|
1 |
WASHER |
|
|
B1 |
![]() |
| 54 |
153638-00
|
3 |
KEY |
|
|
B1 |
![]() |
| 56 |
146740-00
|
2 |
SLEEVE |
|
|
B1 |
![]() |
| 57 |
394589-01
|
2 |
SCREW |
|
|
B1 |
![]() |
| 59 |
618157-00
|
1 |
DUCT |
FIXED |
|
B1 |
![]() |
| 60 |
330045-15
|
8 |
SCREW
|
|
|
B1 |
![]() |
| 61 |
624719-00
|
1 |
DUCT |
|
|
B1 |
![]() |
| 62 |
618156-00
|
1 |
LOCK KNOB |
|
|
B1 |
![]() |
| 63 |
618238-00
|
1 |
SUPPORT PLATE |
SUPPORT HOUSING |
|
B1 |
![]() |
| 64 |
618145-00
|
2 |
BUSHING |
TAPERED |
|
B1 |
![]() |
| 65 |
153769-01
|
2 |
WASHER THRUST |
|
|
B1 |
![]() |
| 66 |
153451-00
|
1 |
BEARING THRUST |
|
|
B1 |
![]() |
| 67 |
625393-00
|
1 |
LOCK NUT
|
PREVAILING TORQUE |
|
B1 |
![]() |
| 68 |
618211-00
|
1 |
POINTER
|
RIGHT |
|
B1 |
![]() |
| 69 |
618235-00
|
1 |
POINTER
|
LEFT |
|
B1 |
![]() |
| 70 |
618236-00
|
1 |
HANDLE |
BEVEL LOCK |
|
B1 |
![]() |
| 71 |
330016-24
|
3 |
WASHER |
|
|
B1 |
![]() |
| 72 |
618148-00
|
1 |
ROD
|
BEVEL |
|
B1 |
![]() |
| 73 |
603636-00
|
1 |
WASHER THRUST |
|
|
B1 |
![]() |
| 74 |
330045-06
|
11 |
SCREW |
|
|
B1 |
![]() |
| 75 |
618160-00
|
1 |
BLOCK |
BEVEL CLAMP |
|
B1 |
![]() |
| 76 |
626440-00
|
1 |
SPRING |
|
|
B1 |
![]() |
| 77 |
098103-18
|
4 |
SCREW |
|
|
B1 |
![]() |
| 78 |
098104-19
|
4 |
SCREW |
M6x1.0x16 T30 |
|
B1 |
![]() |
| 79 |
641466-00
|
1 |
SPRING |
|
|
B1 |
![]() |
| 80 |
641467-00
|
1 |
PAWL |
BEVEL DETENT |
|
B1 |
![]() |
| 81 |
618162-00
|
1 |
COVER |
BEVEL DETENT |
|
B1 |
![]() |
| 82 |
330045-44
|
2 |
SCREW |
|
|
B1 |
![]() |
| 83 |
N019349
|
2 |
LEVER SA |
BEVEL DETENT |
|
B1 |
![]() |
| 84 |
618153-00
|
1 |
ROD |
DETENT ACTUATION |
|
B1 |
![]() |
| 85 |
618259-00
|
1 |
SPRING TORSION |
|
|
B1 |
![]() |
| 86 |
618232-00
|
1 |
CAM |
|
|
B1 |
![]() |
| 88 |
641471-00
|
2 |
PLATE |
BEVEL |
|
B1 |
![]() |
| 89 |
641468-00
|
1 |
PLATE |
BEVEL |
|
B1 |
![]() |
| 90 |
98130-25
|
3 |
CARRIAGE BOLT |
|
|
B1 |
![]() |
| 91 |
330015-03
|
4 |
NUT |
M8x1.25 |
|
B1 |
![]() |
| 92 |
391346-00
|
2 |
SCREW
|
|
|
B1 |
![]() |
| 93 |
645751-00SV
|
1 |
BASE SA |
|
|
B1 |
![]() |
| 94 |
618192-00
|
1 |
PLATE |
|
|
B1 |
![]() |
| 95 |
618199-00
|
2 |
PLATE |
|
|
B1 |
![]() |
| 96 |
630711-03SV
|
1 |
TABLE ASSY |
|
|
B1 |
![]() |
| 97 |
N401778
|
1 |
COVER |
|
|
B1 |
![]() |
| 98 |
330045-05
|
8 |
SCREW |
|
|
B1 |
![]() |
| 99 |
049787-00
|
1 |
O RING |
|
|
B1 |
![]() |
| 100 |
098025-35
|
1 |
SCREW |
M8x1.25x35 HEX |
|
B1 |
![]() |
| 101 |
N044739
|
1 |
LOCK NUT |
|
|
B1 |
![]() |
| 102 |
153792-00
|
2 |
WASHER |
|
|
B1 |
![]() |
| 103 |
618168-00
|
1 |
PLATE
|
|
|
B1 |
![]() |
| 104 |
604410-00
|
4 |
SCREW |
|
|
B1 |
![]() |
| 105 |
391358-01
|
1 |
HOLDER |
|
|
B1 |
![]() |
| 106 |
608563-01
|
1 |
WRENCH SPECIAL |
M13 - T30 |
|
B1 |
![]() |
| 107 |
618209-00
|
1 |
POINTER
|
MITER |
|
B1 |
![]() |
| 108 |
618169-00
|
1 |
ACTUATOR |
DETENT SPRING |
|
B1 |
![]() |
| 109 |
618243-00
|
1 |
PLATE |
|
|
B1 |
![]() |
| 112 |
N488468
|
1 |
DETENT |
|
|
B1 |
![]() |
| 114 |
093128-00
|
2 |
BEARING NEEDLE |
|
|
B1 |
![]() |
| 115 |
618254-00
|
1 |
RETAINER |
|
|
B1 |
![]() |
| 116 |
N082785
|
1 |
LEVER |
|
|
B1 |
![]() |
| 117 |
618187-00
|
1 |
PIN |
MITER DRIVE |
|
B1 |
![]() |
| 118 |
624460-00
|
1 |
PIN |
|
|
B1 |
![]() |
| 119 |
624461-00
|
1 |
SLEEVE |
|
|
B1 |
![]() |
| 120 |
618186-00
|
1 |
ROD |
|
|
B1 |
![]() |
| 121 |
618185-00
|
1 |
BLOCK |
|
|
B1 |
![]() |
| 122 |
385915-03
|
1 |
SCREW |
|
|
B1 |
![]() |
| 123 |
618253-00
|
1 |
SPRING COMPRESSION |
|
|
B1 |
![]() |
| 124 |
624730-01
|
1 |
HANDLE SA |
|
|
B1 |
![]() |
| 125 |
330045-18
|
4 |
SCREW |
|
|
B1 |
![]() |
| 126 |
330019-32
|
5 |
SCREW |
|
|
B1 |
![]() |
| 127 |
618270-00
|
1 |
COVER |
HANDLE CAVITY |
|
B1 |
![]() |
| 128 |
606056-00
|
1 |
SWITCH |
|
|
B1 |
![]() |
| 129 |
384127-01
|
4 |
SCREW |
|
|
B1 |
![]() |
| 130 |
330045-25
|
3 |
SCREW.TEMP |
M6x25 MTL THD FMG |
|
B1 |
![]() |
| 131 |
618276-00
|
1 |
MOTOR CABLE |
|
INCL. 221,222,225 |
B1 |
![]() |
| 132 |
604807-02
|
1 |
CORDSET (EURO)
|
EURO, H07RN-F |
|
B1 |
![]() |
| 133 |
N083060
|
1 |
HANDLE |
|
|
B1 |
![]() |
| 134 |
330019-22
|
1 |
SCREW |
M5.74x32 |
|
B1 |
![]() |
| 135 |
398443-00
|
1 |
CABLE CLAMP |
|
|
B1 |
![]() |
| 136 |
N467585
|
1 |
CABLE SA |
CORD, LASER |
|
B1 |
![]() |
| 137 |
618269-00
|
1 |
COVER |
LASER WIRE |
|
B1 |
![]() |
| 138 |
618202-01
|
1 |
FENCE |
|
|
B1 |
![]() |
| 139 |
618203-01SV
|
1 |
LEFT FENCE |
|
|
B1 |
![]() |
| 140 |
N024409
|
1 |
FENCE RH |
W/ WARNING LABEL |
|
B1 |
![]() |
| 141 |
147107-02
|
3 |
KNOB LOWER |
|
|
B1 |
![]() |
| 142 |
098105-03
|
4 |
SCREW |
|
|
B1 |
![]() |
| 143 |
391317-00
|
1 |
FIELDCASE |
|
|
B1 |
![]() |
| 144 |
N093107
|
1 |
ARMATURE 230V |
inc 48,149,150,160 |
|
B1 |
![]() |
| 145 |
391318-01SV
|
1 |
FIELD |
230V |
|
B1 |
![]() |
| 146 |
391282-00
|
1 |
MOUNTING BRACKET |
|
|
B1 |
![]() |
| 147 |
394034-00
|
1 |
SCREW |
|
|
B1 |
![]() |
| 148 |
N127530
|
1 |
BEARING BALL |
|
|
B1 |
![]() |
| 149 |
N110359
|
1 |
BEARING |
|
|
B1 |
![]() |
| 150 |
144803-00
|
1 |
CIRCLIP |
|
|
B1 |
![]() |
| 151 |
145312-00
|
1 |
PLUG |
|
|
B1 |
![]() |
| 152 |
98094-55
|
4 |
SCREW |
M5 X 55mm T25 |
|
B1 |
![]() |
| 153 |
391933-01
|
1 |
END CAP
|
|
|
B1 |
![]() |
| 154 |
330019-13
|
4 |
SCREW |
M4X19 T20 |
|
B1 |
![]() |
| 155 |
330019-19
|
2 |
SCREW |
|
|
B1 |
![]() |
| 156 |
391375-00
|
1 |
BAFFLE FAN |
|
|
B1 |
![]() |
| 157 |
389512-01
|
1 |
BRUSH PLATE |
|
|
B1 |
![]() |
| 158 |
391325-00
|
1 |
IDENTITY LABEL |
|
|
B1 |
![]() |
| 159 |
656990-00
|
1 |
RATING PLATE |
|
|
B1 |
![]() |
| 160 |
153783-00
|
1 |
RING |
|
|
B1 |
![]() |
| 161 |
605155-00
|
1 |
BUSHING |
|
|
B1 |
![]() |
| 162 |
330045-13
|
3 |
SCREW |
M5x0.8x10 MTL THDFMG |
|
B1 |
![]() |
| 163 |
330019-12
|
1 |
SCREW |
|
|
B1 |
![]() |
| 167 |
618240-00
|
1 |
ADAPTOR |
BAG |
|
B1 |
![]() |
| 170 |
650852-00SV
|
1 |
TRUNNION ASSY |
|
|
B1 |
![]() |
| 171 |
603390-00
|
8 |
SCREW |
|
|
B1 |
![]() |
| 172 |
397118-00
|
3 |
GUIDE |
|
|
B1 |
![]() |
| 173 |
153576-04
|
1 |
SCREW
|
|
|
B1 |
![]() |
| 174 |
613497-00
|
1 |
THRUST PLATE
|
|
|
B1 |
![]() |
| 175 |
153586-00
|
2 |
WASHER |
|
|
B1 |
![]() |
| 176 |
616001-00
|
1 |
SCREW |
|
|
B1 |
![]() |
| 180 |
618278-00
|
1 |
LABEL PIVOT |
LEFT |
LEFT |
B1 |
![]() |
| 181 |
618277-00
|
1 |
LABEL PIVOT |
RIGHT |
RIGHT |
B1 |
![]() |
| 182 |
147439-07
|
4 |
RIVET |
|
|
B1 |
![]() |
| 183 |
618262-00
|
1 |
SCALE LH |
|
|
B1 |
![]() |
| 184 |
618261-00
|
1 |
SCALE RH |
|
|
B1 |
![]() |
| 200 |
393706-00
|
1 |
LABEL |
|
|
B1 |
![]() |
| 202 |
148608-00
|
2 |
INSERT |
|
|
B1 |
![]() |
| 203 |
386780-00
|
2 |
BEARING |
|
|
B1 |
![]() |
| 204 |
618231-00
|
1 |
GUARD LOWER |
|
|
B1 |
![]() |
| 205 |
N020822
|
1 |
PLATE |
|
|
B1 |
![]() |
| 206 |
385915-01
|
8 |
SCREW |
|
|
B1 |
![]() |
| 207 |
621037-00
|
1 |
PLATE |
|
|
B1 |
![]() |
| 208 |
146768-00
|
1 |
BUMPER |
|
|
B1 |
![]() |
| 209 |
N142523
|
1 |
LINK |
|
|
B1 |
![]() |
| 212 |
N391680
|
1 |
RETAINER |
|
|
B1 |
![]() |
| 213 |
N034013
|
1 |
SPRING |
|
|
B1 |
![]() |
| 214 |
148295-00
|
1 |
SLEEVE |
|
|
B1 |
![]() |
| 215 |
625825-00
|
2 |
ROLLER |
|
|
B1 |
![]() |
| 216 |
142273-00
|
2 |
RING |
|
|
B1 |
![]() |
| 217 |
394976-00
|
2 |
LABEL |
WARNING |
|
B1 |
![]() |
| 218 |
618234-00
|
1 |
STUD
|
|
|
B1 |
![]() |
| 219 |
153666-00
|
3 |
SCREW |
set screw M8 x 8mm long |
|
B1 |
![]() |
| 221 |
145332-00
|
4 |
TERMINAL |
|
|
B1 |
![]() |
| 222 |
450212-00
|
1 |
TERMINAL |
|
|
B1 |
![]() |
| 223 |
395301-00
|
2 |
LABEL |
|
|
B1 |
![]() |
| 224 |
381028-08
|
2 |
BRUSH & LEAD |
|
|
B1 |
![]() |
| 225 |
395716-00
|
3 |
TERMINAL |
RING |
|
B1 |
![]() |
| 226 |
623957-00
|
1 |
GUARD |
|
|
B1 |
![]() |
| 227 |
618177-00
|
1 |
COVER |
DETENT LOCK OFF |
|
B1 |
![]() |
| 228 |
391355-00
|
1 |
COVER |
|
|
B1 |
![]() |
| 229 |
624399-00
|
1 |
LEVER LOCK |
|
|
B1 |
![]() |
| 230 |
152852-00
|
1 |
BOLT |
|
|
B1 |
![]() |
| 231 |
386196-00
|
1 |
SPRING |
|
|
B1 |
![]() |
| 232 |
392131-00
|
1 |
KNOB |
|
|
B1 |
![]() |
| 233 |
N033994
|
1 |
CONTROL MODULE SA |
|
|
B1 |
![]() |
| 234 |
622950-00
|
1 |
LEAD SA |
|
|
B1 |
![]() |
| 235 |
393791-00
|
1 |
PLATE |
|
|
B1 |
![]() |
| 236 |
618159-00
|
1 |
LEAD SA |
LASER POWER SUPPLY |
|
B1 |
![]() |
| 237 |
393520-00
|
1 |
TERMINAL BLOCK |
|
|
B1 |
![]() |
| 238 |
388414-01
|
1 |
BUSH |
|
|
B1 |
![]() |
| 239 |
147734-06
|
1 |
DUSTBAG |
|
|
B1 |
![]() |
| 240 |
630065-00
|
1 |
CLAMP SA |
|
|
B1 |
![]() |
| 243 |
N391680
|
1 |
RETAINER |
|
|
B1 |
![]() |
| 800 |
93488-00
|
1 |
GREASE |
|
|
B1 |
![]() |
| 800 |
429698-00
|
1 |
GREASE |
BD-L 2 |
|
B1 |
![]() |
Parts List
Save PDF
View Full Page
