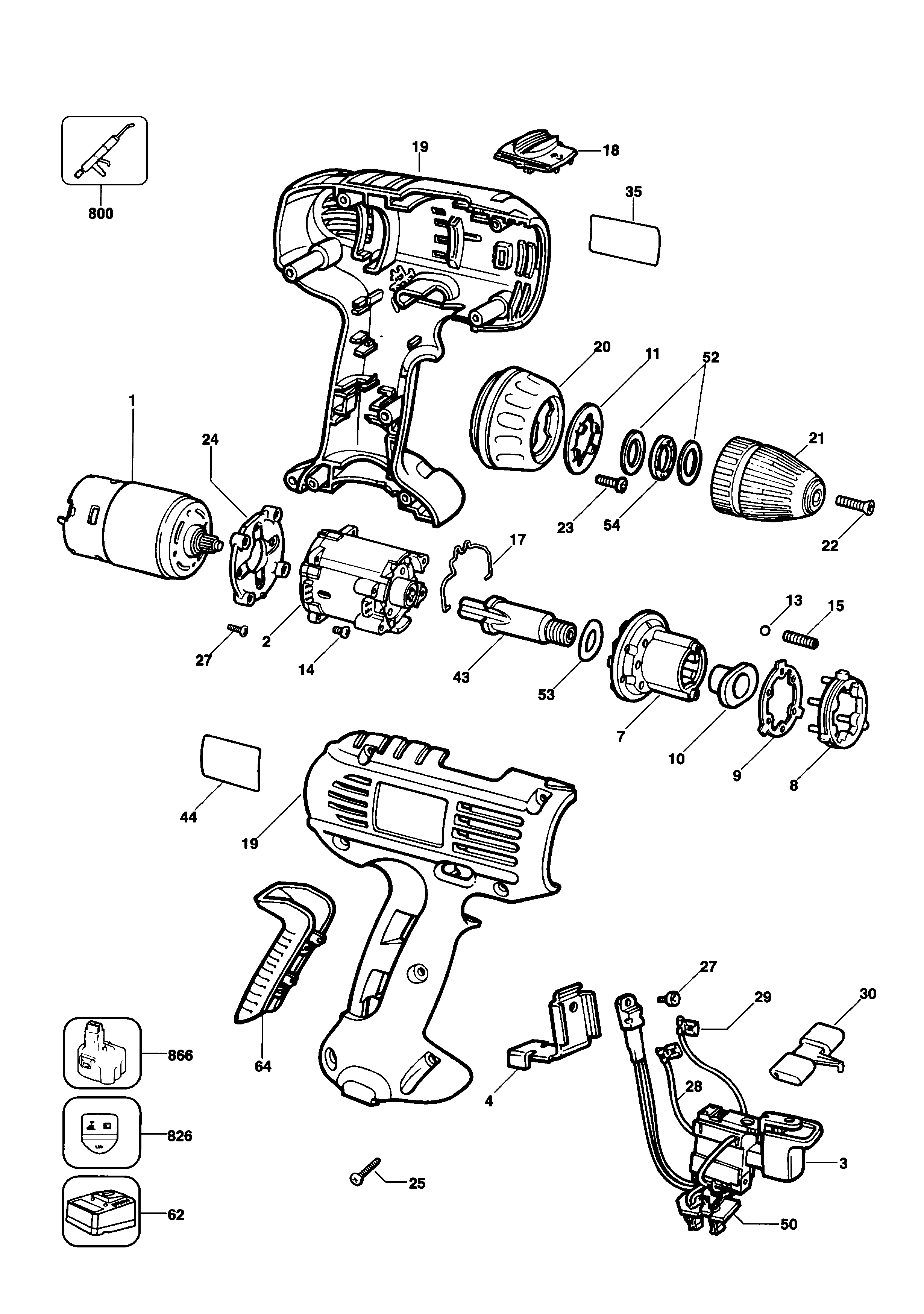

DW917K PERCEUSE SANS FIL Type 1 - 2 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 807721-01 | 1 | MOTEUR ET PIGNON | XD |  |
||
| 2 | 807690 | 1 | S/E BOITE DE VITESSES | XD | |
||
| 3 | 371189-00 | 1 | S/E INTERRUPTEUR | XD | |
||
| 4 | 371098 | 1 | DIFFUSEUR THERMIQUE | XD | |
||
| 7 | 807481 | 1 | CARTER | XD | |
||
| 8 | 807476-01 | 1 | SUPPORT | XD | |
||
| 9 | 807477 | 1 | PLAQUE | XD | |
||
| 10 | 812973 | 1 | PALIER | XD | |
||
| 11 | 807483 | 1 | PLAQUE | XD | |
||
| 13 | 386690-00 | 1 | ROTULE | STEEL, 5MM | XD |  |
|
| 14 | 798486 | 4 | VIS | XD | |
||
| 15 | 798707 | 6 | RESSORT | XD | |
||
| 17 | 799024 | 1 | RESSORT | XD | |
||
| 18 | 799025-04 | 1 | GLISSIERE | XD | |
||
| 19 | 371079-10 | 1 | COQUILLE | TY2 | XD | |
|
| 19 | 371079-01 | 1 | COQUILLE | TY1 | XD | |
|
| 20 | 807478 | 1 | ANNEAU | XD | |
||
| 21 | 798723-18 | 1 | MANDRIN AUTOSERR. | XD | |
||
| 22 | 805434 | 1 | SCREW.SPECIAL | XD | |
||
| 23 | 733886 | 6 | VIS | XD | |
||
| 24 | 371192-01 | 1 | S/E ADAPTATEUR | XD | |
||
| 25 | 747329 | 7 | VIS | XD | |
||
| 27 | 808821 | 3 | VIS | FROM DC 9649 | XD | |
|
| 27 | 798783 | 3 | VIS | UPTO DC 9648 | XD | |
|
| 28 | 372193 | 1 | LEAD BLACK | XD | |
||
| 29 | 372192 | 1 | LEAD RED | XD | |
||
| 30 | 807706 | 1 | GLISSIERE | XD | |
||
| 35 | 371076-01 | 1 | ETIQUETTE MARQUE | XD | |
||
| 43 | 807482 | 1 | S/E AXE | XD | |
||
| 44 | 371077-02 | 1 | PLAQUE SIGNALETIQUE | XD | |
||
| 50 | 372210 | 1 | CONNECTEUR | XD | |
||
| 52 | 807479 | 2 | RONDELLE D'ARRET | XD | |
||
| 53 | 807496 | 1 | RONDELLE ELASTIQUE | XD | |
||
| 54 | 859441 | 1 | PALIER | XD | |
||
| 62 | 000000-00 | 1 | PLUS DISPONIBLE | XD | |||
| 62 | DE9116 | 1 | CHARGEUR 7,2 V - 18 V | Ni-Cad - NiMH - 1 hr | XD | ||
| 800 | 808386-00 | 1 | GRAISSE | MOLYKOTE G68 100GMS | XD | ||
| 826 | 371085-01 | 1 | ETIQUETTE | XD | |
||
| 866 | DE9057 | 1 | BATTERY 7.2V - 1.3AH | Ni-Cad | XD |
