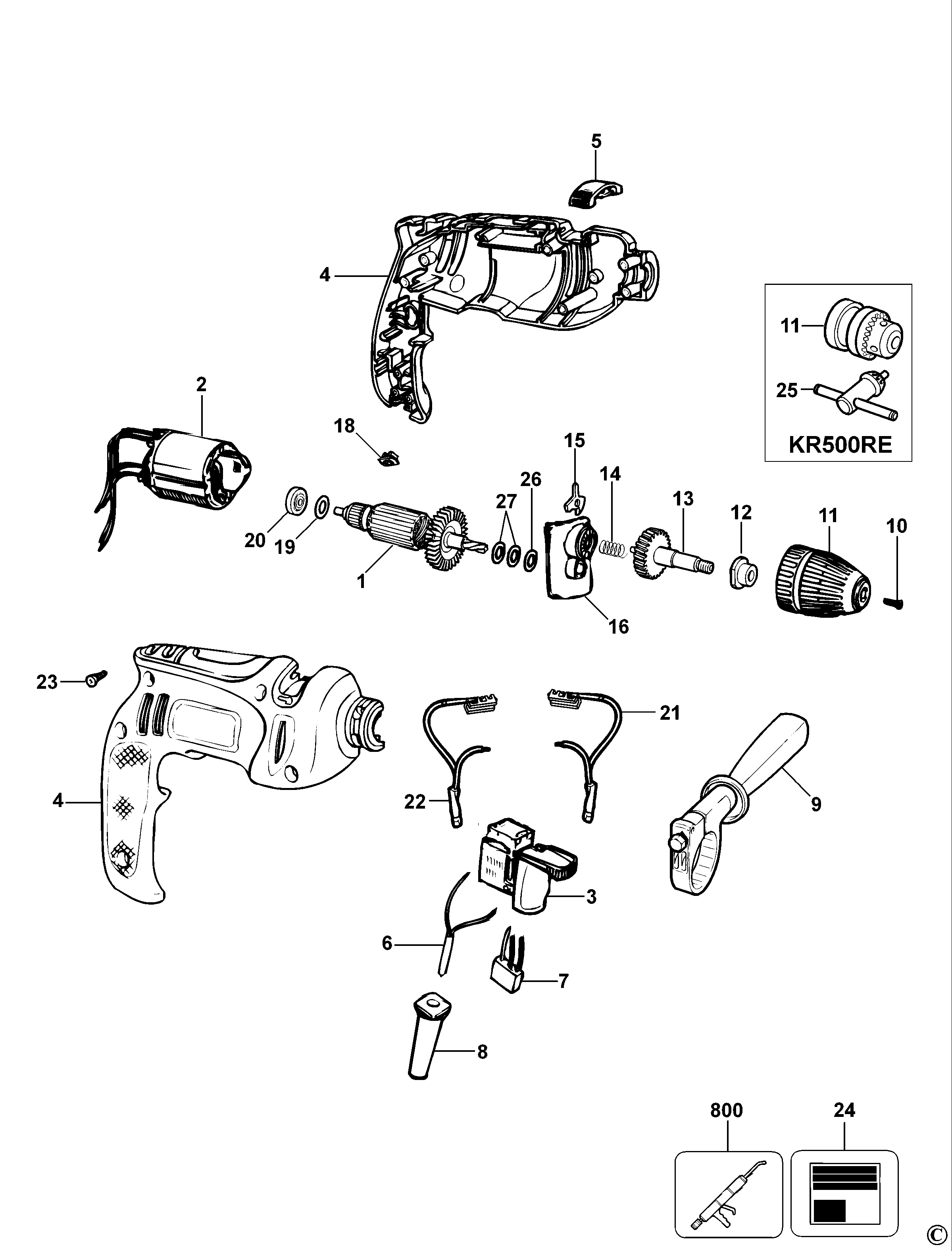

KR500RE HAMMER DRILL Type 4 - 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 581856-03 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 581857-00 | 1 | FIELD SA | GB | |
||
| 3 | 581868-04 | 1 | SWITCH VARIABLE | Orange | Type 4 - 5 | GB | |
| 4 | 581865-00 | 1 | CLAMSHELL SET | GB | |
||
| 5 | 375164-02 | 1 | ACTUATOR | GB | |
||
| 6 | 330060-76 | 1 | CORDSET | GB | |
||
| 7 | 581872-00 | 1 | CAPACITOR | GB | |
||
| 8 | 770235 | 1 | PROTECTOR | GB |  |
||
| 9 | 376556-14 | 1 | HANDLE SA | GB | |
||
| 10 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 11 | 586589-00L | 1 | CHUCK KEYLESS | GB | |
||
| 12 | 574297-00 | 1 | SLEEVE BEARING | GB | |
||
| 13 | 581863-00 | 1 | SPINDLE SA | GB | |
||
| 14 | 821986 | 1 | SPRING | GB | |
||
| 15 | 375156-00 | 1 | THRUST PLATE | GB | |
||
| 16 | 581860-01 | 1 | BEARING HOUSING | GB | |
||
| 17 | 915068-01 | 2 | BRUSH & SPRING | SINGULAR | GB | |
|
| 18 | 875735 | 2 | INSERT | GB | |
||
| 19 | 051407-00 | 1 | WASHER | GB | |
||
| 20 | 158478-00 | 1 | BEARING BUSH | GB | |
||
| 21 | 587211-00 | 1 | BRUSHBOX & CHOKE | GB | |
||
| 22 | 587211-01 | 1 | BRUSHBOX & CHOKE | GB | |
||
| 23 | 747329 | 7 | SCREW | GB | |
||
| 24 | 583275-00 | 1 | RATING PLATE | GB | |
||
| 25 | 797463 | 1 | CHUCK KEY | GB | |
||
| 26 | 157315-00 | 1 | WASHER SPRING | GB | |
||
| 27 | 037381-00 | 2 | WASHER FIBRE | GB | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | Use 7 grams | GB | |
