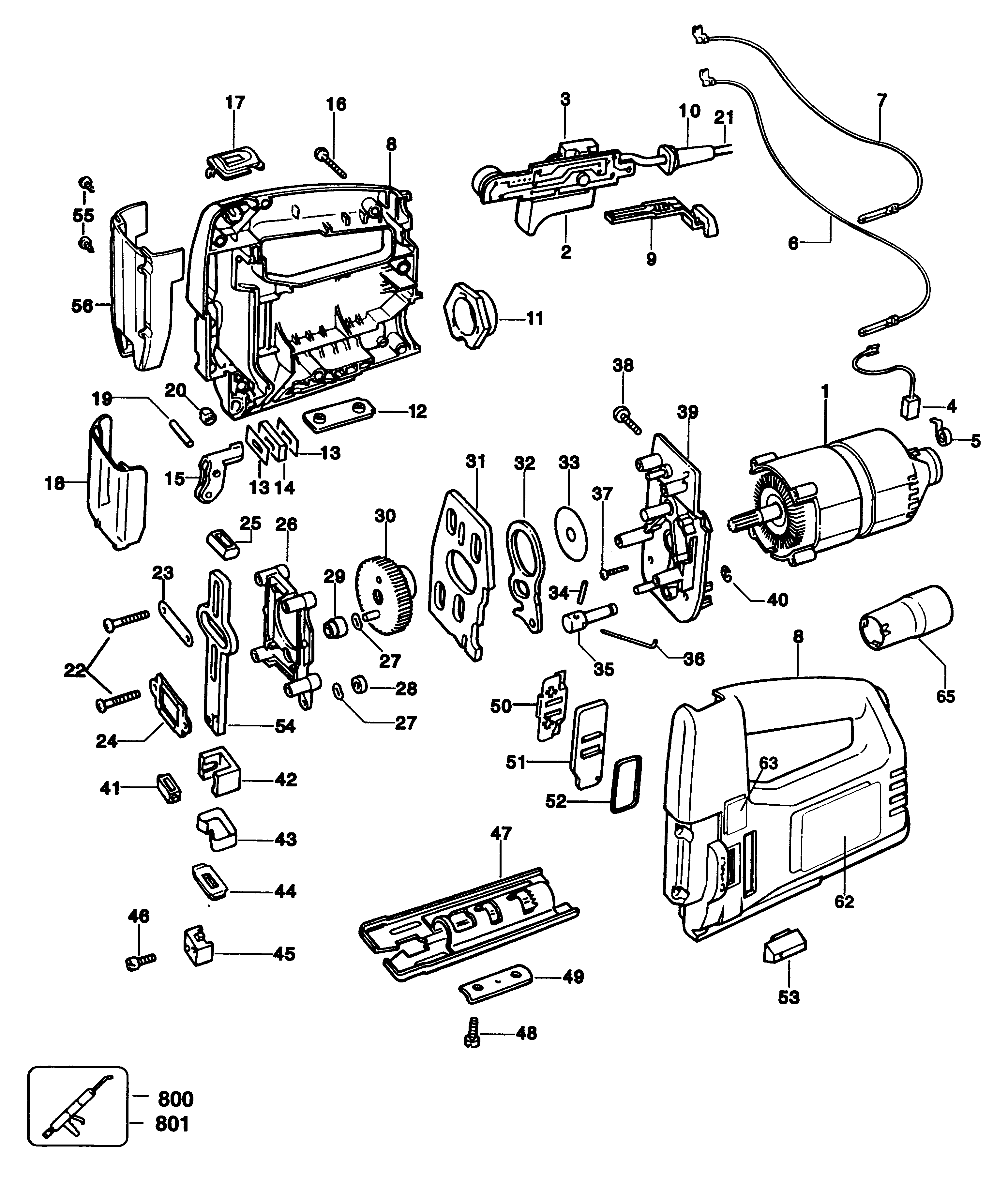

BD765PE JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 574751-09 | 1 | MOTOR SA | GB |  |
||
| 1 | 574751-08 | 1 | MOTOR SA | GB | |
||
| 2 | 795668-00 | 1 | SWITCH | GB | |
||
| 3 | 795690-01 | 1 | ELECTRONIC SA | GB | |
||
| 4 | 832998-07 | 2 | BRUSH | GB | |
||
| 5 | 747634 | 2 | SPRING BRUSH | GB | |
||
| 6 | 811562 | 1 | LEAD SA | GB | |
||
| 7 | 811563 | 1 | LEAD SA | GB | |
||
| 8 | 377012-14 | 1 | CLAMSHELL | GB | |
||
| 9 | 795876-00 | 1 | BUTTON SA | GB | |
||
| 10 | 770235 | 1 | PROTECTOR | GB |  |
||
| 11 | 805156 | 1 | OUTLET | GB | |
||
| 12 | 795666 | 1 | PLATE | GB | |
||
| 13 | 795656 | 2 | PLATE | GB | |
||
| 14 | 795653 | 1 | SEAL | GB | |
||
| 15 | 795670 | 1 | BLADE SUPPORT SA | GB | |
||
| 16 | 809961 | 7 | SCREW | GB | |||
| 17 | 795877-00 | 1 | INSERT | GB | |
||
| 18 | 795881 | 1 | GUARD | GB | |
||
| 19 | 795699 | 1 | PIN | GB | |
||
| 20 | 795673 | 2 | BUSH | GB | |
||
| 21 | 330060-00 | 1 | CORDSET (M/PLUG) | GB | |
||
| 22 | 807025 | 4 | SCREW | GB | |
||
| 23 | 795647 | 1 | CLAMP | GB | |
||
| 24 | 795682 | 1 | CLAMP | GB | |
||
| 25 | 795680 | 1 | BEARING | GB | |||
| 26 | 795651 | 1 | CASTING | GB | |
||
| 27 | 823954 | 2 | WASHER | GB | |
||
| 28 | 795708-01 | 1 | SPACER | GB | |
||
| 29 | 795688-00 | 1 | ROLLER | TYPE 2 | GB | |
|
| 29 | 795887 | 1 | ROLLER SA | TYPE 1 | GB | |
|
| 30 | 377187-49 | 1 | REPAIR KIT | TYPE 2 | GB | |
|
| 31 | 805623-03 | 1 | BALANCE WEIGHT | GB | |
||
| 32 | 795679 | 1 | FORK | GB | |
||
| 33 | 795648 | 1 | WASHER | GB | |
||
| 34 | 795650 | 1 | PIN | GB | |
||
| 35 | 795674 | 1 | SHAFT | GB | |
||
| 36 | 795675 | 1 | ROD | GB | |
||
| 37 | 747329 | 4 | SCREW | GB | |
||
| 38 | 849256 | 2 | SCREW | GB | |
||
| 39 | 377187-49 | 1 | REPAIR KIT | GB | |
||
| 40 | 795678 | 1 | CIRCLIP | GB | |
||
| 41 | 795644 | 1 | BEARING | GB | |
||
| 42 | 795645 | 1 | CARRIER | GB | |
||
| 43 | 795646 | 1 | SPRING | GB | |
||
| 44 | 874151 | 1 | PLATE | GB | |
||
| 45 | 795889 | 1 | CLAMP | GB | |
||
| 46 | 571055-00 | 2 | SCREW | GB | |
||
| 47 | 795639 | 1 | SHOE SA | GB | |
||
| 48 | 571056-00 | 2 | SCREW | GB | |
||
| 49 | 805981-00 | 1 | SUPPORT | GB | |
||
| 50 | 795687 | 1 | SPRING | GB | |
||
| 51 | 795685-00 | 1 | CARRIER | GB | |
||
| 52 | 795684 | 1 | SEAL | GB | |
||
| 53 | 795686-00 | 1 | KNOB | GB | |
||
| 54 | 795641 | 1 | SHAFT | GB | |
||
| 55 | 821057 | 4 | SCREW | No 6 x 12.7mm | GB | |
|
| 56 | 795880-01 | 1 | COVER | GB | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | Post 01-95 | GB | |
| 801 | 805640 | 1 | GREASE | Pre 01-95 | GB | |
