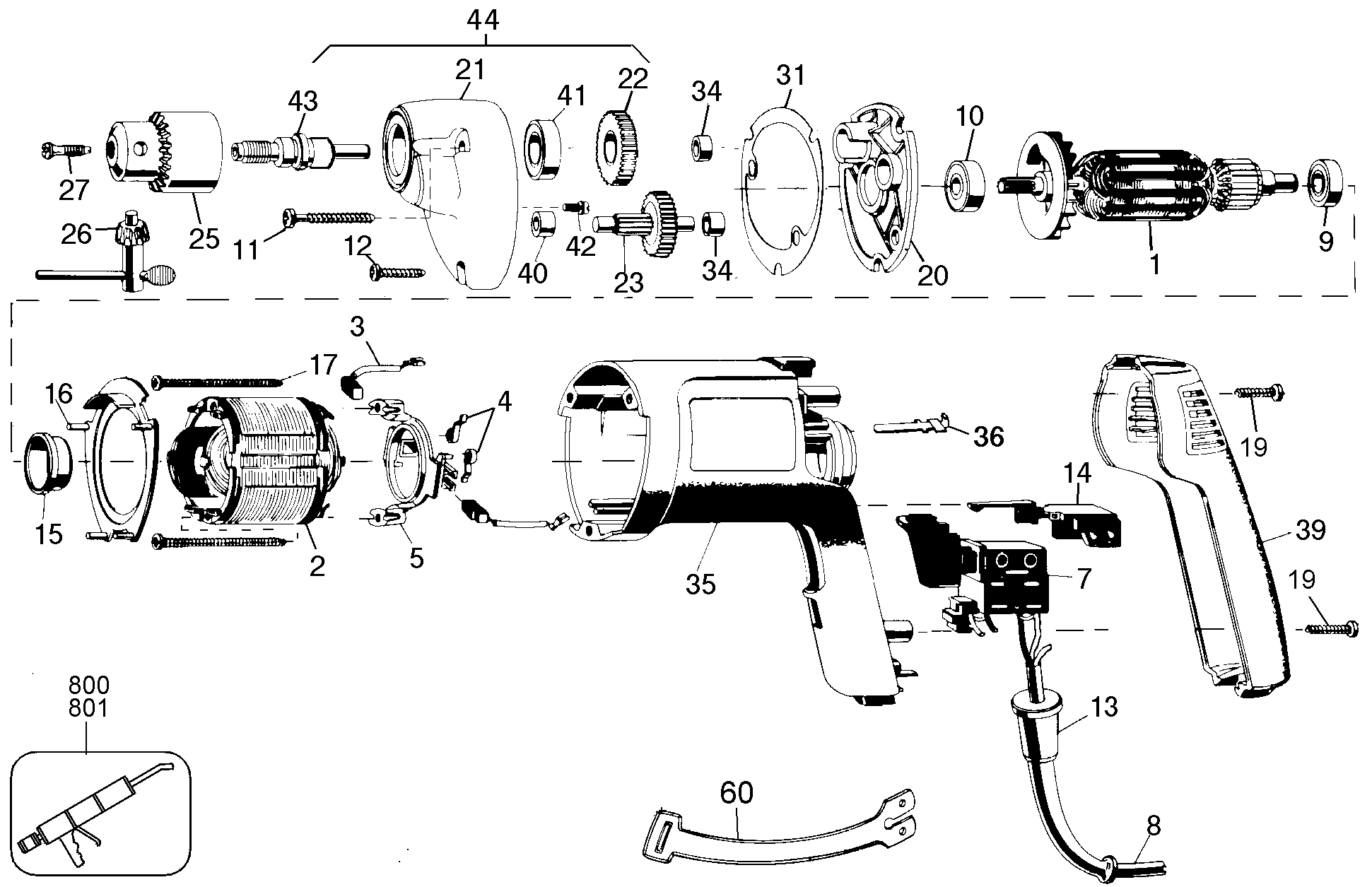

1180-40 10MM DRILL 220/240V-ASIA Type 100 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 2 | 447859-00 | 1 | FIELD | NLS | INC 17 | B5 | |
| 3 | 143803-05 | 2 | BRUSH | B5 | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | B5 |  |
||
| 5 | 449899-05 | 1 | RING | B5 | |
||
| 7 | 286244-00 | 1 | SWITCH,VS,AC | B5 |  |
||
| 8 | 147360-06 | 1 | CORD/2M/1MM-2 | B5 | |||
| 9 | 330003-04 | 2 | BEARING | B5 | |||
| 10 | 330003-04 | 1 | BEARING | B5 | |||
| 11 | 330019-16 | 2 | SCREW | B5 | |
||
| 12 | 330019-13 | 3 | SCREW | M4X19 T20 | B5 | |
|
| 13 | 330005-01 | 1 | CORD PROTECTOR | B5 | |
||
| 14 | 150196-00 | 1 | SWITCH,REV. | B5 | |||
| 15 | 445217-02 | 1 | SLEEVE | B5 | |
||
| 16 | 447866-00 | 1 | BAFFLE FAN | B5 | |
||
| 17 | 448269-00 | 2 | SCREW | B5 | |
||
| 19 | 146679-00 | 2 | SCREW | B5 | |
||
| 20 | 448658-00 | 1 | GEARCASE COVER | INC 10, 34 | B5 | |
|
| 21 | 132338-07 | 1 | CASE,GEAR | NO LONGER SUPPLIED | INC 40-42 | B5 | |
| 22 | 148553-00 | 1 | GEAR | 47 TEETH | B5 | ||
| 23 | 448069-03 | 1 | GEAR & PINION | NLS | 44/10 TEETH | B5 | |
| 25 | 23229-00 | 1 | CHUCK & KEY | B5 | |||
| 26 | 330034-02 | 1 | CHUCK KEY | B5 | |||
| 27 | 605256-01 | 1 | SCREW | LH | B5 | |
|
| 31 | 386422-00 | 1 | GASKET | B5 | |||
| 34 | 093128-00 | 2 | BEARING NEEDLE | B5 | |
||
| 35 | 464231-00 | 1 | CASE,FIELD | B5 | |||
| 36 | 449192-00 | 3 | TERMINAL | B5 | |
||
| 39 | 450594-01 | 1 | COVER,HANDLE | B5 | |||
| 40 | 330004-00 | 1 | BEARING | B5 | |
||
| 41 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B5 | |
|
| 42 | 052819-00 | 1 | SCREW | B5 | |||
| 43 | 151808-00 | 1 | SPINDLE | 1/2-20 THREAD | B5 | ||
| 44 | 148564-01 | 1 | CASE,GEAR | NO LONGER SUPPLIED | INC 21, 22, 43 | B5 | |
| 60 | 065288-01 | 1 | HOLDER CHUCK KEY | B5 | |
||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | B5 | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B5 |
