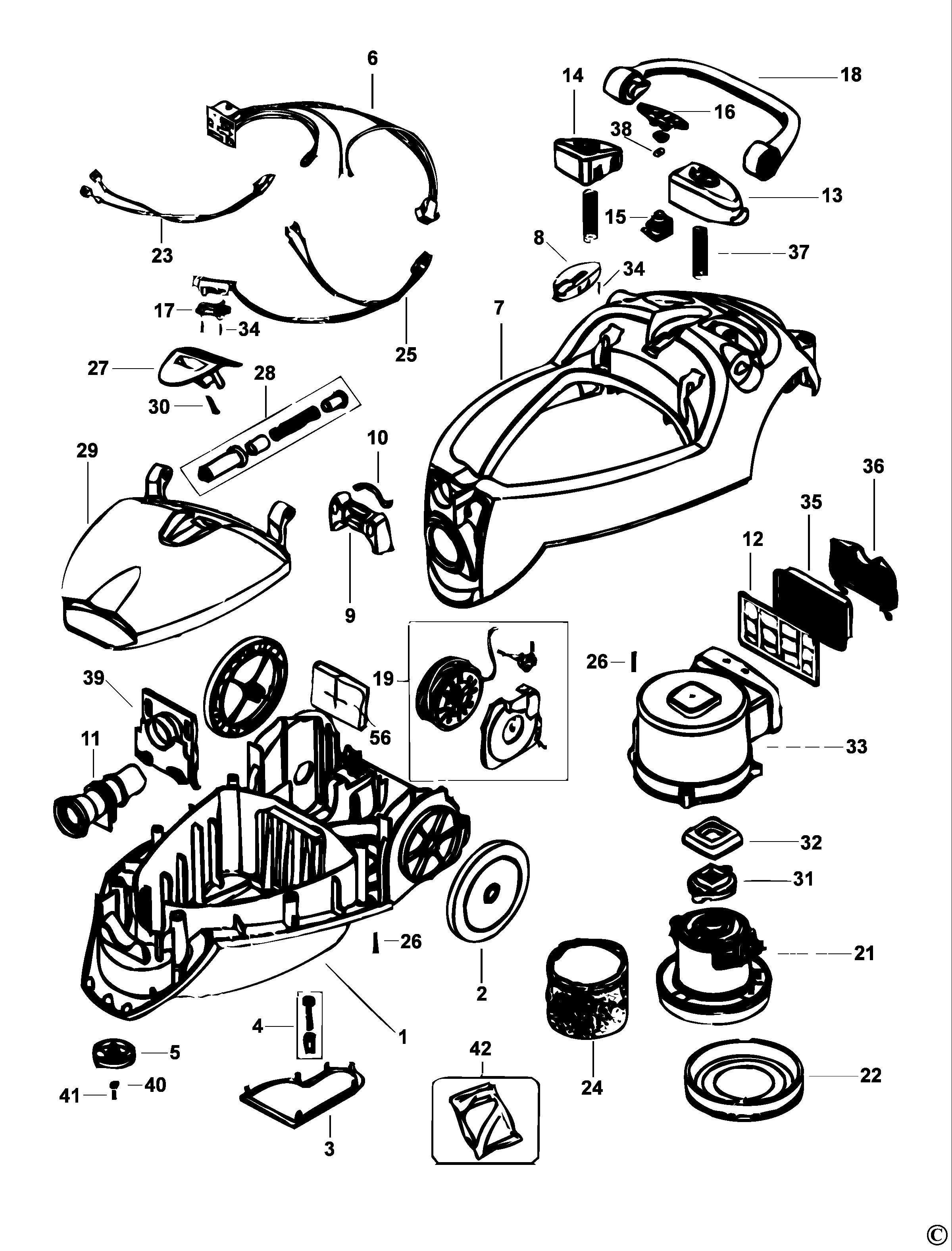

VM725 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 585544-00 | 1 | HOUSING LOWER | B1 |  |
||
| 2 | 583111-00 | 1 | WHEEL | Light Grey | B1 | |
|
| 3 | 585635-10 | 1 | COVER | B1 | |
||
| 4 | 583122-00 | 1 | VALVE | B1 | |
||
| 5 | 583113-00 | 1 | WHEEL SA | B1 | |
||
| 6 | 585549-02 | 1 | PCB SA | B1 | |
||
| 7 | 5106274-05 | 1 | HOUSING UPPER | B1 | |
||
| 8 | 585462-00 | 1 | CLIP | B1 | |
||
| 9 | 583405-00 | 1 | LATCH | B1 | |
||
| 10 | 584644-00 | 1 | SPRING | B1 | |
||
| 11 | 584986-00 | 1 | TUBE | B1 | |
||
| 12 | 586734-00 | 1 | SUPPORT | B1 | |
||
| 13 | 583135-00 | 1 | ACTUATOR | B1 | |
||
| 14 | 583132-00 | 1 | ACTUATOR | B1 | |
||
| 15 | 583137-00 | 1 | SWITCH | B1 | |
||
| 16 | 583140-00 | 1 | SLIDER | B1 | |
||
| 17 | 586505-00 | 1 | RETAINER SA | B1 | |
||
| 18 | 584651-00 | 1 | HANDLE | Light Grey | B1 | |
|
| 18 | 584651-10 | 1 | HANDLE | Light Grey | B1 | |
|
| 19 | 583109-10 | 1 | CABLE SA | B1 | |
||
| 21 | 585538-01 | 1 | MOTOR SA | B1 | |
||
| 22 | 583120-01 | 1 | MOUNT | B1 | |
||
| 23 | 583125-00 | 1 | LEAD SA | B1 | |
||
| 24 | 583146-00 | 1 | FOAM | B1 | |
||
| 25 | 583143-00 | 1 | LEAD SA | B1 | |
||
| 26 | 585535-00 | 1 | SCREW | No6 x 17mm | B1 | |
|
| 27 | 584982-04 | 1 | INSERT | B1 | |
||
| 28 | 583165-00 | 1 | INDICATOR | B1 | |
||
| 29 | 5106276-07 | 1 | LID | B1 | |
||
| 30 | 585580-00 | 1 | SCREW | No 6 x 12 | B1 | |
|
| 31 | 583404-01 | 1 | MOUNT | B1 | |
||
| 32 | 583402-00 | 1 | SUPPORT | B1 | |
||
| 33 | 583123-00 | 1 | COVER HOUSING | B1 | |
||
| 34 | 585535-00 | 1 | SCREW | No6 x 17mm | B1 | |
|
| 35 | 588280-00 | 1 | FILTER | VLF10 | B1 | |
|
| 36 | 583138-00 | 1 | GRILL | B1 | |
||
| 37 | 583136-00 | 1 | SPRING | B1 | |
||
| 38 | 588187-00 | 1 | WASHER LOCK | B1 | |
||
| 39 | 588324-00 | 1 | HOLDER DUSTBAG | B1 | |
||
| 40 | 585622-00 | 1 | RETAINER | B1 | |
||
| 41 | 585580-00 | 1 | SCREW | No 6 x 12 | B1 | |
|
| 42 | 590166-00 | 1 | DUSTBAG | B1 | |
||
| 47 | 585244-10 | 1 | HOLDER | B1 | |
||
| 48 | 585131-00 | 1 | TOOL CREVICE | B1 | |
||
| 49 | 5106265-00 | 1 | BRUSH SA | B1 | |
||
| 52 | 583162-00 | 1 | VACUUM TUBE SA | B1 | |
||
| 53 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 53 | 583154-06 | 1 | HOSE SA | Grey | B1 | |
|
| 54 | 5106292-03 | 1 | BRAND LABEL | B1 | |
||
| 55 | 585580-00 | 1 | SCREW | No 6 x 12 | B1 | |
|
| 56 | 5106228-00 | 1 | FILTER | VBP50 | B1 | |
|
