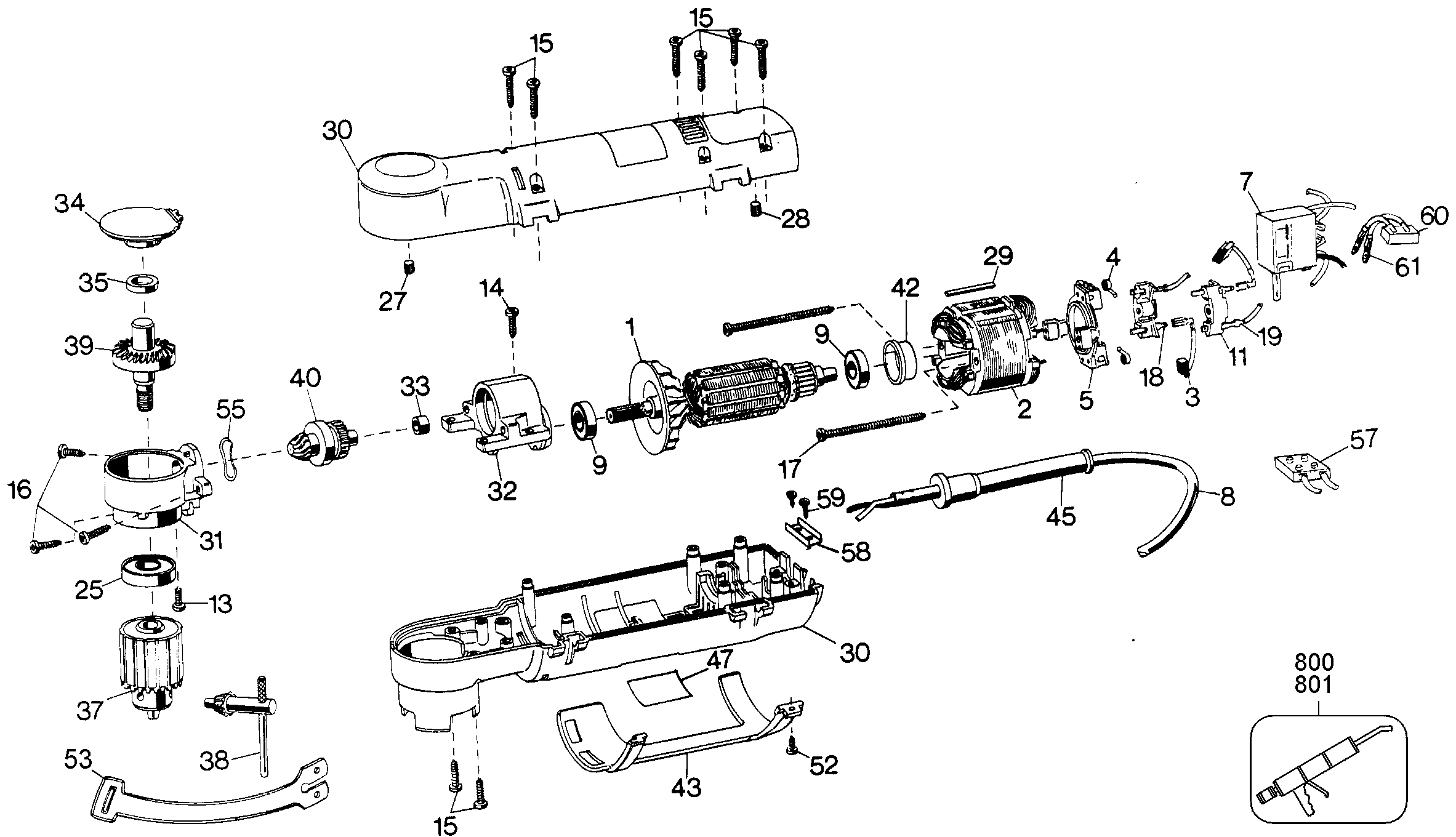

1165-39 3/8 H.D. SHORTY DRILL Type 100 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448583-00 | 1 | ARMATURE AND FAN | B5 | |||
| 2 | 449921-71 | 1 | FIELD | B5 | |||
| 3 | 761819-00 | 1 | BRUSH | B5 |  |
||
| 4 | 445860-00 | 2 | BRUSH SPRING | B5 |  |
||
| 5 | 449899-05 | 1 | RING | B5 | |
||
| 7 | 286198-00 | 1 | SWITCH,TRG,A.C. | B5 | |||
| 8 | 147454-01 | 1 | CORD/8'/18-2 | B5 | |||
| 9 | 330003-04 | 2 | BEARING | B5 | |||
| 11 | 449829-00 | 2 | NUT | B5 | |
||
| 13 | 055206-00 | 1 | SCREW | B5 | |||
| 14 | 133042-00 | 1 | SCREW | B5 | |
||
| 15 | 330019-05 | 8 | SCREW | B5 | |
||
| 16 | 330013-03 | 1 | SCREW | B5 | |
||
| 17 | 448269-00 | 2 | SCREW | B5 | |
||
| 18 | 445881-99 | 2 | STRIP | B5 | |
||
| 19 | 449192-00 | 2 | TERMINAL | B5 | |
||
| 25 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B5 | |
|
| 27 | 030611-00 | 1 | PLUG | B5 | |
||
| 28 | 095114-00 | 1 | RUBBER PLUG | B5 | |||
| 29 | 445402-00 | 1 | RUBBER PAD | B5 | |
||
| 30 | 448596-04 | 1 | HOUSING PAIR | B5 | |
||
| 31 | 449857-00 | 1 | GEARCASE | B5 | |||
| 32 | 449033-01 | 1 | GEARCASE | INC 9, 33 | B5 | |
|
| 33 | 131557-00 | 1 | SLEEVE | B5 | |
||
| 34 | 448591-00 | 1 | GEARCASE COVER | INC 35 | B5 | |
|
| 35 | 445175-00 | 1 | SLEEVE | B5 | |
||
| 37 | 382121-00 | 1 | CHUCK | B5 | |||
| 38 | 330034-02 | 1 | CHUCK KEY | B5 | |||
| 39 | 445414-01SV | 1 | SPINDLE & GEAR SA | 35 TEETH;3/8-24 THRD | B5 | |
|
| 40 | 445397-03SV | 1 | GEAR & PINION | 32 TEETH | B5 | |
|
| 42 | 445217-02 | 1 | SLEEVE | B5 | |
||
| 43 | 286495-00 | 1 | PADDLE | B5 | |
||
| 45 | 330005-01 | 1 | CORD PROTECTOR | B5 | |
||
| 47 | 233304-00 | 1 | NAMEPLATE | B5 | |
||
| 52 | 80488-00 | 1 | SPARE PART | B5 | |
||
| 53 | 065288-01 | 1 | HOLDER CHUCK KEY | B5 | |
||
| 55 | 448373-00 | 1 | WASHER SPRING | B5 | |
||
| 59 | 330013-03 | 3 | SCREW | B5 | |
||
| 60 | 093585-11 | 1 | CAPACITOR | B5 | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | B5 | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B5 |
