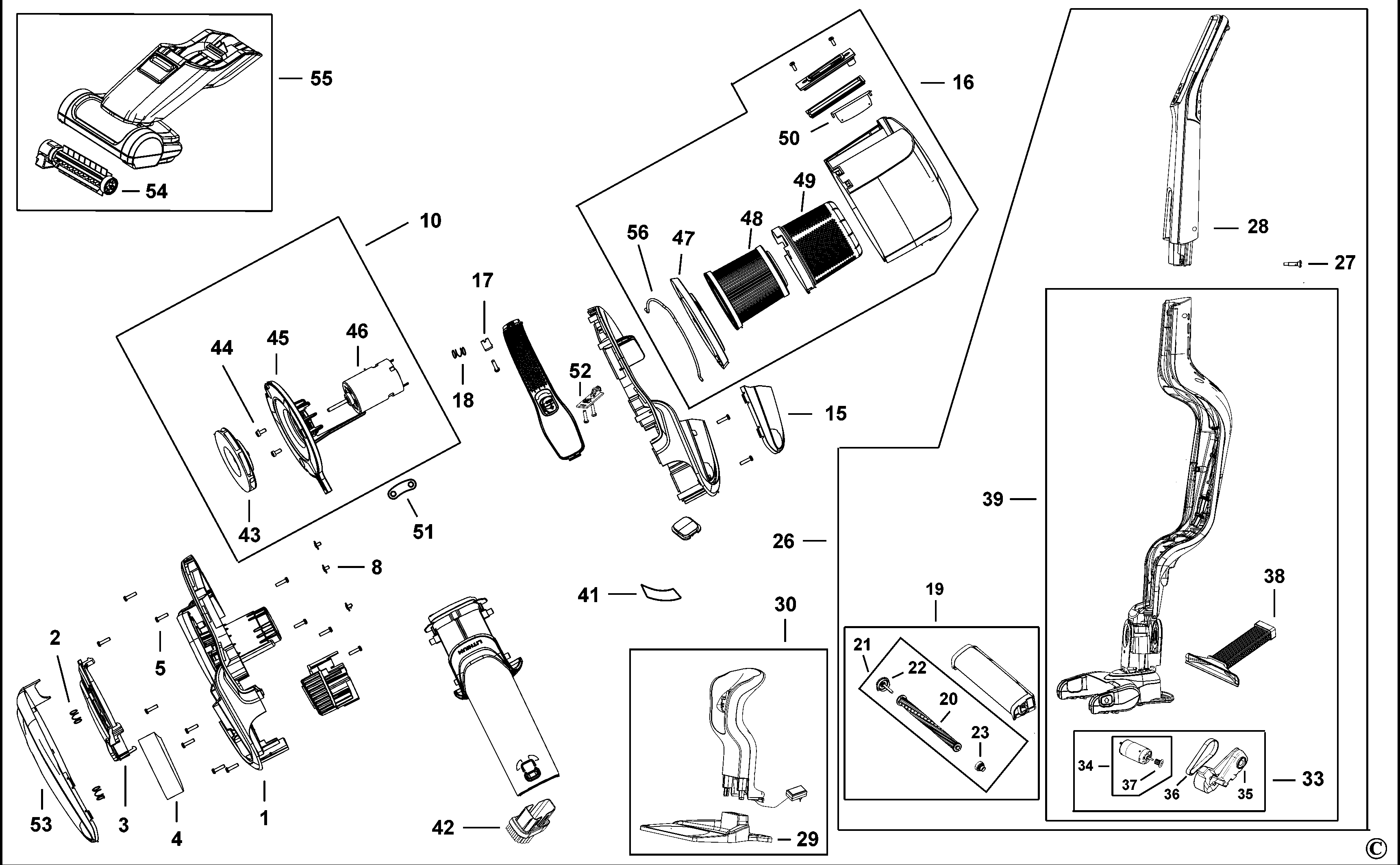

SVJ520BFSP DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | SVJ520BFSPN | GB | ||
| 1 | 572184-02 | 1 | HOUSING MOTOR | GB |  |
||
| 2 | 90627528 | 2 | SPRING | GB | |
||
| 2 | 569588-00 | 1 | FIELD 230V | GB | |
||
| 3 | 90606955-08 | 1 | LEVER RELEASE | GB | |
||
| 3 | 398646-00 | 1 | ADAPTOR | GB | |
||
| 4 | 90605950 | 1 | EXHAUST | GB | |
||
| 5 | 90571477-01 | 16 | SCREW | GB | |
||
| 5 | 574137-00 | 1 | GUARD | GB | |
||
| 6 | 571820-02 | 1 | BLADE SA | 51CM | GB | |
|
| 7 | 573143-01 | 1 | BRAND LABEL | GB | |||
| 8 | 90627524 | 1 | SCREW | GB | |
||
| 8 | 583823-00 | 4 | SELECTOR SA | GB | |
||
| 9 | 90510011 | 1 | SWITCH SA | GB | |||
| 10 | 90621178-07 | 1 | MOTOR SA | GB | |
||
| 10 | N075277 | 1 | RATING PLATE | BR | GB | ||
| 11 | 561593-05 | 1 | CLAMSHELL LH | GB | |
||
| 13 | 792996 | 1 | SPRING | GB | |
||
| 14 | 402868-06 | 1 | SWITCH | Tyco | GB | |
|
| 15 | 90620997 | 1 | COVER | GB | |
||
| 15 | 569623-00 | 1 | HANDLE | GB | |||
| 16 | N503912 | 1 | BOWL | GB | |
||
| 16 | 583117-12 | 1 | COVER | GB | |
||
| 17 | 90624626 | 1 | RELEASE | GB | |
||
| 17 | 402485-01 | 1 | KIT SA | GB | |
||
| 18 | 90627527 | 1 | SPRING | GB | |
||
| 18 | 1005879-02 | 2 | LEAD BLUE | GB | |||
| 19 | N498771 | 1 | HEAD SA | GB | |
||
| 20 | N496699 | 1 | ROLLER | SVJ520BFSP | GB | |
|
| 21 | N499010 | 1 | ROLLER SA | GB | |||
| 22 | 90628362 | 1 | DRIVE SHAFT | GB | |
||
| 23 | N545745 | 1 | END CAP SA | GB | |
||
| 26 | 90621194-06 | 1 | FOOT SA | GB | |
||
| 27 | 90601722 | 1 | SCREW | GB |  |
||
| 28 | 90603258-16 | 1 | HANDLE SA | GB | |
||
| 29 | 90602829-01 | 1 | BASE PLATE | GB | |
||
| 30 | 90621193-01 | 1 | CHARGER | GB | |
||
| 33 | 90608509 | 1 | MOTOR SA & MOUNT | GB | |||
| 34 | 90613453-07 | 1 | MOTOR SA 12V | GB | |
||
| 35 | N824494 | 1 | MOUNT | GB | |
||
| 36 | 90592224 | 1 | BELT DRIVE | GB | |
||
| 37 | N548025 | 1 | GEAR | GB | |
||
| 38 | 90608567 | 1 | DUCT | GB | |
||
| 39 | N532403 | 1 | LOWER HANDLE | GB | |||
| 41 | N493902 | 1 | RATING PLATE | SVJ520BFSP | GB | |
|
| 42 | 90627690 | 1 | BRUSH | GB | |
||
| 43 | 90562789-04 | 1 | FAN | GB | |
||
| 44 | 311940-01 | 2 | SCREW | GB | |
||
| 45 | 90626637 | 1 | SUPPORT | GB | |
||
| 46 | 90553498-03 | 1 | MOTOR | GB | |
||
| 47 | N519708 | 1 | FRAME | GB | |
||
| 48 | 90606058-01 | 1 | FILTER | GB | |
||
| 49 | 90606057-01 | 1 | PRE-FILTER | GB | |
||
| 50 | 90615870 | 1 | FLAP | GB | |
||
| 51 | 90626425 | 1 | RETAINER | GB | |
||
| 52 | 90620562-01 | 1 | PCB | GB | |
||
| 53 | 90614011 | 1 | COVER | GB | |
||
| 54 | 90637000 | 1 | ROLLER | SVJ520BFSP | GB | ||
| 54 | N925335 | 1 | ROLLER SA | GB | |
||
| 55 | 90634541-01 | 1 | FOOT SA | PET | SVJ520BFSP | GB | |
| 56 | 90621658 | 1 | HANDLE | GB | |
