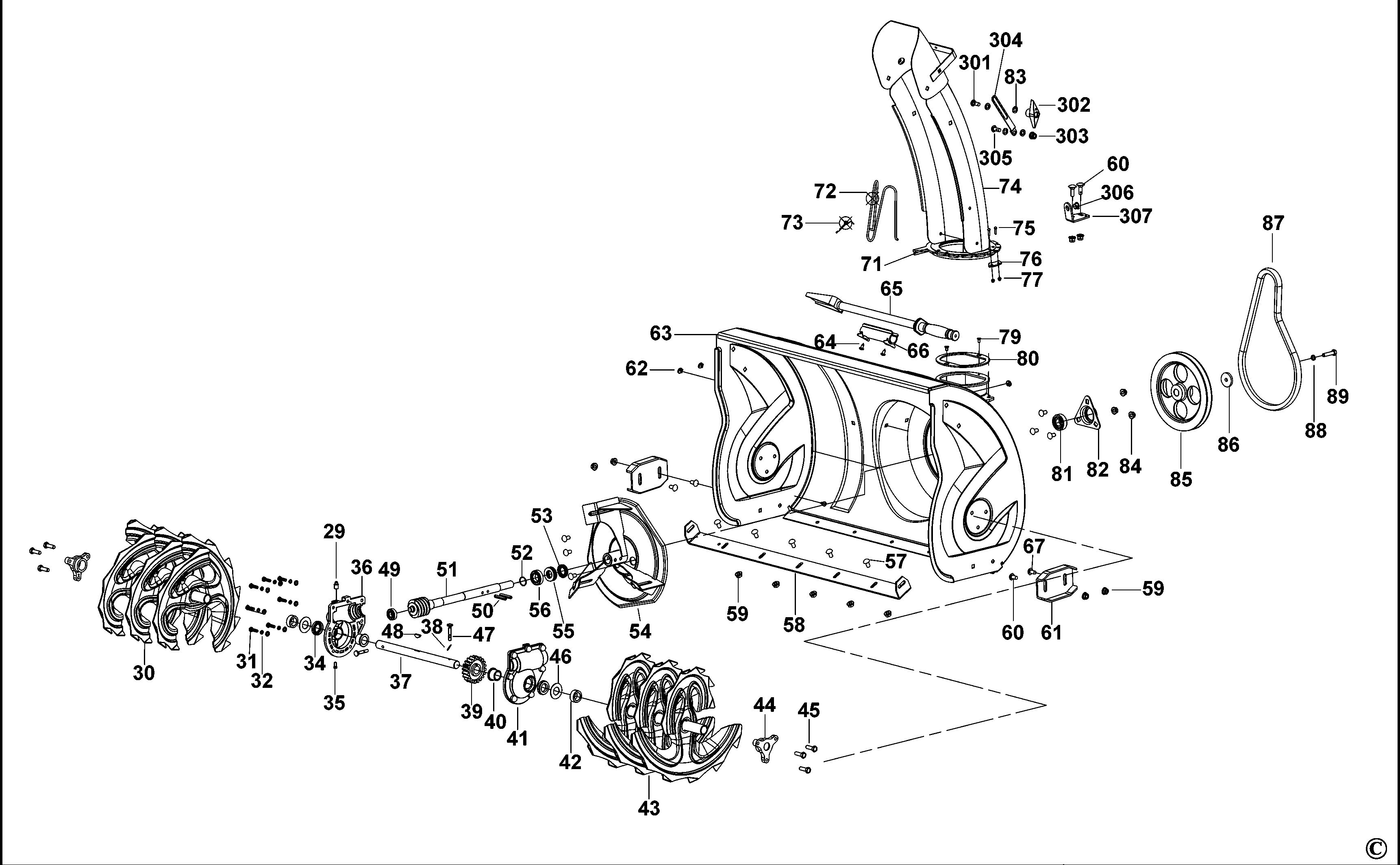

SPT-302-720 SOUFFLEUSE A NEIGE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status | Prix indicatif |
|---|---|---|---|---|---|---|---|---|
| 29 | E60450004029 | 1 | JOINT | M10x1 | XJ |  |
1.08 EUR | |
| 30 | E60450004030 | 1 | LAME SECURITE | RH | XJ |  |
27.60 EUR | |
| 31 | E60450004031 | 10 | BOULON | M6x20 | XJ | |
1.08 EUR | |
| 32 | E60450004032 | 15 | RONDELLE ELASTIQUE | 6; | XJ | |
1.08 EUR | |
| 34 | E60450004034 | 3 | JOINT | B20x35x7 | XJ | |
1.08 EUR | |
| 35 | E60450004035 | 1 | VIS | M5x12 | XJ | |
1.08 EUR | |
| 36 | E60450004036 | 1 | COUVERCLE DE CARTER D'ENGRENAGES C. DROIT | XJ | |
9.77 EUR | ||
| 37 | E60450004037 | 1 | ARBRE | XJ | |
5.74 EUR | ||
| 38 | E60450004038 | 5 | AXE | 1.8 | XJ | |
1.08 EUR | |
| 39 | E60450004039 | 1 | PIGNON | XJ | |
36.67 EUR | ||
| 40 | E60450004040 | 2 | MANCHON | XJ | |
1.08 EUR | ||
| 41 | E60450004041 | 1 | COUVERCLE DE CARTER D'ENGRENAGES C. GAUCHE | XJ | |
8.63 EUR | ||
| 42 | E60450004042 | 2 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 43 | E60450004043 | 1 | LAME SECURITE | LH | XJ | |
27.60 EUR | |
| 44 | E60450004044 | 2 | S/E PALIER | XJ | |
4.73 EUR | ||
| 45 | E60450004045 | 6 | VIS | ST8x16 | XJ | |
1.08 EUR | |
| 46 | E60450004046 | 2 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 47 | E60450004047 | 4 | AXE | XJ | |
1.08 EUR | ||
| 48 | E60450004048 | 1 | CLE | XJ | |
1.08 EUR | ||
| 49 | E60450004049 | 1 | PALIER | 6001-2RS | XJ | |
1.93 EUR | |
| 50 | E60450004050 | 4 | GOUPILLE CREUSE | 6x37 | XJ | |
1.08 EUR | |
| 51 | E60450004051 | 1 | ARBRE | XJ | |
38.82 EUR | ||
| 52 | E60450004052 | 1 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 53 | E60450004053 | 1 | JOINT | XJ | |
1.08 EUR | ||
| 54 | E60450004054 | 1 | S/E VENTILATEUR | Impeller | XJ | |
18.69 EUR | |
| 55 | E60450004055 | 1 | PALIER | Thrust | XJ | |
2.29 EUR | |
| 56 | E60450004056 | 1 | PALIER | 61904-2RS | XJ | |
2.29 EUR | |
| 57 | E60450004057 | 6 | BOULON | M8x16 | XJ | |
1.08 EUR | |
| 58 | E60450004058 | 1 | PLAQUE | XJ | |
5.16 EUR | ||
| 59 | E60450004059 | 9 | LOCK-NUT | M8 | XJ | |
1.08 EUR | |
| 60 | E60450004060 | 5 | BOULON | M8x20 | XJ | |
1.08 EUR | |
| 61 | E60450004061 | 2 | S/E PATIN | XJ | |
2.74 EUR | ||
| 62 | E60450004062 | 6 | PRISE MALE | XJ | |
1.08 EUR | ||
| 63 | E60450004063 | 1 | S/E CARTER | XJ | |
103.22 EUR | ||
| 64 | E60450004064 | 2 | VIS | ST5.5x13 | XJ | |
1.08 EUR | |
| 65 | E60450004065 | 1 | OUTIL | SPADE | XJ | |
1.93 EUR | |
| 66 | E60450004066 | 1 | SUPPORT | SPADE | XJ | |
1.08 EUR | |
| 67 | E60450004067 | 2 | BOULON | M8x25 | XJ | |
1.08 EUR | |
| 71 | E60450004071 | 1 | S/E ANNEAU | XJ | |
2.87 EUR | ||
| 72 | E60450004072 | 1 | GOUPILLE DE VERROUILLAGE | XJ | |
1.08 EUR | ||
| 73 | E60450004073 | 1 | RESSORT DE TORSION | XJ | |
1.08 EUR | ||
| 74 | E60450004074 | 1 | GOULOTTE | XJ | |
26.18 EUR | ||
| 75 | E60450004075 | 6 | BOULON | M6x30 | XJ | |
1.08 EUR | |
| 76 | E60450004076 | 3 | SUPPORT | XJ | |
1.08 EUR | ||
| 77 | E60450004077 | 13 | ECROU M 6 STOP | XJ | |
1.08 EUR | ||
| 79 | E60450004079 | 2 | VIS | M5x6 | XJ | |
1.08 EUR | |
| 80 | E60450004080 | 1 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 81 | E60450004081 | 2 | PALIER | 6203-2RS | XJ | |
2.74 EUR | |
| 82 | E60450004082 | 1 | LOGEMENT DE PALIER | XJ | |
1.29 EUR | ||
| 83 | E60450004083 | 2 | RONDELLE-FREIN | XJ | |
1.08 EUR | ||
| 84 | E60450004084 | 13 | ECROU M8 | XJ | |
1.08 EUR | ||
| 85 | E60450004085 | 1 | POULIE | XJ | |
24.74 EUR | ||
| 86 | E60450004086 | 1 | RONDELLE AVANT | Flat 8 | XJ | |
1.08 EUR | |
| 87 | E60450004087 | 1 | COURROIE | 4LXP885 | XJ | |
24.74 EUR | |
| 88 | E60450004088 | 1 | RONDELLE ELASTIQUE | 8; | XJ | |
1.08 EUR | |
| 89 | E60450004089 | 1 | BOULON | M8x25 | XJ | |
1.08 EUR | |
| 90 | E60450004090 | 1 | ROUE | XJ | |
31.63 EUR | ||
| 91 | E60450004091 | 13 | RONDELLE AVANT | Flat 8 | XJ | |
1.08 EUR | |
| 92 | E60450004092 | 1 | ENSEMBLE ROUE FOLLE | XJ | |
4.73 EUR | ||
| 93 | E60450004093 | 1 | ENTRETOISE | XJ | |
1.29 EUR | ||
| 94 | E60450004094 | 4 | BOULON | M8x35 | XJ | |
1.08 EUR | |
| 95 | E60450004095 | 1 | BOULON | XJ | |
1.08 EUR | ||
| 96 | E60450004096 | 2 | BOULON | M8x20 | XJ | |
1.08 EUR | |
| 97 | E60450004097 | 1 | SUPPORT | XJ | |
3.52 EUR | ||
| 98 | E60450004098 | 1 | RESSORT | XJ | |
1.08 EUR | ||
| 99 | E60450004099 | 1 | SUPPORT | XJ | |
1.29 EUR | ||
| 100 | E604500040100 | 6 | RONDELLE AVANT | Flat 8 | XJ | |
1.08 EUR | |
| 101 | E604500040101 | 1 | S/E CABLE | XJ | |
4.73 EUR | ||
| 102 | E604500040102 | 1 | PIGNON | XJ | |
17.13 EUR | ||
| 103 | E604500040103 | 1 | AXE | A6x35 | XJ | |
1.08 EUR | |
| 104 | E604500040104 | 1 | PLAQUE DE COUVERCLE | XJ | |
5.74 EUR | ||
| 105 | E604500040105 | 1 | S/E CHASSIS | XJ | |
34.38 EUR | ||
| 106 | E604500040106 | 12 | VIS | M8x16 | XJ | |
1.08 EUR | |
| 107 | E604500040107 | 1 | ARBRE | XJ | |
7.91 EUR | ||
| 108 | E604500040108 | 2 | BAGUE | XJ | |
2.29 EUR | ||
| 109 | E604500040109 | 2 | ENTRETOISE | XJ | |
1.08 EUR | ||
| 110 | E604500040110 | 7 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 111 | E604500040111 | 2 | GOUPILLE DE VERROUILLAGE | XJ | |
1.08 EUR | ||
| 112 | E604500040112 | 1 | ROUE | XJ | |
36.67 EUR | ||
| 113 | E604500040113 | 2 | AXE | 6x36 | XJ | |
1.08 EUR | |
| 114 | E604500040114 | 1 | SUPPORT | XJ | |
1.08 EUR | ||
| 115 | E604500040115 | 4 | VIS | M8x16 | XJ | |
1.08 EUR | |
| 116 | E604500040116 | 2 | BRAS | XJ | |
9.77 EUR | ||
| 117 | E604500040117 | 8 | BOULON | M6x10 | XJ | |
1.08 EUR | |
| 118 | E604500040118 | 2 | PLAQUE | Friction | XJ | |
1.08 EUR | |
| 119 | E604500040119 | 1 | ANNEAU | Rubber | XJ | |
7.91 EUR | |
| 120 | E604500040120 | 2 | ANNEAU | XJ | |
1.08 EUR | ||
| 121 | E604500040121 | 2 | PALIER | 6203-2RSn | XJ | |
2.74 EUR | |
| 122 | E604500040122 | 1 | MOYEU | XJ | |
9.77 EUR | ||
| 123 | E604500040123 | 1 | AXE | XJ | |
1.08 EUR | ||
| 124 | E604500040124 | 1 | AXE | 6x25 | XJ | |
1.08 EUR | |
| 125 | E604500040125 | 1 | ATTACHE DE RESSORT | XJ | |
1.29 EUR | ||
| 126 | E604500040126 | 1 | HANDLE | XJ | |
3.74 EUR | ||
| 127 | E604500040127 | 1 | BOUTON | XJ | |
1.08 EUR | ||
| 128 | E604500040128 | 10 | VIS | M6x16 | XJ | |
1.08 EUR | |
| 129 | E604500040129 | 1 | SUPPORT | XJ | |
1.08 EUR | ||
| 130 | E604500040130 | 1 | FOURCHE | XJ | |
3.52 EUR | ||
| 131 | E604500040131 | 1 | CIRCLIP | 35 | XJ | |
1.08 EUR | |
| 132 | E604500040132 | 1 | S/E ARBRE | Hex | XJ | |
9.77 EUR | |
| 133 | E604500040133 | 2 | CIRCLIP | 40 | XJ | |
1.08 EUR | |
| 134 | E604500040134 | 1 | SUPPORT | XJ | |
1.08 EUR | ||
| 135 | E604500040135 | 4 | ROULEAU | Cable | XJ | |
1.08 EUR | |
| 136 | E604500040136 | 3 | BOULON | XJ | |
1.08 EUR | ||
| 137 | E604500040137 | 1 | SUPPORT | XJ | |
7.19 EUR | ||
| 138 | E604500040138 | 1 | RESSORT | XJ | |
1.08 EUR | ||
| 139 | E604500040139 | 1 | ECROU | M16 | XJ | |
1.08 EUR | |
| 140 | E604500040140 | 2 | ACCOUPLEMENT | XJ | |
1.08 EUR | ||
| 141 | E604500040141 | 1 | ARBRE | XJ | |
2.74 EUR | ||
| 142 | E604500040142 | 1 | CONTRE-ECROU | M10 | XJ | |
1.08 EUR | |
| 143 | E604500040143 | 1 | COUVERCLE DE COURROIE | XJ | |
6.77 EUR | ||
| 144 | E604500040144 | 1 | MOYEU | XJ | |
4.18 EUR | ||
| 145 | E604500040145 | 1 | PALIER | 6006-2RS | XJ | |
4.18 EUR | |
| 146 | E604500040146 | 1 | POULIE | XJ | |
17.13 EUR | ||
| 147 | E604500040147 | 2 | COURROIE | V10x835 | XJ | |
24.74 EUR | |
| 148 | E604500040148 | 1 | CLE | 6X6X45 | XJ | |
1.08 EUR | |
| 150 | E604500040150 | 1 | RONDELLE ELASTIQUE | 8; | XJ | |
1.08 EUR | |
| 151 | E604500040151 | 1 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 152 | E604500040152 | 1 | POULIE | XJ | |
17.13 EUR | ||
| 153 | E604500040153 | 1 | EMBRAYAGE | Idler | XJ | |
3.52 EUR | |
| 154 | E604500040154 | 1 | BAGUE | XJ | |
1.08 EUR | ||
| 155 | E604500040155 | 2 | BOULON | M8x25 | XJ | |
1.08 EUR | |
| 156 | E604500040156 | 1 | SUPPORT | XJ | |
1.93 EUR | ||
| 157 | E604500040157 | 2 | BOULON | M8x40 | XJ | |
1.08 EUR | |
| 158 | E604500040158 | 1 | ENTRETOISE | XJ | |
1.08 EUR | ||
| 159 | E604500040159 | 1 | S/E MOTEUR | 10hp Engine | refer to manual | XJ | |
1495.03 EUR |
| 160 | E604500040160 | 1 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 161 | E604500040161 | 1 | FIL ACIER | Belt Blocker | XJ | |
1.93 EUR | |
| 162 | E604500040162 | 1 | RESSORT | XJ | |
1.08 EUR | ||
| 163 | E604500040163 | 1 | ECROU M8 | XJ | |
1.08 EUR | ||
| 164 | E604500040164 | 4 | LOCK-NUT | M6 | XJ | |
1.08 EUR | |
| 165 | E604500040165 | 1 | BOULON | M6x30 | XJ | |
1.08 EUR | |
| 166 | E604500040166 | 3 | ECROU M 6 STOP | XJ | |
1.08 EUR | ||
| 167 | E604500040167 | 1 | BOULON | M6x25 | XJ | |
1.08 EUR | |
| 168 | E604500040168 | 2 | HANDLE | XJ | |
3.22 EUR | ||
| 169 | E604500040169 | 2 | VIS | M10x55 | XJ | |
1.08 EUR | |
| 170 | E604500040170 | 1 | CABLE | XJ | |
3.22 EUR | ||
| 171 | E604500040171 | 1 | CABLE | Friction Wheel | XJ | |
4.18 EUR | |
| 172 | E604500040172 | 1 | S/E POIGNEE | XJ | |
22.41 EUR | ||
| 173 | E604500040173 | 2 | SUPPORT | XJ | |
1.08 EUR | ||
| 174 | E604500040174 | 4 | CONTRE-ECROU | M6 | XJ | |
1.08 EUR | |
| 175 | E604500040175 | 2 | ENTRETOISE | XJ | |
1.08 EUR | ||
| 176 | E604500040176 | 2 | VIS | M6x60 | XJ | |
1.08 EUR | |
| 177 | E604500040177 | 6 | RONDELLE AVANT | Flat 6 | XJ | |
1.08 EUR | |
| 178 | E604500040178 | 4 | VIS | M6x40 | XJ | |
1.08 EUR | |
| 179 | E604500040179 | 1 | BOITIER | XJ | |
5.74 EUR | ||
| 180 | E604500040180 | 2 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 181 | E604500040181 | 4 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 187 | E604500040187 | 1 | CIRCLIP | 10 | XJ | |
1.08 EUR | |
| 188 | E604500040188 | 1 | BOUTON | XJ | |
1.08 EUR | ||
| 189 | E604500040189 | 1 | LEVIER | XJ | |
6.77 EUR | ||
| 190 | E604500040190 | 1 | SUPPORT | XJ | |
1.93 EUR | ||
| 191 | E604500040191 | 1 | ENTRETOISE | Rubber | XJ | |
1.08 EUR | |
| 192 | E604500040192 | 6 | RONDELLE AVANT | 10 | XJ | |
1.08 EUR | |
| 215 | E604500040215 | 2 | BOULON | M10x20 | XJ | |
1.08 EUR | |
| 216 | E604500040216 | 2 | BOULON | M10x40 | XJ | |
1.08 EUR | |
| 228 | E604500040228 | 6 | RONDELLE AVANT | XJ | |
1.08 EUR | ||
| 229 | 1004738-53 | 1 | BOUGIE D'ALLUMAGE | XJ | |
6.77 EUR | ||
| 230 | 1004738-54 | 1 | S/E CARBURATEUR | XJ | |
64.68 EUR | ||
| 231 | 1004738-55 | 1 | CONDUIT | XJ | |
3.22 EUR | ||
| 232 | 1004738-56 | 2 | ATTACHE | XJ | |
1.08 EUR | ||
| 233 | 1004738-57 | 1 | COLLIER | XJ | |
1.08 EUR | ||
| 234 | 1004738-58 | 1 | JOINT STATIQUE | XJ | |
2.74 EUR | ||
| 235 | 1004738-59 | 1 | JOINT STATIQUE | XJ | |
1.08 EUR | ||
| 236 | 1004738-60 | 1 | ENTRETOISE | XJ | |
2.09 EUR | ||
| 237 | 1004738-61 | 1 | S/E DEMARREUR | Kick | XJ | |
68.70 EUR | |
| 238 | 1004738-62 | 5 | BOULON | M6×12 | XJ | |
1.08 EUR | |
| 239 | 1004738-63 | 1 | ATTACHE | XJ | |
1.08 EUR | ||
| 240 | 1004738-64 | 1 | Pot d`échappement | XJ | |
64.68 EUR | ||
| 241 | 1004738-65 | 1 | S/E BOBINE | Ignition | XJ | |
29.91 EUR | |
| 242 | 1004738-66 | 2 | BOULON | M6×25 | XJ | |
1.08 EUR | |
| 243 | 1004738-67 | 1 | FILTRE | Air | XJ | |
22.41 EUR | |
| 244 | 1004738-68 | 2 | ECROU M 6 STOP | XJ | |
1.08 EUR | ||
| 245 | 1004738-69 | 1 | S/E DEMARREUR | XJ | |
228.56 EUR | ||
| 246 | 1004738-70 | 2 | VIS | XJ | |
1.08 EUR | ||
| 247 | 1004738-71 | 2 | BOULON | M8×40 | XJ | |
1.08 EUR | |
| 301 | E604500040301 | 1 | BOULON | M8x35 | XJ | |
1.08 EUR | |
| 302 | E604500040302 | 1 | BOUTON | XJ | |
1.08 EUR | ||
| 303 | E604500040303 | 2 | ECROU | XJ | |
1.08 EUR | ||
| 304 | E604500040304 | 1 | PLAQUE | XJ | |
1.08 EUR | ||
| 305 | E604500040305 | 1 | BOULON | M8x20 | XJ | |
1.08 EUR | |
| 306 | E604500040306 | 1 | BAGUE | XJ | |
1.08 EUR | ||
| 307 | E604500040307 | 1 | SUPPORT | XJ | |
1.93 EUR | ||
| 601 | E604500040601 | 2 | VIS | M6x35 | XJ | |
1.08 EUR | |
| 602 | E604500040602 | 1 | PLAQUE | XJ | |
7.91 EUR |
* Toutes les prix sont des prix à titre indicatif hors tva en frais de transport (Nous comptons des frais de transport de 7,50€ hors tva uniquement pour les commandes inférieure à 50€ hors tva). Nous nous réservons le droit de modifier les prix et conditions sans préavis.
