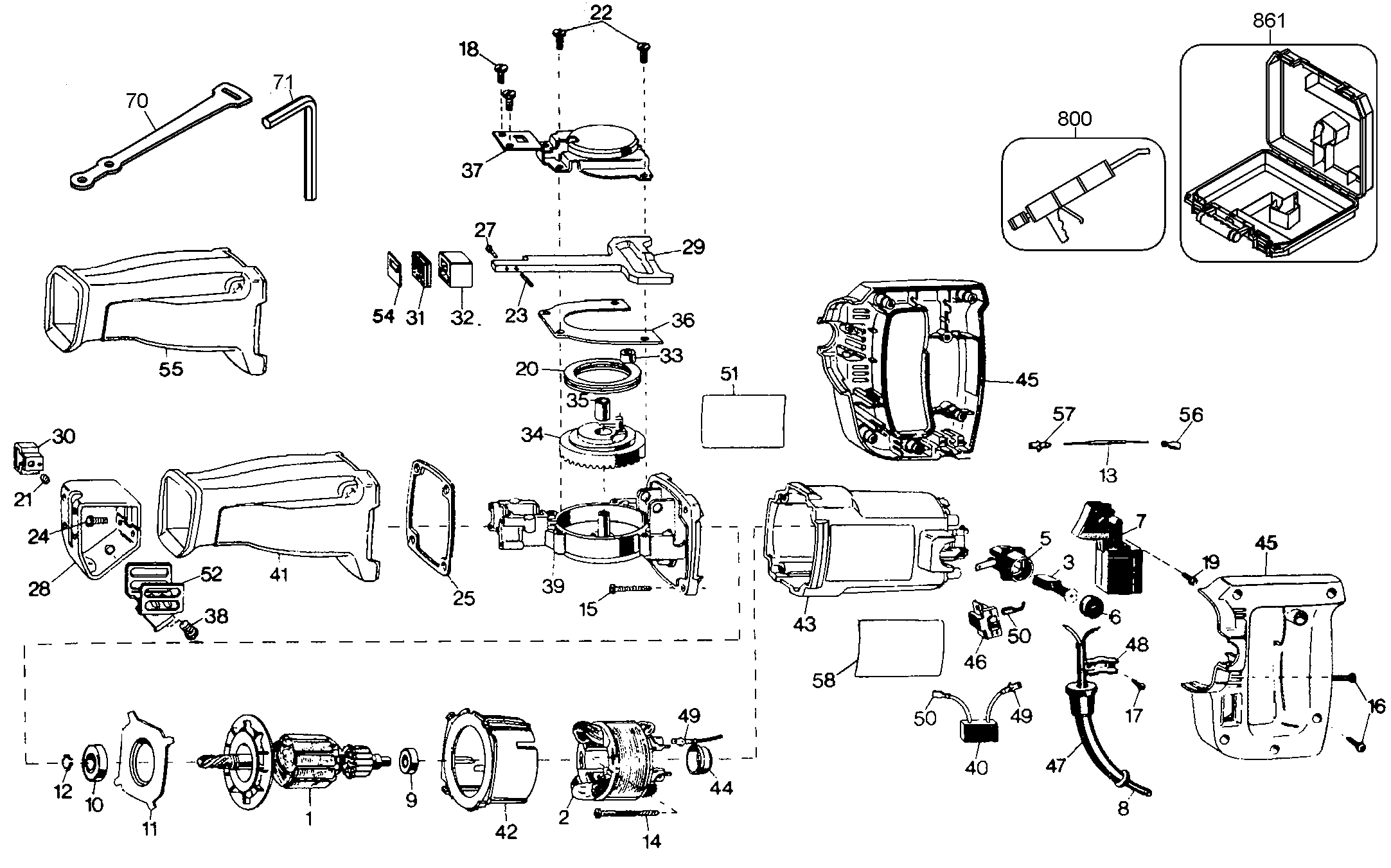

3103-22 CUTSAW Type 102 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330019-13 | 9 | SCREW | M4X19 T20 | QS |  |
|
| 2 | 93548-21 | 1 | CORDSET (EURO) | QS |  |
||
| 3 | 099056-08 | 1 | WRENCH SPECIAL | HEX--5/32" | QS | |
|
| 4 | 099164-06 | 1 | SCREW.TEMP | QS | |
||
| 5 | 099279-08 | 1 | SCREW | QS | |
||
| 6 | 130811-00 | 1 | SWITCH | QS | |
||
| 7 | 135110-00 | 2 | TERMINAL | QS | |
||
| 8 | 135531-00 | 1 | BEARING | QS | |
||
| 9 | 136086-03 | 2 | TERMINAL | QS | |
||
| 10 | 142519-00 | 1 | CABLE CLAMP | QS | |
||
| 11 | 142940-00 | 4 | SCREW | QS | |
||
| 12 | 143462-02 | 1 | PLATE | QS | |
||
| 13 | 144345-04 | 1 | NAMEPLATE | QS | |||
| 14 | 90540337 | 1 | RING | QS | |||
| 15 | 144434-00 | 1 | ROLLPIN | QS | |
||
| 16 | 144457-02 | 1 | SCREW | QS | |
||
| 17 | 146453-00 | 2 | CHOKE | QS | |
||
| 18 | 146459-00 | 2 | TERMINAL | QS | |
||
| 19 | 146576-00 | 1 | GASKET | QS | |
||
| 20 | 157325-00 | 1 | GUARD | QS | |
||
| 21 | 158466-00 | 1 | PIN | QS | |
||
| 22 | 158472-00 | 2 | SCREW | QS | |
||
| 23 | 330003-04 | 1 | BEARING | QS | |||
| 24 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | QS | |
|
| 25 | 330005-01 | 1 | CORD PROTECTOR | QS | |||
| 26 | 330013-02 | 1 | SCREW | QS | |
||
| 27 | 330013-03 | 2 | SCREW | QS | |
||
| 28 | 330019-15 | 4 | SCREW | QS | |
||
| 29 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | QS | |
|
| 30 | 385238-00 | 1 | BEARING NEEDLE | QS | |
||
| 31 | 386698-00 | 1 | SEAL SA | QS | |
||
| 32 | 399725-00 | 1 | SHOE | QS | |
||
| 33 | 445217-02 | 1 | SLEEVE | QS | |
||
| 34 | 447786-00 | 1 | BAFFLE FAN | QS | |
||
| 35 | 447799-07 | 1 | FIELDCASE | QS | |
||
| 36 | 448079-00 | 1 | PLATE | QS | |
||
| 37 | 448083-01 | 2 | BRUSHBOX SA | QS | |
||
| 38 | 448084-01 | 2 | BRUSH CAP | QS | |
||
| 39 | 448172-00 | 2 | TERMINAL | QS | |
||
| 40 | 000000-00 | 1 | NO LONGER AVAILABLE | QS | |||
| 40 | 448489-03 | 1 | PLATE | QS | |
||
| 41 | 606113-00 | 1 | GEAR SA | INCL. THRUST RING | 55 TEETH ; INC 35 | QS | |
| 42 | 621608-00 | 1 | COVER SA | QS | |
||
| 43 | 448716-01 | 1 | ARMATURE | QS | |
||
| 44 | 448719-75 | 1 | FIELD | QS | |
||
| 45 | 448722-02 | 1 | HANDLE & COVER | QS | |
||
| 46 | 449817-00 | 1 | HOLDER | FOR HEX | QS | |
|
| 46 | 000000-00 | 1 | NO LONGER AVAILABLE | QS | |||
| 47 | 449824-07 | 1 | GEARCASE | QS | |
||
| 48 | 450107-00 | 1 | LABEL | QS | |||
| 49 | 450332-01 | 1 | KITBOX | QS | |||
| 50 | 450374-05 | 2 | BRUSH | QS | |
||
| 51 | 450696-00 | 1 | BOOT | QS | |
||
| 52 | 450865-00 | 1 | BEARING | QS | |
||
| 53 | 679868-00 | 1 | BLADE CLAMP | INC 21 | QS | |
|
| 54 | 679869-00 | 1 | SHAFT | INC 23, 27 | QS | |
|
| 54 | 386698-00 | 1 | SEAL SA | QS | |
||
| 55 | 696060-00 | 1 | RETAINER | QS | |
||
| 56 | 429698-00 | 1 | GREASE | BD-L 2 | QS | |
