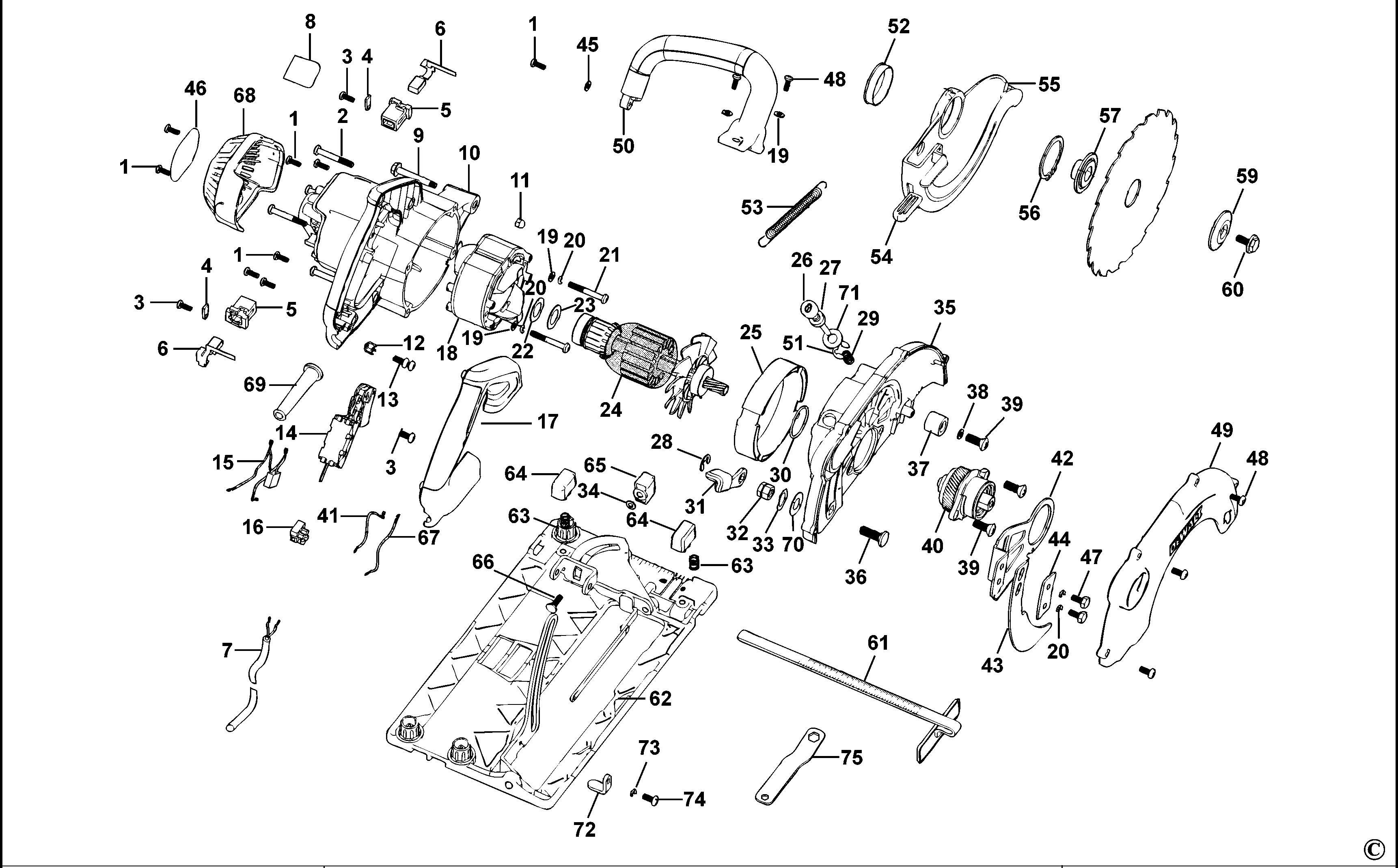

D23651 SCIE CIRCULAIRE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596861-00 | 8 | VIS | 4.2 x 19 | GB |  |
|
| 2 | 596862-00 | 4 | VIS | M5 x 55mm | GB | |
|
| 3 | 596863-00 | 3 | VIS | 4.2 x 9.5mm | GB | |
|
| 4 | 596864-00 | 2 | COLLIER | GB | |
||
| 5 | 596865-00 | 2 | PORTE-BALAIS | GB | |
||
| 6 | 596866-00 | 2 | BRUSH 230V | GB | |
||
| 7 | 597549-00 | 1 | JEU DE CORDONS | GB | |
||
| 8 | 1005712-01 | 1 | PLAQUE SIGNALETIQUE | GB | |
||
| 9 | 596869-00 | 1 | AXE | GB | |
||
| 10 | 596870-00 | 1 | CARTER DE MOTEUR | GB | |
||
| 11 | 596871-00 | 1 | ECROU | GB | |
||
| 12 | 596872-00 | 1 | COLLIER DE CORDON | GB | |
||
| 13 | 596873-00 | 2 | VIS | M4 x 12mm | GB | |
|
| 14 | 596874-00 | 1 | INTERRUPTEUR | GB | |||
| 15 | 596875-00 | 1 | S/E CONDENSATEUR | 230V | GB | |
|
| 16 | 596876-00 | 1 | BORNIER | GB | |
||
| 17 | 596877-00 | 1 | COUVERCLE DE POIGNEE | GB | |
||
| 18 | 596878-00 | 1 | FIELD 230V | GB | |
||
| 19 | 596879-00 | 4 | RONDELLE AVANT | 5mm | GB | |
|
| 20 | 596880-00 | 4 | RONDELLE ELASTIQUE | 5mm | GB | |
|
| 21 | 596881-00 | 2 | VIS | M5 x 55 | GB | |
|
| 22 | 596882-00 | 1 | RONDELLE ISOLANTE | GB | |
||
| 23 | 596883-00 | 1 | RONDELLE AVANT | GB | |
||
| 24 | 596884-00 | 1 | ARMATURE 230V | GB | |
||
| 25 | 596885-00 | 1 | CARTER | GB | |
||
| 26 | 596886-00 | 1 | BOUTON | GB | |
||
| 27 | 596887-00 | 1 | VERROU D'AXE | GB | |
||
| 28 | 596888-00 | 1 | PIECE DE RETENUE | GB | |
||
| 29 | 596889-00 | 1 | RESSORT | GB | |
||
| 30 | 596890-00 | 1 | JOINT TORIQUE | GB | |
||
| 31 | 596891-00 | 1 | LEVIER | GB | |
||
| 32 | 596892-00 | 1 | ECROU | GB | |
||
| 33 | 596893-00 | 1 | RONDELLE ELASTIQUE | GB | |
||
| 34 | 596894-00 | 1 | RONDELLE AVANT | 6mm | GB | |
|
| 35 | 596895-00 | 1 | CARTER D'ENGRENAGES | GB | |
||
| 36 | 596896-00 | 1 | BOULON | GB | |
||
| 37 | 596897-00 | 1 | SÉCURITÉ | GB | |
||
| 38 | 596898-00 | 1 | RONDELLE AVANT | GB | |
||
| 39 | 596899-00 | 3 | VIS | M4 x 12mm | GB | |
|
| 40 | 596900-00 | 1 | S/E PIGNON | GB | |
||
| 41 | 596901-00 | 1 | FIL CONDUCTEUR | GB | |
||
| 42 | 596902-00 | 1 | SUPPORT | GB | |
||
| 43 | 596903-00 | 1 | COUTEAU DIVISEUR | GB | |
||
| 44 | 596904-00 | 1 | COLLIER | GB | |
||
| 45 | 596905-00 | 1 | RONDELLE AVANT | 4mm | GB | |
|
| 46 | 596917-00 | 1 | ETIQUETTE MARQUE | GB | |
||
| 47 | 596906-00 | 2 | VIS | M5 x 16mm | GB | |
|
| 48 | 596907-00 | 6 | VIS | M5 x 14 | GB | |
|
| 49 | 596908-00 | 1 | PROTECTION | GB | |
||
| 50 | 596909-00 | 1 | POIGNEE A BOUCLE | GB | |
||
| 51 | 596910-00 | 1 | PIECE DE RETENUE | 9mm | GB | |
|
| 52 | 596911-00 | 1 | MANCHON | GB | |
||
| 53 | 596912-00 | 1 | RESSORT | GB | |
||
| 54 | 596913-00 | 1 | LEVIER | GB | |
||
| 55 | 596914-00 | 1 | PROTECTION INFERIEURE | GB | |
||
| 56 | 596915-00 | 1 | CIRCLIP | 42mm | GB | |
|
| 57 | 596916-00 | 1 | BRIDE INTERIEURE | GB | |
||
| 59 | 596918-00 | 1 | BRIDE EXTERNE | GB | |
||
| 60 | 596919-00 | 1 | BOULON DE LAME | GB | |
||
| 61 | 596920-00 | 1 | GUIDE RIPPAGE | GB | |
||
| 62 | 1005716-00 | 1 | S/E PATIN | GB | |
||
| 63 | 596922-00 | 1 | RESSORT | GB | |
||
| 64 | 596923-00 | 1 | SCREW WING | GB | |
||
| 65 | 596924-00 | 1 | ECROU PAPILLON | GB | |
||
| 66 | 596925-00 | 1 | VIS | GB | |
||
| 67 | 596926-00 | 1 | FIL CONDUCTEUR | GB | |
||
| 68 | 596927-00 | 1 | BOUCHON D'EXTREMITE | GB | |
||
| 69 | 596928-00 | 1 | PROTECTEUR DE CORDON | GB | |
||
| 70 | 596929-00 | 1 | RONDELLE AVANT | 8mm | GB | |
|
| 71 | 597544-00 | 1 | RONDELLE AVANT | GB | |
||
| 72 | 597545-00 | 1 | SUPPORT | GB | |
||
| 73 | 597546-00 | 1 | RONDELLE AVANT | 4mm | GB | |
|
| 74 | 597547-00 | 1 | VIS | M4 x 8mm | GB | |
|
| 75 | 597548-00 | 1 | CLE | GB | |
||
| 800 | 870889-03 | 1 | GRAISSE | RENOLIT PARAGON EP ½ - 20 GRAMS | 8 Grams | GB |  |
