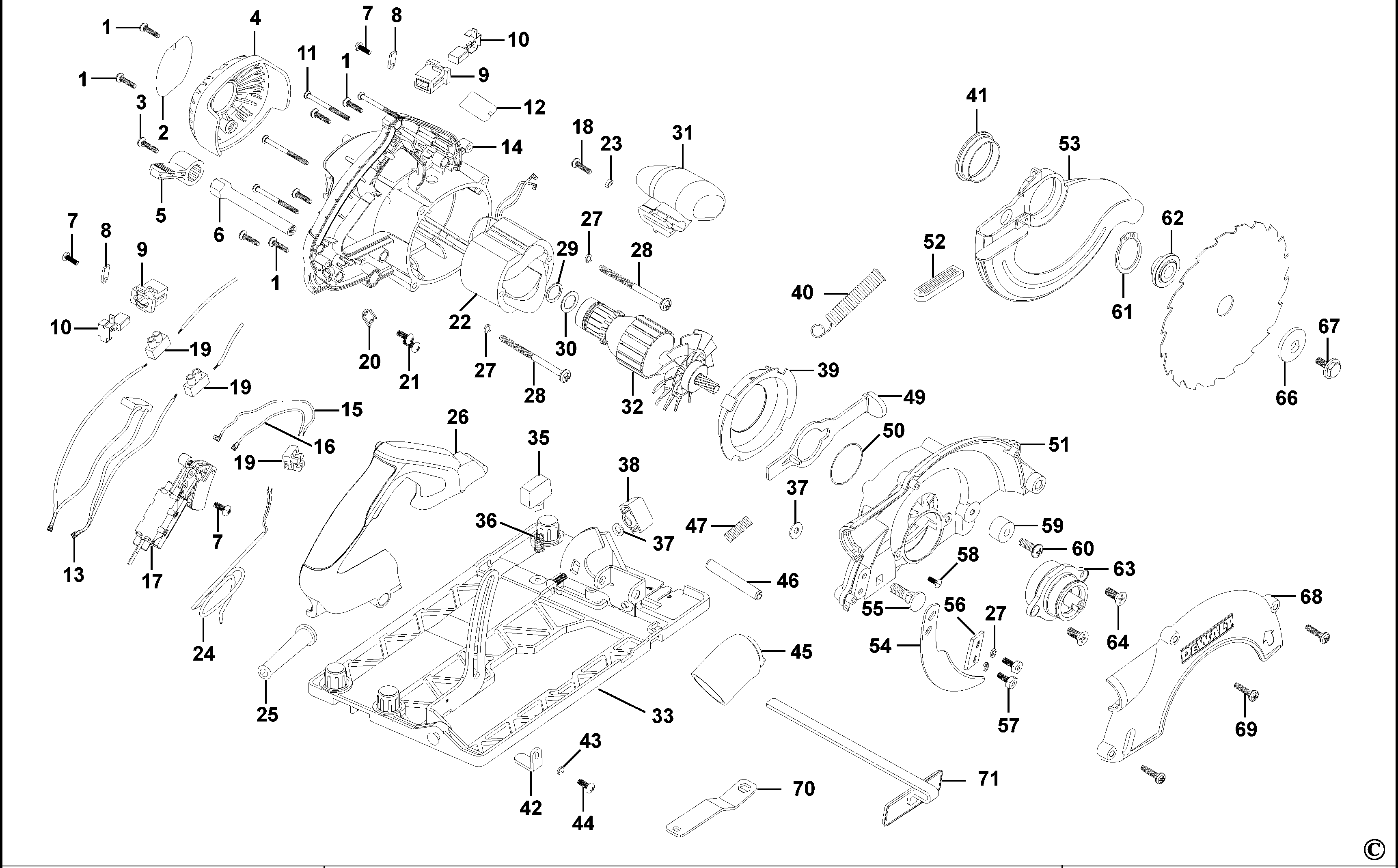

D23551 SCIE CIRCULAIRE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1002003-00 | 7 | VIS | M4 x 20mm | GB |  |
|
| 2 | 1002004-00 | 1 | ETIQUETTE MARQUE | GB | |
||
| 3 | 1002005-00 | 1 | VIS | GB | |
||
| 4 | 1002006-00 | 1 | BOUCHON D'EXTREMITE | GB | |
||
| 5 | 1002007-00 | 1 | LEVIER | GB | |
||
| 6 | 1002008-00 | 1 | GOUPILLE DE VERROUILLAGE | GB | |
||
| 7 | 596863-00 | 3 | VIS | 4.2 x 9.5mm | GB | |
|
| 8 | 1002009-00 | 2 | COLLIER | GB | |
||
| 9 | 1002010-00 | 2 | PORTE-BALAIS | GB | |
||
| 10 | 1002011-00 | 2 | BRUSH 230V | GB | |
||
| 11 | 596862-00 | 4 | VIS | M5 x 55mm | GB | |
|
| 12 | 1005719-01 | 1 | PLAQUE SIGNALETIQUE | GB | |
||
| 13 | 1002013-00 | 1 | CONDENSATEUR | GB | |
||
| 14 | 1005717-00 | 1 | CARTER DE MOTEUR | GB | |
||
| 15 | 1002015-00 | 1 | FIL CONDUCTEUR | GB | |
||
| 16 | 1002016-00 | 1 | FIL CONDUCTEUR | GB | |
||
| 17 | 1002017-00 | 1 | INTERRUPTEUR DE DEVERROUILLAGE | GB | |
||
| 18 | 1002018-00 | 1 | VIS | 4.2 x 32mm | GB | |
|
| 19 | 1002019-00 | 2 | BORNIER | GB | |
||
| 20 | 1002020-00 | 1 | COLLIER DE CORDON | GB | |
||
| 21 | 596873-00 | 2 | VIS | M4 x 12mm | GB | |
|
| 22 | 1002021-00 | 1 | FIELD 230V | GB | |
||
| 23 | 1002022-00 | 1 | RONDELLE AVANT | 4mm | GB | |
|
| 24 | 1002073-00 | 1 | JEU DE CORDONS | GB | |
||
| 25 | 1002024-00 | 1 | PROTECTEUR DE CORDON | GB | |
||
| 26 | 1005718-00 | 1 | POIGNEE ET COUVERCLE | GB | |
||
| 27 | 1002026-00 | 4 | RONDELLE ELASTIQUE | 5mm | GB | |
|
| 28 | 1002027-00 | 2 | VIS | M5 x 60mm | GB | |
|
| 29 | 1002028-00 | 1 | JOINT | GB | |
||
| 30 | 1002029-00 | 1 | RONDELLE AVANT | GB | |
||
| 31 | 1002030-00 | 1 | S/E POIGNEE | GB | |
||
| 32 | 1002031-00 | 1 | ARMATURE 230V | GB | |
||
| 33 | 1005723-00 | 1 | S/E PATIN | GB | |
||
| 34 | 1002033-00 | 1 | VIS | GB | |
||
| 35 | 1002034-00 | 1 | SCREW WING | GB | |
||
| 36 | 1002035-00 | 1 | RESSORT | GB | |
||
| 37 | 1002036-00 | 2 | RONDELLE AVANT | 6mm | GB | |
|
| 38 | 1002037-00 | 1 | ECROU PAPILLON | GB | |
||
| 39 | 1002038-00 | 1 | CARTER | GB | |
||
| 40 | 1002039-00 | 1 | RESSORT | GB | |
||
| 41 | 1002040-00 | 1 | INSERT | GB | |
||
| 42 | 1002041-00 | 1 | SUPPORT | GB | |
||
| 43 | 1002042-00 | 1 | RONDELLE AVANT | GB | |
||
| 44 | 597547-00 | 1 | VIS | M4 x 8mm | GB | |
|
| 45 | 1002043-00 | 1 | ADAPTATEUR | GB | |
||
| 46 | 1002044-00 | 1 | AXE | GB | |
||
| 47 | 1002045-00 | 1 | RESSORT | GB | |
||
| 49 | 1002047-00 | 1 | CLE | GB | |
||
| 50 | 1002048-00 | 1 | JOINT TORIQUE | GB | |
||
| 51 | 1002049-00 | 1 | CARTER D'ENGRENAGES | GB | |
||
| 52 | 1002050-00 | 1 | MANCHON | GB | |
||
| 53 | 1002051-00 | 1 | PROTECTION INFERIEURE | GB | |
||
| 54 | 1002052-00 | 1 | COUTEAU DIVISEUR | GB | |
||
| 55 | 1002053-00 | 1 | BOULON | GB | |
||
| 56 | 1002054-00 | 1 | PLAQUE | GB | |
||
| 57 | 1002055-00 | 2 | VIS | GB | |
||
| 58 | 1002056-00 | 1 | VIS | GB | |
||
| 59 | 1002057-00 | 1 | BUTEE CAOUTCHOUC | GB | |
||
| 60 | 1002058-00 | 1 | VIS | GB | |
||
| 61 | 1002059-00 | 1 | CIRCLIP | 38mm | GB | |
|
| 62 | 1002060-00 | 1 | BRIDE INTERIEURE | GB | |
||
| 63 | 1002061-00 | 1 | S/E PIGNON ET AXE | GB | |
||
| 64 | 596899-00 | 2 | VIS | M4 x 12mm | GB | |
|
| 66 | 1002062-00 | 1 | BRIDE EXTERNE | GB | |
||
| 67 | 1002063-00 | 1 | BOULON DE LAME | GB | |
||
| 68 | 1002064-00 | 1 | COUVERCLE DE PROTECTION | GB | |
||
| 69 | 1002065-00 | 3 | VIS | GB | |
||
| 70 | 1002066-00 | 1 | CLE SPECIALE | GB | |
||
| 71 | 1002067-00 | 1 | GUIDE RIPPAGE | GB | |
||
| 800 | 870889-03 | 1 | GRAISSE | RENOLIT PARAGON EP ½ - 20 GRAMS | 8 grams | GB |  |
