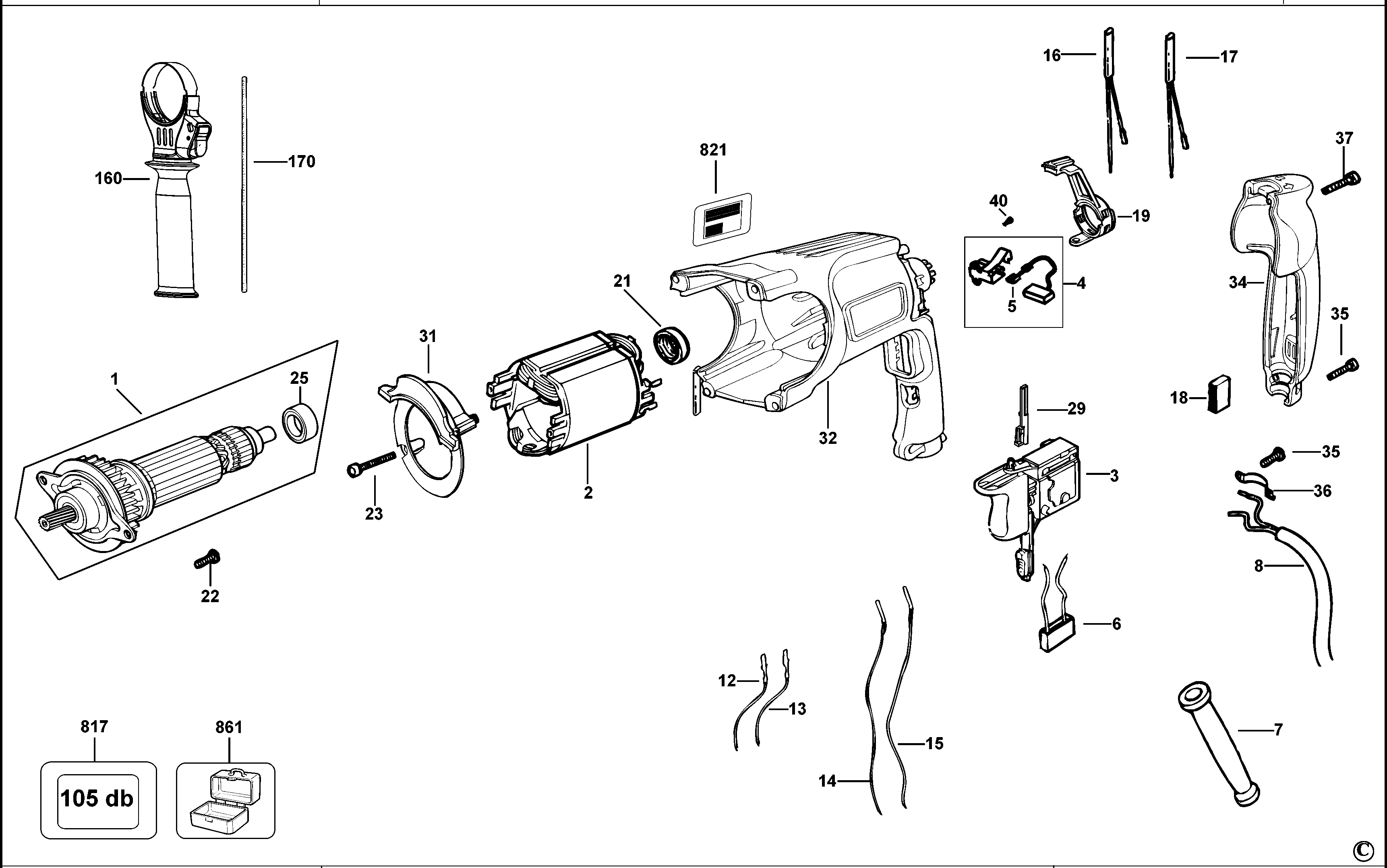

D25112K MARTEAU ROTATIF Type 2 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N081737 | 1 | ARMATURE 230V | B1 |  |
||
| 2 | 576690-05 | 1 | FIELD 230V | B1 |  |
||
| 3 | 583748-09 | 1 | INTERRUPTEUR | B1 | |
||
| 4 | 577830-02 | 2 | S/E PORTE-BALAIS | 230 Volt | up to 08 feb 2010 | B1 | |
| 4 | N028619 | 2 | S/E PORTE-BALAIS | from 08 feb 2010 | B1 | |
|
| 5 | 585475-00 | 1 | BRUSH PAIR 230V | up to 08 feb 2010 | B1 | |
|
| 5 | N058083 | 1 | BRUSH PAIR 230V | 230V | from 08 feb 2010 | B1 | |
| 7 | 584090-00 | 1 | PROTECTEUR DE CORDON | B1 | |||
| 8 | 582319-31 | 1 | JEU DE CORDONS | B1 | |
||
| 12 | 584304-00 | 1 | LEAD WHITE | B1 | |
||
| 13 | 584304-10 | 1 | LEAD BLUE | B1 | |
||
| 14 | 584304-04 | 1 | LEAD BLACK | B1 | |
||
| 15 | 584304-05 | 1 | LEAD VIOLET | B1 | |
||
| 16 | 584304-06 | 1 | LEAD RED | B1 | |
||
| 17 | 584304-07 | 1 | LEAD YELLOW | B1 | |
||
| 18 | 930026-01 | 1 | PARE-CHOCS | B1 | |
||
| 19 | 479818-00 | 1 | LEVIER | B1 | |
||
| 21 | 870052 | 1 | MANCHON | B1 | |
||
| 22 | N445171 | 2 | VIS | B1 | |
||
| 23 | 326519-03 | 4 | VIS | B1 | |
||
| 25 | 330003-19 | 1 | PALIER | B1 | |
||
| 29 | 584551-00 | 1 | INSERT | B1 | |
||
| 31 | 577826-00 | 1 | CARTER | B1 | |
||
| 32 | 577810-00 | 1 | BOITIER DE CHAMP | B1 | |
||
| 34 | 479817-00 | 1 | COUVERCLE DE POIGNEE | B1 | |
||
| 35 | 330065-06 | 4 | VIS | B1 | |
||
| 36 | 821070 | 1 | COLLIER DE CORDON | B1 | |
||
| 37 | 330065-09 | 1 | VIS | B1 | |
||
| 40 | 330065-25 | 4 | VIS | B1 | |
||
| 50 | 585480-00 | 1 | S/E ARBRE INTERMEDIAIRE | B1 | |
||
| 52 | 578271-00 | 1 | PLAQUE | B1 | |
||
| 53 | 579564-00 | 1 | SUPPORT | B1 | |
||
| 54 | 1006437-00 | 1 | SELECTEUR | B1 | |
||
| 55 | 584638-00 | 1 | JOINT TORIQUE | 14x2 | B1 | |
|
| 56 | 1006434-00 | 1 | BOUTON | B1 | |
||
| 57 | 324007-15 | 1 | VIS | M4 X 20; M4 X 25 | B1 | |
|
| 58 | 1006435-00 | 1 | GACHETTE | B1 | |
||
| 59 | 1008957-00 | 2 | RESSORT | B1 | |
||
| 60 | 582865-00 | 2 | FILTRE | B1 | |
||
| 62 | 583981-00 | 3 | VIS | 4x16 | B1 | |
|
| 70 | N031253 | 1 | S/E CARTER | B1 | |
||
| 71 | 330003-31 | 1 | PALIER | B1 | |
||
| 72 | 578229-00 | 1 | JOINT | B1 | |
||
| 73 | 577801-00 | 1 | BLOC PALIER | B1 | |
||
| 74 | 577802-00 | 2 | RONDELLE DE CALAGE | B1 | |
||
| 75 | 496246-00 | 1 | PISTON | B1 | |
||
| 76 | 579699-00 | 1 | JOINT TORIQUE | B1 | |
||
| 77 | 496245-00 | 1 | VERIN | B1 | |
||
| 78 | N042808 | 1 | COUSSINET DE PALIER | B1 | |
||
| 79 | 324006-15 | 3 | VIS | B1 | |
||
| 90 | 577793-00 | 1 | ATTACHE | B1 | |
||
| 91 | 584426-00 | 1 | COUSSINET | B1 | |
||
| 92 | 580990-00 | 1 | JOINT TORIQUE | B1 | |
||
| 93 | 577135-00 | 2 | JOINT TORIQUE | B1 | |
||
| 94 | 584425-00 | 1 | AMORTISSEUR | B1 | |
||
| 95 | 584424-00 | 1 | POUSSOIR | B1 | |
||
| 96 | 584423-00 | 1 | PALIER ET JOINT | B1 | |
||
| 97 | 577139-00 | 1 | JOINT | B1 | |
||
| 100 | N031251 | 1 | KIT DE LEVIER | B1 | |
||
| 110 | 577797-00 | 1 | RONDELLE AVANT | B1 | |||
| 111 | 577744-00 | 1 | JOINT TORIQUE | 25.5 X 2 | B1 | |
|
| 112 | 587482-00 | 1 | S/E EMBRAYAGE | B1 | |
||
| 113 | 579178-00 | 1 | RESSORT | B1 | |
||
| 114 | 584422-00 | 1 | S/E CYLINDRE | B1 | |
||
| 115 | 577814-00 | 1 | RONDELLE AVANT | B1 | |
||
| 116 | 330065-05 | 2 | VIS | B1 | |
||
| 117 | 580291-00 | 1 | DISP. DE BLOCAGE | B1 | |
||
| 118 | 586501-00 | 1 | S/E CARTER | 2 Mode | B1 | |
|
| 121 | 330065-28 | 4 | VIS | B1 | |
||
| 130 | 579212-00 | 1 | ANNEAU | B1 | |
||
| 132 | 871690 | 1 | RESSORT | B1 | |
||
| 133 | 578387-00 | 1 | RONDELLE AVANT | B1 | |
||
| 134 | 583890-00 | 1 | ROTULE | B1 | |
||
| 135 | N774198 | 1 | S/E TUBE | B1 | |
||
| 135 | N910599 | 1 | TUBE | B1 | |
||
| 136 | 323489-00 | 1 | BOUCHON | B1 | |
||
| 160 | 494661-00 | 1 | S/E POIGNEE LATERALE | B1 | |
||
| 170 | 495699-00 | 1 | BUTEE DE PROFONDEUR | B1 | |
||
| 800 | 870889-02 | 1 | GRAISSE | B1 | |
||
| 801 | 487130-04 | 1 | GRAISSE | GLK FLUID 249 NLGI 000 (10G SERVICE) | B1 | |
|
| 817 | 496620-00 | 1 | ETIQUETTE | B1 | |
||
| 821 | N045952 | 1 | PLAQUE SIGNALETIQUE | B1 | |
||
| 846 | N058085 | 1 | SERVICE KIT 230V | 230V | from 08 feb 2010 | B1 | |
| 846 | 585499-00 | 1 | SERVICE KIT 230V | up to 08 feb 2010 | B1 | |
|
| 861 | 577646-01 | 1 | BOITE DE KIT | B1 |
