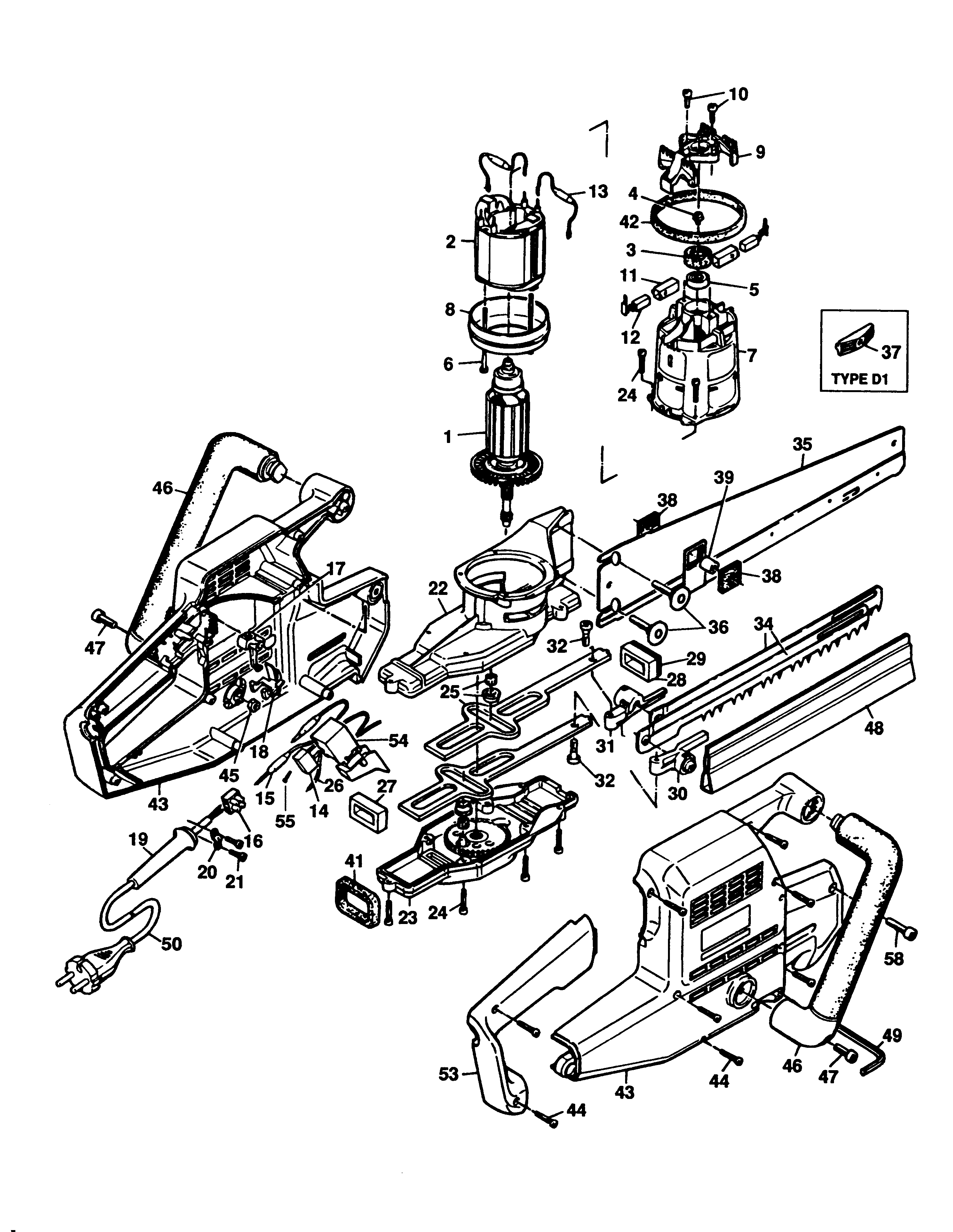

BD380 SCIE UNIVERSELLE Type 1-2 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 369453-04 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 373007-15 | 1 | FIELD 230V | GB | |
||
| 3 | 911897 | 1 | SUPPORT | GB | |
||
| 4 | 322491 | 1 | VIS | GB | |
||
| 5 | 330003-19 | 1 | PALIER | GB |  |
||
| 6 | 916231 | 2 | VIS | GB | |
||
| 7 | 322330 | 1 | BOITIER DE CHAMP | GB | |
||
| 8 | 916128 | 1 | CARTER | GB | |
||
| 9 | 322894 | 1 | PONT | GB | |
||
| 10 | 894748 | 2 | JOINT TORIQUE | GB | |
||
| 11 | 321337 | 2 | PORTE-BALAIS | GB | |
||
| 12 | 322950 | 2 | BRUSH 230V | GB | |
||
| 13 | 917912-07 | 2 | S/E ENRICHISSEUR | GB | |
||
| 14 | 321384 | 1 | CONDENSATEUR | GB | |
||
| 17 | 322369-00 | 1 | LEVIER | GB | |
||
| 18 | 323136 | 1 | LEVIER | GB | |
||
| 19 | 859013 | 1 | PROTECTEUR | GB | |
||
| 20 | 821070 | 1 | COLLIER DE CORDON | GB | |
||
| 21 | D911324 | 2 | VIS | GB | |
||
| 22 | 324817-00 | 1 | CARTER D'ENGRENAGES | TYPE 2 | GB | |
|
| 23 | 322667 | 1 | CARTER D'ENGRENAGES | GB | |
||
| 24 | 810091-00 | 11 | SCREW.SPECIAL | POST WEEK 9449 | GB | |
|
| 24 | 320601-02 | 11 | VIS | PRE WEEK 9449 | GB | |
|
| 25 | 1008559-01 | 1 | KIT DE REPARATION | GB | |
||
| 26 | 878756 | 2 | LEAD 200MM BLACK | GB | |
||
| 27 | 322377 | 1 | PALIER | GB | |
||
| 29 | 325990-00 | 1 | JOINT | GB | |
||
| 30 | 368469-00 | 1 | S/E COLLIER C. DROIT | GB | |
||
| 31 | 368470-00 | 1 | S/E COLLIER C. GAUCHE | GB | |
||
| 32 | 495253-00 | 2 | KIT DE REPARATION | GB | |
||
| 35 | 324770-00 | 1 | BARRE | TYPE 2 | GB | |
|
| 35 | 324770-00 | 1 | BARRE | TYPE 1 | GB | |
|
| 36 | 324776-00 | 2 | VIS | TYPE 2 | GB | |
|
| 36 | 322928 | 2 | VIS | TYPE 1 | GB | |
|
| 37 | 324904-49 | 2 | ENTRETOISE | TYPE 1 | GB | |
|
| 38 | 322661 | 2 | INSERT | GB | |
||
| 39 | 322662 | 1 | ENTRETOISE | GB | |
||
| 41 | 322659 | 1 | INSERT | GB | |
||
| 42 | 322660 | 1 | INSERT | GB | |
||
| 43 | 325602-04 | 1 | COQUILLE | GB | |
||
| 44 | 911325 | 9 | VIS | GB | |
||
| 45 | 911018 | 2 | ECROU | GB | |
||
| 46 | 322370 | 2 | HANDLE | GB | |
||
| 47 | 911281 | 2 | VIS | GB | |||
| 48 | 322763-00 | 1 | PROTECTION | GB | |
||
| 49 | 098000-11 | 1 | CLÉ HEXAGONALE | GB | |
||
| 50 | 330060-45 | 1 | CORDSET (M/PLUG) | GB | |
||
| 53 | 322363-00 | 1 | COUVERCLE | GB | |
||
| 54 | 326568-00 | 1 | INTERRUPTEUR | GB | |
||
| 55 | 911026 | 4 | VIS | GB | |
||
| 58 | 322928 | 1 | VIS | GB | |
