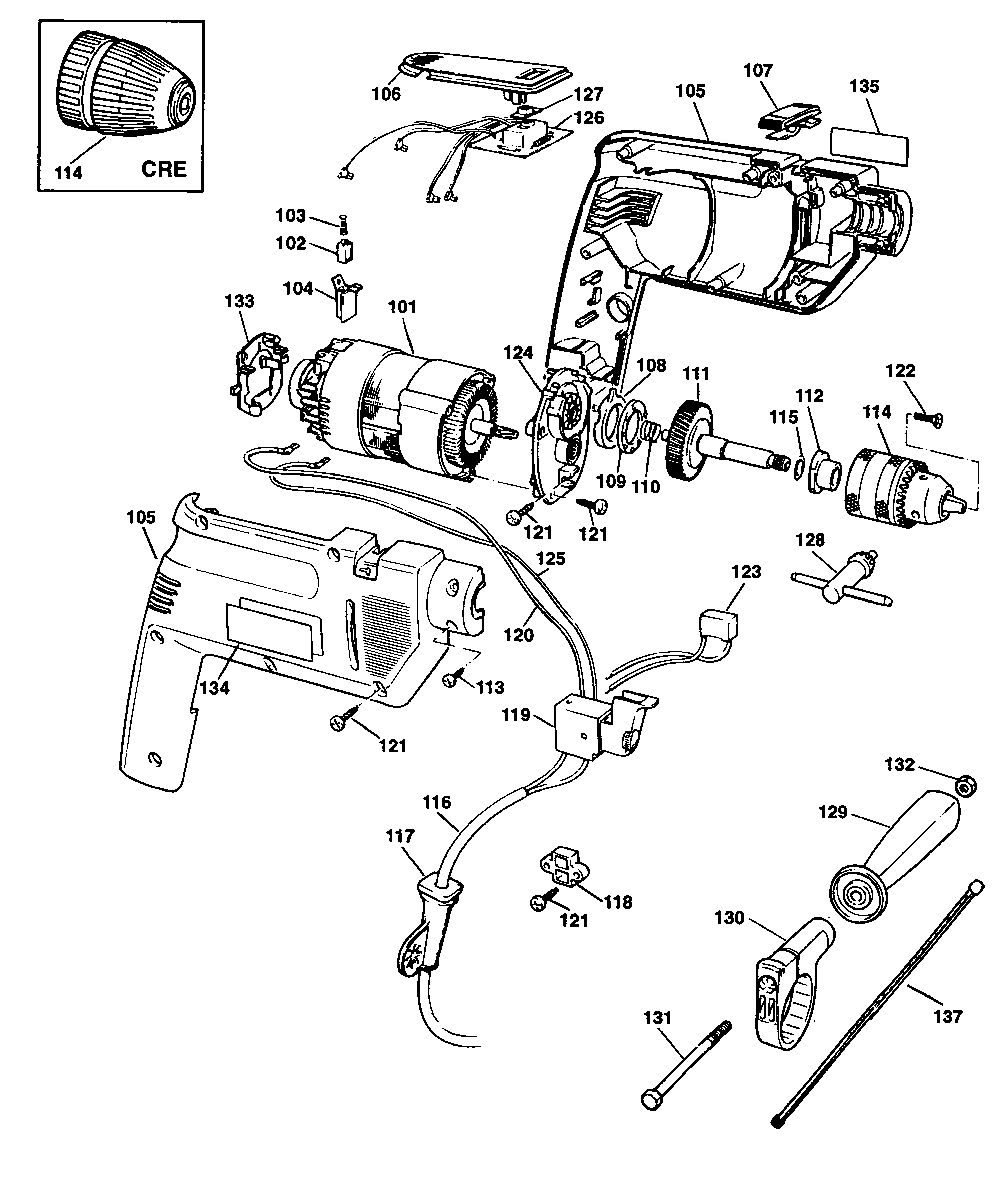

KD560CRE MARTEAU PERFORATEUR Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004762-75 | 1 | DESSUS | GB |  |
||
| 3 | 243H-027 | 1 | Pot d`échappement | GB | |
||
| 4 | 1003323-00 | 1 | ATTACHE DE RESSORT | GB | |||
| 6 | 131-50 | 1 | SOUPAPE | GB | |||
| 7 | 1004762-07 | 1 | COLLIER | GB |  |
||
| 8 | 569452-00 | 1 | CHAMP | GB | |
||
| 9 | 231XP-A703 | 1 | S/E KIT | GB | |
||
| 10 | AD527-21 | 1 | CYLINDRE | GB | |
||
| 15 | 091516-01 | 2 | HEX NUT | GB | |||
| 16 | 569390-00 | 1 | VIS | ST4.2 X 8 | GB | ||
| 17 | 569408-00 | 1 | ANNEAU | GB | |
||
| 19 | 381056-00 | 1 | FIELD 115V | GB | |
||
| 20 | 1003319-00 | 2 | AXE | GB | |||
| 21 | 5140110-48 | 4 | ARBOR ASSEMBLY | GB | |||
| 23 | 569021-00 | 1 | CLÉ HEXAGONALE | 5 mm | GB | |
|
| 24 | 1003088-00 | 1 | PALIER | 608 | GB | |
|
| 25 | 569020-00 | 1 | CLE | GB | |
||
| 26 | 384613-01 | 4 | BRUSH 230V | GB | |
||
| 32 | 1008355-00 | 1 | AMORTISSEUR | GB | |
||
| 36 | 883115 | 1 | CALE D'EPAISSEUR | GB | |
||
| 37 | 6125-00 | 7 | VIS | GB | |||
| 42 | 568015-00 | 1 | CONDENSATEUR | GB | |
||
| 43 | 597754-00 | 4 | VIS | GB | |
||
| 44 | 405-159 | 1 | SOUPAPE | GB | |
||
| 45 | 329471-15 | 1 | JEU DE CORDONS | GB | |
||
| 46 | AW825H-20 | 1 | CAGE | GB | |||
| 47 | 1004717-83 | 1 | S/E DOUILLE | GB | |
||
| 48 | 392227-00 | 2 | MAGASIN | LOWER, ANGLED | GB | ||
| 49 | AG200-05 | 2 | TIGE DE SOUPAPE | GB | |
||
| 50 | 1004718-33 | 1 | COUVERCLE | GB | |
||
| 51 | 90551305 | 1 | PLAQUE SIGNALETIQUE | GB | |||
| 52 | 1004718-32 | 1 | S/E COUVERCLE | GB | |
||
| 53 | 1004512-31 | 1 | PROTECTION | GB | |
||
| 54 | 1004747-74 | 1 | ISOLATEUR | GB | |
||
| 55 | SC801-10 | 1 | BASE | GB | |
||
| 56 | 1004747-37 | 1 | BUSE | GB | |
||
| 58 | 305T-012 | 1 | CAGE | GB | |
||
| 60 | 1004747-60 | 1 | TUBE | GB | |
||
| 61 | N380212 | 3 | BOITE DE KIT | GB | |||
| 62 | 654179-00 | 1 | CONDENSATEUR | GB | |
||
| 63 | 2135-53 | 1 | ROTOR | GB | |||
| 64 | 623917-00 | 1 | ARMATURE 230V | GB | |
||
| 65 | 286438-00 | 3 | SUPPORT | GB | |||
| 66 | 629582-01 | 1 | LOGEMENT DE PALIER | GB | |||
| 67 | 569396-00 | 1 | RESSORT | GB | |||
| 68 | 605040-69 | 1 | PALIER | GB | |
||
| 70 | 1004759-40 | 1 | COUVERCLE | GB | |
||
| 71 | AR250-04 | 1 | DEFLECTEUR | GB | |
||
| 75 | 1004747-34 | 4 | FLEXIBLE | FUEL | GB | |
|
| 76 | 642122-04 | 2 | BRAS | INCL 30,36,109,111 | GB | ||
| 77 | 153460-05 | 1 | VIS | GB | |
||
| 78 | AG1427 | 1 | CLE SPECIALE | GB | |||
| 79 | 640456-03 | 1 | TABLE TOURNANTE | GB | |||
| 80 | AGQP50AM-28 | 1 | TETE | GB | |
||
| 81 | 2131-A329 | 1 | SOUPAPE | GB | |||
| 82 | 305H-041 | 1 | CARRE | GB | |||
| 83 | 1004746-75 | 1 | BOUTON | Valve | GB | |
|
| 85 | SC100-26 | 3 | DEFLECTEUR | GB | |
||
| 90 | 60031 | 1 | PIECE DE RETENUE | GB | |
||
| 91 | ADQP380-03 | 1 | ENTREE | GB | |
||
| 92 | AG200-04 | 1 | LEVIER | GB | |
||
| 93 | AG200-06 | 2 | SOUPAPE | GB | |
||
| 94 | 396992-01 | 2 | BOUTON | GB | |
||
| 95 | AGQP50M-22 | 2 | AXE | GB | |
||
| 97 | 142940-00 | 4 | VIS | GB | |
||
| 98 | 231B-A626 | 2 | ENSEMBLE ENCLUME | GB | |||
| 99 | ADG200-27 | 2 | JEU DE CLES | GB | |
||
| 100 | AW5500-D727 | 2 | S/E BOITIER | GB | |||
| 101 | 376913-03 | 1 | S/E MOTEUR | GB | |
||
| 102 | 376143 | 2 | BALAI | GB | |
||
| 103 | 847709 | 2 | RESSORT | GB | |
||
| 104 | 812738 | 2 | PORTE-BALAIS | GB | |
||
| 105 | 369035 | 1 | COQUILLE | GB | |
||
| 105 | 2130-D1093 | 1 | GACHETTE | GB | |||
| 106 | 798017-01 | 1 | INSERT | GB | |
||
| 108 | 812962 | 1 | ANNEAU | GB | |
||
| 109 | 892261 | 1 | PALIER | GB | |
||
| 110 | 821986 | 1 | RESSORT | GB | |
||
| 111 | 747323-49 | 1 | S/E AXE | GB | |
||
| 112 | 812973 | 1 | PALIER | GB | |
||
| 112 | 243H-02 | 2 | Pot d`échappement | GB | |
||
| 113 | 805035 | 2 | VIS | GB | |
||
| 113 | ADPC380-28 | 1 | ARBRE | GB | |
||
| 114 | 479902-00 | 1 | S/E MANDRIN | KD150CRE | GB | ||
| 114 | 479902-00 | 1 | S/E MANDRIN | KD154CRE | GB | ||
| 114 | 479902-00 | 1 | S/E MANDRIN | KD560CRE | GB | ||
| 114 | 330033-23 | 1 | CHUCK 13MM | KD150RE | GB | |
|
| 114 | 330033-23 | 1 | CHUCK 13MM | KD560RE | GB | |
|
| 114 | 330033-23 | 1 | CHUCK 13MM | KD154RE | GB | |
|
| 114 | 330033-23 | 1 | CHUCK 13MM | KD550RE | GB | |
|
| 114 | AGQP50EM-39 | 1 | SOUPAPE | GB | |
||
| 115 | 812979 | 1 | RONDELLE D'ARRET | GB | |
||
| 115 | AGQP50EM-30 | 2 | ARBRE | GB | |
||
| 116 | 330060-53 | 1 | JEU DE CORDONS | GB | |||
| 116 | 1003332-00 | 1 | CONDENSATEUR | GB | |||
| 117 | 770236 | 1 | PROTECTEUR | GB | |
||
| 118 | 994808 | 1 | SERRE CABLE | GB | |
||
| 119 | 372976-49 | 1 | KIT D'INTERRUPTEUR | Capax | GB | |
|
| 120 | 822216 | 1 | CONDUCTEUR | GB | |
||
| 120 | ADPC120-10 | 3 | SUPPORT | GB | |
||
| 121 | 809961 | 11 | VIS | GB | |
||
| 121 | 6010391-16 | 1 | PLAQUE | GB | |||
| 122 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 122 | AW135-16 | 1 | CAME | GB | |
||
| 123 | 793192 | 1 | S/E CONDENSATEUR | GB | |
||
| 124 | 823782 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | GB | |
||
| 124 | AW135-34 | 1 | DIFFUSEUR | GB | |
||
| 125 | 830847 | 1 | S/E CONDUCTEUR | GB | |
||
| 125 | AW135-29 | 1 | BANDE | GB | |
||
| 126 | 794724 | 1 | INTERRUPTEUR D'INVERSION | GB | |
||
| 127 | 795209 | 1 | ACTIONNEUR | GB | |
||
| 128 | 330034-07 | 1 | CLE DE MANDRIN | KD150RE | GB | |
|
| 128 | 330034-07 | 1 | CLE DE MANDRIN | KD560RE | GB | |
|
| 128 | 330034-07 | 1 | CLE DE MANDRIN | KD154RE | GB | |
|
| 128 | 330034-07 | 1 | CLE DE MANDRIN | KD550RE | GB | |
|
| 129 | 808402 | 1 | POIGNEE LATERALE | GB | |
||
| 130 | 808405 | 1 | COLLIER | GB | |
||
| 130 | AW135-24 | 1 | ROTOR | GB | |
||
| 131 | 813918 | 1 | VIS | GB | |
||
| 132 | 896369 | 1 | ECROU | GB | |
||
| 132 | AGQP100-22 | 1 | AXE | GB | |
||
| 133 | 822789 | 1 | COUVERCLE | GB | |
||
| 133 | 1002066-00 | 1 | CLE SPECIALE | GB | |
||
| 134 | 1004752-36 | 1 | SUPPORT | GB | |
||
| 135 | 368975-01 | 1 | ETIQUETTE MARQUE | KD154CRE | GB | |
|
| 135 | 368975-03 | 1 | ETIQUETTE MARQUE | KD560CRE | GB | |
|
| 135 | 368975-06 | 1 | ETIQUETTE MARQUE | KD150CRE | GB | ||
| 135 | 368975-02 | 1 | ETIQUETTE MARQUE | KD154RE | GB | |
|
| 135 | 368975-04 | 1 | ETIQUETTE MARQUE | KD560RE | GB | |
|
| 135 | 368975-05 | 1 | ETIQUETTE MARQUE | KD550RE | GB | |
|
| 135 | 1004714-32 | 1 | S/E DOUILLE | GB | |
||
| 136 | AGQP100-55 | 1 | FEUTRE | GB | |
||
| 137 | 808401 | 1 | BUTEE DE PROFONDEUR | GB | |
||
| 137 | N380212 | 5 | BOITE DE KIT | GB | |||
| 138 | AW138-06 | 1 | LEVIER | GB | |
||
| 139 | AGQP50M-18 | 1 | CYLINDRE | GB | |
||
| 140 | N041839 | 1 | CHAINE | P8 X 40 | GB | |
|
| 150 | 394575-00 | 1 | GRINDING WHEEL | DW4514, 4 1/2 IN | GB | ||
| 800 | 5104912-06 | 1 | RALLONGE | GB | |
||
| 816 | 569454-00 | 1 | PALIER | 607 | GB | |
|
| 821 | 568417-00 | 1 | ESSIEU | GB | |
||
| 836 | 656058-00 | 1 | BOUCHON | GB | |||
| 837 | 477191-00 | 1 | COUSSINET | GB | |
||
| 838 | 477191-00 | 1 | COUSSINET | GB | |
||
| 839 | N026163-00 | 1 | PLAQUE DE SUPPORT | GB | |
||
| 840 | 492829-00 | 1 | S/E MOTEUR | 18V | GB | |
|
| 861 | 1004755-11 | 1 | JOINT STATIQUE | GB | |
||
| 866 | 1002025-00 | 1 | COUVERCLE DE POIGNEE | DC352KB | GB | |
|
| 870 | 584421-00 | 1 | VERIN | DC352KB | GB | |
