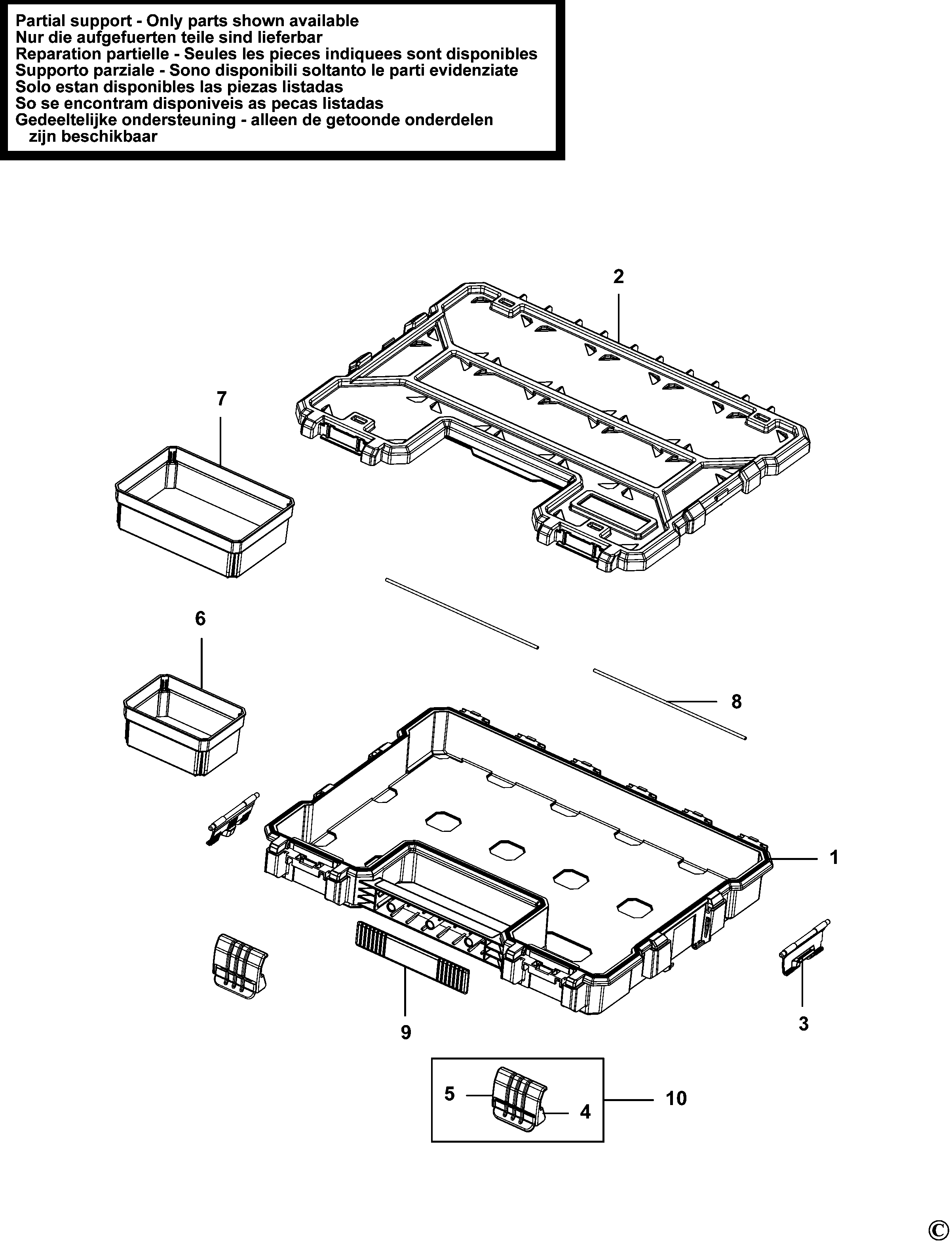

1-97-519 ORGANISER Type 1 | Drawings
Documents
Lista delov
Poglejte v spustni meni, ker imajo lahko nekateri izdelki več risb
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | XJ | |||
| 1 | 869322-00 | 1 | GUARD SA | XJ | |||
| 2 | H1200316611 | 1 | LID | XJ | |||
| 2 | 326960-00 | 1 | SERVICE BRUSH | 230V - LED | XJ | ||
| 3 | H1500076002 | 2 | LATCH | XJ | |||
| 3 | 327148-02 | 1 | BRUSH PAIR 115V | XJ | |||
| 4 | H2600642002 | 2 | LATCH | XJ | |||
| 5 | H2600642002 | 2 | LATCH | XJ | |||
| 5 | N036977 | 2 | GUARD | XJ | |||
| 6 | H1200321150 | 8 | CUP | XJ | |||
| 6 | 860077-00 | 2 | RETAINER | XJ | |||
| 7 | H1200322150 | 2 | CUP | XJ | |||
| 7 | 1347401 | 2 | SPRING | DELTA | XJ | ||
| 8 | P910782 | 2 | HINGE | XJ | |||
| 8 | 862047-00 | 3 | NUT | XJ | |||
| 9 | H2500517002 | 1 | COVER GREY | XJ | |||
| 9 | 726222 | 1 | ADAPTOR | XJ | |||
| 10 | H2600642002 | 1 | LATCH | XJ | |||
| 11 | 576485-02 | 1 | CLAMSHELL SET | XJ | |||
| 12 | 579758-02 | 2 | FIELD 230V | XJ | |||
| 14 | 374998-01 | 7 | CARRIAGE | XJ | |||
| 17 | 860084-11 | 4 | SCREW | XJ | |||
| 18 | 327148-03 | 4 | BRUSH PAIR 120V | XJ | |||
| 19 | 241706-00 | 4 | WIRING DIAGRAM | XJ | |||
| 20 | 869231-04 | 4 | FENCE SA | XJ | |||
| 25 | 869089-01 | 1 | GUARD COVER | XJ | |||
| 26 | 322129 | 1 | FLANGE | XJ | |||
| 29 | 869322-01 | 1 | GUARD 12" | XJ | |||
| 33 | 868632-00 | 1 | CABLE & PLUG | XJ | |||
| 34 | 817096 | 1 | ADJUSTER BLOCK | XJ | |||
| 35 | 352313 | 2 | GUIDE BLOCK | XJ | |||
| 36 | 1004266-00 | 1 | REPAIR KIT,HOUSING | NANO-EURO | XJ | ||
| 37 | 869064-01 | 1 | CABLE CLAMP | XJ | |||
| 39 | 742152 | 1 | HOUSING LH | XJ | |||
| 41 | 869117-01 | 1 | HANDLE | XJ | |||
| 43 | 329941-03 | 1 | GEARCASE SA | XJ | |||
| 44 | N045265 | 2 | GUARD | XJ | |||
| 45 | 869181-01 | 1 | WRENCH SPECIAL | XJ | |||
| 53 | 584558-01 | 2 | HOLDER TOOL | XJ | |||
| 54 | 726242 | 1 | TOOL REST | XJ | |||
| 55 | 577708-01 | 2 | COVER-TOP | XJ |
