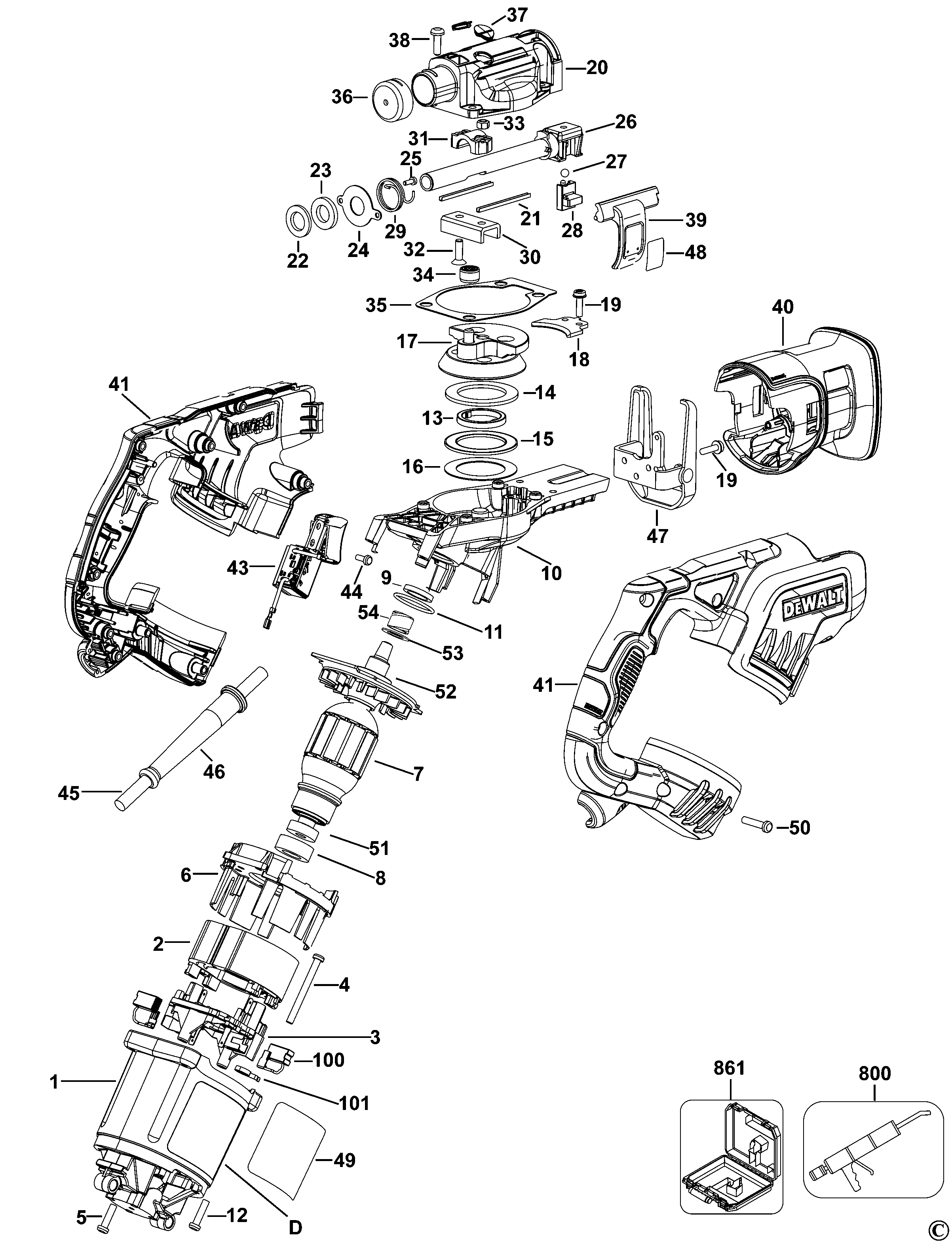

DWE357 RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N115655 | 1 | FIELDCASE | A9 | |||
| 2 | 448719-81SV | 1 | FIELD 230V | A9 | |||
| 3 | N159216 | 1 | BRUSH PLATE SA | F75F12 | A9 | ||
| 4 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | A9 | ||
| 5 | 330019-32 | 2 | SCREW | A9 | |||
| 6 | N115654 | 1 | BAFFLE FAN | A9 | |||
| 7 | N195828 | 1 | ARMATURE SA | PKG'D N132622 | A9 | ||
| 8 | 694432 | 1 | HOLDER BEARING | A9 | |||
| 9 | N143636 | 1 | FELT SEAL | A9 | |||
| 10 | N195818 | 1 | GEARCASE SA | PKG'D N115638 | A9 | ||
| 11 | N129171 | 1 | O RING | A9 | |||
| 12 | N130874 | 4 | SCREW | A9 | |||
| 13 | N143177 | 1 | SPACER | A9 | |||
| 14 | N124072 | 1 | WASHER THRUST | A9 | |||
| 15 | N115646 | 1 | THRUST BEARING | A9 | |||
| 16 | N115647 | 1 | WASHER THRUST | A9 | |||
| 17 | N195823 | 1 | GEAR SA | PKG'D N115643 | A9 | ||
| 18 | N115642 | 1 | THRUST PLATE | A9 | |||
| 19 | 142940-00 | 5 | SCREW | A9 | |||
| 20 | N195829 | 1 | GEARCASE COVER SA | A9 | |||
| 21 | 621979-00 | 2 | STRIP | A9 | |||
| 22 | 618733-00 | 1 | SEAL | A9 | |||
| 23 | 618477-00 | 1 | FELT SEAL | A9 | |||
| 24 | N020720 | 1 | COVERPLATE | A9 | |||
| 25 | 330045-43 | 1 | SCREW | A9 | |||
| 26 | N026647 | 1 | SHAFT SA | A9 | |||
| 27 | 000903-00 | 1 | BALL | A9 | |||
| 28 | 622647-00 | 1 | SLIDER | <=2016 WK09 | A9 | ||
| 28 | N252639 | 1 | SLIDER | >2016 WK09 | A9 | ||
| 29 | 622659-00 | 1 | SPRING TORSION | <=2016 WK09 | A9 | ||
| 29 | N426742 | 1 | SPRING | >2016 WK09 | A9 | ||
| 30 | 658115-00 | 1 | YOKE | A9 | |||
| 31 | 617000-00 | 1 | SADDLE | A9 | |||
| 32 | N191614 | 2 | SCREW | A9 | |||
| 33 | N191590 | 1 | LOCK NUT | A9 | |||
| 34 | N021857 | 1 | BEARING | A9 | |||
| 35 | N115641 | 1 | GASKET | A9 | |||
| 36 | N115637 | 1 | CAP | A9 | |||
| 37 | N131037 | 1 | COVER | A9 | |||
| 38 | 144457-02 | 4 | SCREW | A9 | |||
| 39 | N115631 | 1 | LEVER SA | A9 | |||
| 40 | N115626 | 1 | BOOT | A9 | |||
| 41 | N115623 | 1 | CLAMSHELL SET | A9 | |||
| 43 | N209032 | 1 | SWITCH SA | A9 | |||
| 44 | 330019-01 | 1 | SCREW | A9 | |||
| 45 | N298280 | 1 | CORDSET | -A9 | A9 | ||
| 46 | 330005-01 | 1 | CORD PROTECTOR | A9 | |||
| 47 | N226256 | 1 | SHOE SA | A9 | |||
| 48 | N145237 | 1 | LABEL | BLADE RELEASE | A9 | ||
| 49 | N279263 | 1 | RATING LABEL | DWE357K-A901 | A9 | ||
| 50 | 330019-13 | 9 | SCREW | M4X19 T20 | A9 | ||
| 51 | 330003-05 | 1 | BEARING | A9 | |||
| 52 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | A9 | ||
| 53 | N166858 | 1 | WASHER FELT | A9 | |||
| 54 | N172838 | 1 | COLLAR | A9 | |||
| 100 | 5140133-30 | 1 | BRUSH PAIR 230V | 230V | A9 | ||
| 101 | 383387-00 | 2 | BRUSH SPRING | A9 | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | A9 | ||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | A9 | ||
| 800 | 93488-00 | 1 | GREASE | A9 | |||
| 861 | N152704 | 1 | KITBOX | A9 |
